Industrial Light
ADARE
ADARE is a industrial light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 6 article codes under this family, including L05006, L05007, L05008. For L05006, published values include power: 60W; colour temperature: 4000K, 5000K, 6500K; IP rating: IP65; dimensions: Ø240x176mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ADARE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L05006 | Wattage60W | CCT4000K, 5000K, 6500K | IPIP65 | DimensionsØ240x176mm | Cut-outNot published |
| L05007 | WattageWATTAGE SWITCHABLE/90W/120W/150W | CCT4000K/5000K/6500K | IPIP65 | DimensionsØ300x186mm | Cut-outNot published |
| L05008 | WattageWATTAGE SWITCHABLE/110W/150W/200W | CCT4000K/5000K/6500K | IPIP65 | DimensionsØ300x186mm | Cut-outNot published |

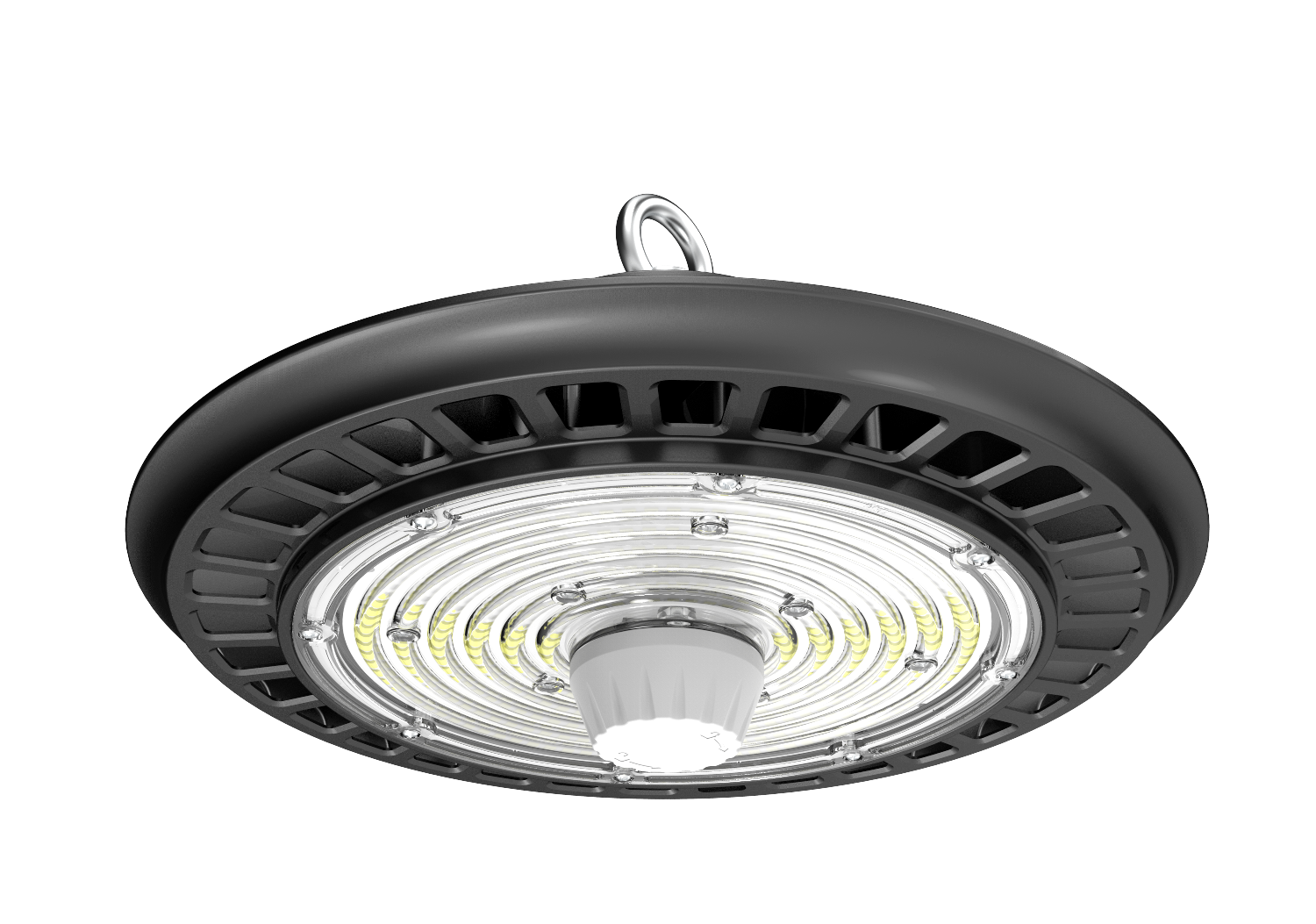

| L05009 | WattageWATTAGE SWITCHABLE/60W/80W/100W | CCT4000K/5000K/6500K | IPIP65 | DimensionsØ240x176mm | Cut-outNot published |
| L05010 | WattageWATTAGE SWITCHABLE/90W/120W/150W | CCT4000K/5000K/6500K | IPIP65 | DimensionsØ300x186mm | Cut-outNot published |
| L05011 | WattageWATTAGE SWITCHABLE/110W/150W/200W | CCT4000K/5000K/6500K | IPIP65 | DimensionsØ300x186mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø240x176mm · Ø300x186mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 60W · WATTAGE SWITCHABLE/60W/80W/100W · WATTAGE SWITCHABLE/90W/120W/150W · WATTAGE SWITCHABLE/110W/150W/200W |
| Lumen output | 9900LM/12800LM/15000LM · 14850LM/19200LM/22500LM · 18150LM/24000LM/30000LM · 11100LM/14400LM/17500LM +2 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 90° |
| Colour temperature | 4000K · 5000K · 6500K |
| CRI Ra | 70 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-277VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L05006. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L05006
Ø240x176mm
Specifications
At a Glance
60–110W
Power Range
1 options
Beam: 60°
3 CCT
4000K, 5000K, 6500K
CRI 70
Colour Rendering
IP65
Protection Rating
2 sizes
Ø240x176mm, Ø300x186mm
Configure your product
L05006
Order code
Listed configurationL05006.765.03.90.0DIM
6 listed configurations · availability requires confirmation
