ALEXIS
Application inspiration · not a project reference
ALEXIS is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
ALEXIS
ALEXIS is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 3 article codes under this family, including LB4316, LB4317, LB4318. For LB4316, published values include power: 5W; IP rating: IP54; dimensions: 140x140x65mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ALEXIS articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB4316 | Wattage5W | CCTNot published | IPIP54 | Dimensions140x140x65mm | Cut-outNot published |
| LB4317 | Wattage9.8W | CCT3100K | IPIP54 | Dimensions220x220mm | Cut-outNot published |

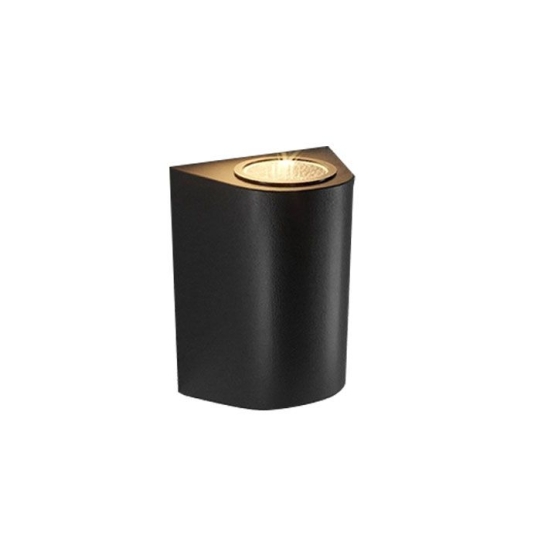

| LB4318 | Wattage16.2W | CCT3100K | IPIP54 | Dimensions300x300mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 140x140x65mm · 220x220mm · 300x300mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 9.8W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 107° · 116° · 115° · DIFFUSED |
| Colour temperature | 2900K · 3100K · 3000K · 2900-3100K |
| CRI Ra | Not published — technical review required |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Not published — technical review required |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
6 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4317. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4317
220x220mm
Specifications
At a Glance
5–16.2W
Power Range
4 options
Beam: 107°, 110°, 115°, 116°
3 CCT
2900K, 3000K, 3100K
IP54
Protection Rating
3 sizes
140x140x65mm, 220x220mm, 300x300mm
Configure your product
LB4317
Order code
Listed configurationLB4317.W.831.PGY.116
2 listed configurations · availability requires confirmation
