Lumi Outdoor
ALFIO
Application inspiration · not a project reference
ALFIO is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Bollard Light
ALFIO
ALFIO is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 11 article codes under this family, including LB1609, LB1763, LB1764. For LB1609, published values include power: 9W; colour temperature: 4000K; IP rating: IP54; dimensions: 110x110x650mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ALFIO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

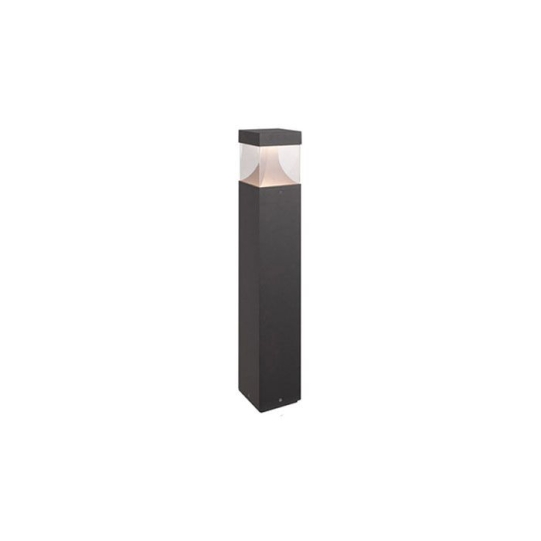

| LB1609 | Wattage9W | CCT4000K | IPIP54 | Dimensions110x110x650mm | Cut-outNot published |
| LB1763 | WattageNot published | CCT6000K | IPNot published | Dimensions100x100x680mm | Cut-outNot published |
| LB1764 | WattageNot published | CCT3000K | IPNot published | Dimensions100x100x380mm | Cut-outNot published |
| LB1766 | WattageNot published | CCT3000K | IPNot published | DimensionsØ90x680mm | Cut-outNot published |
| LB1768 | Wattage20W | CCT6000K | IPIP65 | DimensionsØ156x680mm | Cut-outNot published |
| LB1769 | WattageNot published | CCT6000K | IPNot published | DimensionsØ90x380mm | Cut-outNot published |
| LB1770 | WattageNot published | CCT4000K | IPNot published | DimensionsØ156x380mm | Cut-outNot published |
| LB1858 | Wattage12W | CCT3000K | IPIP65 | DimensionsL100xW100xH650 | Cut-outNot published |

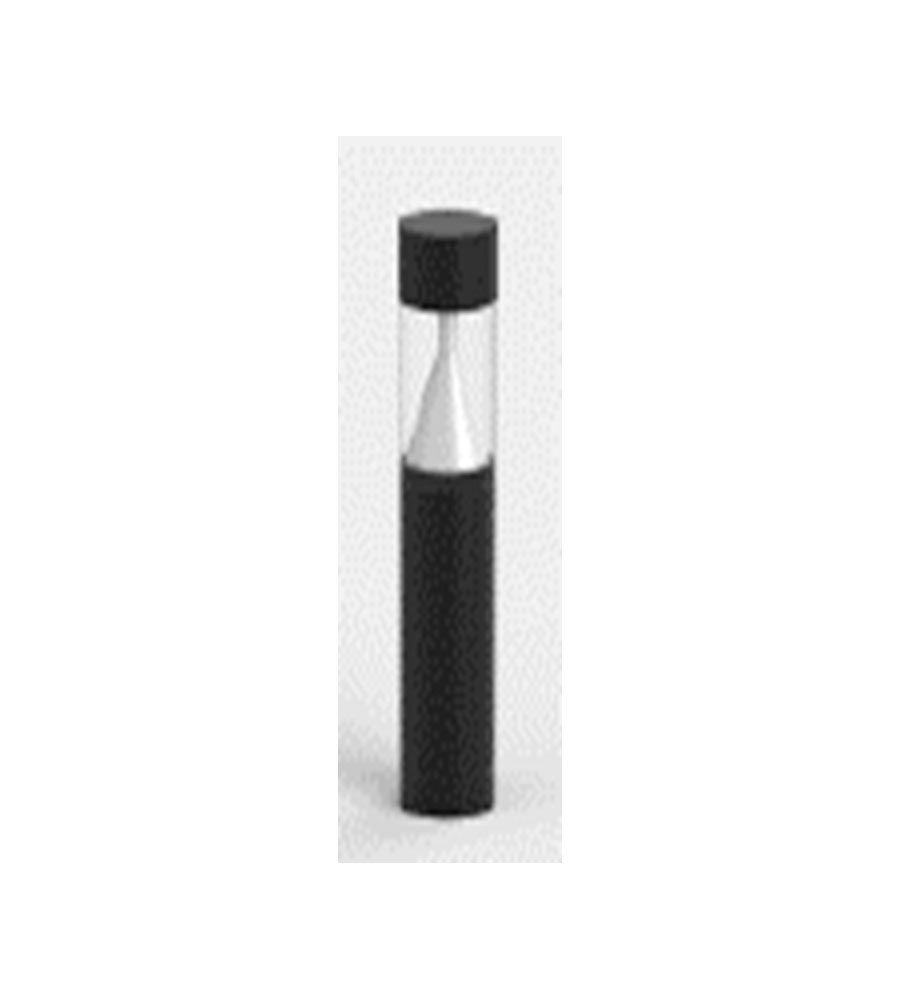

| LBP1514 | WattageNot published | CCT3000K, 4000K | IPIP65 | DimensionsØ90xH680mm | Cut-outNot published |

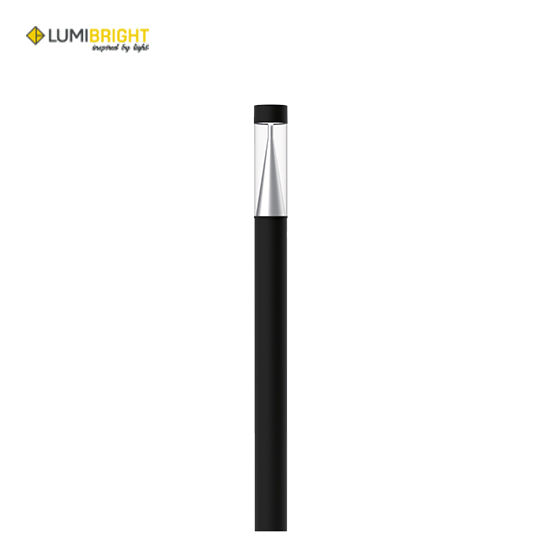

| LBP1515 | WattageNot published | CCT4000K | IPNot published | DimensionsNot published | Cut-outNot published |

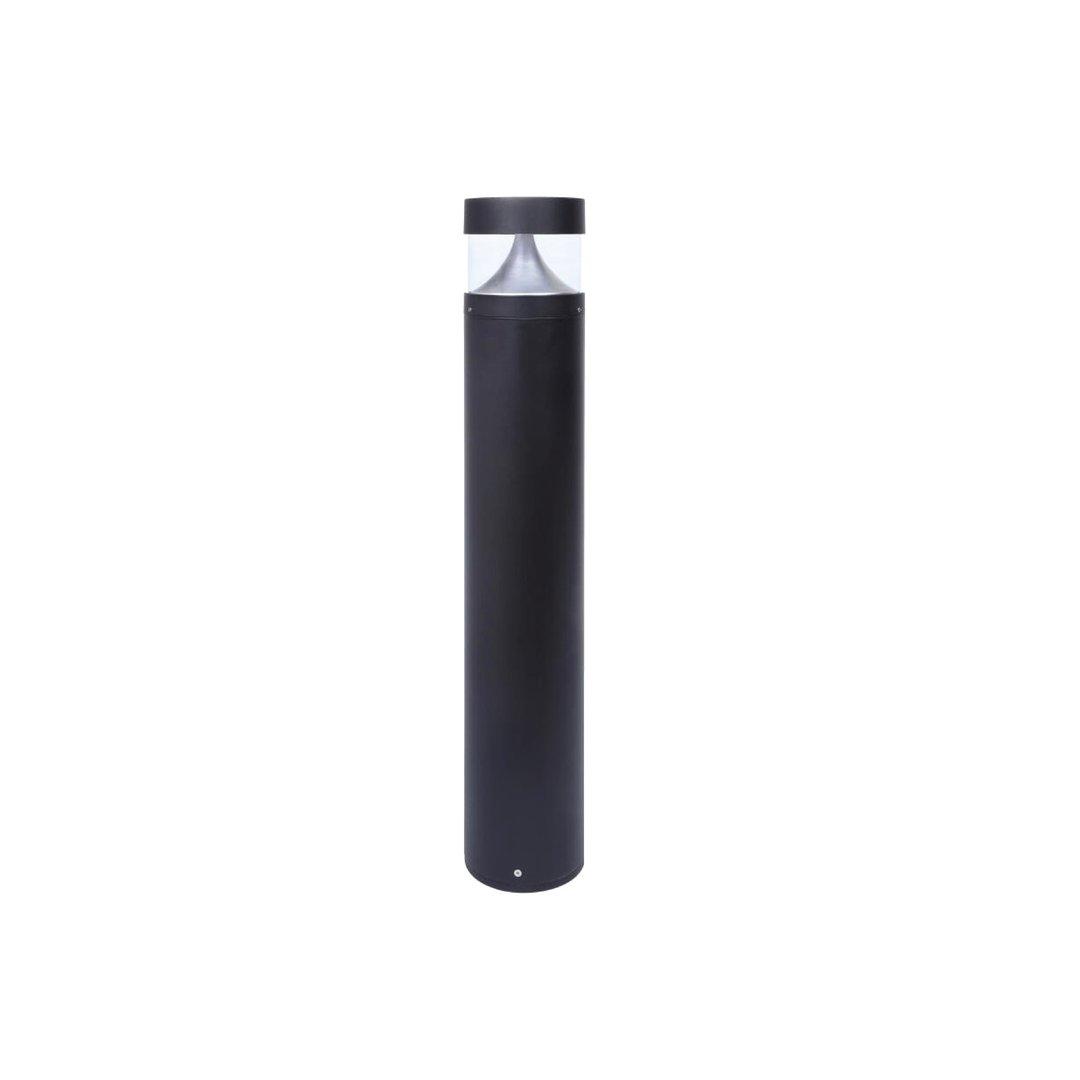

| LBS1503 | WattageNot published | CCT3000K | IPIP65 | DimensionsØ160x1000mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 110x110x650mm · 100x100x680mm · 100x100x380mm · Ø90x680mm +6 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 38° · RADIAL · DIFFUSED · 150° |
| Colour temperature | 3000K · 4000K · 6000K |
| CRI Ra | ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 100-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Black With Sand · black-sand · Matte Dark Grey · Grey With Sand +4 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
11 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1769. This family has 11 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1769
Ø90x380mm
Specifications
At a Glance
9–20W
Power Range
2 options
Beam: 38°, 150°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP54 / IP65
Protection Rating
5 finishes
Body Finish Options
10 sizes
100x100x380mm, 100x100x680mm, 110x110x650mm, L100xW100xH650, Ø156x380mm, Ø156x680mm, Ø160x1000mm, Ø90x380mm, Ø90x680mm, Ø90xH680mm
Configure your product
LB1769
Order code
Listed configurationLB1769.W.830.PSV.D
9 listed configurations · availability requires confirmation
