Lumi Outdoor
BOUND
Application inspiration · not a project reference
BOUND is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Inground Light
BOUND
BOUND is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 8 article codes under this family, including LB1128, LB1144, LB1154. For LB1128, published values include power: 6x0.5W; colour temperature: 3000K; IP rating: IP67; dimensions: Ø116x96.4mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the BOUND articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1128 | Wattage6x0.5W | CCT3000K | IPIP67 | DimensionsØ116x96.4mm | Cut-outØ102mm |

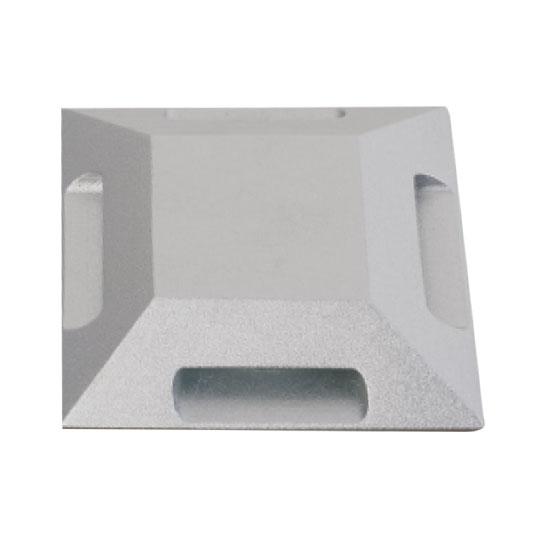

| LB1144 | WattageNot published | CCT4000K | IPNot published | Dimensions48x48x81mm | Cut-outØ41mm |

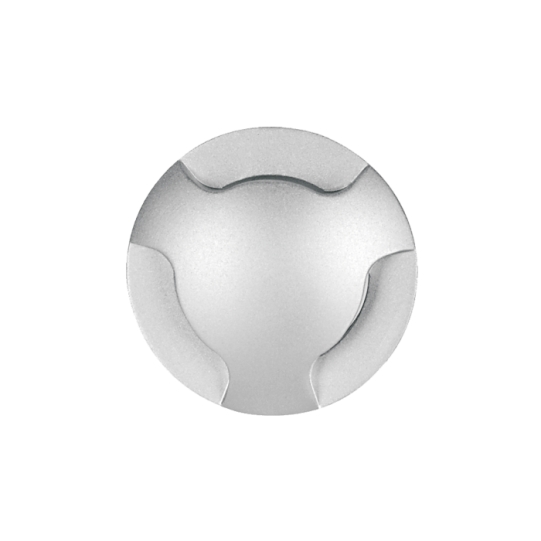

| LB1154 | WattageNot published | CCT2700K | IPNot published | DimensionsØ48x78mm | Cut-outNot published |
| LB1155 | WattageNot published | CCT3000K, 2700K | IPNot published | DimensionsØ48x78mm | Cut-outNot published |
| LB1275 | Wattage3W | CCT4000K | IPIP68 | DimensionsØ88x45mm | Cut-outNot published |

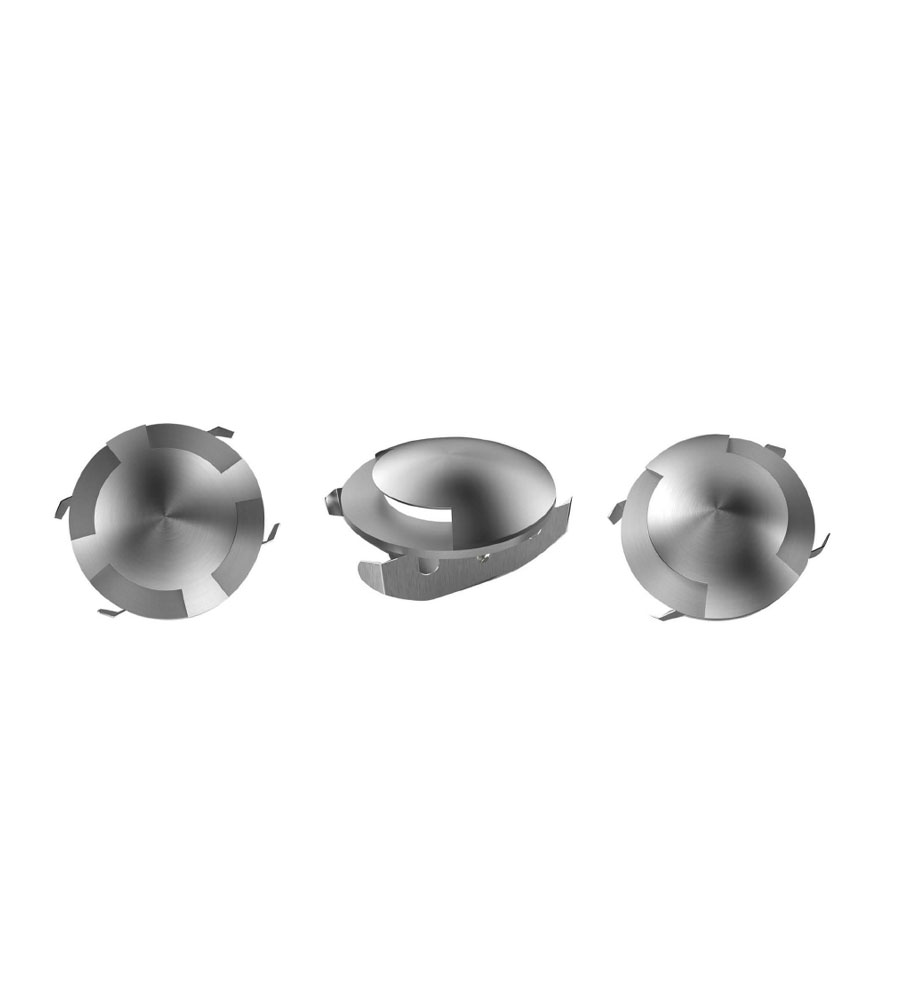

| LB1276 | Wattage3W | CCTRED | IPIP67 | DimensionsØ100x85mm | Cut-outNot published |
| LB1295 | Wattage1x3W | CCT3000K | IPIP67 | DimensionsØ67.5x105mm | Cut-outNot published |
| LB1297 | Wattage1x8W | CCTRED | IPIP67 | DimensionsØ116x124mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø116x96.4mm · 48x48x81mm · Ø48x78mm · Ø88x45mm +3 more |
|---|---|
| Cut-out | Ø102mm · Ø41mm |
| Power | 3W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | RADIAL |
| Colour temperature | 2200K · 2700K · 3000K · 6000K +5 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 · IP68 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC · AC · constant-current |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | stainless-steel · Stainless Steel · Anodized In Grey Sand · grey-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
8 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1295. This family has 8 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1295
Ø67.5x105mm
Specifications
At a Glance
0.5–8W
Power Range
5 CCT
2200K, 2700K, 3000K, 4000K, 6000K
BLUE / GREEN / RED / RGB
Colour Options
CRI 80
Colour Rendering
IP67 / IP68
Protection Rating
2 finishes
Body Finish Options
7 sizes
48x48x81mm, Ø100x85mm, Ø116x124mm, Ø116x96.4mm, Ø48x78mm, Ø67.5x105mm, Ø88x45mm
2 cut-outs
Ø102mm, Ø41mm
Configure your product
LB1295
Order code
Listed configurationLB1295.X.XRE.SSS.R
8 listed configurations · availability requires confirmation
