Lumi Outdoor
BREMEN
Application inspiration · not a project reference
BREMEN is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Industrial Light
BREMEN
BREMEN is a industrial light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 1 article codes under this family, including L05012. For L05012, published values include power: 100W; colour temperature: Red; IP rating: IP66; dimensions: Ø398×211mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the BREMEN articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L05012 | Wattage100W | CCTRed | IPIP66 | DimensionsØ398×211mm | Cut-outNot published |
Selected Variant
L05012

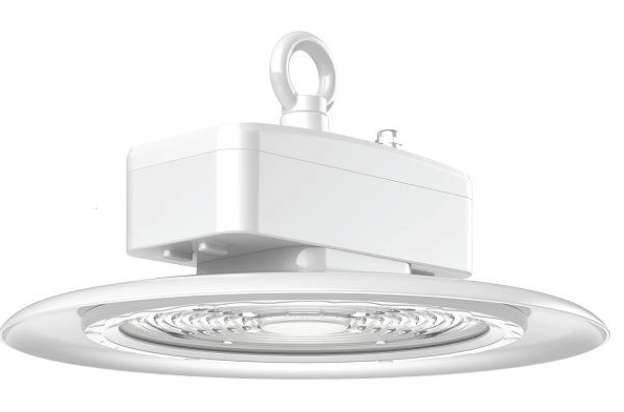

BREMEN L05012 - INDUSTRIAL LIGHT
Configuration
Select Specification
Exact match: L05012
All Variants (1)
| Code | Power | CCT | Beam | CRI | Size | |
|---|---|---|---|---|---|---|
| L05012 | 100W | RED | 60° | 80 | Ø398×211mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model L05012.
Size — model L05012
Ø398×211mm
Technical Data
Full Specification
| Dimensions | Ø398×211mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 100W |
| Lumen output | 630-650nm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 90° · 120° |
| Colour temperature | RED |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
100W
Power
60°
Beam Angle
RED
Colour Options
CRI 80
Colour Rendering
IP66
Protection Rating
Ø398×211mm
Dimensions
Configure your product
L05012
Order code
Listed configurationL05012.XRE.01.90
3 listed configurations · availability requires confirmation
