Lumi Outdoor
CALGARY
Application inspiration · not a project reference
CALGARY is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Street Light
CALGARY
CALGARY is a street light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 4 models, including L12000, L12001, L12002, with model-specific specifications and configuration choices. L12000 specifications include power: 16W; colour temperature: 3000K, 4000K, 6000K; IP rating: IP65; dimensions: Ø160x2500mm. Compare the CALGARY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L12000 | Wattage16W | CCT3000K, 4000K, 6000K | IPIP65 | DimensionsØ160x2500mm | Cut-outNot published |
| L12001 | Wattage16W | CCT3000K, 4000K, 6000K | IPIP65 | DimensionsØ160x3000mm | Cut-outNot published |
| L12002 | Wattage16W | CCT3000K, 4000K, 6000K | IPIP65 | DimensionsØ160x3500mm | Cut-outNot published |
| L12003 | Wattage16W | CCT3000K, 4000K, 6000K | IPIP65 | DimensionsØ160x4000mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø160x2500mm · Ø160x3000mm · Ø160x3500mm · Ø160x4000mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 16W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | DIFFUSED · D |
| Colour temperature | 3000K · 4000K · 6000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Black · Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions

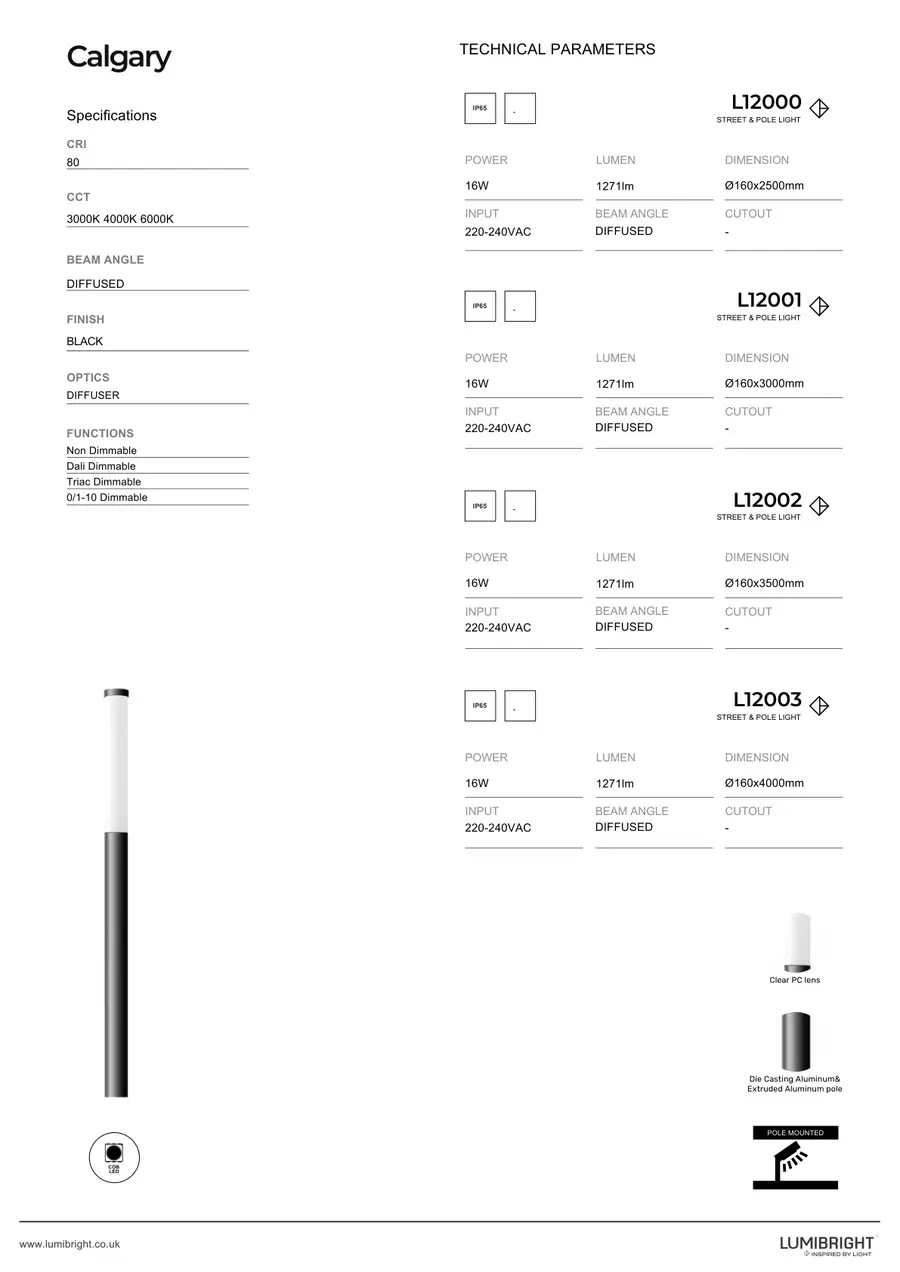

Technical Drawing
Drawing and sizes shown for model L12000. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L12000
Ø160x2500mm
Specifications
At a Glance
16W
Power Range
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
4 sizes
Ø160x2500mm, Ø160x3000mm, Ø160x3500mm, Ø160x4000mm
Configure your product
L12000
Order code
Listed configurationL12000.830.09.D
6 listed configurations · availability requires confirmation
