Lumi Outdoor
DAN
Application inspiration · not a project reference
DAN is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
DAN
DAN is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 7 article codes under this family, including LB4011, LB4013, LB4016. For LB4011, published values include power: 2.2W; colour temperature: 3000K; IP rating: IP65; dimensions: Ø55x42mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the DAN articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB4011 | Wattage2.2W | CCT3000K | IPIP65 | DimensionsØ55x42mm | Cut-outNot published |

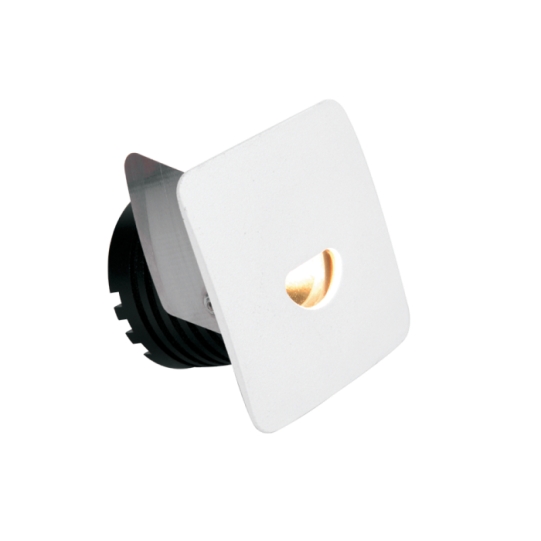

| LB4013 | Wattage2.2W | CCT2700K | IPIP65 | DimensionsNot published | Cut-outNot published |

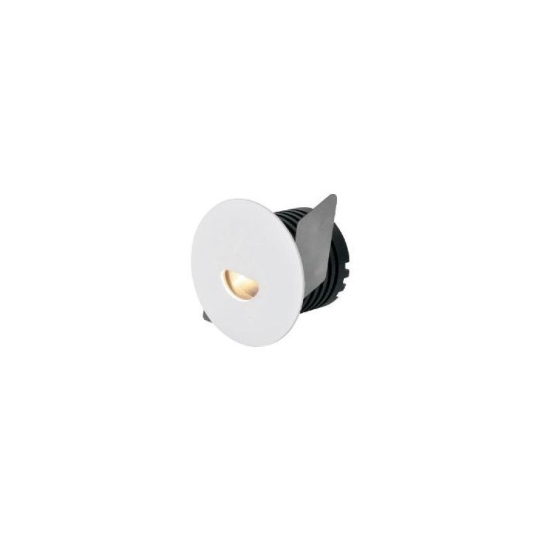

| LB4016 | Wattage2.2W | CCT5600K | IPIP65 | DimensionsØ55x42mm | Cut-outØ45mm |
| LB4737 | Wattage5W | CCT3200K | IPIP65 | Dimensions92x92x72mm | Cut-outNot published |

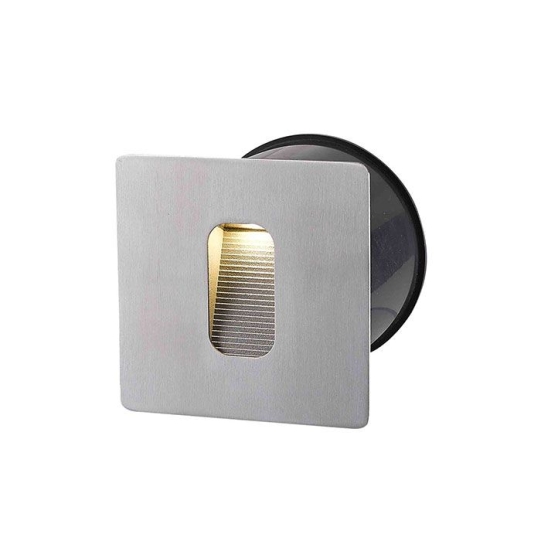

| LB4807 | Wattage1x3W | CCT3000K | IPIP65 | Dimensions95x 95x81mm | Cut-outNot published |

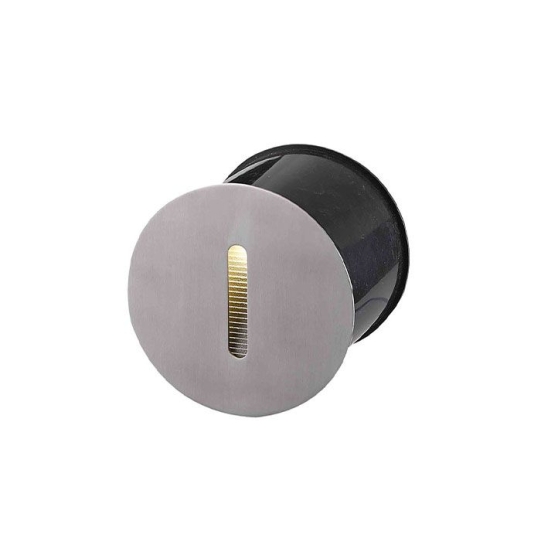

| LB4808 | Wattage1x3W | CCT3000K | IPIP65 | Dimensions95x81mm | Cut-outNot published |

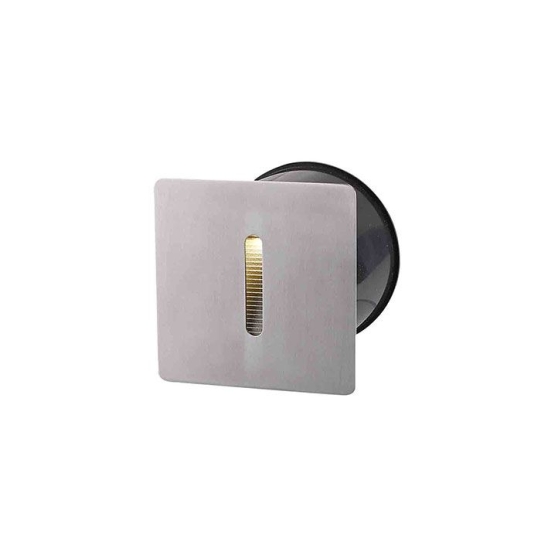

| LB4809 | Wattage1x3W | CCT3000K | IPIP65 | Dimensions95x 95x81mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø55x42mm · 92x92x72mm · 95x 95x81mm · 95x81mm |
|---|---|
| Cut-out | Ø45mm |
| Power | 2.2W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K · 4000K · 5600K +3 more |
| CRI Ra | Not published — technical review required |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 3VDC · 100-240VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white-sand · black-sand · grey-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4016. This family has 7 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4016
Ø55x42mm
Cut-Out
Ø45mm
Specifications
At a Glance
2.2–5W
Power Range
2 options
Beam: 56°, 62°
7 CCT
2700K, 3000K, 3200K, 4000K, 5000K, 5600K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
3 finishes
Body Finish Options
4 sizes
92x92x72mm, 95x 95x81mm, 95x81mm, Ø55x42mm
Ø45mm
Cut-Out
