Lumi Outdoor
DANIM
Application inspiration · not a project reference
DANIM is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
DANIM
DANIM is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 5 article codes under this family, including LB4321, LB4322, LBE40247. For LB4321, published values include power: 3W; colour temperature: 4000K; IP rating: IP54; dimensions: Ø80x60mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the DANIM articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

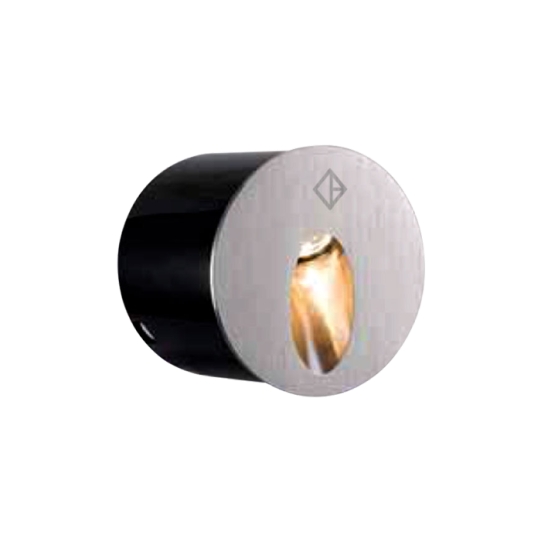

| LB4321 | Wattage3W | CCT4000K | IPIP54 | DimensionsØ80x60mm | Cut-outNot published |

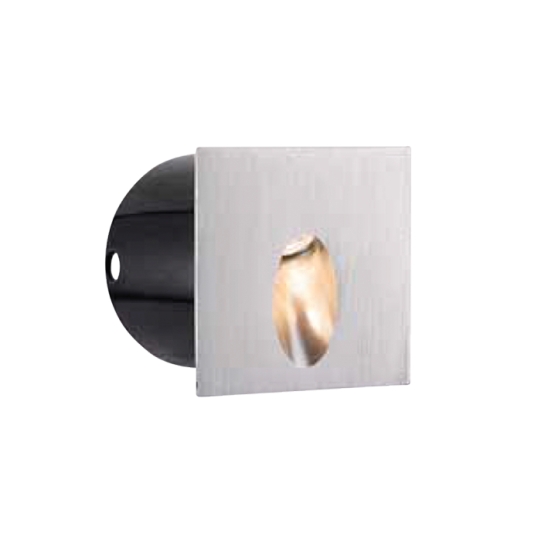

| LB4322 | Wattage3W | CCT6000K | IPIP54 | Dimensions80x80x60mm | Cut-outNot published |

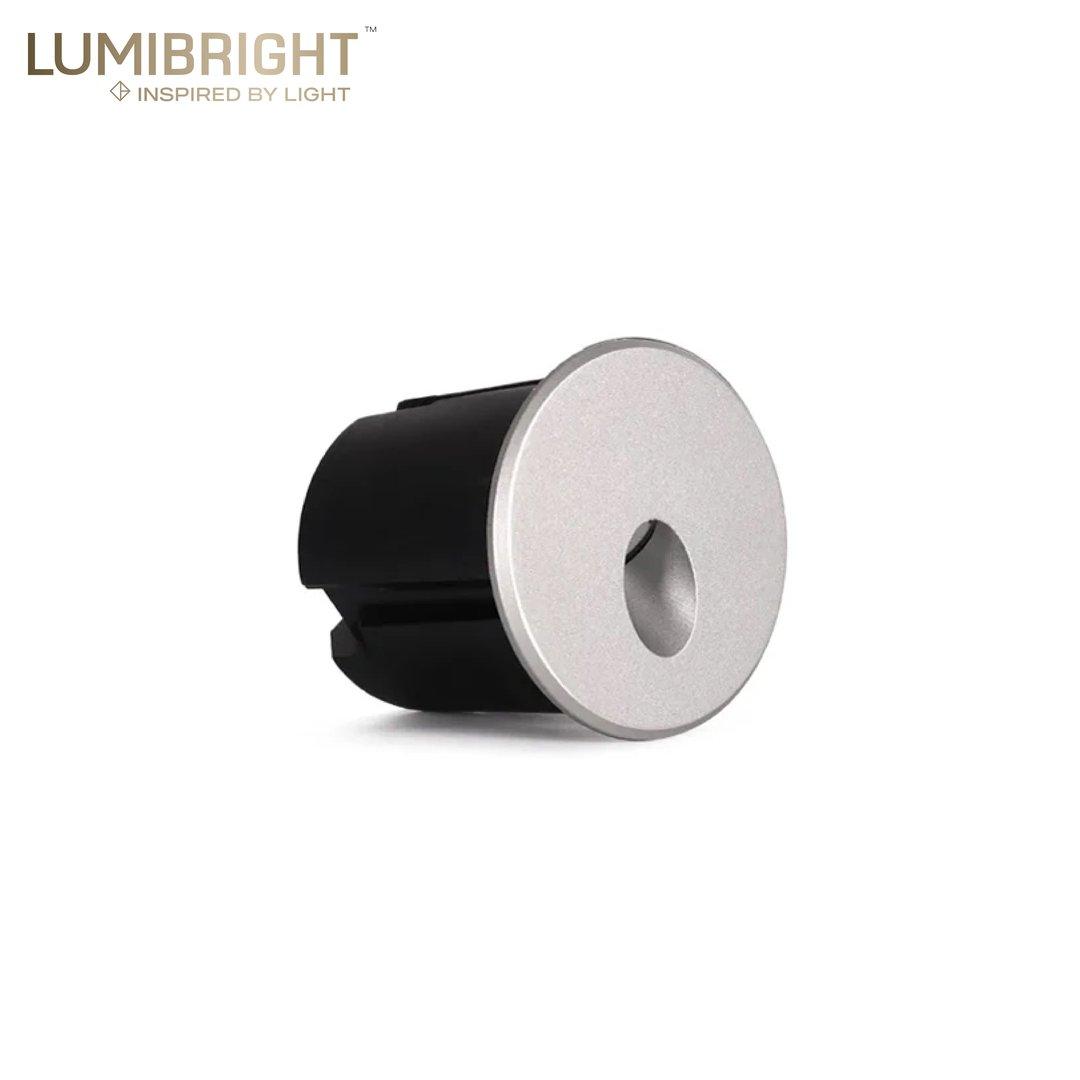

| LBE40247 | Wattage3w | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ80x57mm | Cut-outØ71x76mm |
| LBE40265 | Wattage3W(1pcs | CCT3000K | IPIP65 | DimensionsØ80x76mm (including mounting | Cut-outNot published |
| LBE40270 | Wattage3W | CCT3000K | IPIP65 | DimensionsL70*W65*H25 mm | Cut-out60*50 mm |
Technical Data
Full Specification
| Dimensions | Ø80x60mm · 80x80x60mm · Ø80x57mm · Ø80x76mm (including mounting +1 more |
|---|---|
| Cut-out | Ø71x76mm · 60*50 mm |
| Power | 3W · 3W(1pcs |
| Lumen output | 240lm · 54lm · 150 lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 50° · 78° · P · ASYMMETRIC +1 more |
| Colour temperature | 3000K · 3100K · 4000K · 6000K +1 more |
| CRI Ra | >80 · 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC · 220VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | SILVER · White/black/grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4321. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4321
Ø80x60mm
Specifications
At a Glance
3W
Power Range
3 options
Beam: 45°, 50°, 78°
4 CCT
3000K, 3100K, 4000K, 6000K
warm white 3000K
Colour Options
CRI 80
Colour Rendering
IP54 / IP65
Protection Rating
1 finishes
Body Finish Options
5 sizes
80x80x60mm, L70*W65*H25 mm, Ø80x57mm, Ø80x60mm, Ø80x76mm (including mounting
2 cut-outs
60*50 mm, Ø71x76mm
Configure your product
LBE40265
Order code
Listed configurationLBE40265.W.830.SLV.45
1 listed configurations · availability requires confirmation
