Lumi Outdoor
DULUX
Application inspiration · not a project reference
DULUX is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Industrial Light
DULUX
DULUX is a industrial light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 4 article codes under this family, including LBE9555, LBE9559, LBE9560. For LBE9555, published values include power: 18W; colour temperature: 2700K; IP rating: IP66; dimensions: 1000x80mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the DULUX articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE9555 | Wattage18W | CCT2700K | IPIP66 | Dimensions1000x80mm | Cut-outNot published |

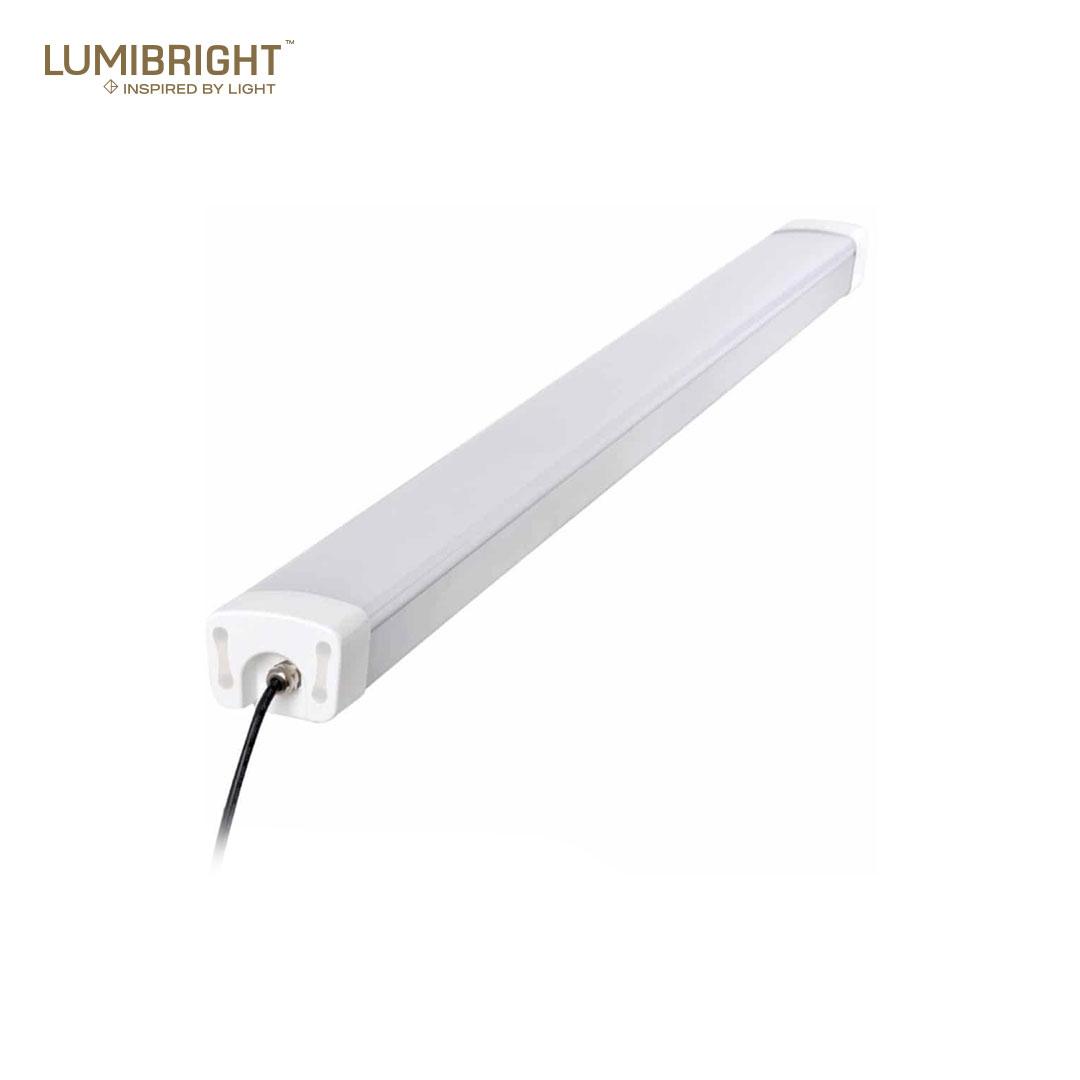

| LBE9559 | Wattage30W | CCT6000K | IPIP65 | Dimensions1200x62x56mm | Cut-outNot published |

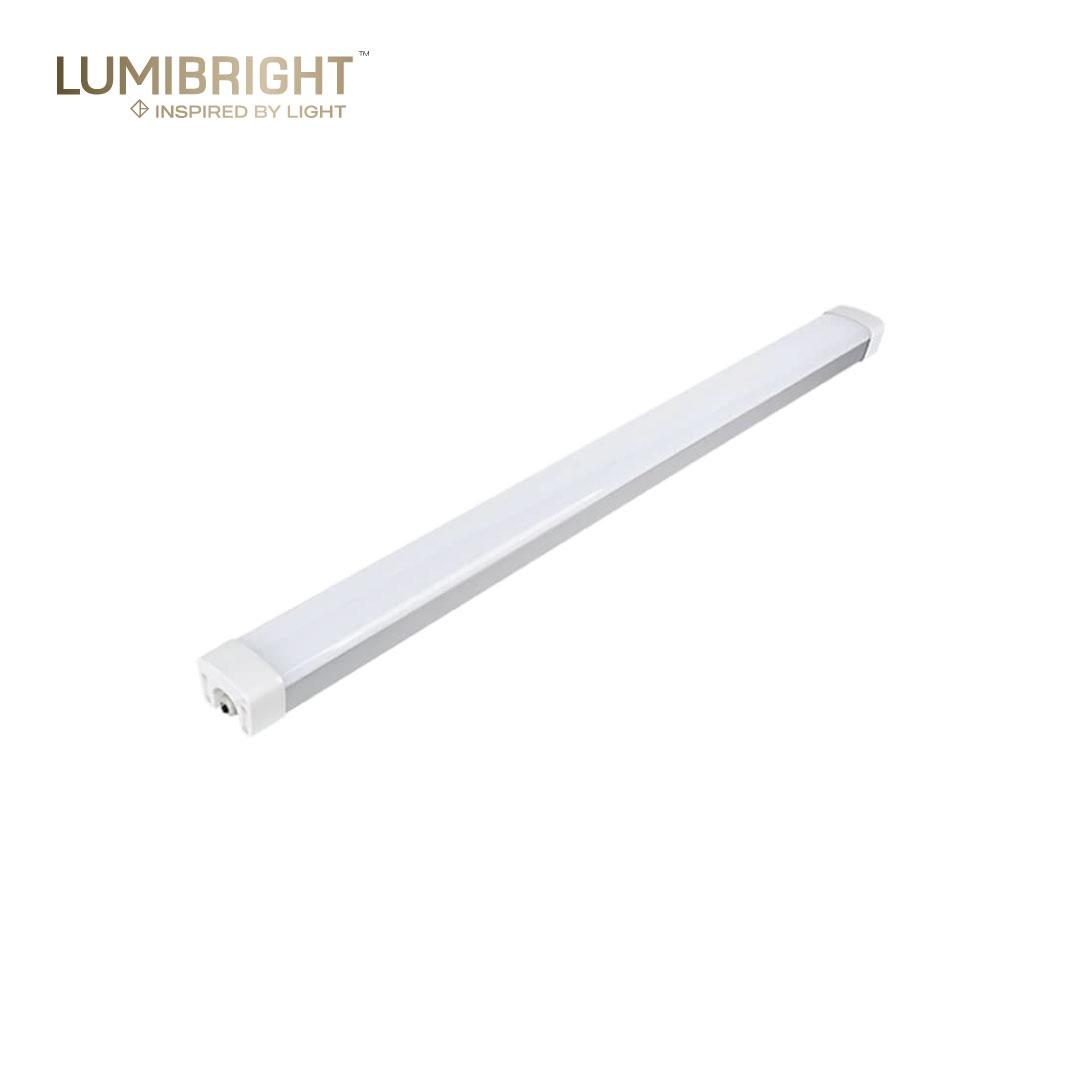

| LBE9560 | Wattage30W | CCT3000K | IPIP65 | Dimensions1200x74x67mm | Cut-outNot published |

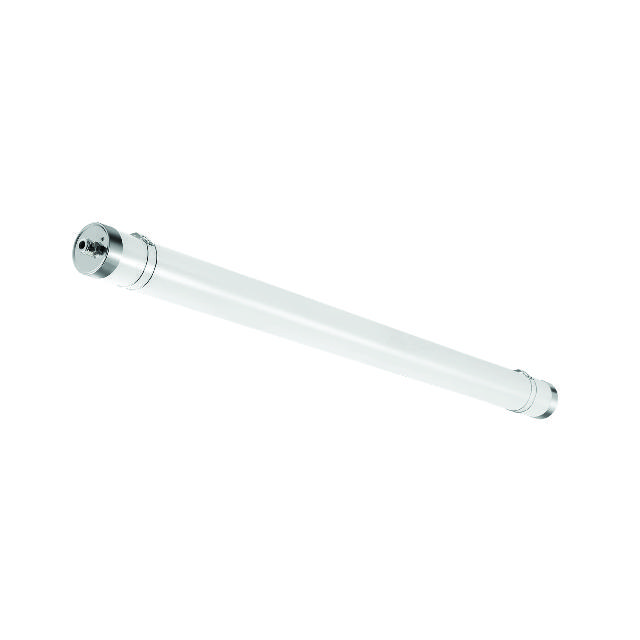

| LBE9563 | Wattage60W | CCTRED | IPIP69 | Dimensions1500x90.1x87.2mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 1000x80mm · 1200x62x56mm · 1200x74x67mm · 1500x90.1x87.2mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 18W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° · 240° |
| Colour temperature | 2700K · 6000K · 3000K · RED |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP66 · IP65 · IP69 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE9555. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE9555
1000x80mm
Specifications
At a Glance
18–60W
Power Range
2 options
Beam: 120°, 240°
3 CCT
2700K, 3000K, 6000K
RED
Colour Options
CRI 80
Colour Rendering
IP65 / IP66 / IP69
Protection Rating
1 finishes
Body Finish Options
4 sizes
1000x80mm, 1200x62x56mm, 1200x74x67mm, 1500x90.1x87.2mm
Configure your product
LBE9555
Order code
Listed configurationLBE9555.W.827.WWH.120.DDIM
2 listed configurations · availability requires confirmation
