EIDER is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Flood Light
EIDER
EIDER is a flood light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 12 article codes under this family, including LB9355, LB9356, LB9357. For LB9355, published values include colour temperature: 3000K; dimensions: 180x140x50mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the EIDER articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB9355 | WattageNot published | CCT3000K | IPNot published | Dimensions180x140x50mm | Cut-outNot published |
| LB9356 | WattageNot published | CCT6000K, 3000K, 2700K, 6500K, 4000K | IPNot published | Dimensions240x192.5x65mm | Cut-outNot published |

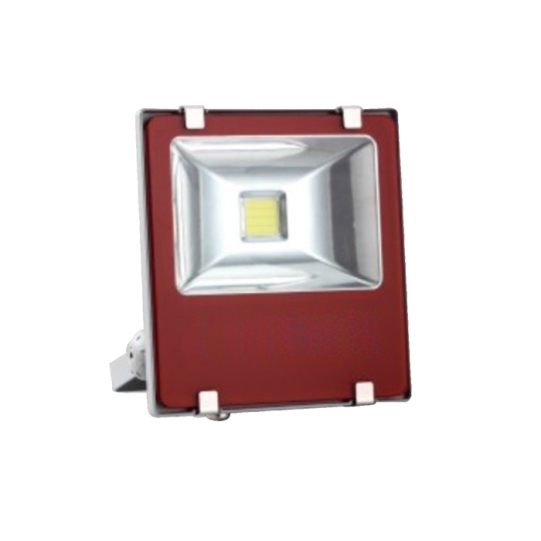

| LB9357 | Wattage50W | CCT6000K | IPIP65 | Dimensions280x235x80mm | Cut-outNot published |

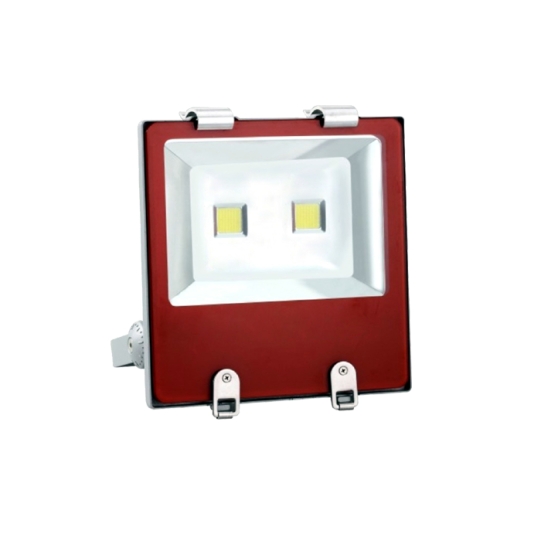

| LB9358 | Wattage100W | CCT2700K | IPIP65 | Dimensions400x339x120mm | Cut-outNot published |

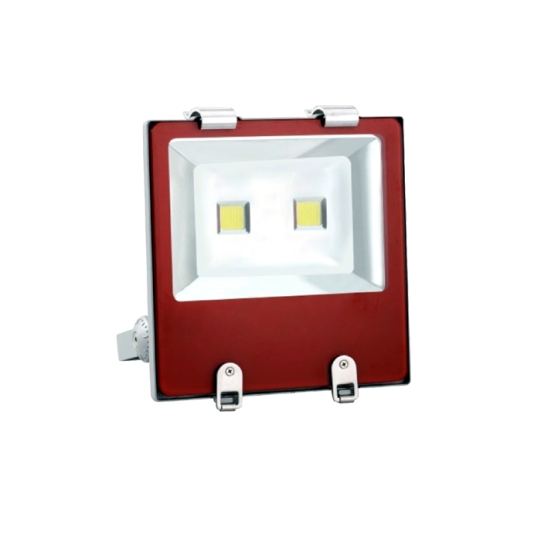

| LB9359 | Wattage150W | CCT2700K | IPIP65 | Dimensions400x339x120mm | Cut-outNot published |

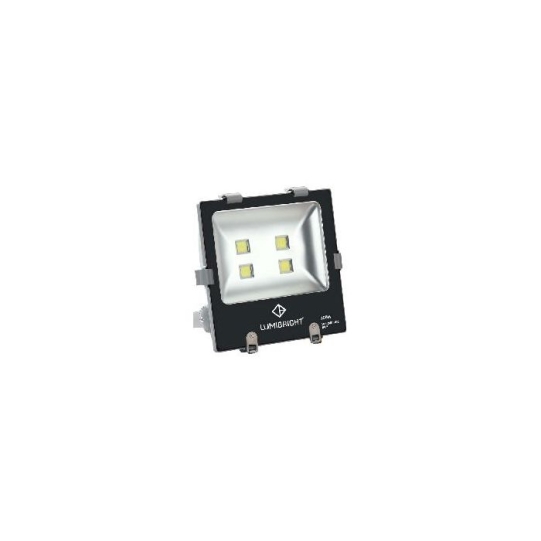

| LB9360 | Wattage200W | CCT4000K | IPIP65 | Dimensions480x425x145mm | Cut-outNot published |
| LB9370 | WattageNot published | CCT3000K, 6500K | IPIP65 | Dimensions103x77x23mm | Cut-outNot published |

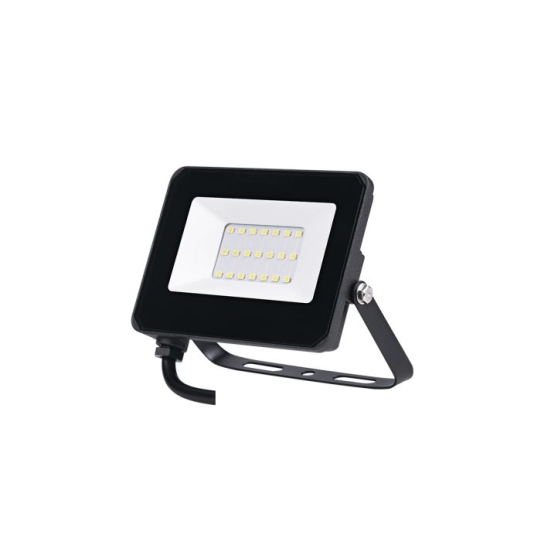

| LB9371 | Wattage30W | CCT3000K | IPIP65 | Dimensions176x136x25.5mm | Cut-outNot published |

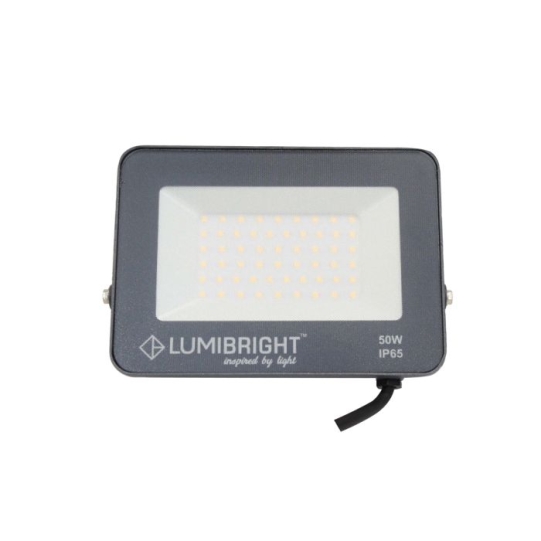

| LB9372 | Wattage50W | CCT3000K | IPIP65 | Dimensions210x162.8x28mm | Cut-outNot published |

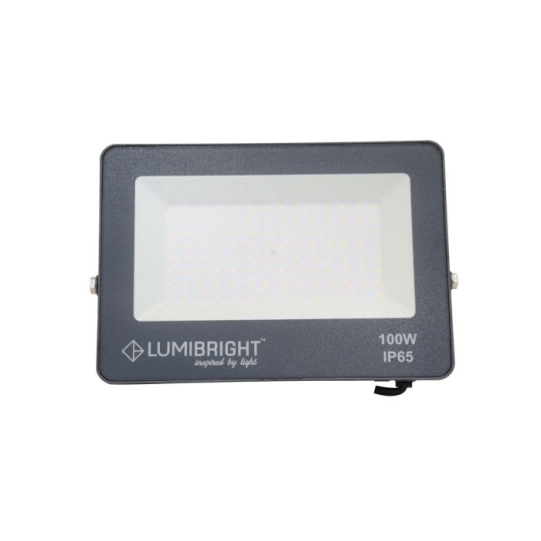

| LB9373 | Wattage100W | CCT3000K | IPIP65 | Dimensions315x233x38mm | Cut-outNot published |

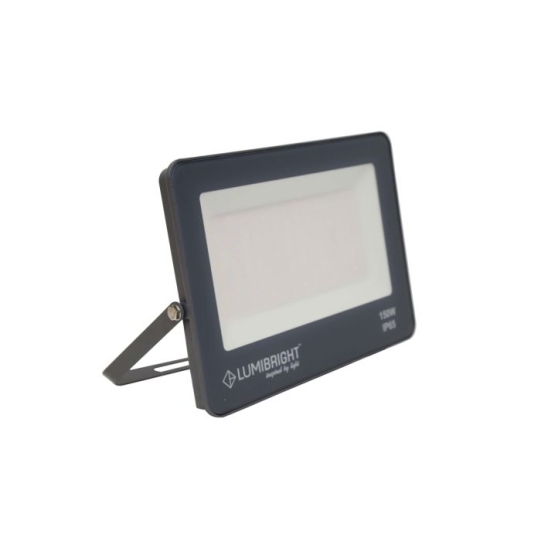

| LB9374 | Wattage150W | CCT6500K | IPIP65 | Dimensions375x280x38mm | Cut-outNot published |

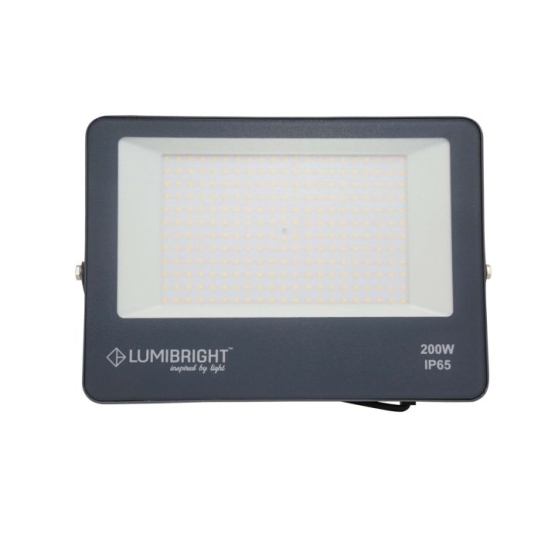

| LB9375 | WattageNot published | CCT3000K, 6500K | IPIP65 | Dimensions410x298x40mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 180x140x50mm · 240x192.5x65mm · 280x235x80mm · 400x339x120mm +7 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 100W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 100° · 110° |
| Colour temperature | 2700K · 3000K · 4000K · 6000K +1 more |
| CRI Ra | ≥70 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | grey · anodized-in-Aluminium · black · black-sand +9 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB9358. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB9358
400x339x120mm
Specifications
At a Glance
10–200W
Power Range
2 options
Beam: 100°, 110°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 70
Colour Rendering
IP65
Protection Rating
7 finishes
Body Finish Options
11 sizes
103x77x23mm, 176x136x25.5mm, 180x140x50mm, 210x162.8x28mm, 240x192.5x65mm, 280x235x80mm, 315x233x38mm, 375x280x38mm, 400x339x120mm, 410x298x40mm, 480x425x145mm
Configure your product
LB9358
Order code
Listed configurationLB9358.W.730.WSG.100
36 listed configurations · availability requires confirmation
