Bollard Light
ELSIE
ELSIE is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 8 article codes under this family, including LB1525, LB1526, LB1527. For LB1525, published values include power: 6W; colour temperature: 4000K; IP rating: IP54; dimensions: 150x300mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ELSIE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

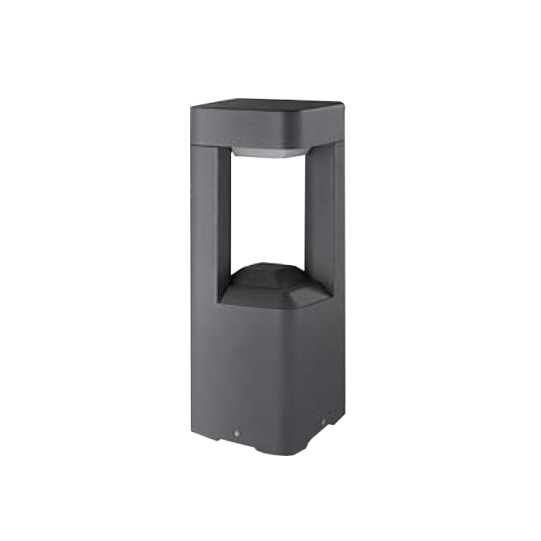

| LB1525 | Wattage6W | CCT4000K | IPIP54 | Dimensions150x300mm | Cut-outNot published |

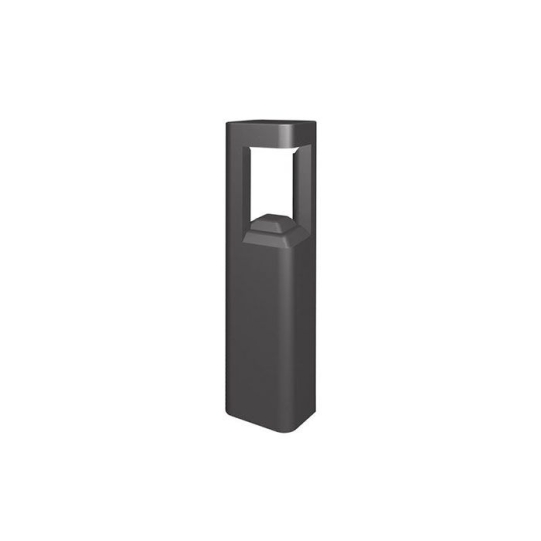

| LB1526 | Wattage6W | CCT4000K | IPIP54 | Dimensions150x500mm | Cut-outNot published |

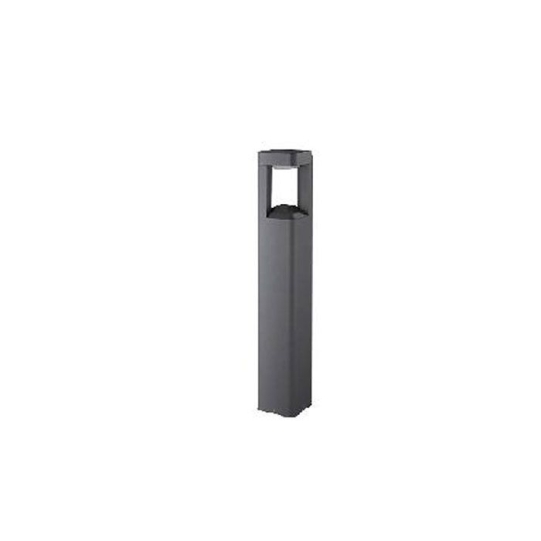

| LB1527 | Wattage6W | CCT6500K | IPIP54 | Dimensions150x800mm | Cut-outNot published |

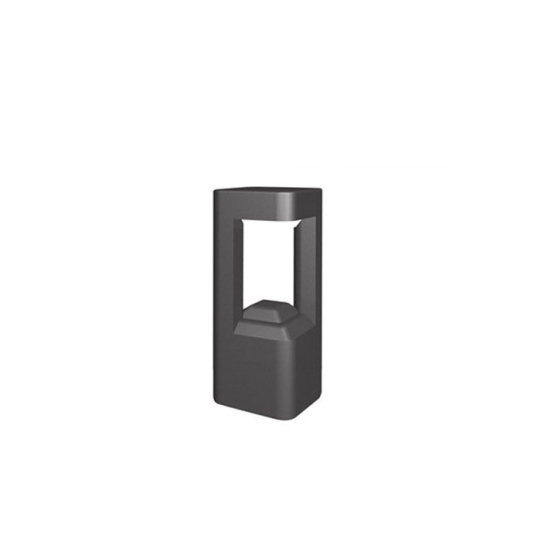

| LB1528 | Wattage6W | CCT5000K | IPIP54 | Dimensions150x200mm | Cut-outNot published |

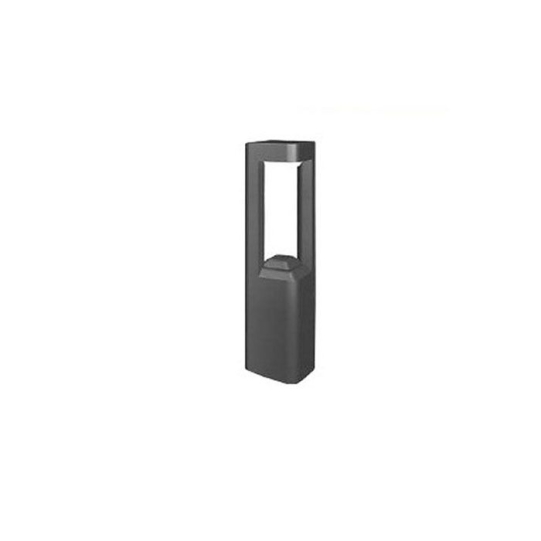

| LB1529 | Wattage6W | CCT3000K | IPIP54 | Dimensions150x500mm | Cut-outNot published |
| LB1530 | Wattage6W | CCT4000K | IPIP54 | Dimensions150x800mm | Cut-outNot published |

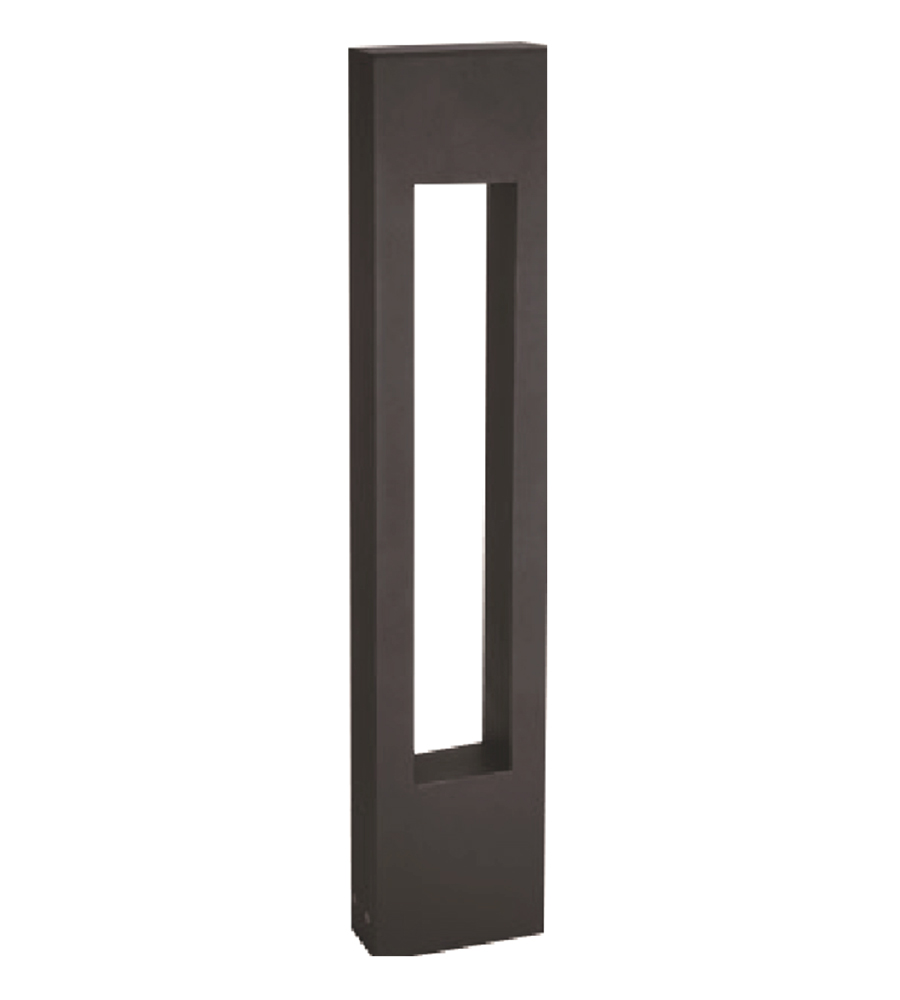

| LB1816 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |
| LBP1523 | WattageNot published | CCT4000K | IPNot published | DimensionsNot published | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 150x300mm · 150x500mm · 150x800mm · 150x200mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 6W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | RADIAL · R · DIFFUSED |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black-sand · black · graphite · grey +10 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
8 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1525. This family has 8 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1525
150x300mm
Specifications
At a Glance
6W
Power Range
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 80
Colour Rendering
IP54
Protection Rating
9 finishes
Body Finish Options
4 sizes
150x200mm, 150x300mm, 150x500mm, 150x800mm
Configure your product
LB1525
Order code
Listed configurationLB1525.C.865.PAB.R
31 listed configurations · availability requires confirmation
