Lumi Outdoor
ENTERRADO
Application inspiration · not a project reference
ENTERRADO is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Inground Light
ENTERRADO
ENTERRADO is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 3 article codes under this family, including LB1349, LB1350, LBP1196. For LB1349, published values include power: 3x3W; colour temperature: 3000K; IP rating: IP67; dimensions: Ø108x112mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ENTERRADO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1349 | Wattage3x3W | CCT3000K | IPIP67 | DimensionsØ108x112mm | Cut-outØ102x112 |

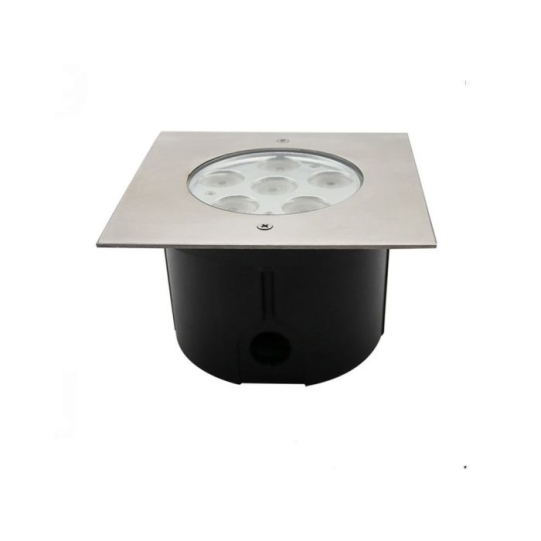

| LB1350 | WattageNot published | CCT3000K | IPNot published | Dimensions165x165x125mm | Cut-outNot published |
| LBP1196 | Wattage3x3W | CCT3000K | IPIP67 | DimensionsØ108x112mm | Cut-outØ102x112 |
Technical Data
Full Specification
| Dimensions | Ø108x112mm · 165x165x125mm |
|---|---|
| Cut-out | Ø102x112 |
| Power | 3W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 5° · 12° · 25° · 8° |
| Colour temperature | 3000K · 4000K · 6000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC · 100-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | stainless-steel · Stainless Steel |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP1196. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP1196
Ø108x112mm
Cut-Out
Ø102x112
Specifications
At a Glance
3W
Power Range
4 options
Beam: 5°, 8°, 12°, 25°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP67
Protection Rating
1 finishes
Body Finish Options
2 sizes
165x165x125mm, Ø108x112mm
Ø102x112
Cut-Out
Configure your product
LBP1196
Order code
Listed configurationLBP1196.C.860.SSS.25
9 listed configurations · availability requires confirmation
