Lumi Outdoor
FUSION
FUSION is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
FUSION is a underwater light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 7 models, including LB1461, LB1462, LB1466, with model-specific specifications and configuration choices. LB1461 specifications include power: 4x2W; colour temperature: 3000K; IP rating: IP68; dimensions: Ø135x58mm. Compare the FUSION range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

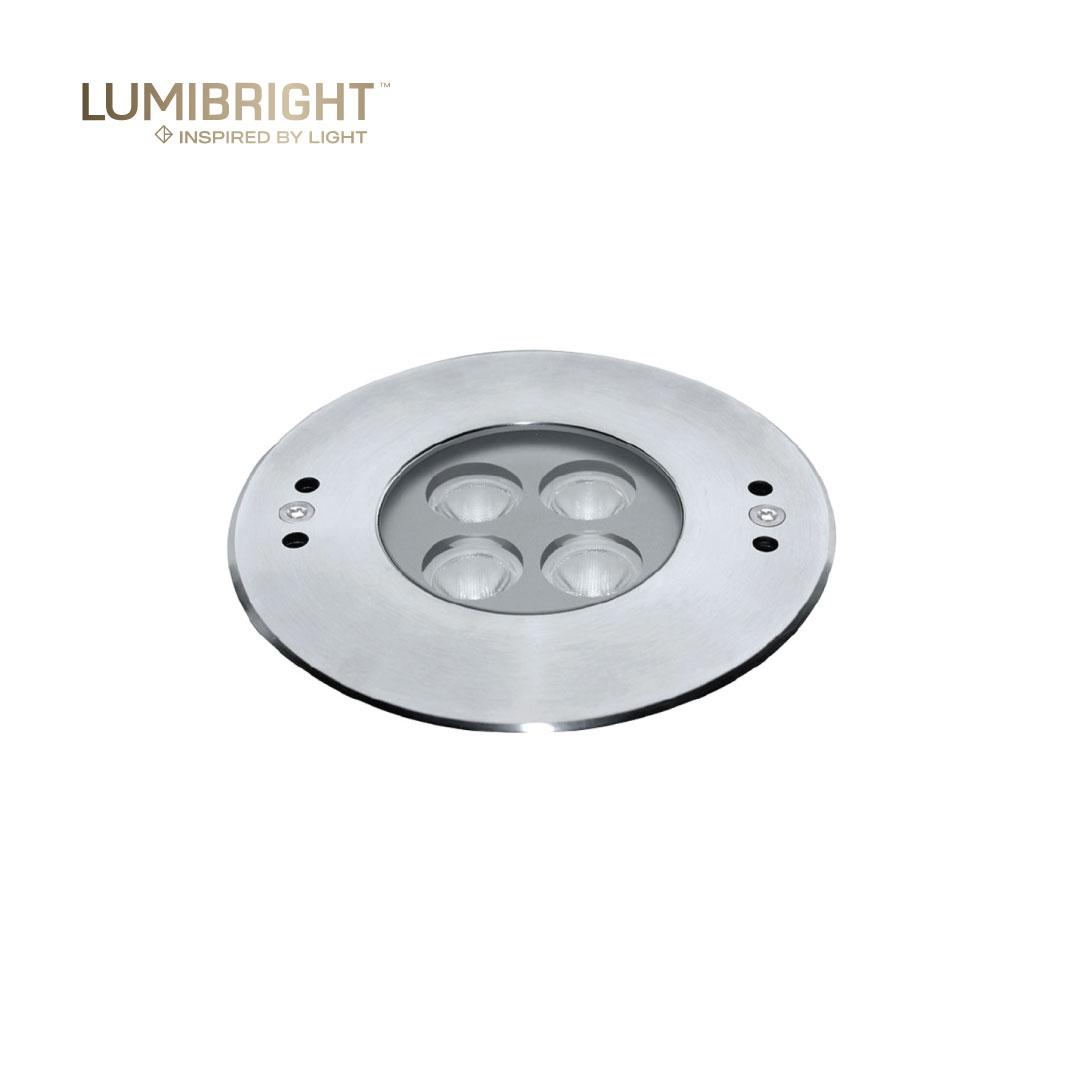

| LB1461 | 4x2W | 3000K | IP68 | Ø135x58mm | Ø127x120mm |
| LB1462 | 6x2W | 3000K | IP68 | Ø135x58mm | Ø127x120mm |

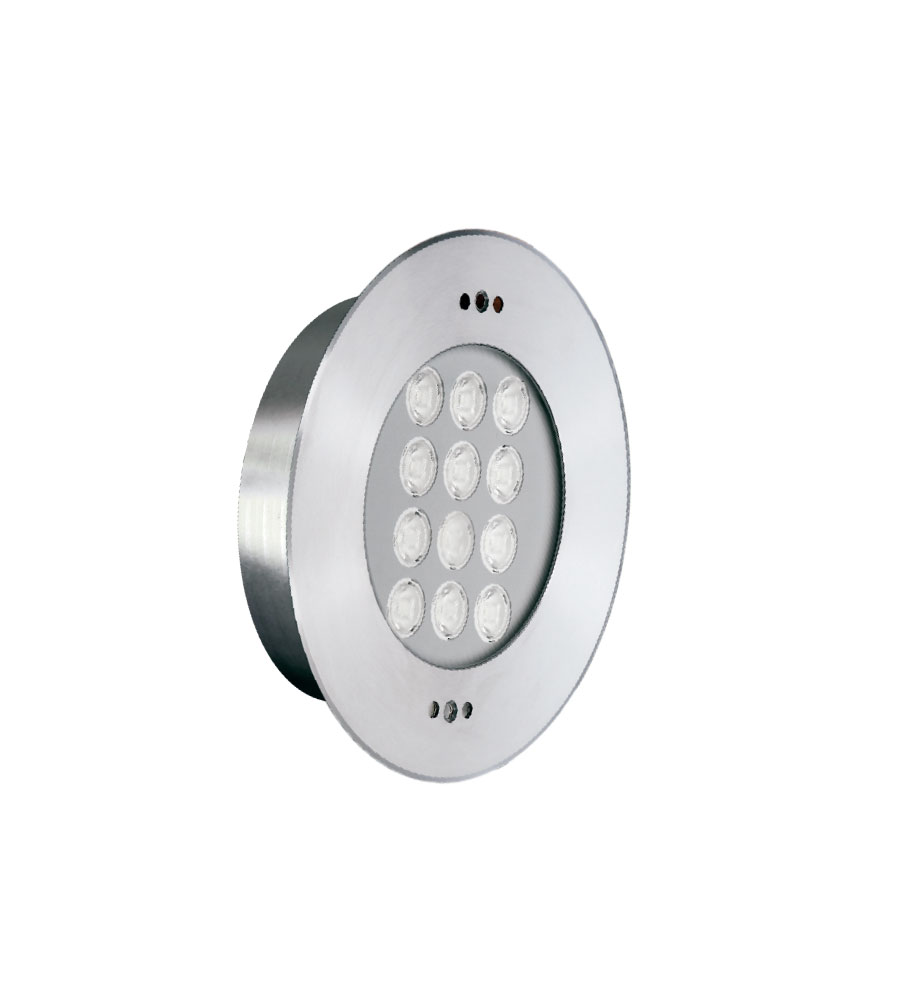

| LB1466 | 12x2W | RGB | IP68 | Ø205x88mm | Ø179x126mm |

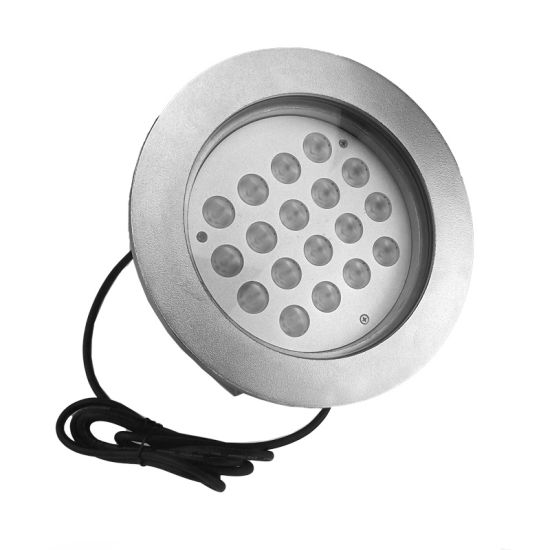

| LB1469 | 36W | RGB | Not published | Not published | Not published |

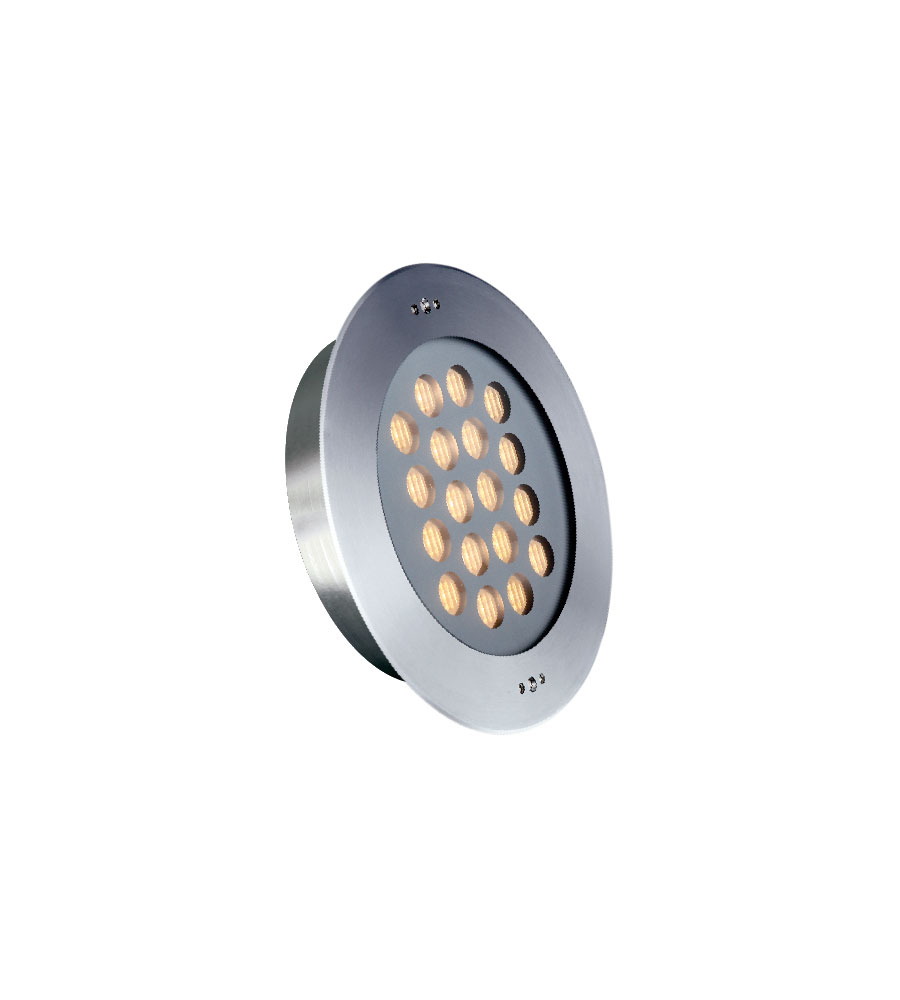

| LB1470 | 36W | 6000K | Not published | Not published | Not published |

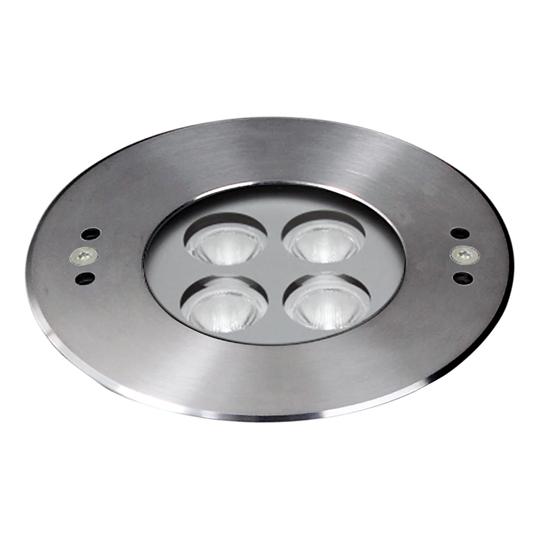

| LBP1403 | 4x2W | 3000K | IP68 | Ø135x58mm | Ø127x120mm |
| LBP1417 | 18W | 3000K | IP68 | Ø205x82mm | Not published |
Models (7)
FUSION linear spotlight family
FUSION brings multiple linear spotlight formats into one comparison view. Select a model by its aperture, number of light points, optic and required ceiling detail. The family includes different dimensions and colour options, so confirm the selected model rather than applying the family range to every fitting. Request a sample and the model drawing for coordination with the ceiling contractor.
Verified mounting formats
Several models are explicitly recessed linear spotlights. Take the format from the model record rather than the family.
Cut-out comparison
Cut-out and overall size change with the number of light points — compare them per article code.
Model-specific CCT and control
Fixed CCT, tunable white and RGBW behave differently; check the article row and the driver.
Glare accessories
Where honeycomb or lens accessories are supplied for a model, they are listed with that model.
Technical files
Datasheets, drawings and photometric files are issued per article code.
Family options are ranges, not guarantees for every model. Select an exact article and configuration.
