Lumi Outdoor
GALWAY
Application inspiration · not a project reference
GALWAY is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Industrial Light
GALWAY
GALWAY is a industrial light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 3 article codes under this family, including L05003, L05004, L05005. For L05003, published values include power: 100W; colour temperature: 4000K/5000K/6000K; IP rating: IP65; dimensions: Ø265x33x169mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the GALWAY articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L05003 | Wattage100W | CCT4000K/5000K/6000K | IPIP65 | DimensionsØ265x33x169mm | Cut-outNot published |

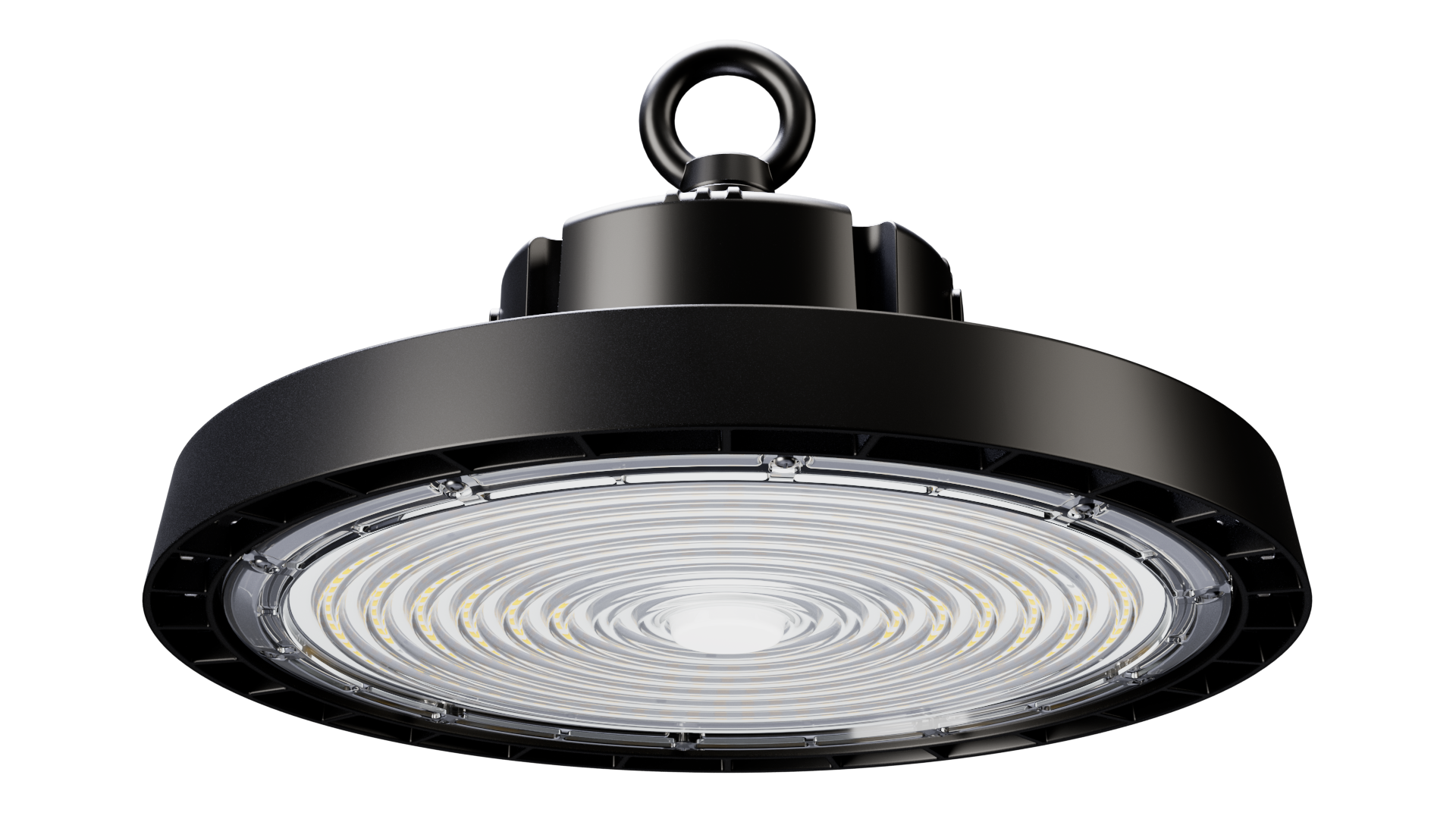

| L05004 | Wattage150W | CCT4000K/5000K/6000K | IPIP65 | DimensionsØ265x33x169mm | Cut-outNot published |
| L05005 | Wattage200W | CCT4000K/5000K/6000K | IPIP65 | DimensionsØ305x33x175mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø265x33x169mm · Ø305x33x175mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 30W · 100W · 150W · 200W |
| Lumen output | 17000LM · 25500LM · 34000LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 90° · 120° |
| Colour temperature | 2200K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 70 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model L05003. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L05003
Ø265x33x169mm
Specifications
At a Glance
100–200W
Power Range
1 options
Beam: 60°
3 CCT
4000K, 5000K, 6000K
CRI 70
Colour Rendering
IP65
Protection Rating
2 sizes
Ø265x33x169mm, Ø305x33x175mm
Configure your product
L05003
Order code
Listed configurationL05003.740.03.60
6 listed configurations · availability requires confirmation
