Lumi Outdoor
JUDY
Application inspiration · not a project reference
JUDY is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Street Light
JUDY
JUDY is a street light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 3 models, including LBP9466, LBP9467, LBP9468, with model-specific specifications and configuration choices. LBP9466 specifications include power: 200W; IP rating: IP66; dimensions: 780x360x150mm. Compare the JUDY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

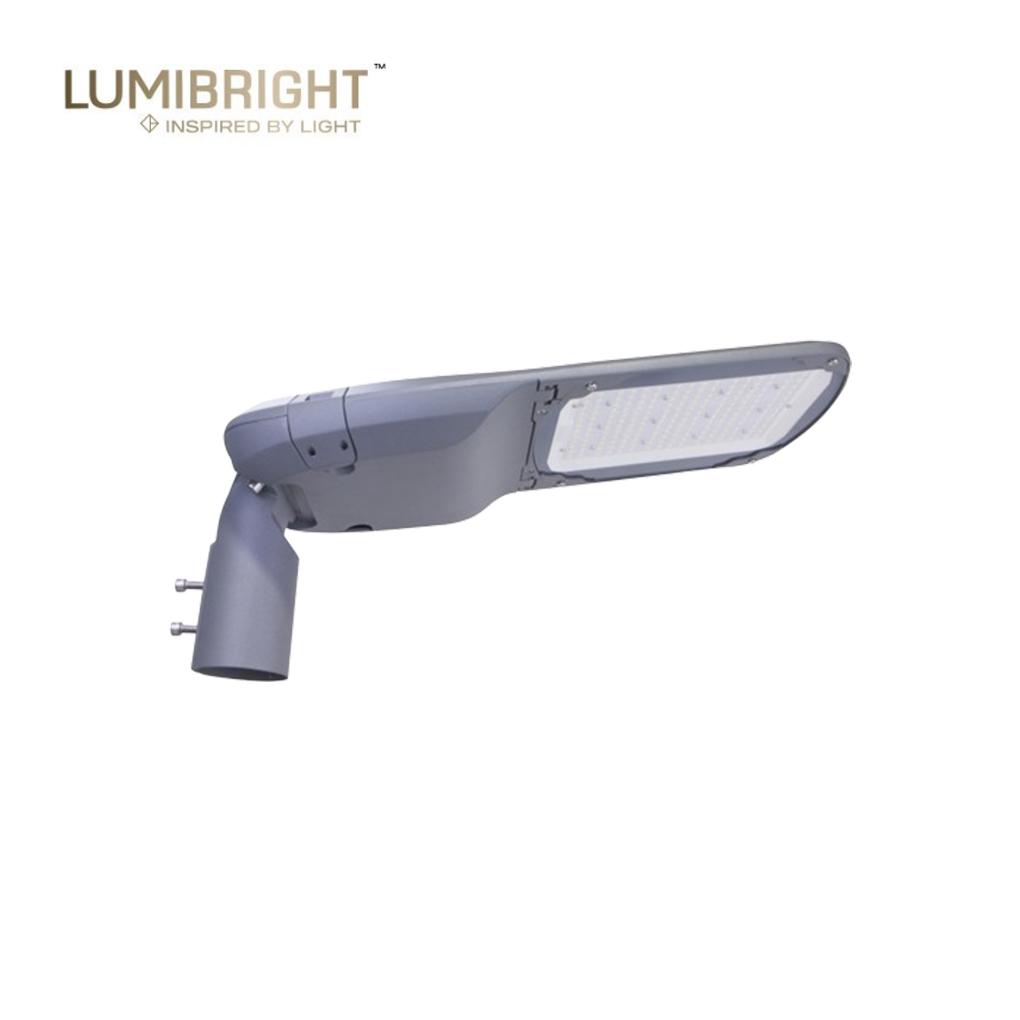

| LBP9466 | Wattage200W | CCTNot published | IPIP66 | Dimensions780x360x150mm | Cut-outNot published |
| LBP9467 | Wattage50W | CCT3000K | IPIP66 | Dimensions492x180x92mm | Cut-outNot published |
| LBP9468 | Wattage50W | CCTNot published | IPIP66 | Dimensions492x180x92mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 780x360x150mm · 492x180x92mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 50W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° · T3 |
| Colour temperature | 3000K · 6000K |
| CRI Ra | 90 · 70 · ≥75 · ≥70 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | AC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | ral-7024 · GREY · RAL 7024 · BLACK |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP9467. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP9467
492x180x92mm
Specifications
At a Glance
50–200W
Power Range
2 options
Beam: 3°, 120°
2 CCT
3000K, 6000K
CRI 70/90
Colour Rendering
IP66
Protection Rating
3 finishes
Body Finish Options
2 sizes
492x180x92mm, 780x360x150mm
Configure your product
LBP9467
Order code
Listed configurationLBP9467.W.930.7024.120
2 listed configurations · availability requires confirmation
