Inground Light
LYENG
LYENG is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 25 article codes under this family, including LB1125, LB1126, LB1127. For LB1125, published values include power: 7W; colour temperature: 3000K; IP rating: IP67; dimensions: Ø125x140mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LYENG articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

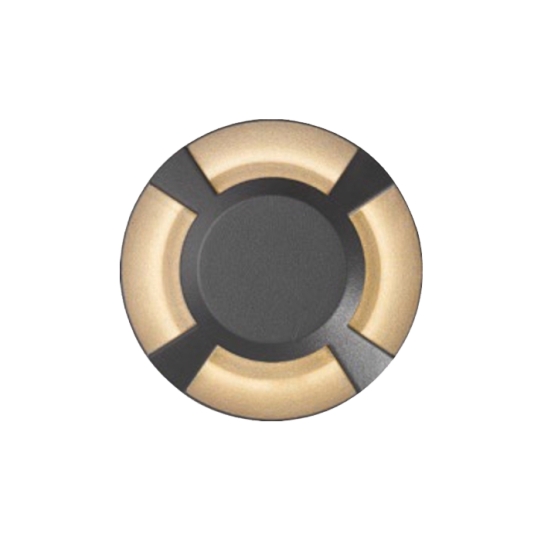

| LB1125 | Wattage7W | CCT3000K | IPIP67 | DimensionsØ125x140mm | Cut-outNot published |

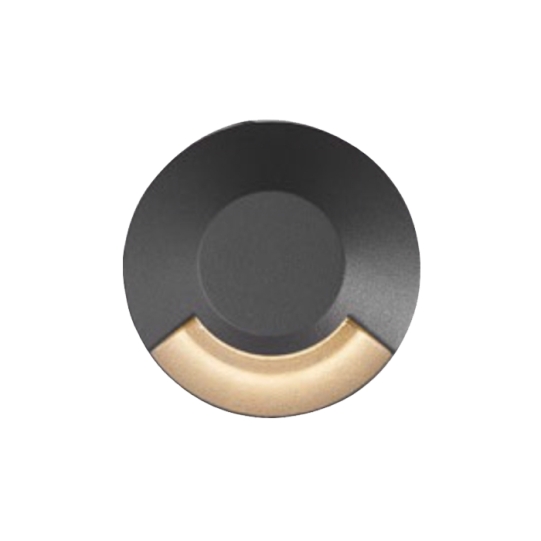

| LB1126 | Wattage7W | CCT4000K | IPIP67 | DimensionsØ125x140mm | Cut-outNot published |

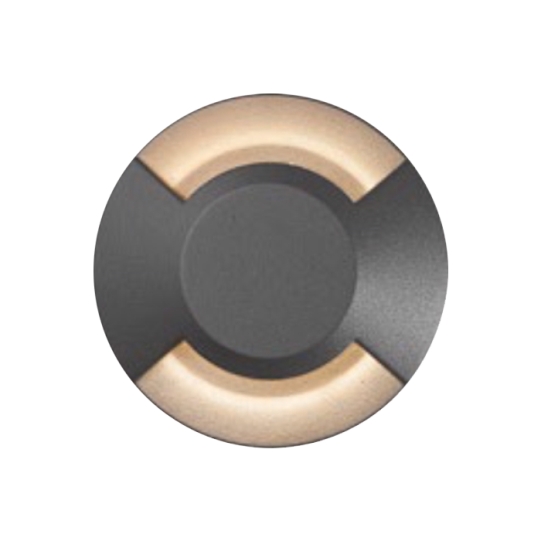

| LB1127 | Wattage7W | CCT3000K | IPIP67 | DimensionsØ125x140mm | Cut-outNot published |

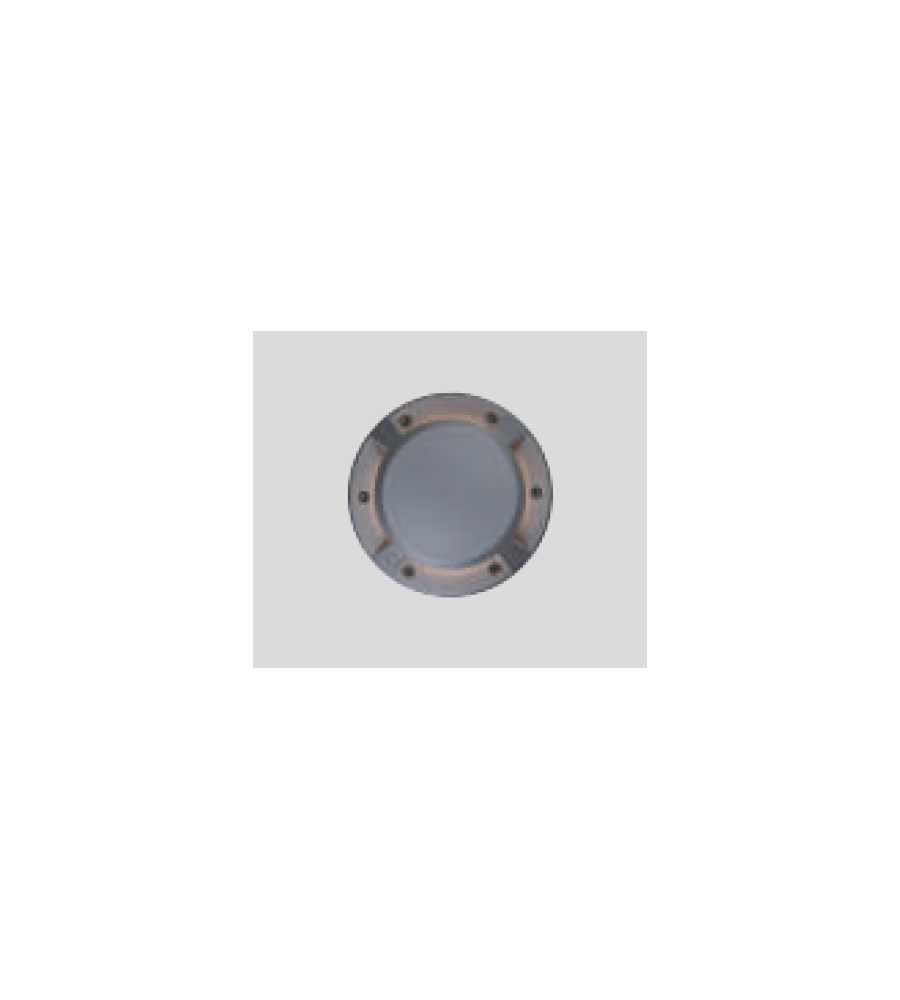

| LB1228 | Wattage11W | CCT3000K | IPIP67 | DimensionsØ220x165mm | Cut-outØ242x194mm |

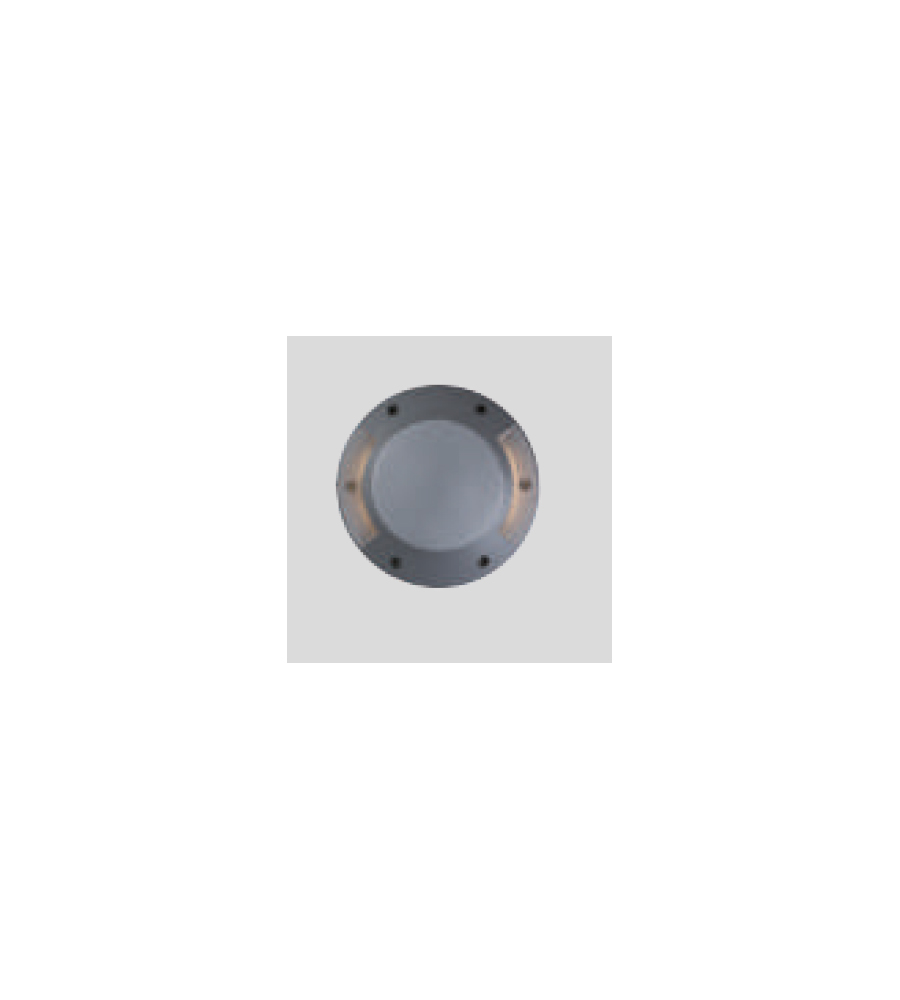

| LB1229 | Wattage11W | CCT3000K | IPIP67 | DimensionsØ220x165mm | Cut-outØ242x194mm |

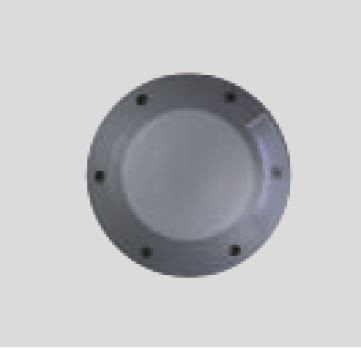

| LB1230 | WattageNot published | CCTNot published | IPIP67 | DimensionsØ220x165mm | Cut-outØ242x194mm |
| LB1237 | WattageNot published | CCTNot published | IPNot published | DimensionsØ88x105mm | Cut-outNot published |

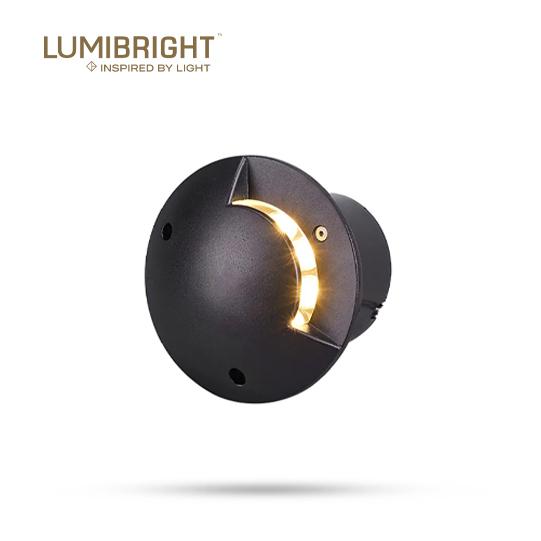

| LBE11015 | Wattage7W | CCT2700K | IPIP65 | DimensionsØ150x140mm | Cut-outNot published |

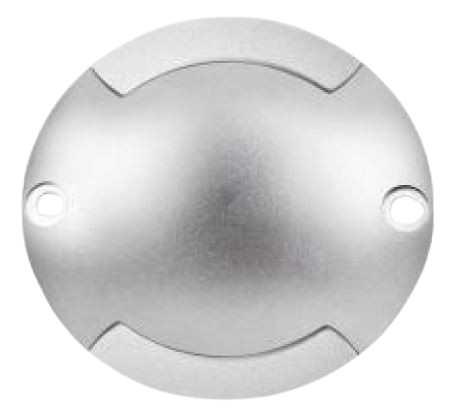

| LBE11018 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ70xH14mm | Cut-outNot published |
| LBE11019 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ70xH14mm | Cut-outNot published |
| LBP1186 | Wattage2W | CCTNot published | IPIP67 | DimensionsØ55x86mm | Cut-outØ80mm |
| LBP1198 | Wattage6W | CCT6000K | IPIP67 | DimensionsØ116x115mm | Cut-outØ102x150mm |

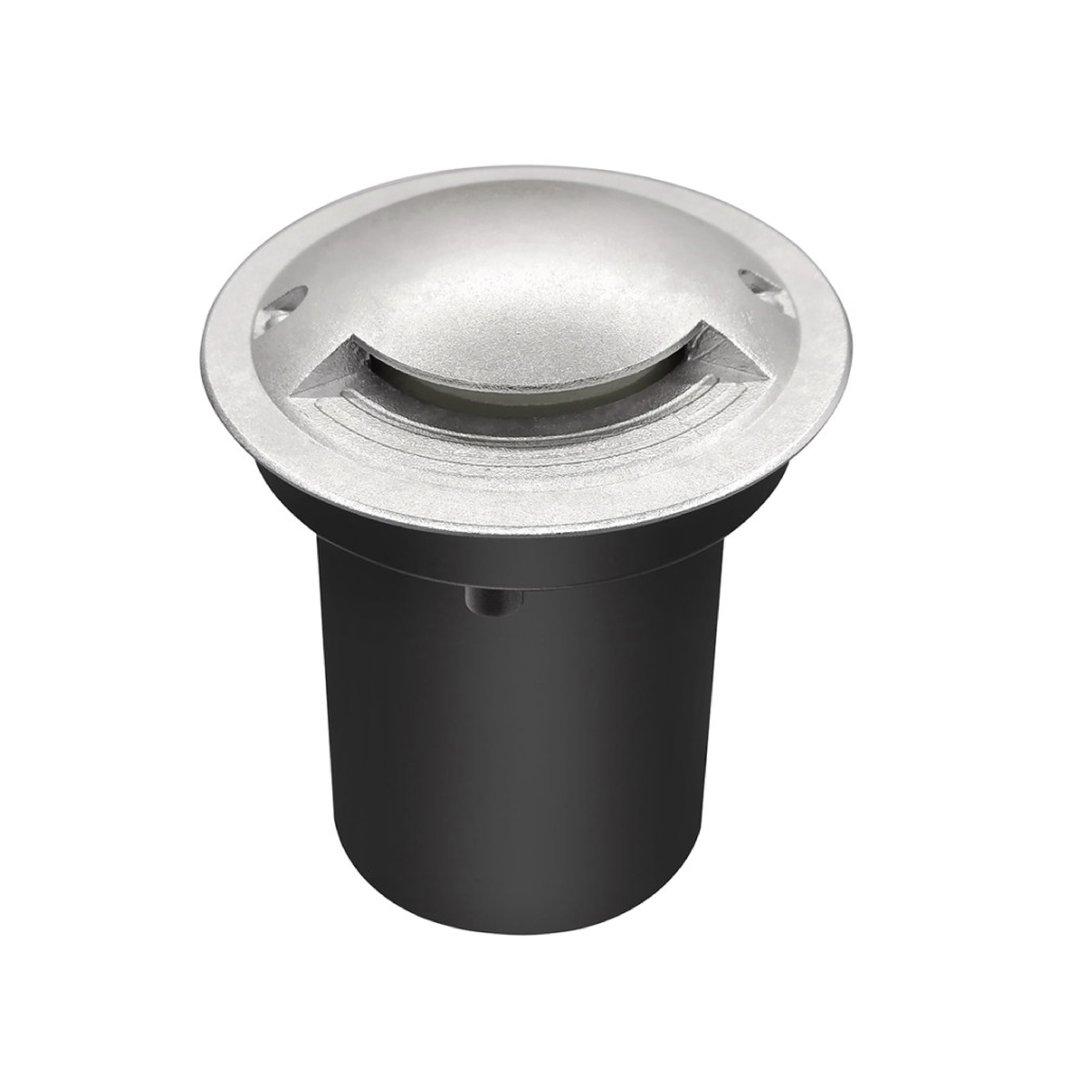

| LBP1201 | WattageNot published | CCT6000K, 3000K, 4000K | IPIP67 | DimensionsØ116x115mm | Cut-outNot published |

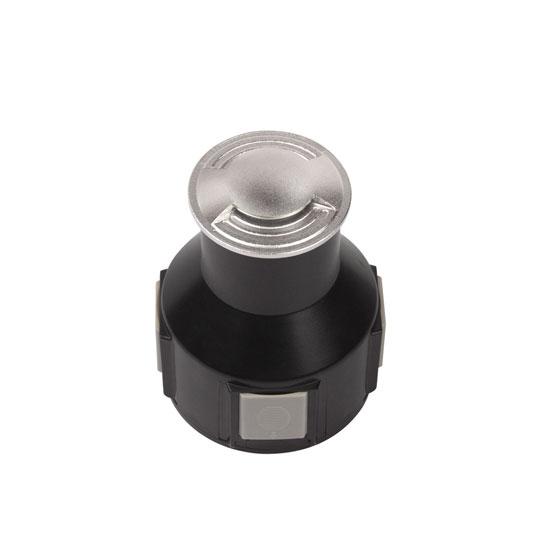

| LBP1203 | WattageNot published | CCT6000K, 3000K, 4000K | IPIP67 | DimensionsØ55x98mm | Cut-outNot published |

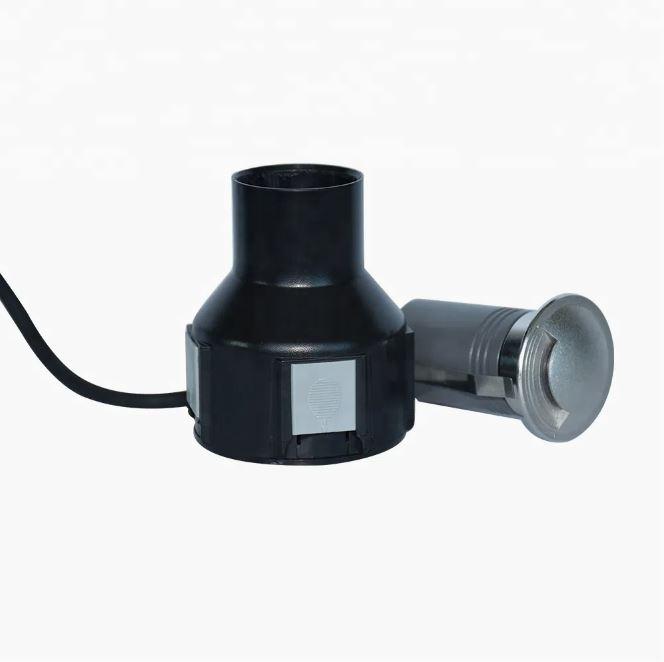

| LBP1205 | Wattage3W | CCT6000K | IPIP67 | DimensionsØ55x98mm | Cut-outNot published |
| LBP1209 | Wattage3W | CCTNot published | IPIP67 | DimensionsØ55x98mm | Cut-outNot published |
| LBP1211 | Wattage7W | CCT3000K | IPIP67 | DimensionsØ116x150mm | Cut-outØ102x150mm |
| LBP1212 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ116x150mm | Cut-outNot published |
| LBP1213 | Wattage3W | CCT3000K | IPIP67 | DimensionsØ92x125mm | Cut-outØ87x110mm |
| LBP1217 | Wattage3W | CCTNot published | IPIP67 | DimensionsØ52x68mm | Cut-outNot published |
| LBP1218 | Wattage3W | CCTNot published | IPIP67 | DimensionsØ92x125mm | Cut-outØ87x110mm |

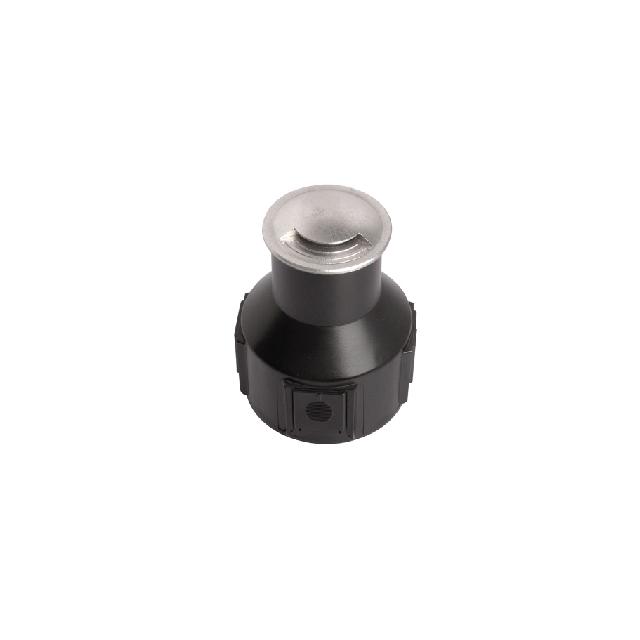

| LBT1108 | Wattage1x2W | CCT3000K | IPIP67 | DimensionsØ55x98mm | Cut-outØ80x98mm |

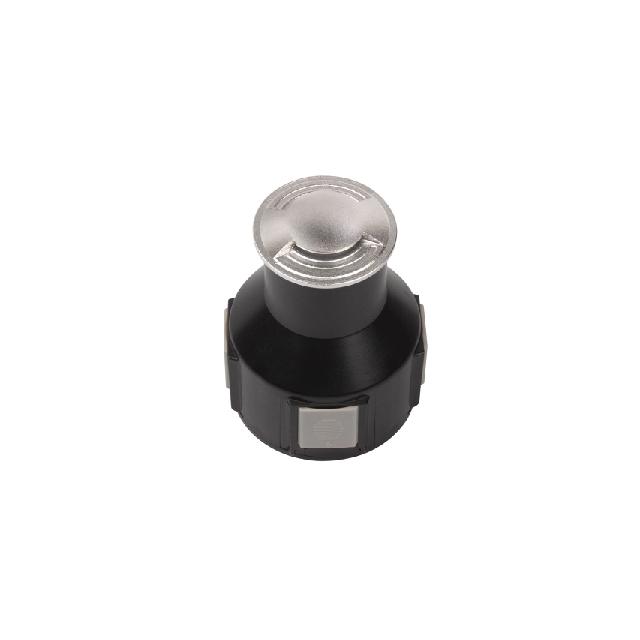

| LBT1109 | Wattage1x2W | CCT3000K | IPIP67 | DimensionsØ55x98mm | Cut-outØ80x98mm |
| LBT1110 | Wattage6W | CCT3000K | IPIP65 | DimensionsØ200xH115mm | Cut-outNot published |
| LBT1116 | Wattage3W | CCT2700K | IPIP67 | DimensionsØ55x86mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø125x140mm · Ø220x165mm · Ø88x105mm · Ø150x140mm +8 more |
|---|---|
| Cut-out | Ø242x194mm · Ø80mm · Ø102x150mm · Ø80x98mm +1 more |
| Power | 7W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 17° · RADIAL · 100° · R +4 more |
| Colour temperature | 3000K · 4000K · 6000K · 5000K +1 more |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · AC · 12VDC · 24VDC +1 more |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | graphite · black-sand · silver · Black With Sand +13 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
25 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1126. This family has 25 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1126
Ø125x140mm
Specifications
At a Glance
1.5–11W
Power Range
6 options
Beam: 5°, 12°, 17°, 25°, 60°, 100°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80
Colour Rendering
IP65 / IP67
Protection Rating
10 finishes
Body Finish Options
12 sizes
Ø116x115mm, Ø116x150mm, Ø125x140mm, Ø150x140mm, Ø200xH115mm, Ø220x165mm, Ø52x68mm, Ø55x86mm, Ø55x98mm, Ø70xH14mm, Ø88x105mm, Ø92x125mm
5 cut-outs
Ø102x150mm, Ø242x194mm, Ø80mm, Ø80x98mm, Ø87x110mm
Configure your product
LB1126
Order code
Listed configurationLB1126.W.830.PGP.R
11 listed configurations · availability requires confirmation
