Projector Light
MIRANDES
MIRANDES is a projector light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 13 models, including L07063, L07064, L07065, with model-specific specifications and configuration choices. L07063 specifications include power: 2W; colour temperature: 5000K, 5700K, 3000K, 4000K; IP rating: IP66; dimensions: 33x60x320mm. Compare the MIRANDES range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L07063 | Wattage2W | CCT5000K, 5700K, 3000K, 4000K | IPIP66 | Dimensions33x60x320mm | Cut-outNot published |
| L07064 | Wattage4W | CCT5000K, 3000K, 2700K, 6500K, 5700K, 4000K | IPIP66 | Dimensions42x64x79mm | Cut-outNot published |
| L07065 | Wattage4W | CCT5000K, 3000K, 2700K, 6500K, 5700K, 4000K | IPIP66 | Dimensions42x64x79mm | Cut-outNot published |
| L07066 | Wattage6W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions55x75x102mm | Cut-outNot published |
| L07067 | Wattage6W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions55x75x102mm | Cut-outNot published |
| L07068 | Wattage10W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions69x99x123mm | Cut-outNot published |

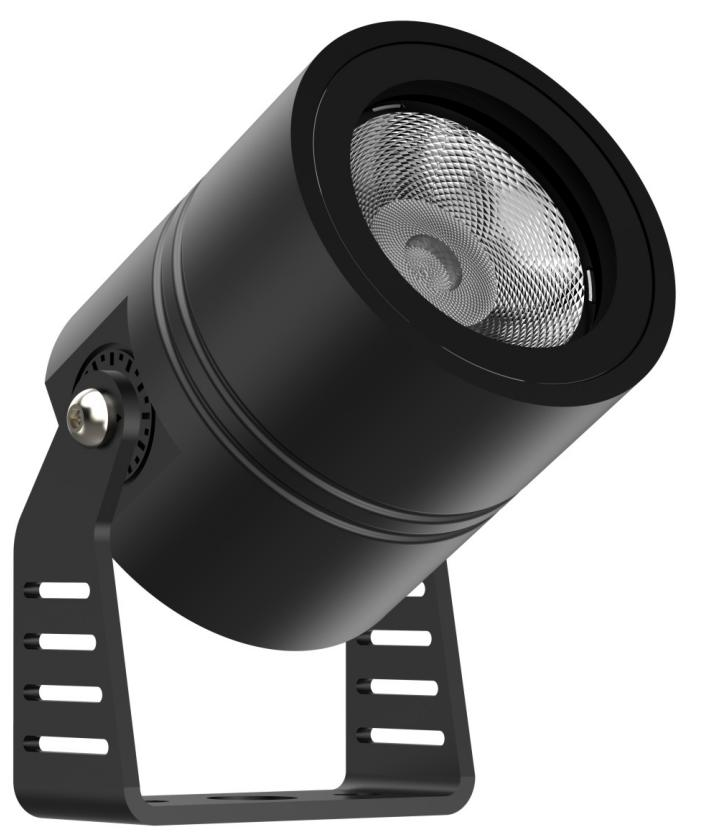

| L07069 | Wattage10W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions69x99x123mm | Cut-outNot published |
| L07070 | Wattage15W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions85x120x145mm | Cut-outNot published |
| L07071 | Wattage15W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions85x120x145mm | Cut-outNot published |
| L07072 | Wattage15W | CCTRGB+WARM WHITE | IPIP66 | Dimensions85x120x145mm | Cut-outNot published |
| L07073 | Wattage24W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions85x120x145mm | Cut-outNot published |
| L07074 | Wattage24W | CCT5000K, 3000K, 2200K, 2700K, 6500K, 5700K, 4000K, 3500K | IPIP66 | Dimensions85x120x145mm | Cut-outNot published |
| L07075 | Wattage24W | CCTRGB+WARM WHITE | IPIP66 | Dimensions85x120x145mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø33x60x320mm · 33x60x320mm · Ø42x64x79mm · 42x64x79mm +6 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 2W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 5° · 8° · 10° · 12° +6 more |
| Colour temperature | 3000K · 4000K · 5000K · 5700K +5 more |
| CRI Ra | 80 · 90 · No CRI |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
13 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L07063. This family has 13 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L07063
33x60x320mm
Specifications
At a Glance
2W
Power Range
1 options
Beam: 5°
4 CCT
3000K, 4000K, 5000K, 5700K
RGB+WARM WHITE
Colour Options
IP66
Protection Rating
1 finishes
Body Finish Options
5 sizes
33x60x320mm, 42x64x79mm, 55x75x102mm, 69x99x123mm, 85x120x145mm
Configure your product
L07063
Order code
Listed configurationL07063.830.03.5
56 listed configurations · availability requires confirmation
