Lumi Outdoor
MORLEY
Application inspiration · not a project reference
MORLEY is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

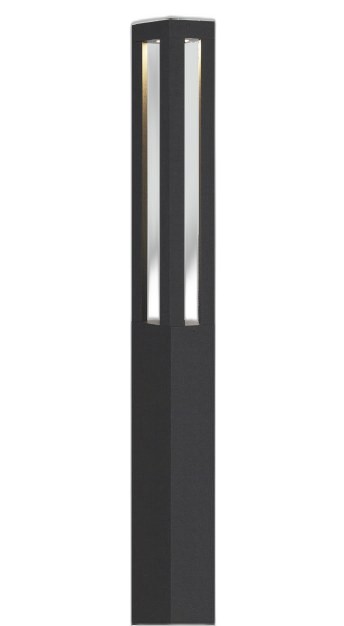

Bollard Light
MORLEY
MORLEY is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 4 models, including L14018, L14019, L14020, with model-specific specifications and configuration choices. L14018 specifications include power: 1×10W; colour temperature: 3000K/4000K/6000K; IP rating: IP65; dimensions: 110x210mm. Compare the MORLEY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L14018 | Wattage1×10W | CCT3000K/4000K/6000K | IPIP65 | Dimensions110x210mm | Cut-outNot published |
| L14019 | Wattage1×10W | CCT3000K/4000K/6000K | IPIP65 | Dimensions110x400mm | Cut-outNot published |
| L14020 | Wattage1×10W | CCT3000K/4000K/6000K | IPIP65 | Dimensions110x520mm | Cut-outNot published |
| L14021 | Wattage1×10W | CCT3000K/4000K/6000K | IPIP65 | Dimensions110x1000mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 110x210mm · 110x400mm · 110x520mm · 110x1000mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 1W · 10W · 1×10W |
| Lumen output | 329lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° · P |
| Colour temperature | 3000K · 4000K · 6000K |
| CRI Ra | 80+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium DIE-CAST |
| Finish | Dark Grey · Black · Matte Dark Grey · Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions

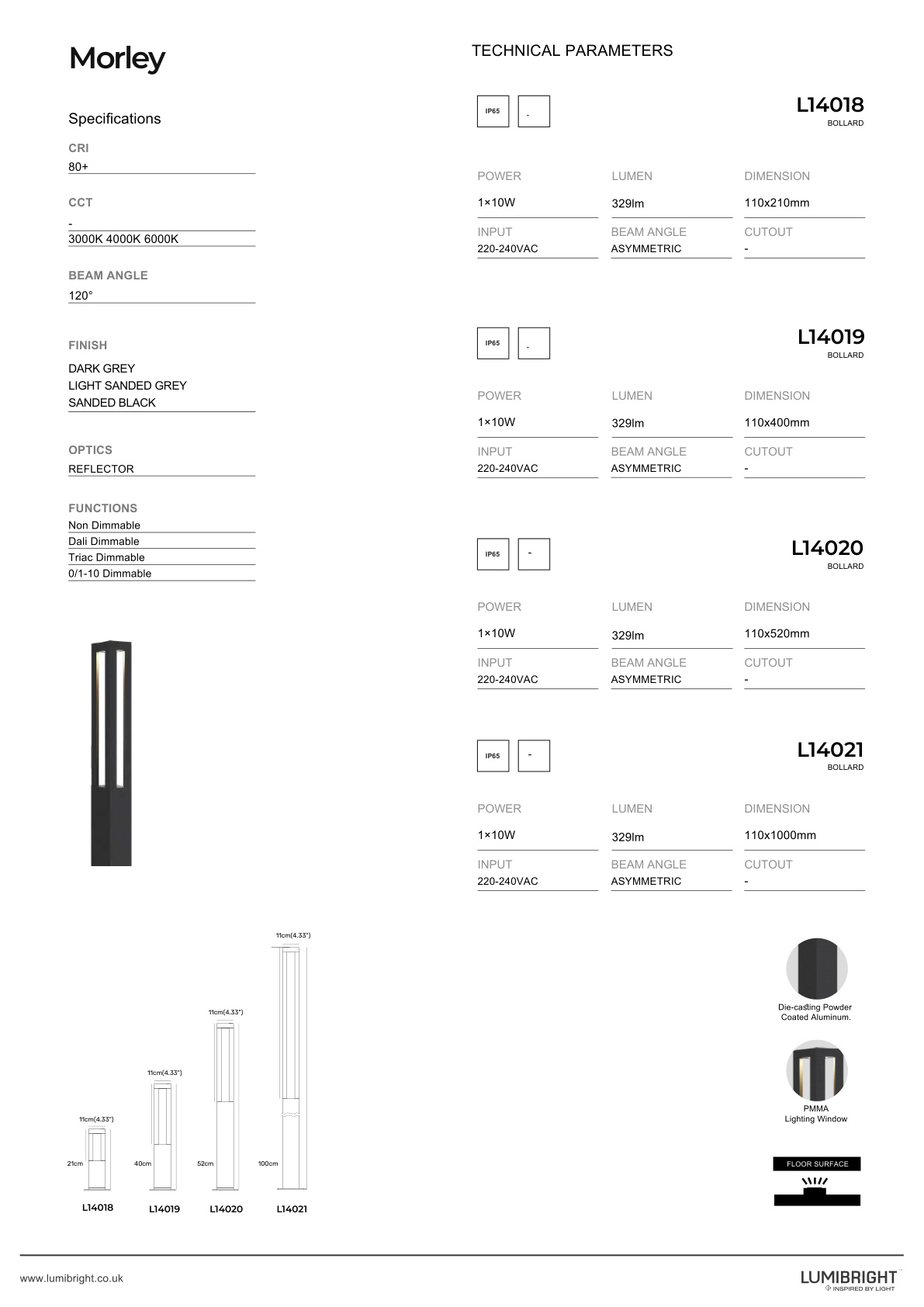

Technical Drawing
Drawing and sizes shown for model L14018. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L14018
110x210mm
Specifications
At a Glance
1W
Power Range
1 options
Beam: 120°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
4 sizes
110x1000mm, 110x210mm, 110x400mm, 110x520mm
Configure your product
L14018
Order code
Listed configurationL14018.860.03.P
9 listed configurations · availability requires confirmation
