Inground Light
MORLIN
MORLIN is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 7 models, including LB1286, LB1287, LB1288, with model-specific specifications and configuration choices. LB1286 specifications include power: 24W; colour temperature: RED; IP rating: IP68; dimensions: Ø248x55mm. Compare the MORLIN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

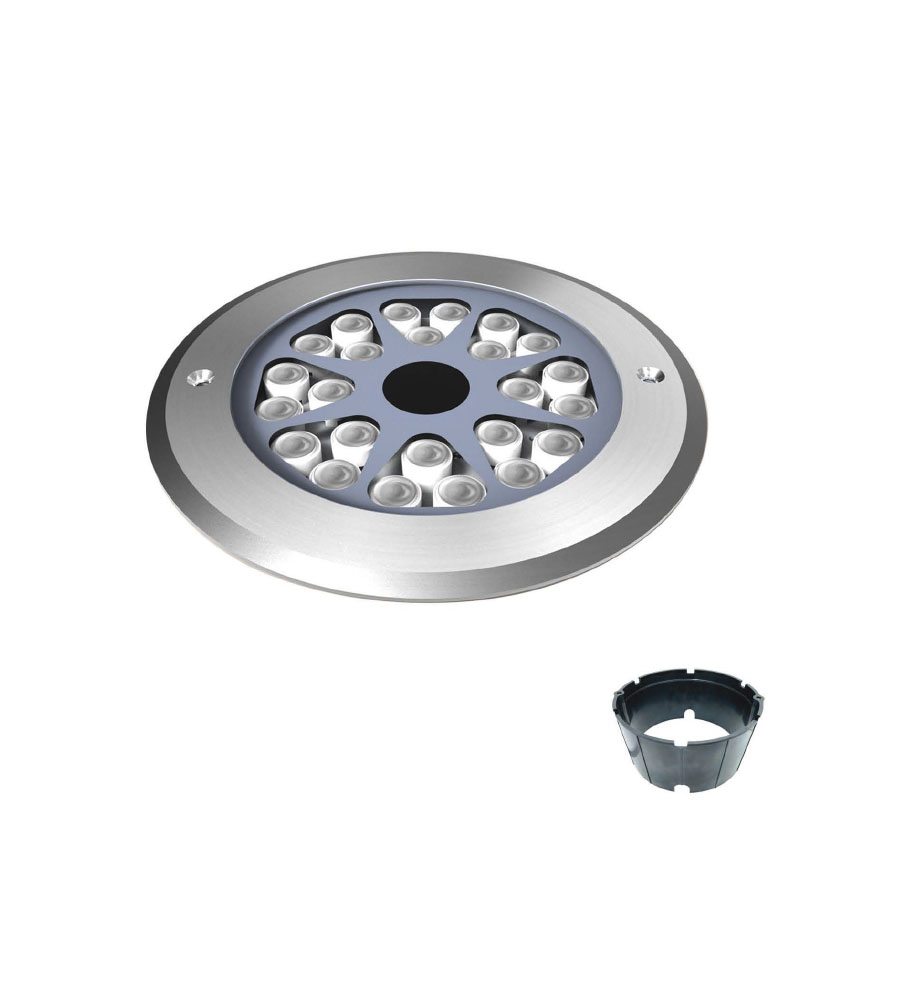

| LB1286 | Wattage24W | CCTRED | IPIP68 | DimensionsØ248x55mm | Cut-outNot published |
| LB1287 | WattageNot published | CCTRGB | IPIP68 | DimensionsØ248x55mm | Cut-outNot published |
| LB1288 | Wattage18W | CCTRED | IPIP68 | DimensionsØ175x51mm | Cut-outNot published |

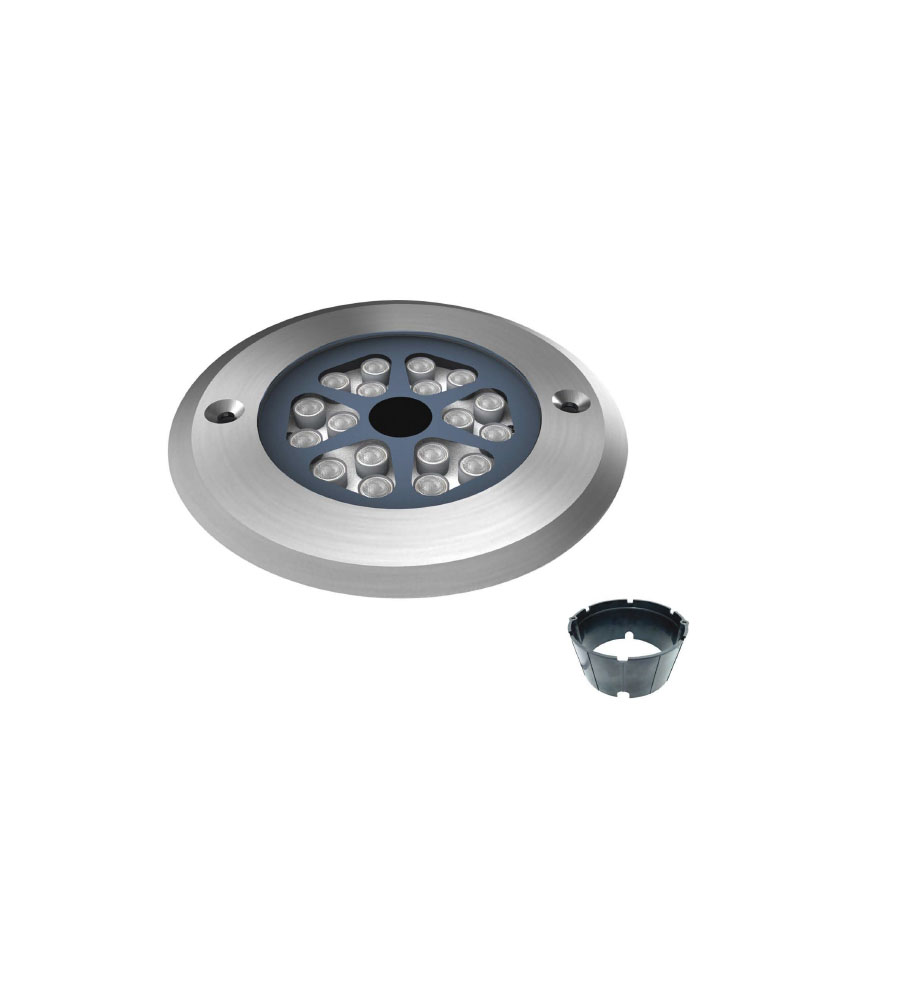

| LB1289 | Wattage18W | CCTRGB | IPIP68 | DimensionsØ175x51mm | Cut-outNot published |
| LB1290 | Wattage12W | CCT4000K | IPIP68 | DimensionsØ175x51mm | Cut-outNot published |

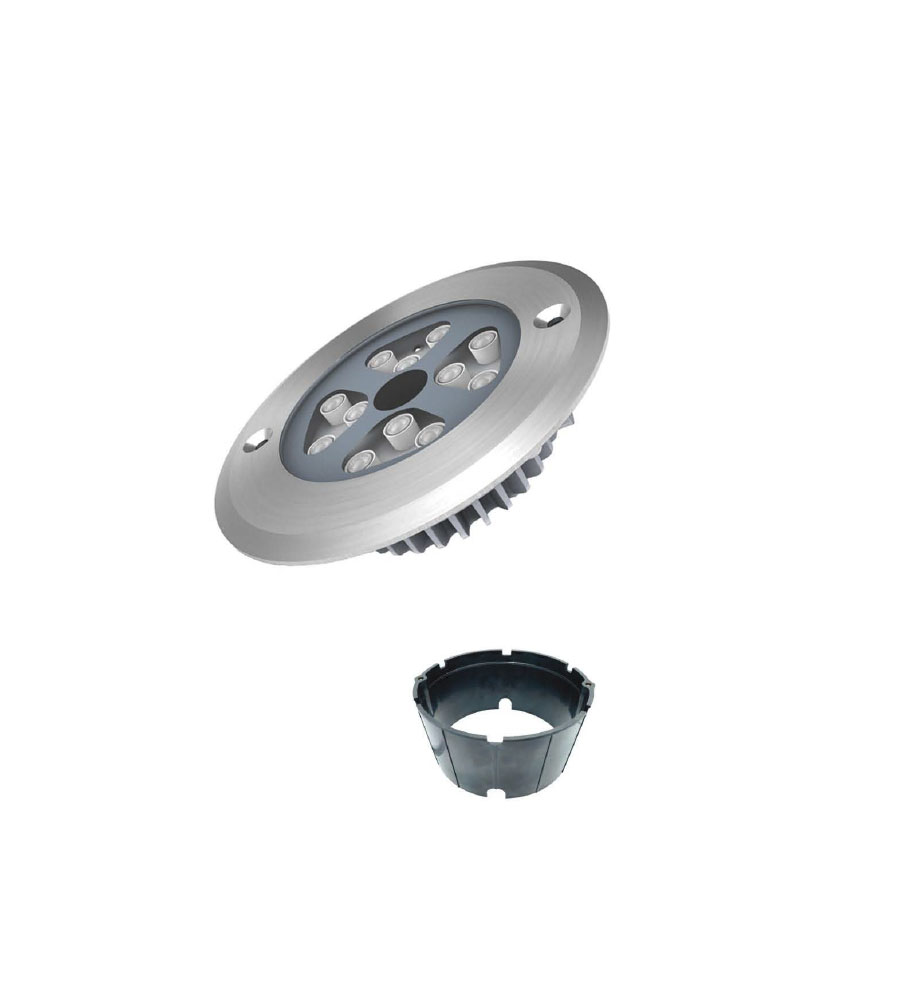

| LB1291 | WattageNot published | CCTRGB | IPIP68 | DimensionsØ175x51mm | Cut-outNot published |

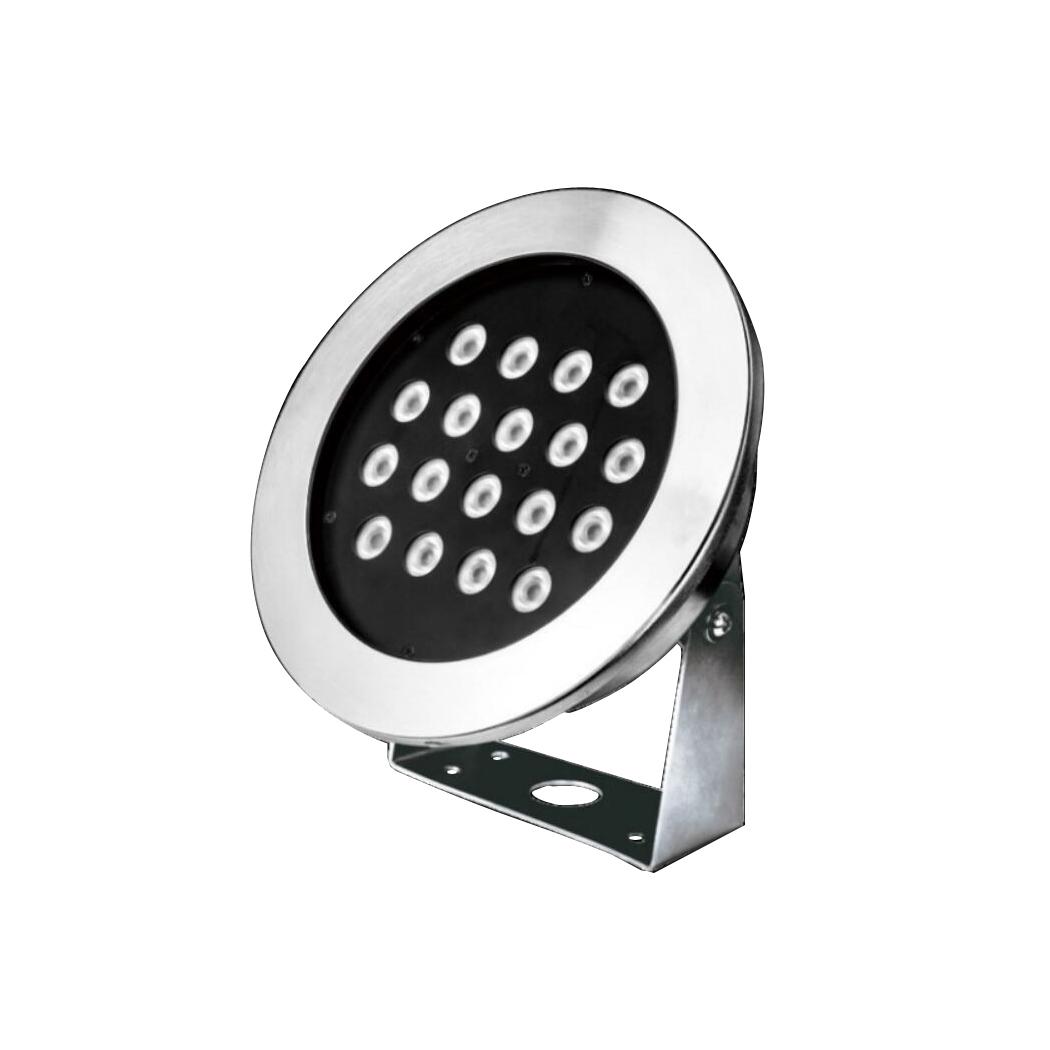

| LBS1437 | Wattage18x1W | CCT6000K | IPIP68 | DimensionsNot published | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø248x55mm · Ø175x51mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 12W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 10° · 20° · 40° · 60° +2 more |
| Colour temperature | 2200K · 3000K · 4000K · 6000K +4 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP68 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | stainless-steel · Stainless Steel |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
7 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1290. This family has 7 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1290
Ø175x51mm
Specifications
At a Glance
1–24W
Power Range
6 options
Beam: 10°, 20°, 24°, 30°, 40°, 60°
4 CCT
2200K, 3000K, 4000K, 6000K
BLUE / GREEN / RED / RGB
Colour Options
CRI 80
Colour Rendering
IP68
Protection Rating
1 finishes
Body Finish Options
2 sizes
Ø175x51mm, Ø248x55mm
Configure your product
LB1290
Order code
Listed configurationLB1290.X.XRE.SSS.60
28 listed configurations · availability requires confirmation
