Lumi Outdoor

OVIEDO

OVIEDO is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

OVIEDO is a projector light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 123 models, including L07000, L07001, L07002, with model-specific specifications and configuration choices. L07000 specifications include power: 72W; colour temperature: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K; IP rating: IP66; dimensions: Ø210x150mm. Compare the OVIEDO range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

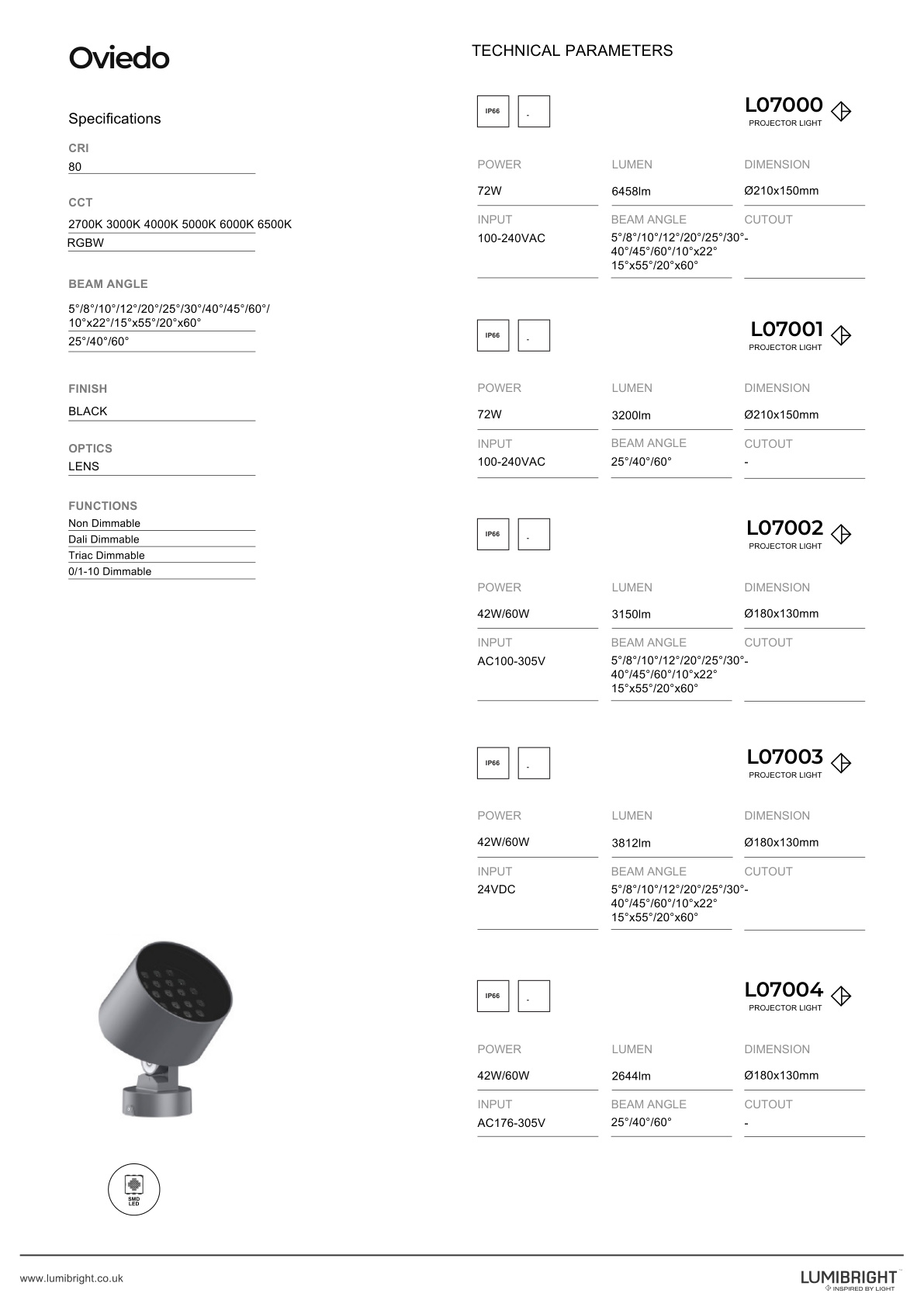

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
L07000	72W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø210x150mm	Not published
L07001	72W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø210x150mm	Not published
L07002	42W/60W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x130mm	Not published
L07003	42W/60W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x130mm	Not published
L07004	42W/60W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x130mm	Not published
L07005	42W/60W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x130mm	Not published
L07006	36W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x110mm	Not published
L07007	36W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x110mm	Not published
L07008	36W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x110mm	Not published
L07009	15W/24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x95mm	Not published
L07010	15W/24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x95mm	Not published
L07011	24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x95mm	Not published
L07012	24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x95mm	Not published
L07013	40W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07014	40W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø140x279mm	Not published
L07015	40W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø140x279mm	Not published
L07016	15W/25W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø108x176mm	Not published
L07017	15W/25W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø108x176mm	Not published
L07018	15W/25W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø108x176mm	Not published
L07019	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x164mm	Not published
L07020	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x164mm	Not published
L07021	10W/15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x164mm	Not published
L07022	6W/8W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø68x137mm	Not published
L07023	6W/8W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø68x137mm	Not published
L07024	10W/15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø68x137mm	Not published
L07025	40W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø140x230mm	Not published
L07026	40W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø140x230mm	Not published
L07027	20W/30W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø108x176mm	Not published
L07028	20W/30W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø108x176mm	Not published
L07029	15W/20W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x146mm	Not published
L07030	15W/20W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x146mm	Not published
L07031	15W/24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x146mm	Not published
L07032	6W/10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x146mm	Not published
L07033	6W/10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø86x146mm	Not published
L07034	15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07035	15W/20W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x85mm	Not published
L07036	15W/24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x85mm	Not published
L07037	25W/36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x85mm	Not published
L07038	30W/36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x85mm	Not published
L07039	30W/36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x85mm	Not published
L07040	30W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x85mm	Not published
L07041	36W/48W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x85mm	Not published
L07042	42W/54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x116mm	Not published
L07043	42W/54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x116mm	Not published
L07044	42W/54W/70W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x116mm	Not published
L07045	42W/54W/70W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø180x116mm	Not published
L07046	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07047	18W/24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	110x120mm	Not published
L07048	18W/24W/32W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	110x120mm	Not published
L07049	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	88x100mm	Not published
L07050	10W/15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	88x100mm	Not published
L07051	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	88x100mm	Not published
L07052	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	88x120mm	Not published
L07053	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	88x120mm	Not published
L07054	15W/20W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	88x120mm	Not published
L07055	6W/9W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	70x80mm	Not published
L07056	6W/9W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	70x80mm	Not published
L07057	6W/9W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	70x80mm	Not published
L07058	2.5W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	70x80mm	Not published
L07059	5W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	70x80mm	Not published
L07060	2.5W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	50x70mm	Not published
L07061	2.5W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	50x70mm	Not published
L07062	2.5W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	50x70mm	Not published
L07064	4W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	42x64x79mm	Not published
L07065	4W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	42x64x79mm	Not published
L07066	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	55x75x102mm	Not published
L07067	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	55x75x102mm	Not published
L07068	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	69x99x123mm	Not published
L07069	10W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	69x99x123mm	Not published
L07070	15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	85x120x145mm	Not published
L07071	15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	85x120x145mm	Not published
L07072	15W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	85x120x145mm	Not published
L07073	24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	85x120x145mm	Not published
L07074	24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	85x120x145mm	Not published
L07075	24W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	85x120x145mm	Not published
L07076	Not published	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07077	Not published	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø250x333x222MM	Not published
L07078	5W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø300x287x390MM	Not published
L07079	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø70x48x134MM	Not published
L07080	16W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø90x59x149MM	Not published
L07081	20W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x78x198MM	Not published
L07082	40W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø160x99.4x249MM	Not published
L07083	3W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø39x94x28MM	Not published
L07084	8W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø53x104.2x37.4MM	Not published
L07085	14W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø67x135x46.7MM	Not published
L07086	7W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø65x390MM	Not published
L07087	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø65x419MM	Not published
L07088	27W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø85x544MM	Not published
L07089	3W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07090	3W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø40x47.5x66.5mm	Not published
L07091	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø80x81x116mm	Not published
L07092	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø80x81x116mm	Not published
L07093	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø80x81x116mm	Not published
L07094	6W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø80x81x116mm	Not published
L07095	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x78x128mm	Not published
L07096	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x78x128mm	Not published
L07097	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07098	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Not published	Not published
L07099	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x94.5x152.5mm	Not published
L07100	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø120x94.5x152.5mm	Not published
L07101	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x112.5x164mm	Not published
L07102	18W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x162x214mm	Not published
L07103	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x112.5x164mm	Not published
L07104	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x112.5x164mm	Not published
L07105	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x112.5x164mm	Not published
L07106	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x112.5x164mm	Not published
L07107	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x162x214mm	Not published
L07108	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x162x214mm	Not published
L07109	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x162x214mm	Not published
L07110	36W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø150x162x214mm	Not published
L07111	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x74.5x167.5mm	Not published
L07112	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x74.5x167.5mm	Not published
L07113	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x74.5x167.5mm	Not published
L07114	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x74.5x167.5mm	Not published
L07115	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x217mm	Not published
L07116	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x217mm	Not published
L07117	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x217mm	Not published
L07118	54W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø170x217mm	Not published
L07119	80W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø200x120x187mm	Not published
L07120	80W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø200x120x187mm	Not published
L07121	80W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø200x170x236mm	Not published
L07122	80W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø200x170x236mm	Not published
L07123	120W	2700K, 3000K, 4000K, 5000K, 6000K, 6500K	IP66	Ø240x212mm	Not published

Models (123)

L07000
L07001
L07002
L07003
L07004
L07005
L07006
L07007
L07008
L07009
L07010
L07011
L07012
L07013
L07014
L07015
L07016
L07017
L07018
L07019
L07020
L07021
L07022
L07023
L07024
L07025
L07026
L07027
L07028
L07029
L07030
L07031
L07032
L07033
L07034
L07035
L07036
L07037
L07038
L07039
L07040
L07041
L07042
L07043
L07044
L07045
L07046
L07047
L07048
L07049
L07050
L07051
L07052
L07053
L07054
L07055
L07056
L07057
L07058
L07059
L07060
L07061
L07062
L07064
L07065
L07066
L07067
L07068
L07069
L07070
L07071
L07072
L07073
L07074
L07075
L07076
L07077
L07078
L07079
L07080
L07081
L07082
L07083
L07084
L07085
L07086
L07087
L07088
L07089
L07090
L07091
L07092
L07093
L07094
L07095
L07096
L07097
L07098
L07099
L07100
L07101
L07102
L07103
L07104
L07105
L07106
L07107
L07108
L07109
L07110
L07111
L07112
L07113
L07114
L07115
L07116
L07117
L07118
L07119
L07120
L07121
L07122
L07123

Family options are ranges, not guarantees for every model. Select an exact article and configuration.
