Lumi Outdoor
PATIO
Application inspiration · not a project reference
PATIO is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Inground Light
PATIO

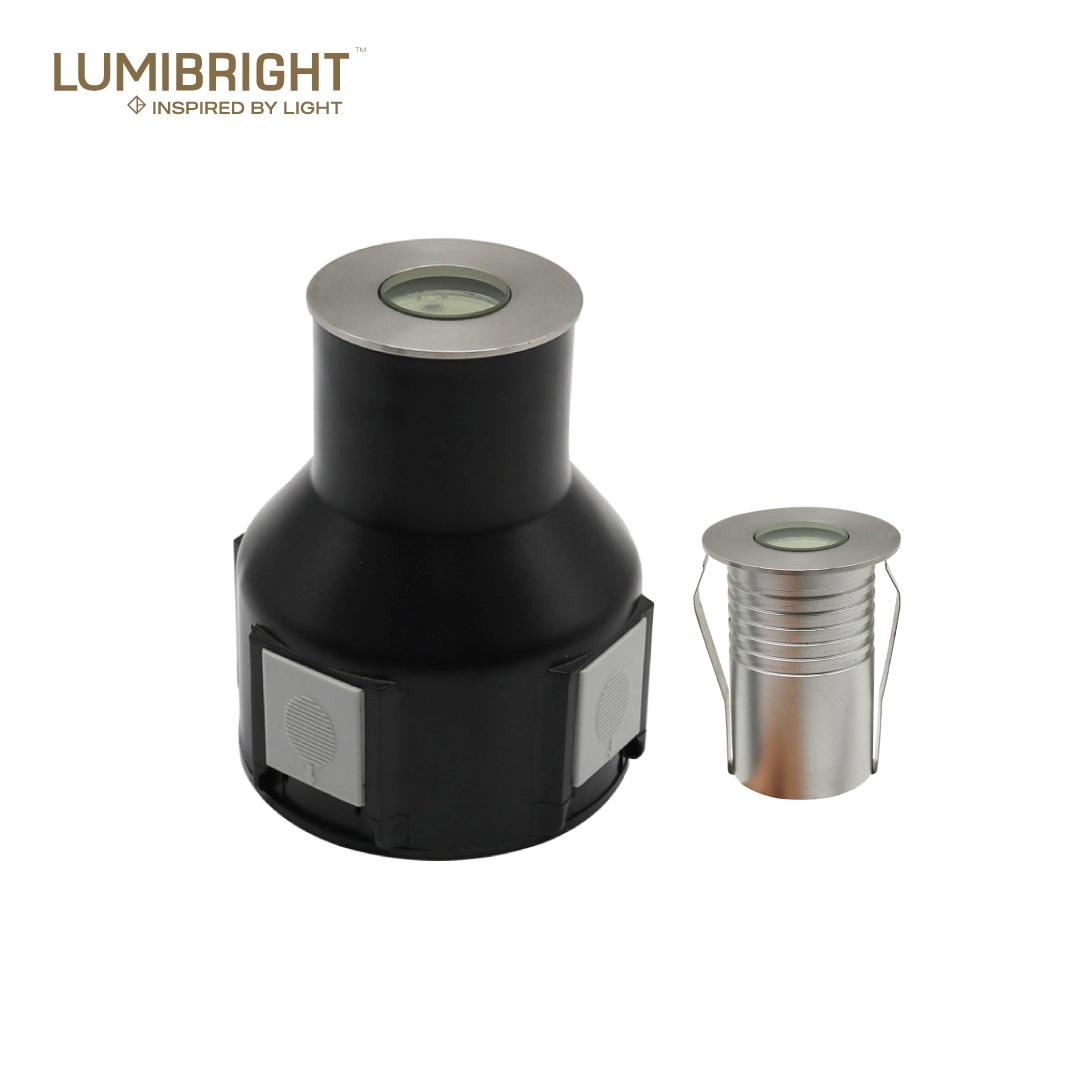

PATIO is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 3 models, including LB1351, LBT1114, LBT1117, with model-specific specifications and configuration choices. LB1351 specifications include power: 1W; colour temperature: 3000K; IP rating: IP67; dimensions: Ø50x68mm. Compare the PATIO range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1351 | Wattage1W | CCT3000K | IPIP67 | DimensionsØ50x68mm | Cut-outØ80x86mm |
| LBT1114 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ75x64mm | Cut-outNot published |
| LBT1117 | Wattage1W | CCT3000K | IPIP67 | DimensionsØ75x64mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø50x68mm · Ø75x64mm |
|---|---|
| Cut-out | Ø80x86mm |
| Power | 1W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 10° · 45° |
| Colour temperature | 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | stainless-steel · Stainless Steel |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1351. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1351
Ø50x68mm
Cut-Out
Ø80x86mm
Specifications
At a Glance
1–3W
Power Range
2 options
Beam: 10°, 45°
1 CCT
3000K
CRI 80
Colour Rendering
IP67
Protection Rating
1 finishes
Body Finish Options
2 sizes
Ø50x68mm, Ø75x64mm
Ø80x86mm
Cut-Out
Configure your product
LB1351
Order code
Listed configurationLB1351.W.830.SSS.10
2 listed configurations · availability requires confirmation
