PATRONE is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Industrial Light
PATRONE
PATRONE is a industrial light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 15 models, including LBE9554, LBE9556, LBE9557, with model-specific specifications and configuration choices. LBE9554 specifications include power: 74W; colour temperature: 3000K; IP rating: IP66; dimensions: 1500x85x75mm. Compare the PATRONE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

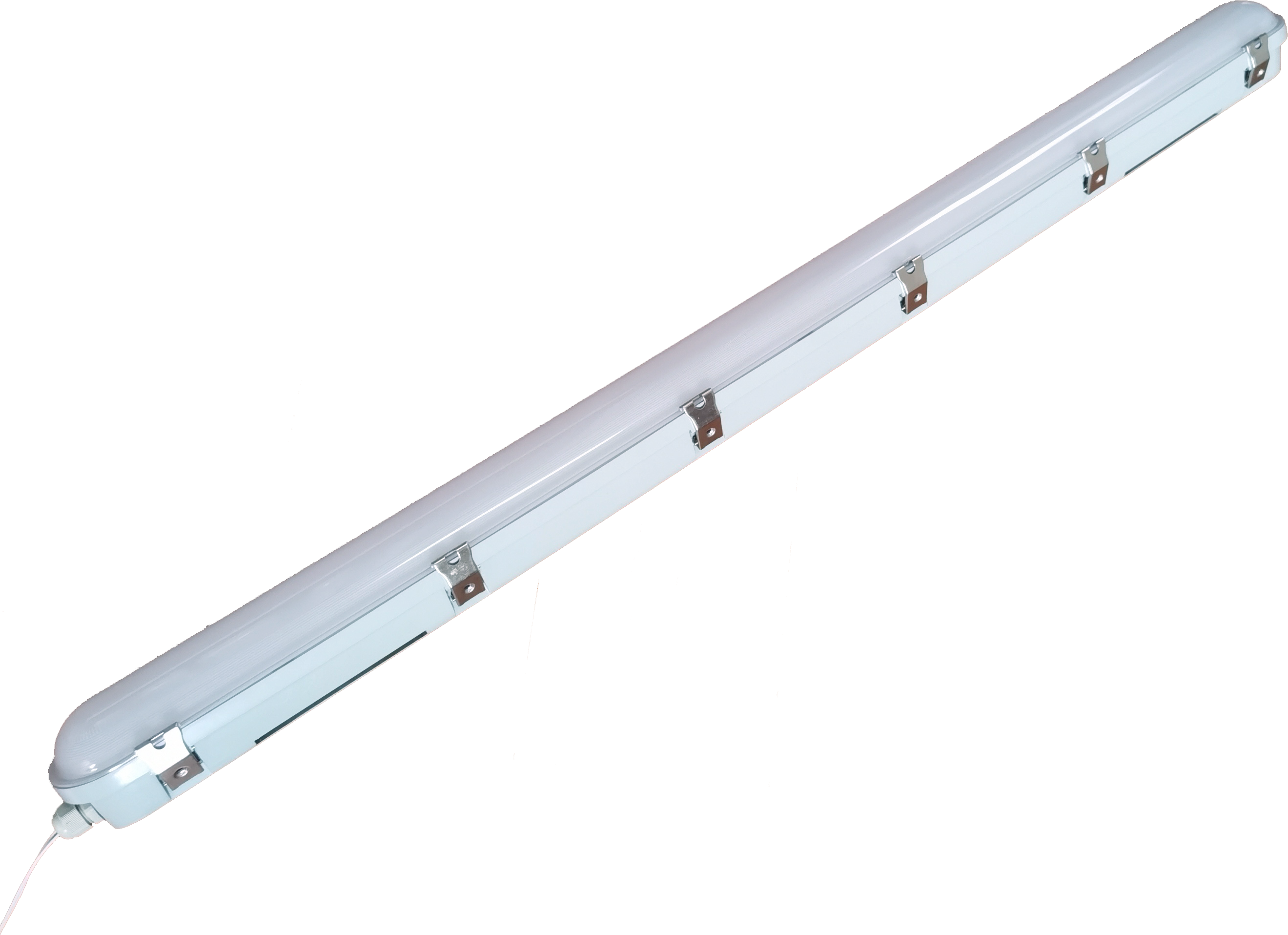

| LBE9554 | Wattage74W | CCT3000K | IPIP66 | Dimensions1500x85x75mm | Cut-outNot published |
| LBE9556 | WattageNot published | CCTNot published | IPIP66 | Dimensions1260x130x86mm | Cut-outNot published |
| LBE9557 | WattageNot published | CCTNot published | IPIP66 | Dimensions660x130x86mm | Cut-outNot published |

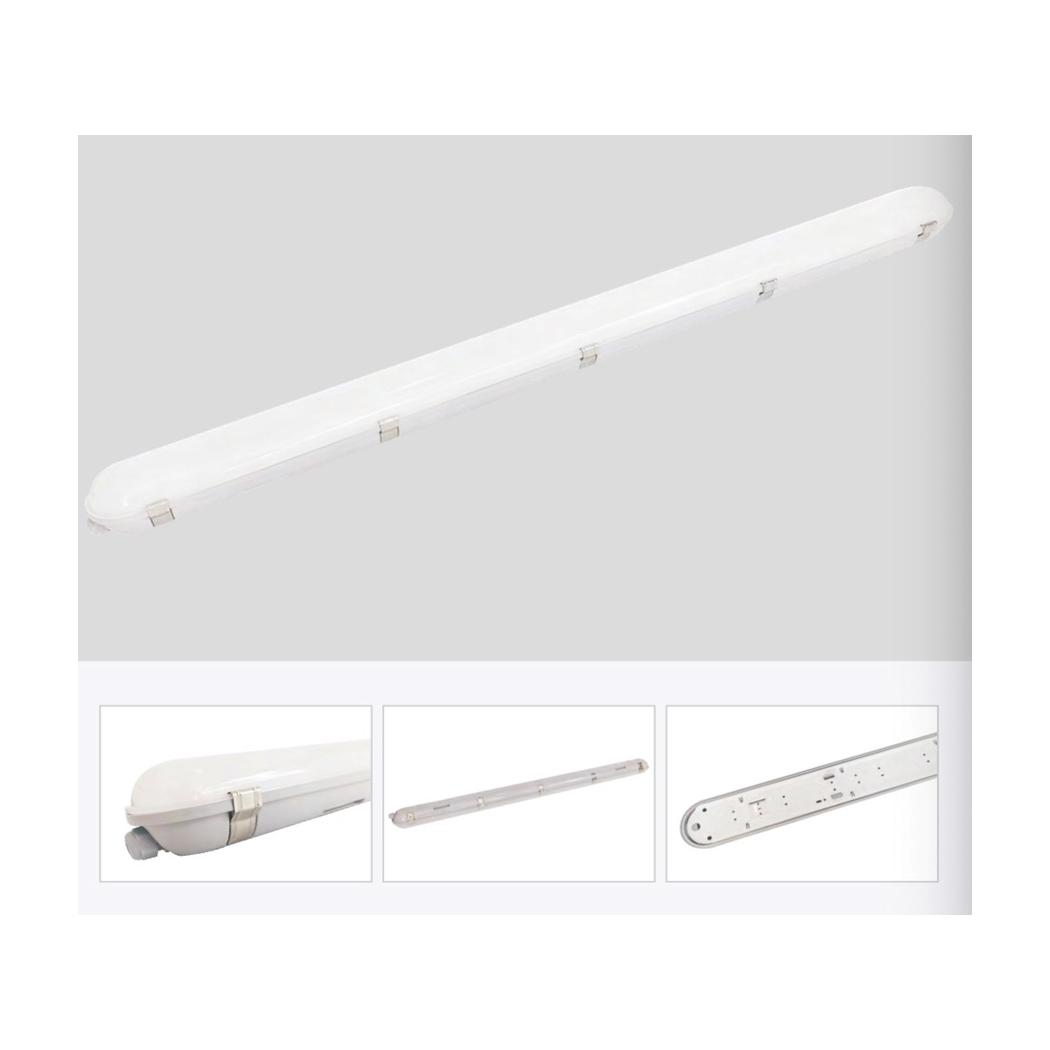

| LBE9558 | Wattage45W | CCT6000K | IPIP66 | Dimensions1500x100x75mm | Cut-outNot published |

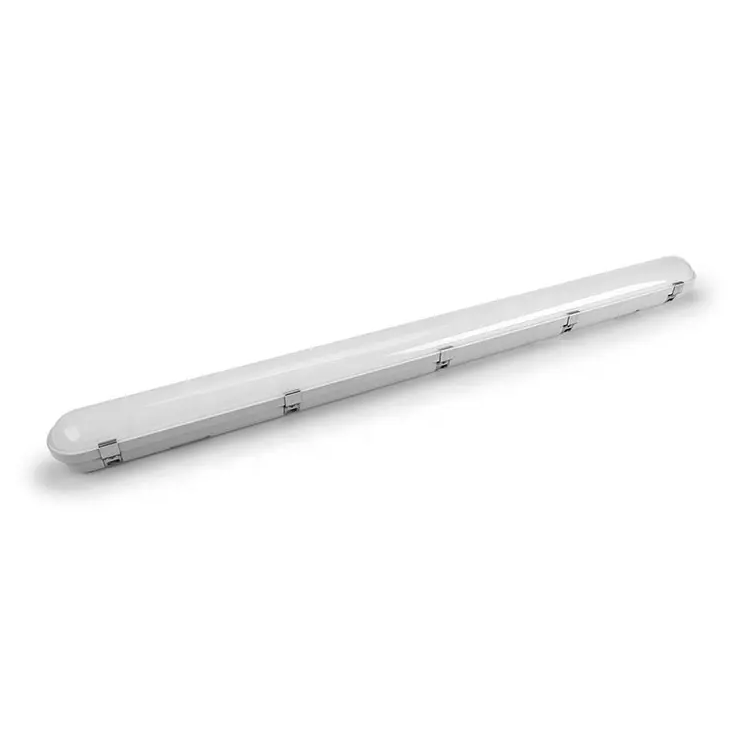

| LBE9561 | Wattage20W | CCT6500K | IPIP65 | Dimensions605x85x75mm | Cut-outNot published |
| LBE9562 | WattageNot published | CCT6000K, 6500K | IPIP65 | Dimensions1205x85x75mm | Cut-outNot published |

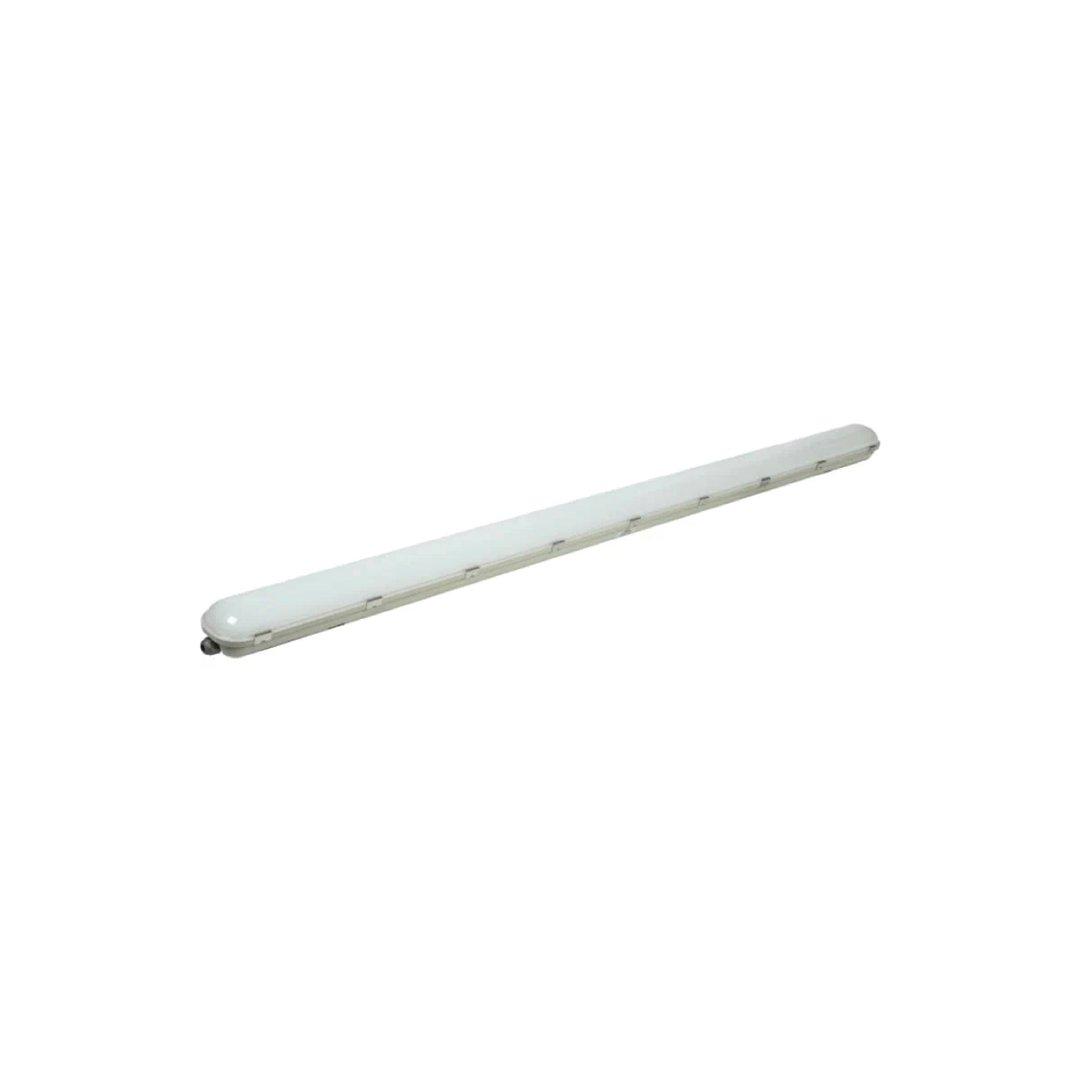

| LBE9565 | Wattage20W | CCT6000K | IPIP66 | Dimensions600x85x75mm | Cut-outNot published |
| LBE9566 | Wattage40W | CCT2700K | IPIP66 | Dimensions1200x85x75mm | Cut-outNot published |
| LBE9567 | Wattage60W | CCT2700K | IPIP65 | Dimensions1500x85x75mm | Cut-outNot published |
| LBE9568 | Wattage40W | CCT4000K | IPIP66 | Dimensions1200x85x75mm | Cut-outNot published |
| LBE9569 | Wattage20W | CCT6500K | IPIP65 | Dimensions660x130x86mm | Cut-outNot published |
| LBE9570 | WattageNot published | CCT6500K, 4000K | IPIP65 | Dimensions352x102x79mm | Cut-outNot published |
| LBS9532 | Wattage32W | CCT6500K | IPIP65 | Dimensions1200x85x75mm | Cut-outNot published |
| LBS9533 | Wattage32W | CCT6500K | IPIP66 | Dimensions1200x85x75mm | Cut-outNot published |
| LBT9503 | WattageNot published | CCT6500K | IPIP65 | Dimensions1280x112x63mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 1500x85x75mm · 1260x130x86mm · 660x130x86mm · 1500x100x75mm +6 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 10W · 20W · 40W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° · 110° |
| Colour temperature | 3000K · 4000K · 6500K · 6000K +1 more |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC · AC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white · Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
15 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE9556. This family has 15 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE9556
1260x130x86mm
Specifications
At a Glance
10–74W
Power Range
2 options
Beam: 110°, 120°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 80
Colour Rendering
IP65 / IP66
Protection Rating
2 finishes
Body Finish Options
10 sizes
1200x85x75mm, 1205x85x75mm, 1260x130x86mm, 1280x112x63mm, 1500x100x75mm, 1500x85x75mm, 352x102x79mm, 600x85x75mm, 605x85x75mm, 660x130x86mm
Configure your product
LBE9570
Order code
Listed configurationLBE9570.C.865.WWH.120
2 listed configurations · availability requires confirmation
