Lumi Outdoor
PETAL
Application inspiration · not a project reference
PETAL is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
PETAL
PETAL is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 13 models, including LB4229, LB4230, LBE40220, with model-specific specifications and configuration choices. LB4229 specifications include power: 24W; colour temperature: 3000K; IP rating: IP65; dimensions: Ø200x225mm. Compare the PETAL range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

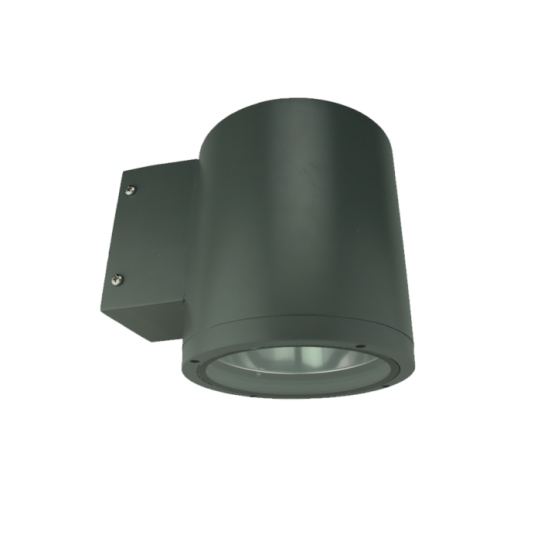

| LB4229 | Wattage24W | CCT3000K | IPIP65 | DimensionsØ200x225mm | Cut-outNot published |

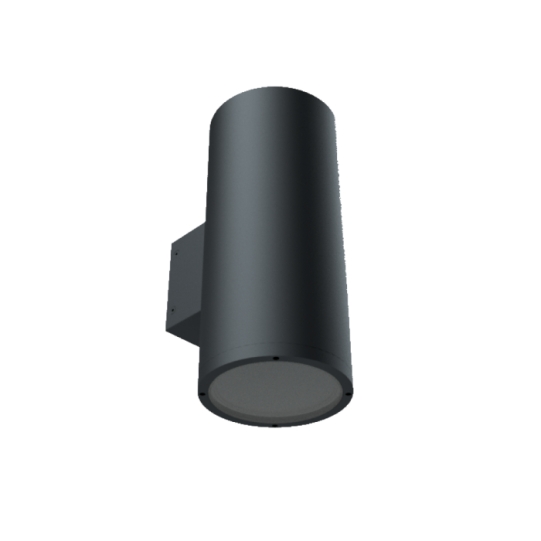

| LB4230 | Wattage2x24W | CCT4000K | IPIP65 | DimensionsØ200x450mm | Cut-outNot published |

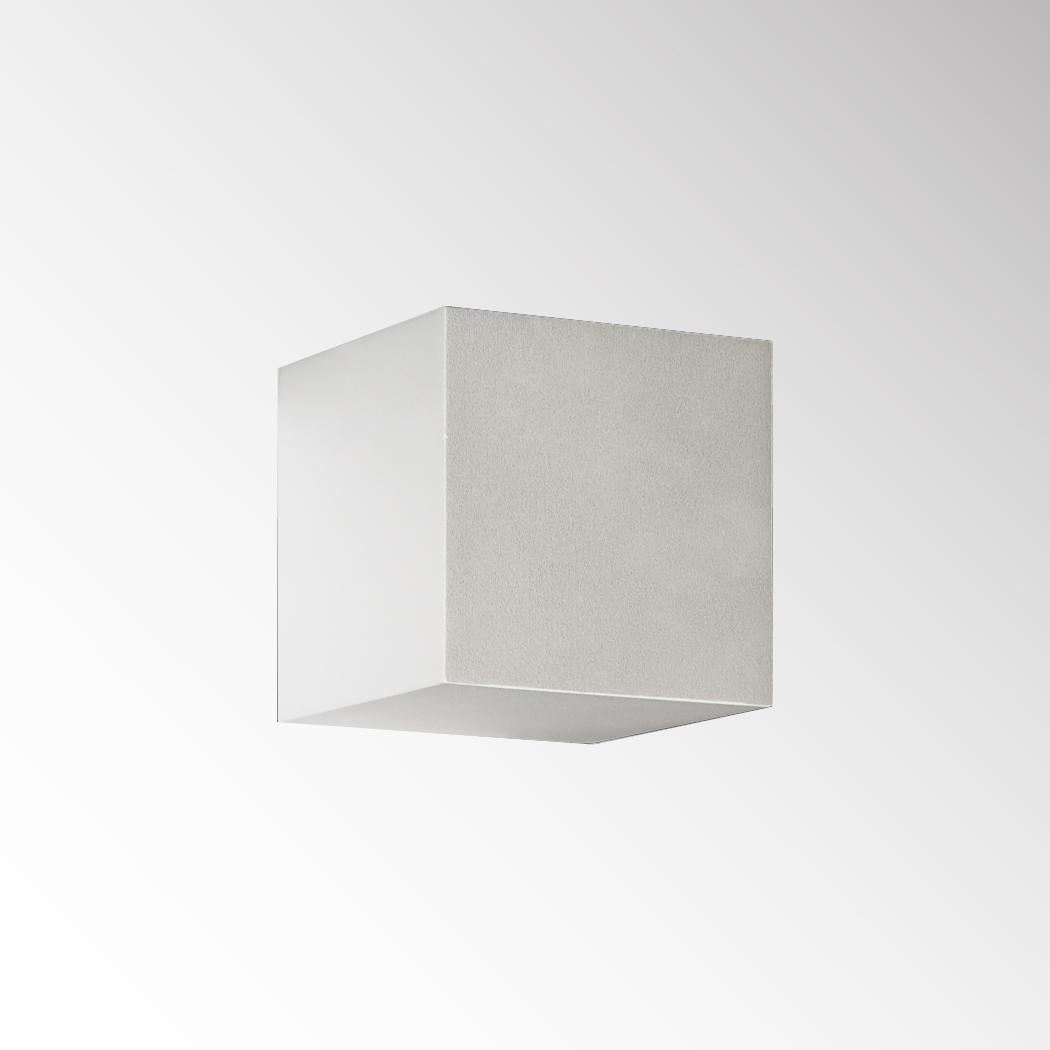

| LBE40220 | Wattage10W | CCT3000K | IPIP65 | Dimensions90x90x105mm | Cut-outNot published |
| LBE40221 | Wattage2x10W | CCT3000K | IPIP65 | Dimensions100x170x115mm | Cut-outNot published |

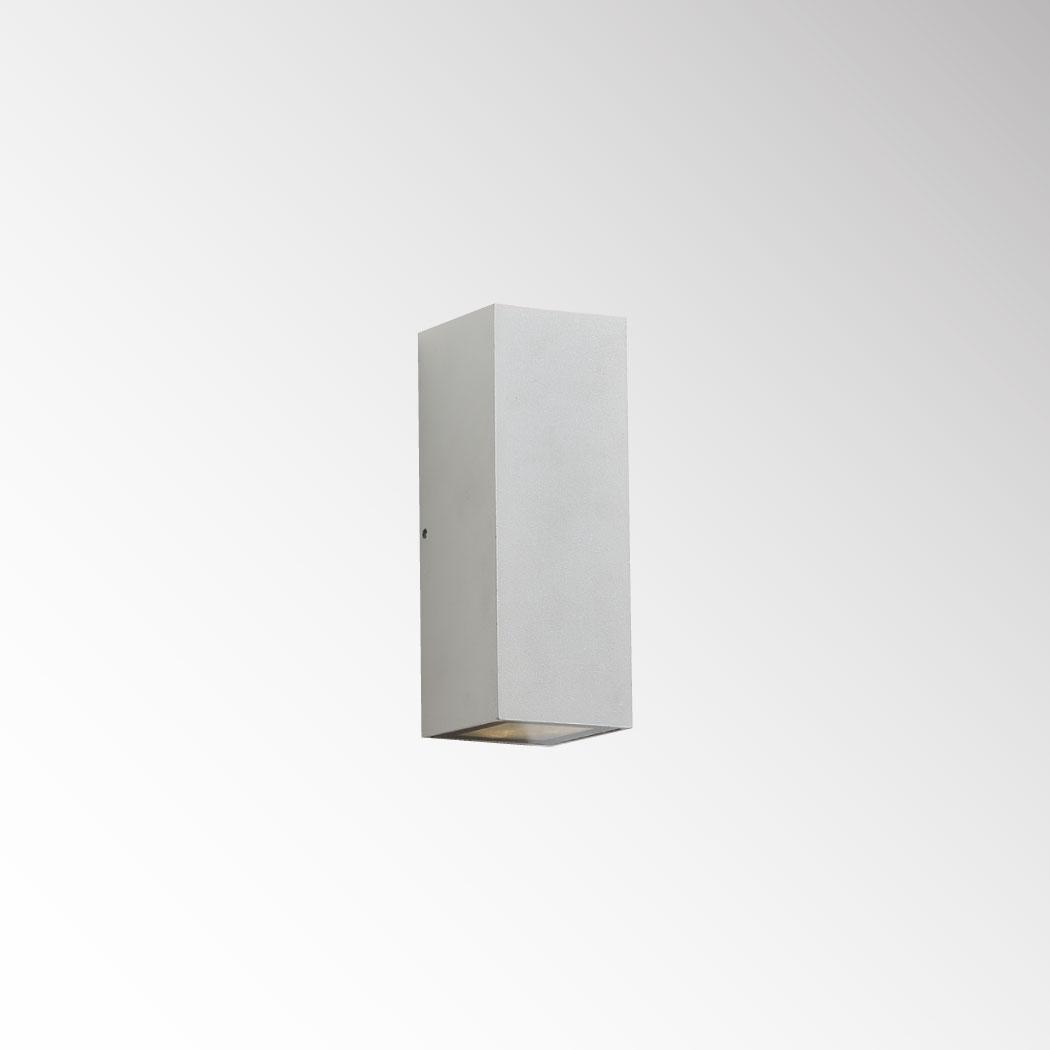

| LBE40222 | Wattage5W | CCT3000K | IPIP65 | DimensionsL60xW60xH160mm | Cut-outNot published |

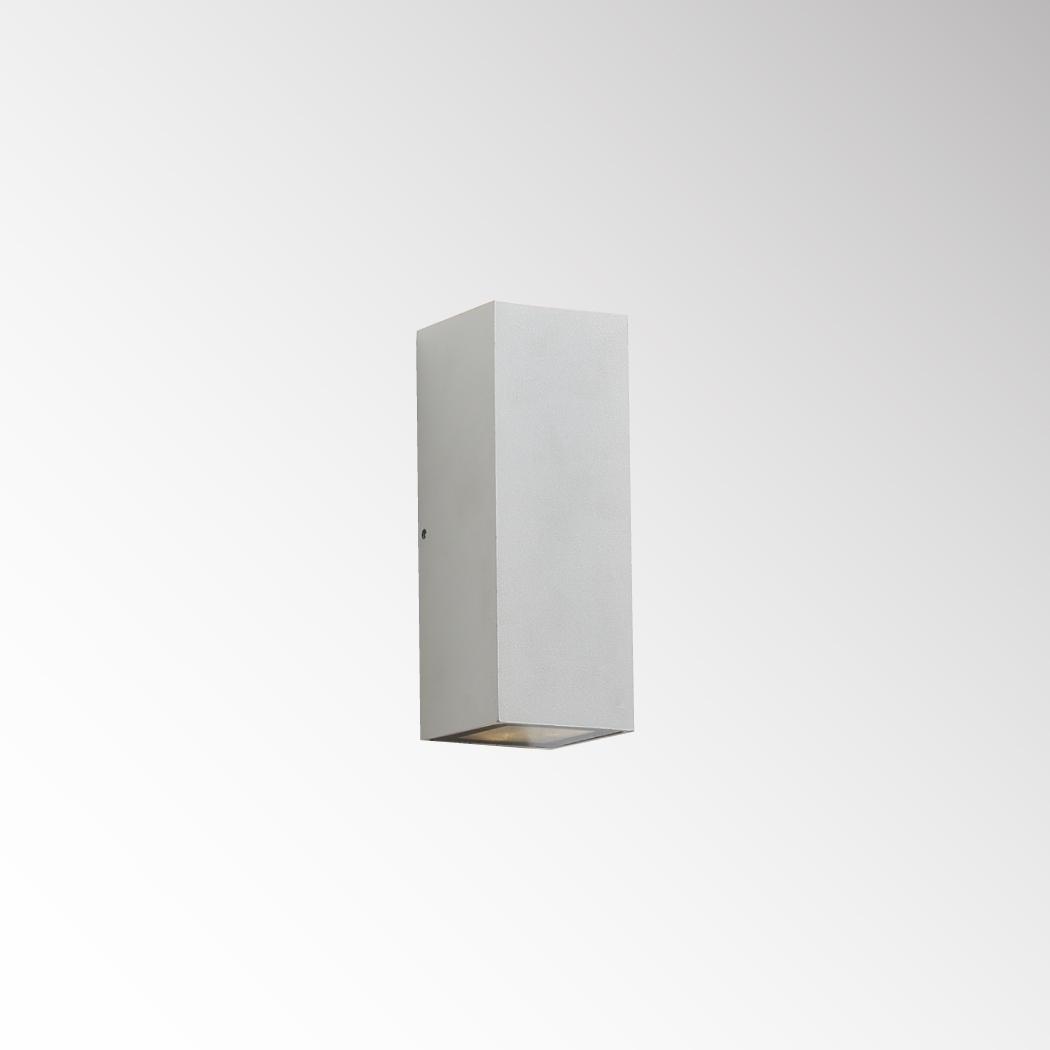

| LBE40223 | Wattage5W | CCT3000K | IPIP65 | DimensionsL60xW60xH160mm | Cut-outNot published |

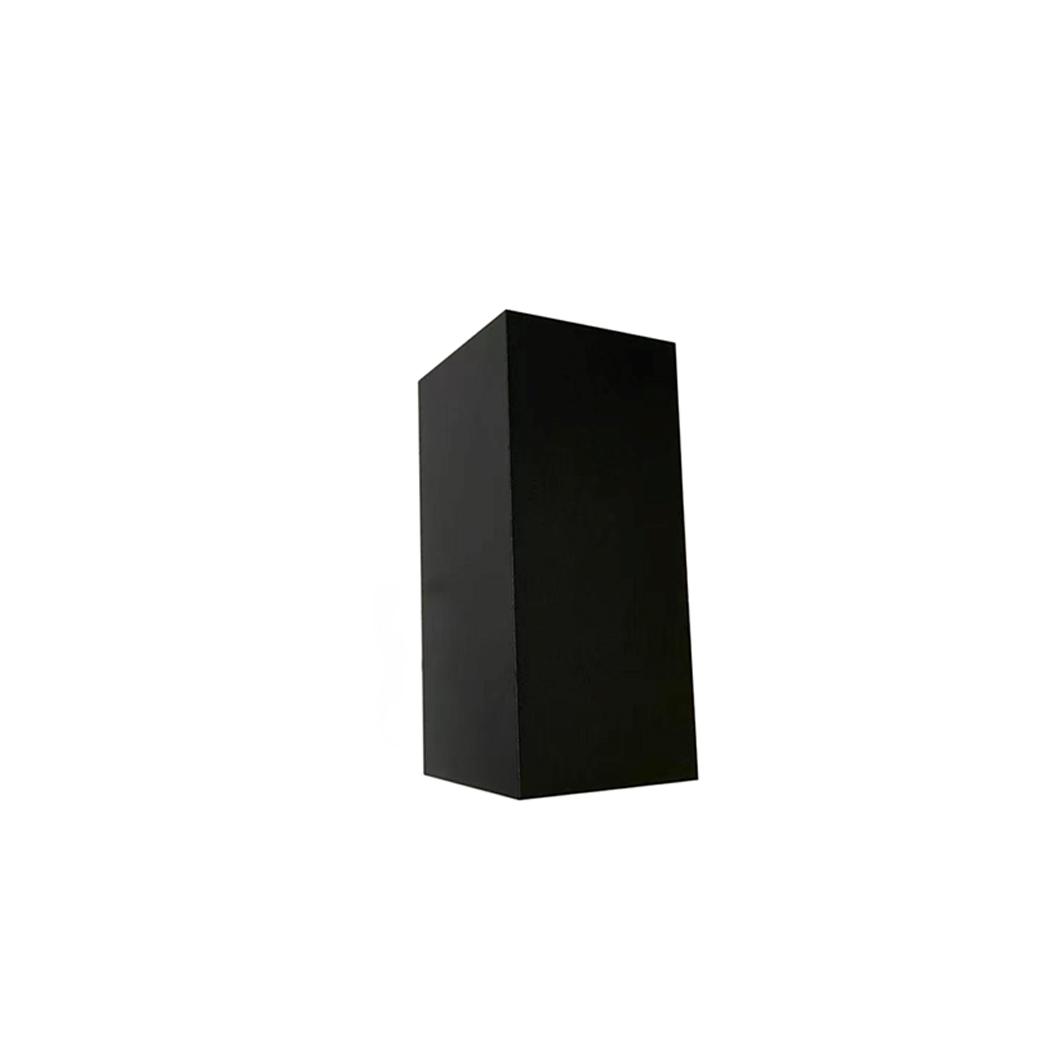

| LBE40232 | Wattage12W | CCT3000K | IPIP65 | Dimensions200x100x100mm | Cut-outNot published |
| LBE40235 | Wattage6W | CCT4000K | IPIP65 | Dimensions200x100x100mm | Cut-outNot published |
| LBE40248 | Wattage2x10W | CCT3000K/4000K/5000K | IPIP65 | Dimensions100x100x200mm | Cut-outNot published |
| LBE40249 | Wattage2x10W | CCT3000K/4000K/5000K | IPIP65 | Dimensions100x100x200mm | Cut-outNot published |
| LBP40128 | Wattage3W | CCT3000K | IPIP65 | DimensionsΦ60x60x120mm | Cut-outNot published |
| LBP40129 | Wattage3W | CCT3000K | IPIP65 | DimensionsΦ60x60x155mm | Cut-outNot published |
| LBP40130 | Wattage10W | CCT3000K | IPIP65 | DimensionsL255xD75xH55mm | Cut-outL247xD63xH50mm |
Technical Data
Full Specification
| Dimensions | Ø200x225mm · Ø200x450mm · 90x90x105mm · 100x170x115mm +6 more |
|---|---|
| Cut-out | L247xD63xH50mm |
| Power | 24W · 10W · 2x10W · 5W +3 more |
| Lumen output | 750lm · 1625lm · 406lm · 960lm +4 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 8° · 15° · 25° · 60° +8 more |
| Colour temperature | 3000K · 4000K · 6000K · 5000K +2 more |
| CRI Ra | 80 · ≥80 · >80 · ＞80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 90-260VAC · 85-265VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Pure Aluminium · Aluminium · Die Cast Aluminium Surface powder Coating |
| Finish | Black · White · White+Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
13 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4230. This family has 13 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4230
Ø200x450mm
Specifications
At a Glance
3–24W
Power Range
10 options
Beam: 8°, 15°, 24°, 25°, 30°, 45°, 50°, 60°, 80°, 120°
4 CCT
3000K, 4000K, 5000K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
3 finishes
Body Finish Options
10 sizes
100x100x200mm, 100x170x115mm, 200x100x100mm, 90x90x105mm, L255xD75xH55mm, L60xW60xH160mm, Ø200x225mm, Ø200x450mm, Φ60x60x120mm, Φ60x60x155mm
L247xD63xH50mm
Cut-Out
Configure your product
LBE40221
Order code
Listed configurationLBE40221.W.830.WWH.50
10 listed configurations · availability requires confirmation
