POTRA is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
POTRA
POTRA is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 18 article codes under this family, including LB4117, LB4118, LB4119. For LB4117, published values include colour temperature: 3000K. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the POTRA articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB4117 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |
| LB4118 | Wattage4W | CCT3000K | IPIP65 | Dimensions114x170x65mm | Cut-outNot published |
| LB4119 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |

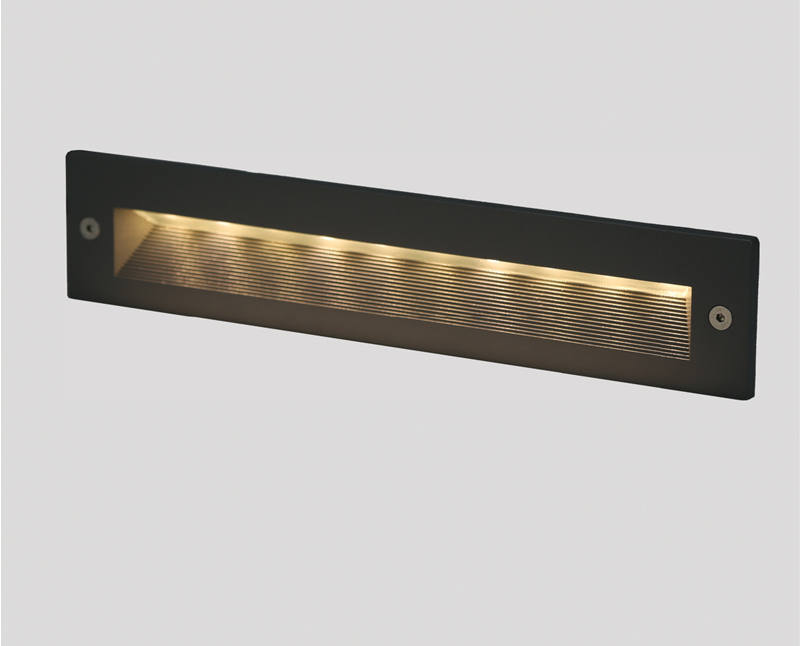

| LB4240 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |

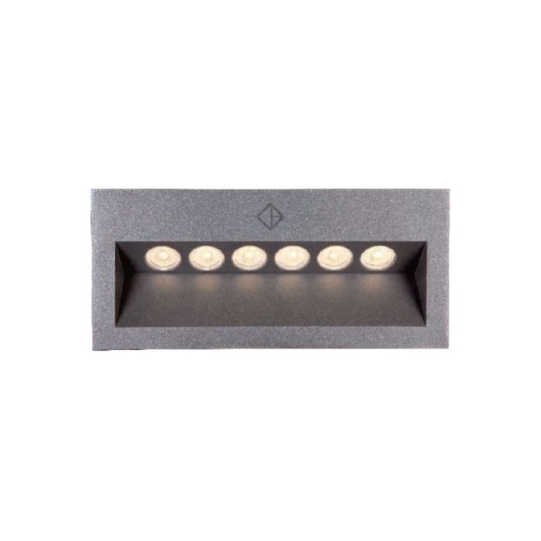

| LB4395 | Wattage6W | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |

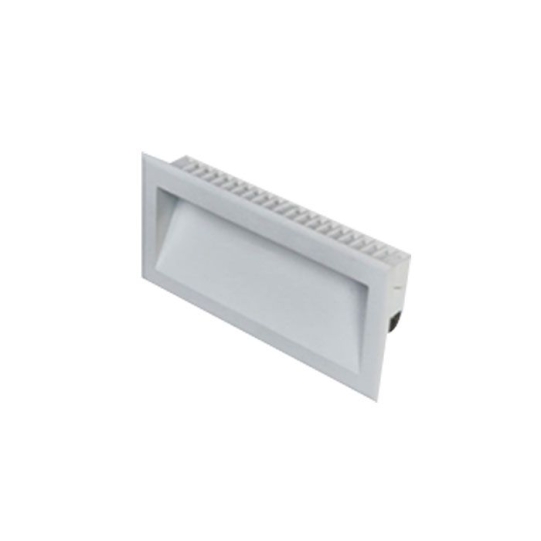

| LB4761 | WattageNot published | CCT3200K, 3000K | IPIP65 | Dimensions190x90mm | Cut-outNot published |

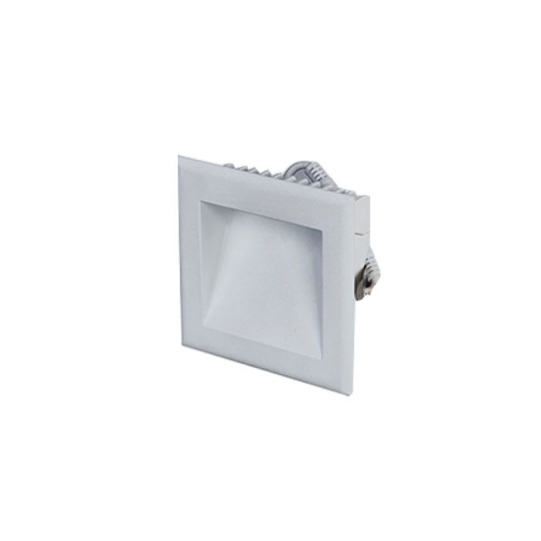

| LB4762 | Wattage3W | CCT3000K | IPIP65 | Dimensions90x90x40mm | Cut-outNot published |

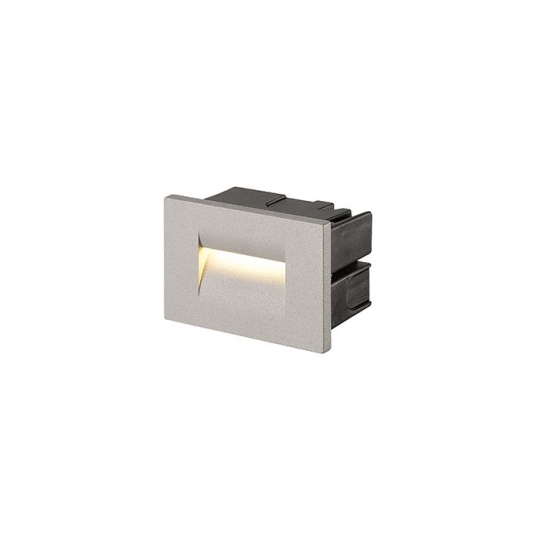

| LB4769 | Wattage3.6W | CCT3000K | IPIP65 | DimensionsL107xD65xH75mm | Cut-outNot published |

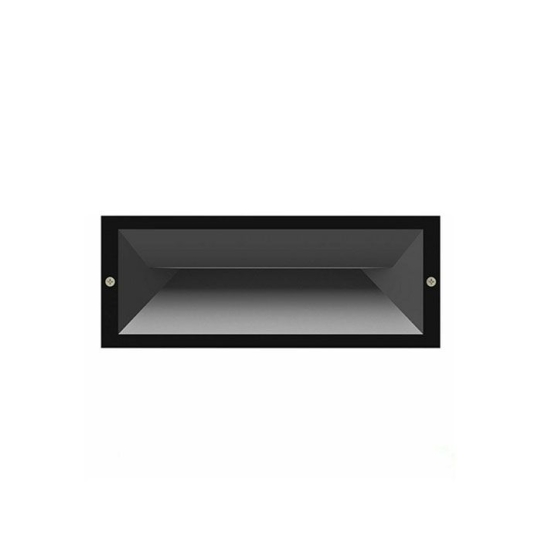

| LB4789 | Wattage13W | CCT3000K | IPIP65 | Dimensions250x98x90mm | Cut-outNot published |

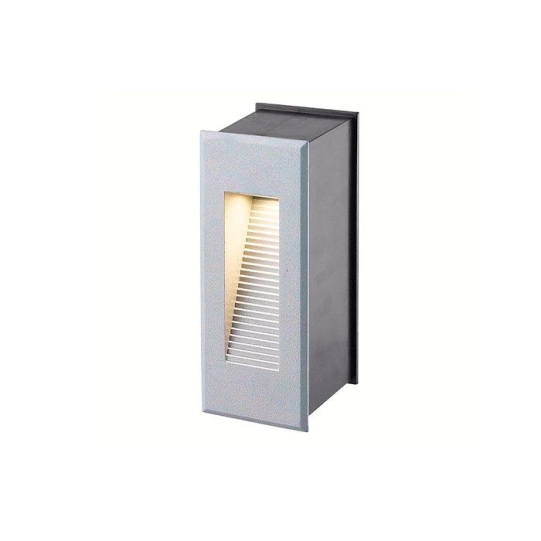

| LB4803 | Wattage1x3W | CCT3000K | IPIP65 | Dimensions66x73x171mm | Cut-outNot published |

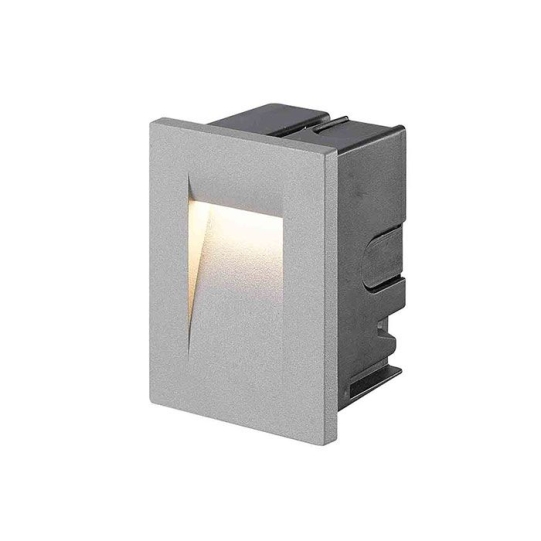

| LB4804 | Wattage3.6W | CCT3000K | IPIP65 | Dimensions75x107x65mm | Cut-outNot published |

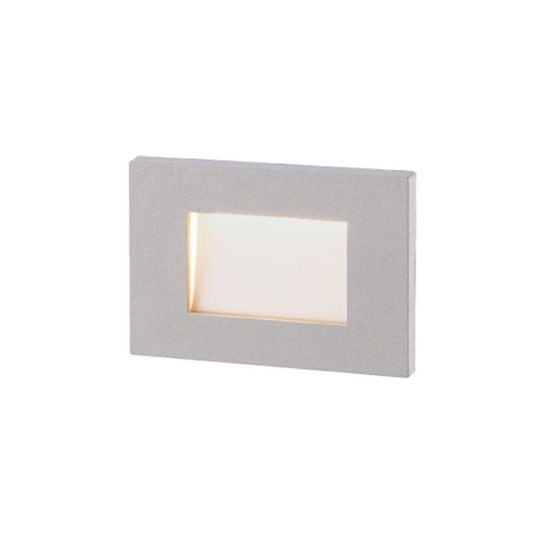

| LB4805 | Wattage3.6W | CCT3000K | IPIP65 | Dimensions75x107x65mm | Cut-outNot published |
| LBE40259 | Wattage3W | CCT3000K | IPIP65 | Dimensions115*50*76mm | Cut-outNot published |
| LBE40262 | Wattage3W | CCT3000K | IPIP66 | DimensionsL107xD65xH75mm | Cut-outNot published |
| LBE40271 | Wattage10W | CCTNot published | IPIP65 | Dimensions216*125*H58mm | Cut-out206*115*H53mm |
| LBE40273 | Wattage3W | CCTNot published | IPIP65 | Dimensions115*83*H52mm | Cut-out105*73*H48mm |

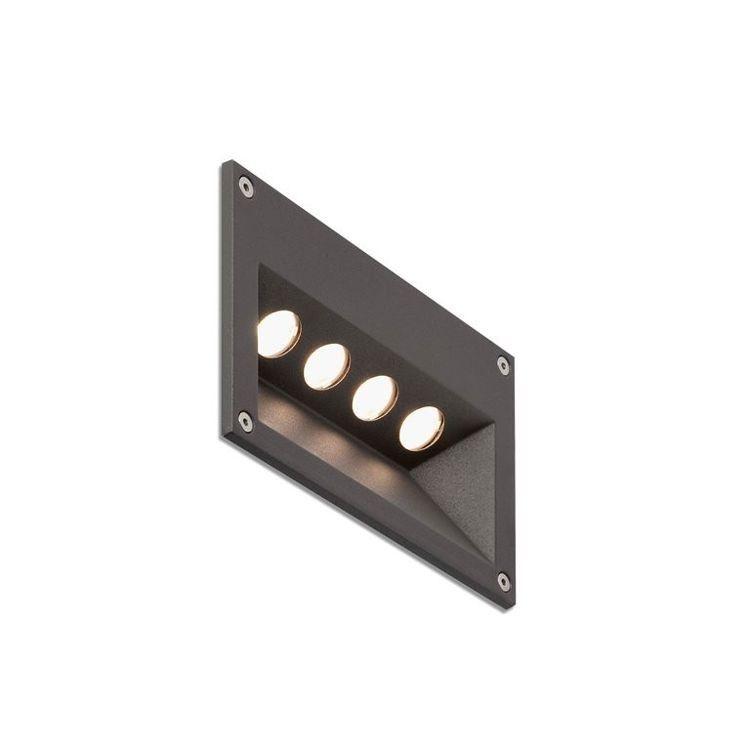

| LBT4011 | Wattage4x2W | CCTNot published | IPIP65 | Dimensions170x115x67mm | Cut-outNot published |

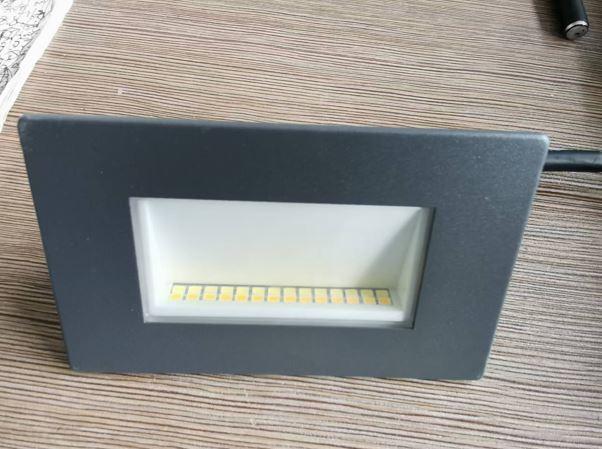

| LBT4793 | Wattage2.5W | CCT3000K | IPIP65 | Dimensions107x67x51mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 114x170x65mm · 190x90mm · 90x90x40mm · L107xD65xH75mm +8 more |
|---|---|
| Cut-out | 206*115*H53mm · 105*73*H48mm |
| Power | 6W · 3W · 10W · 2.5W |
| Lumen output | 96lm · 240lm · 90lm |
| Efficacy | 16lm/W |
| Optics / beam angle | 30° · 60° · DIFFUSED · 70° +2 more |
| Colour temperature | 3000K · 3200K |
| CRI Ra | 80 · ≥80 · ＞90 · 90 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC · 220VAC |
| Light source | Not published — technical review required |
| Material | Alu · Aluminium · Iron+Pc |
| Finish | dark-grey · Dark Grey · White · graphite +3 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
12 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
18 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4761. This family has 18 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4761
190x90mm
Specifications
At a Glance
2–13W
Power Range
10 options
Beam: 20°, 30°, 33°, 48°, 60°, 67°, 70°, 81°, 120°, 180°
2 CCT
3000K, 3200K
CRI 80/90
Colour Rendering
IP65 / IP66
Protection Rating
5 finishes
Body Finish Options
12 sizes
107x67x51mm, 114x170x65mm, 115*50*76mm, 115*83*H52mm, 170x115x67mm, 190x90mm, 216*125*H58mm, 250x98x90mm, 66x73x171mm, 75x107x65mm, 90x90x40mm, L107xD65xH75mm
2 cut-outs
105*73*H48mm, 206*115*H53mm
Configure your product
LB4761
Order code
Listed configurationLB4761.W.830.PGY.D
10 listed configurations · availability requires confirmation
