Lumi Outdoor
PRONTO
Application inspiration · not a project reference
PRONTO is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

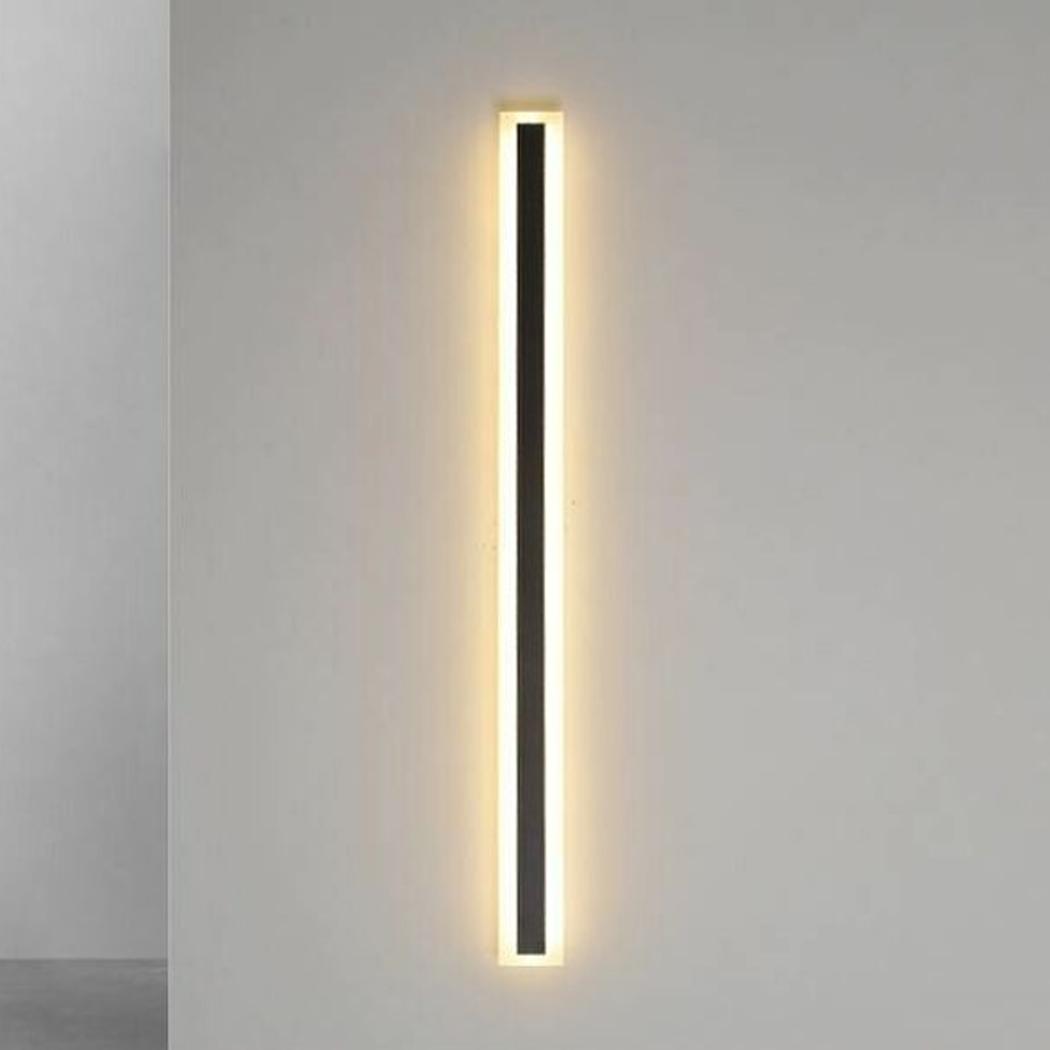

Wall Light
PRONTO
PRONTO is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 11 models, including LBE40237, LBE40238, LBE40239, with model-specific specifications and configuration choices. LBE40237 specifications include power: 10W; colour temperature: 3000K/4000K/6000K; IP rating: IP65; dimensions: 300x80x45mm. Compare the PRONTO range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE40237 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | Dimensions300x80x45mm | Cut-outNot published |
| LBE40238 | Wattage15W | CCT3000K/4000K/6000K | IPIP65 | Dimensions600x80x45mm | Cut-outNot published |
| LBE40239 | Wattage24W | CCT3000K/4000K/6000K | IPIP65 | Dimensions800x80x45mm | Cut-outNot published |
| LBE40240 | Wattage26W | CCT3000K/4000K/6000K | IPIP65 | Dimensions1200x80x45mm | Cut-outNot published |
| LBE40241 | Wattage32W | CCT3000K/4000K/6000K | IPIP65 | Dimensions1500x80x45mm | Cut-outNot published |
| LBE40242 | Wattage44W | CCT3000K/4000K/6000K | IPIP65 | Dimensions2000x80x45mm | Cut-outNot published |
| LBE40243 | Wattage48W | CCT3000K/4000K/6000K | IPIP65 | Dimensions2400x80x45mm | Cut-outNot published |
| LBE40244 | Wattage20W | CCT3000K/4000K/6000K | IPIP67 | Dimensions1000x80x40mm | Cut-outNot published |
| LBP40133 | Wattage10W | CCT3000K | IPIP65 | Dimensions600x80x45mm | Cut-outNot published |
| LBP40134 | Wattage80W | CCT3000K | IPIP65 | Dimensions2000x80x45mm | Cut-outNot published |
| LBP40135 | Wattage48W | CCT3000K | IPIP65 | Dimensions2500x80x45mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 1200x80x45mm · 300x80x45mm · 600x80x45mm · 800x80x45mm +5 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 26W · 10W · 15W · 24W +5 more |
| Lumen output | 2200lm · 350 lm · 2500lm · 1600lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | DIFFUSED · D |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 · >80 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 85-265VAC |
| Light source | Not published — technical review required |
| Material | Iron+Acrylic |
| Finish | black · white · Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
11 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE40240. This family has 11 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE40240
1200x80x45mm
Specifications
At a Glance
10–80W
Power Range
3 CCT
3000K, 4000K, 6000K
CRI 80/90
Colour Rendering
IP65 / IP67
Protection Rating
3 finishes
Body Finish Options
9 sizes
1000x80x40mm, 1200x80x45mm, 1500x80x45mm, 2000x80x45mm, 2400x80x45mm, 2500x80x45mm, 300x80x45mm, 600x80x45mm, 800x80x45mm
Configure your product
LBE40240
Order code
Listed configurationLBE40240.W.830.WBK.D
10 listed configurations · availability requires confirmation
