Lumi Outdoor
QUADRATE
Application inspiration · not a project reference
QUADRATE is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

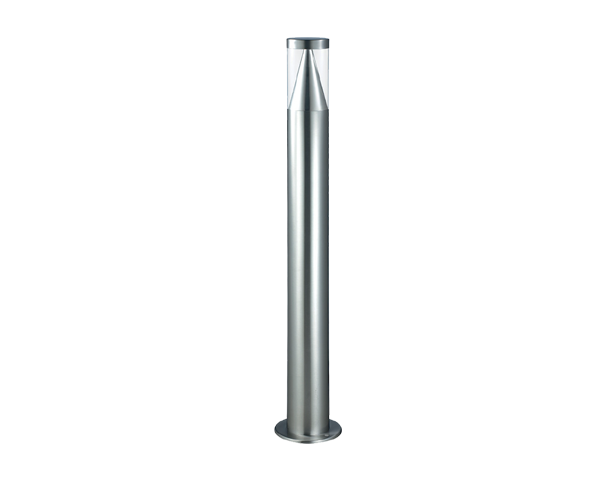

Bollard Light
QUADRATE
QUADRATE is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 1 article codes under this family, including LB1510. For LB1510, published values include colour temperature: 6000K; IP rating: IP44; dimensions: Ø118x300mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the QUADRATE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1510 | WattageNot published | CCT6000K | IPIP44 | DimensionsØ118x300mm | Cut-outNot published |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1510.
Size — model LB1510
Ø118x300mm
Technical Data
Full Specification
| Dimensions | Ø118x300mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | DIFFUSED |
| Colour temperature | 6000K |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | stainless-steel · Stainless Steel |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
6000K
Colour Temperature
CRI 80
Colour Rendering
IP44
Protection Rating
stainless-steel
Body Finish
Ø118x300mm
Dimensions
Configure your product
LB1510
Order code
Listed configurationLB1510.C.860.SSS.D
1 listed configurations · availability requires confirmation
