Lumi Outdoor
QUEBEC
Application inspiration · not a project reference
QUEBEC is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Linear System
QUEBEC

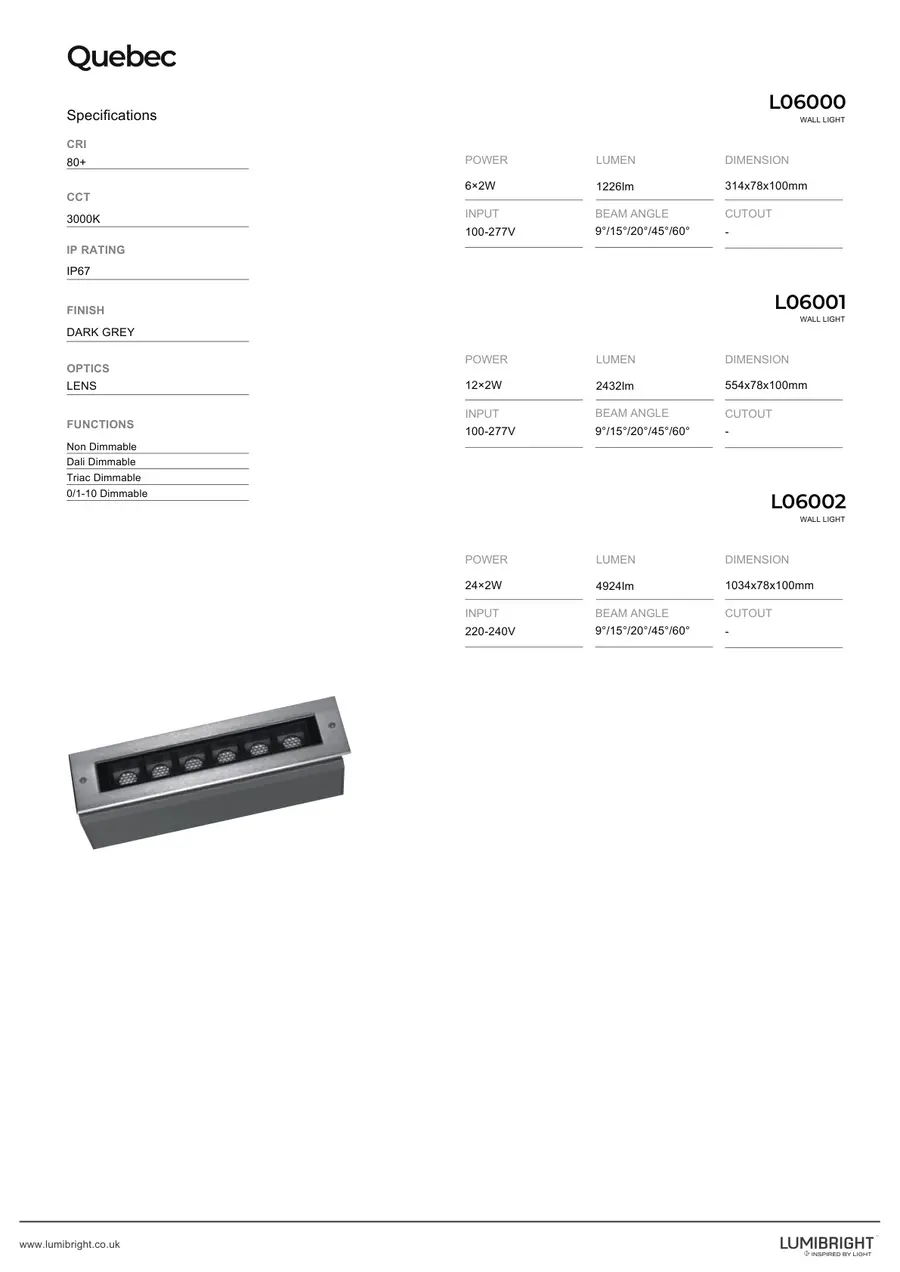

QUEBEC is a linear system family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 3 article codes under this family, including L06000, L06001, L06002. For L06000, published values include power: 2W; colour temperature: 3000K; IP rating: IP67; dimensions: Ø314x78x100mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the QUEBEC articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L06000 | Wattage2W | CCT3000K | IPIP67 | DimensionsØ314x78x100mm | Cut-outNot published |
| L06001 | Wattage2W | CCT3000K | IPIP67 | DimensionsØ554x78x100mm | Cut-outNot published |
| L06002 | Wattage2W | CCT3000K | IPIP67 | DimensionsØ1034x78x100mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø314x78x100mm · Ø554x78x100mm · Ø1034x78x100mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 2W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 9° · 60° · 45° · 20° +1 more |
| Colour temperature | 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Dark Grey · Matte Dark Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Specifications
At a Glance
2W
Power Range
1 options
Beam: 9°
1 CCT
3000K
CRI 80
Colour Rendering
IP67
Protection Rating
1 finishes
Body Finish Options
Configure your product
L06000
Order code
Listed configurationL06000.830.11.60
5 listed configurations · availability requires confirmation
