Bollard Light
RAMSEY
RAMSEY is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 14 article codes under this family, including L14025, L14026, L14027. For L14025, published values include power: 10W; colour temperature: 3000K/4000K/6000K; IP rating: IP65; dimensions: Ø120x450mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the RAMSEY articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L14025 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x450mm | Cut-outNot published |

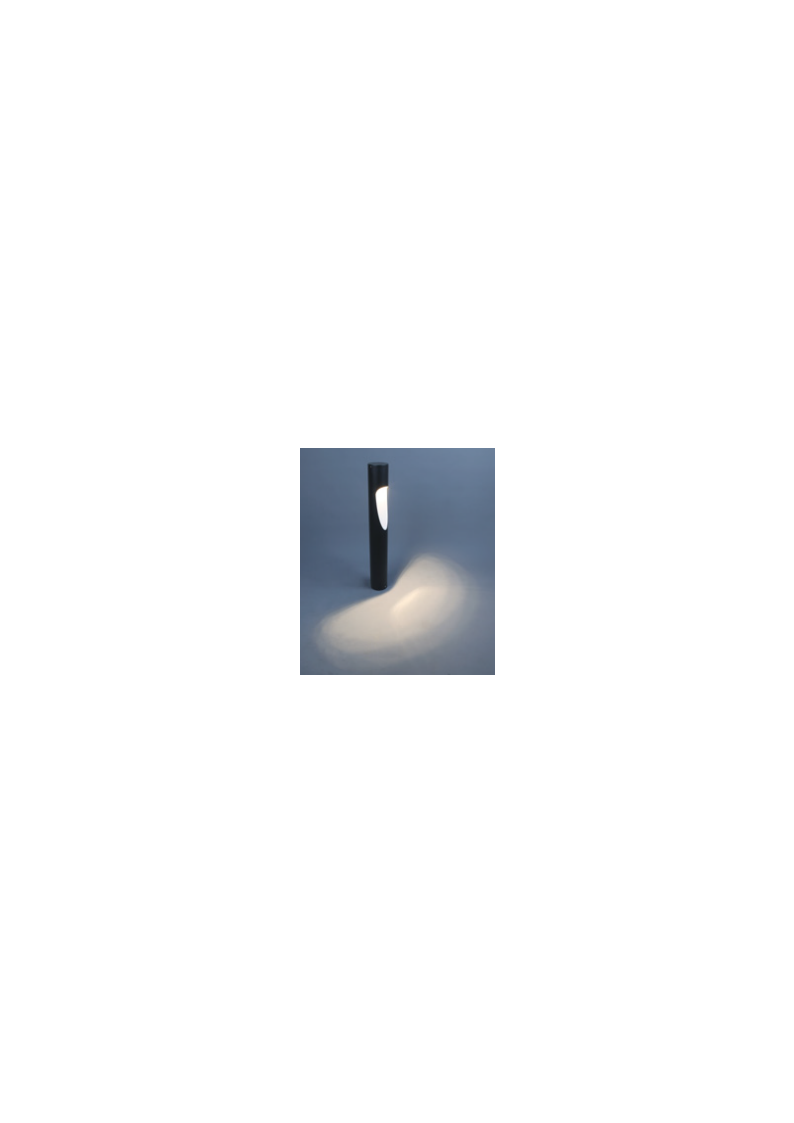

| L14026 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x650mm | Cut-outNot published |
| L14027 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x800mm | Cut-outNot published |
| L14028 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x1000mm | Cut-outNot published |
| L14029 | Wattage15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x450mm | Cut-outNot published |
| L14030 | Wattage15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x650mm | Cut-outNot published |
| L14031 | Wattage15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x800mm | Cut-outNot published |
| L14032 | Wattage15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x1000mm | Cut-outNot published |
| L14033 | Wattage2x10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x850mm | Cut-outNot published |
| L14034 | Wattage2x10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x1000mm | Cut-outNot published |

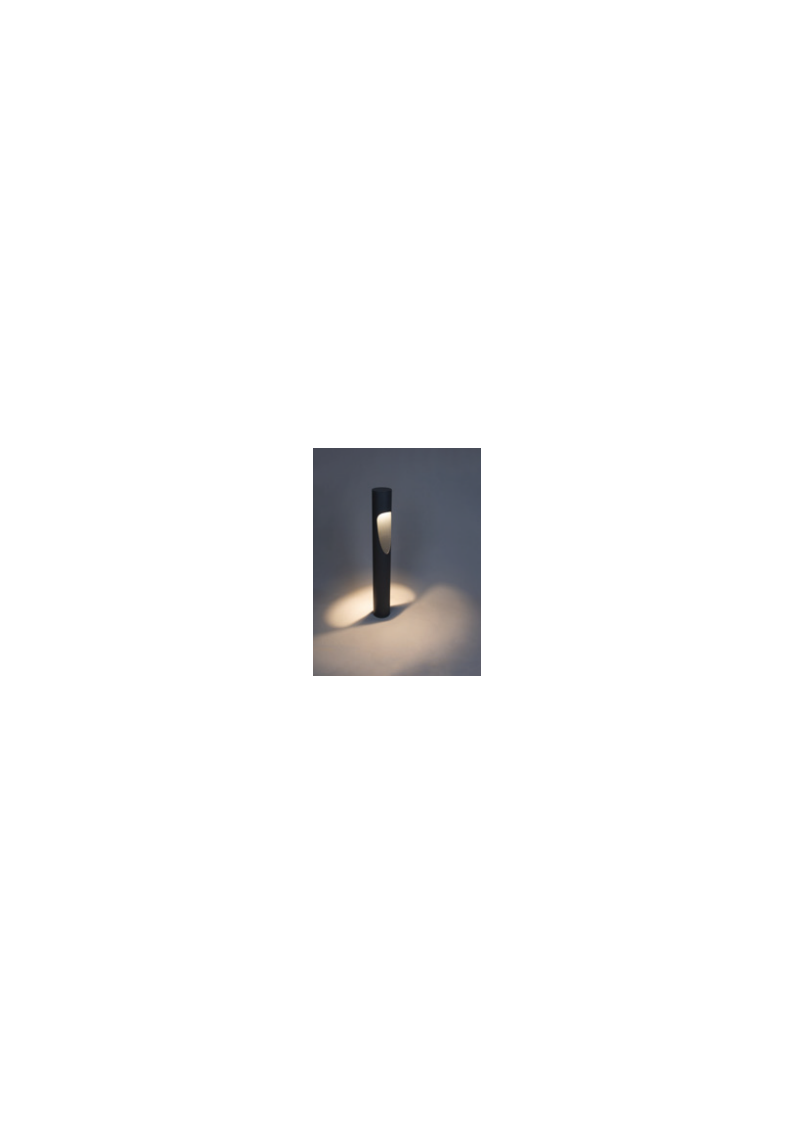

| L14035 | Wattage2x10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x1200mm | Cut-outNot published |
| L14036 | Wattage2x15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x850mm | Cut-outNot published |
| L14037 | Wattage2x15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x1000mm | Cut-outNot published |
| L14038 | Wattage2x15W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ120x1200mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø120x450mm · Ø120x650mm · Ø120x800mm · Ø120x1000mm +2 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 2W · 10W · 15W · 2x10W +1 more |
| Lumen output | 348lm · 536LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 29° · 30° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K |
| CRI Ra | 80+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium DIE-CAST |
| Finish | Matt Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
14 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L14025. This family has 14 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L14025
Ø120x450mm
Specifications
At a Glance
10–30W
Power Range
2 options
Beam: 29°, 30°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
6 sizes
Ø120x1000mm, Ø120x1200mm, Ø120x450mm, Ø120x650mm, Ø120x800mm, Ø120x850mm
Configure your product
L14025
Order code
Listed configurationL14025.860.04.29
3 listed configurations · availability requires confirmation
