Lumi Outdoor
REIN
Application inspiration · not a project reference
REIN is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Bollard Light
REIN
REIN is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 5 models, including LB1573, LB1573W, LB1574, with model-specific specifications and configuration choices. LB1573 specifications include power: 5W; colour temperature: 3000K; IP rating: IP65; dimensions: 800mm. Compare the REIN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications

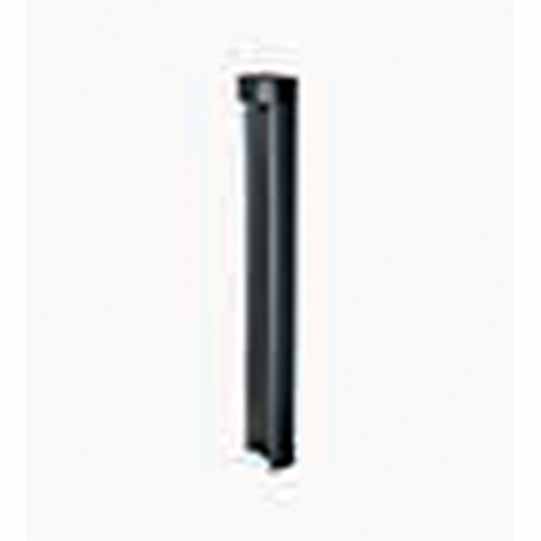

| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1573 | Wattage5W | CCT3000K | IPIP65 | Dimensions800mm | Cut-outNot published |
| LB1573W | Wattage5W | CCT3000K | IPIP65 | Dimensions800mm | Cut-outNot published |

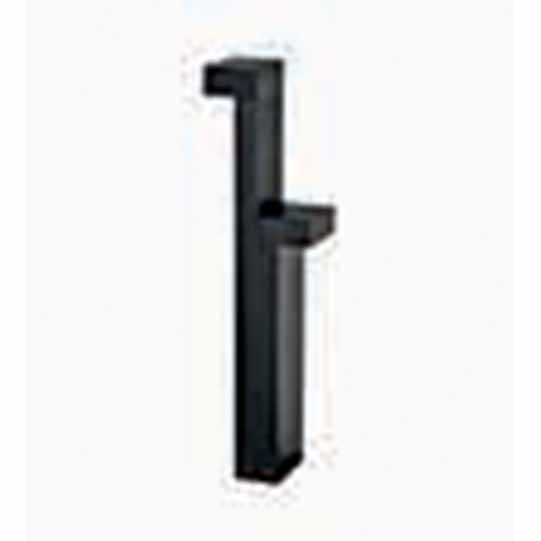

| LB1574 | Wattage10W | CCT3000K | IPIP65 | Dimensions600mm | Cut-outNot published |
| LB1574W | Wattage10W | CCT3000K | IPIP65 | Dimensions600mm | Cut-outNot published |
| LBS1502 | Wattage12W | CCT3000K | IPIP65 | Dimensions135x85xH750mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 800mm · 600mm · 135x85xH750mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 5W · 10W · 12W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° |
| Colour temperature | 3000K |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Die-Cast Aluminium |
| Finish | dark-grey · black · Matt Black · Matte Dark Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1573. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1573
800mm
Specifications
At a Glance
5–12W
Power Range
1 options
Beam: 60°
1 CCT
3000K
CRI 80
Colour Rendering
IP65
Protection Rating
2 finishes
Body Finish Options
3 sizes
135x85xH750mm, 600mm, 800mm
Configure your product
LB1573W
Colour temperature
3000K
CRI
≥80
Body finish
Matt Black
Dimension
800mm
Power
5W
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
