Lumi Outdoor
RHYTHEM
Application inspiration · not a project reference
RHYTHEM is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
RHYTHEM
RHYTHEM is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 4 article codes under this family, including LB4001, LB4002, LBE40268. For LB4001, published values include colour temperature: 5000K; IP rating: IP65; dimensions: Ø50x36mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the RHYTHEM articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

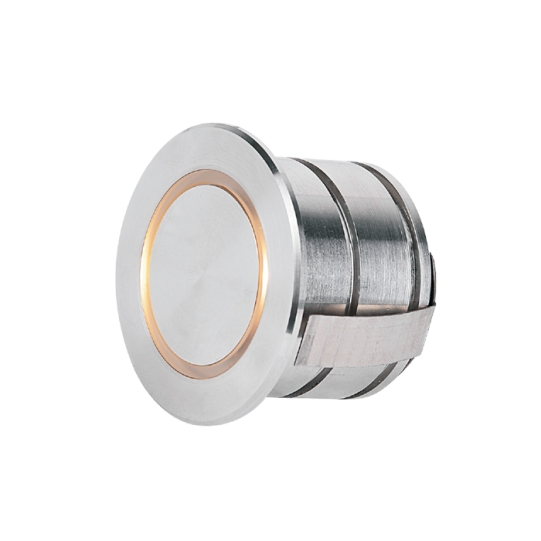

| LB4001 | WattageNot published | CCT5000K | IPIP65 | DimensionsØ50x36mm | Cut-outØ45mm |

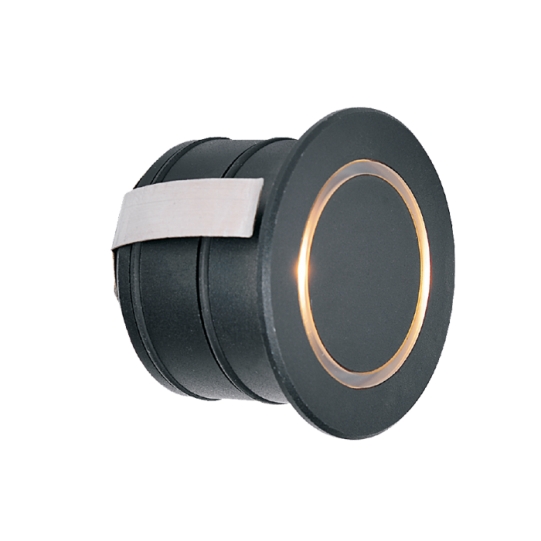

| LB4002 | Wattage1W | CCT4000K | IPIP65 | DimensionsØ50x36mm | Cut-outØ45mm |
| LBE40268 | Wattage1W(1pcs | CCT3000K | IPIP65 | Dimensionsφ35*50 | Cut-outφ35 |
| LBT4788 | Wattage3W | CCT3000K | IPIP67 | DimensionsLamp body | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø50x36mm · φ35*50 · Lamp body |
|---|---|
| Cut-out | Ø45mm · φ35 |
| Power | 1W · 1W(1pcs · 3W |
| Lumen output | 50LM · 25lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 220-240VAC · 24VDC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | stainless-steel · Natural Bronze · natural-bronze |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4002. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4002
Ø50x36mm
Cut-Out
Ø45mm
Specifications
At a Glance
1–3W
Power Range
1 options
Beam: 120°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80/90
Colour Rendering
IP65 / IP67
Protection Rating
2 finishes
Body Finish Options
3 sizes
Lamp body, Ø50x36mm, φ35*50
2 cut-outs
Ø45mm, φ35
Configure your product
LBE40268
Order code
Listed configurationLBE40268.W.930.WBK.120
1 listed configurations · availability requires confirmation
