Inground Light
RIBE
RIBE is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 54 models, including L09000, L09001, L09002, with model-specific specifications and configuration choices. L09000 specifications include power: 42W; colour temperature: 2700K/3000K/4000K/5000K/6000K/6500K; IP rating: IP67; dimensions: Ø248x210mm. Compare the RIBE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L09000 | Wattage42W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ248x210mm | Cut-outNot published |
| L09001 | Wattage54W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ248x210mm | Cut-outNot published |
| L09002 | Wattage42W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ248x210mm | Cut-outNot published |
| L09003 | Wattage54W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |

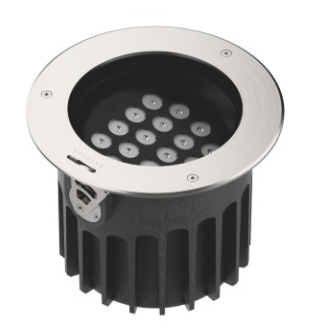

| L09004 | Wattage42W | CCTRGBW | IPIP67 | DimensionsØ248x210mm | Cut-outNot published |
| L09005 | Wattage42W | CCTRGBW | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09006 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ208x185mm | Cut-outNot published |
| L09007 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ208x185mm | Cut-outNot published |
| L09008 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09009 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09010 | Wattage36W | CCTRGBW | IPIP67 | DimensionsØ208x185mm | Cut-outNot published |
| L09011 | Wattage36W | CCTRGBW | IPIP67 | DimensionsNot published | Cut-outNot published |

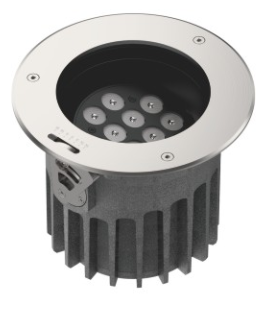

| L09012 | Wattage24W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ182x169mm | Cut-outNot published |
| L09013 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ182x169mm | Cut-outNot published |
| L09014 | Wattage24W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09015 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09016 | Wattage30W | CCTRGBW | IPIP67 | DimensionsØ182x169mm | Cut-outNot published |
| L09017 | Wattage30W | CCTRGBW | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09018 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ160x159mm | Cut-outNot published |
| L09019 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ160x159mm | Cut-outNot published |
| L09020 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09021 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09022 | Wattage15W | CCTRGBW | IPIP67 | DimensionsØ160x159mm | Cut-outNot published |
| L09023 | Wattage15W | CCTRGBW | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09024 | Wattage6W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ135x144mm | Cut-outNot published |
| L09025 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ135x144mm | Cut-outNot published |
| L09026 | Wattage6W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09027 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |

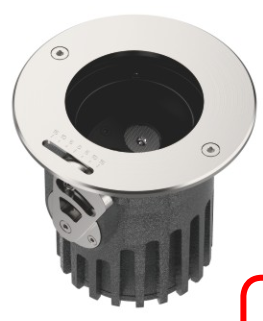

| L09028 | Wattage10W | CCTRGBW | IPIP67 | DimensionsØ135x144mm | Cut-outNot published |
| L09029 | Wattage10W | CCTRGBW | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09030 | Wattage42W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ248x210mm | Cut-outNot published |
| L09031 | Wattage54W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ248x210mm | Cut-outNot published |
| L09032 | Wattage42W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09033 | Wattage54W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09034 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ208x185mm | Cut-outNot published |
| L09035 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ208x185mm | Cut-outNot published |
| L09036 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09037 | Wattage36W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09038 | Wattage24W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ182x169mm | Cut-outNot published |
| L09039 | Wattage24W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ182x169mm | Cut-outNot published |
| L09040 | Wattage24W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09041 | Wattage24W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09042 | Wattage18W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ160x159mm | Cut-outNot published |
| L09043 | Wattage18W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ160x159mm | Cut-outNot published |
| L09044 | Wattage18W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09045 | Wattage18W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09046 | Wattage6W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ135x144mm | Cut-outNot published |

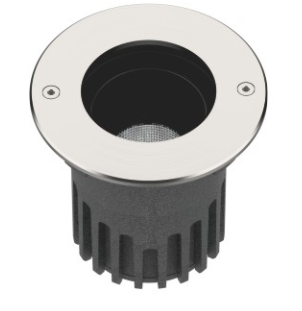

| L09047 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsØ135x144mm | Cut-outNot published |
| L09048 | Wattage6W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| L09049 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP67 | DimensionsNot published | Cut-outNot published |

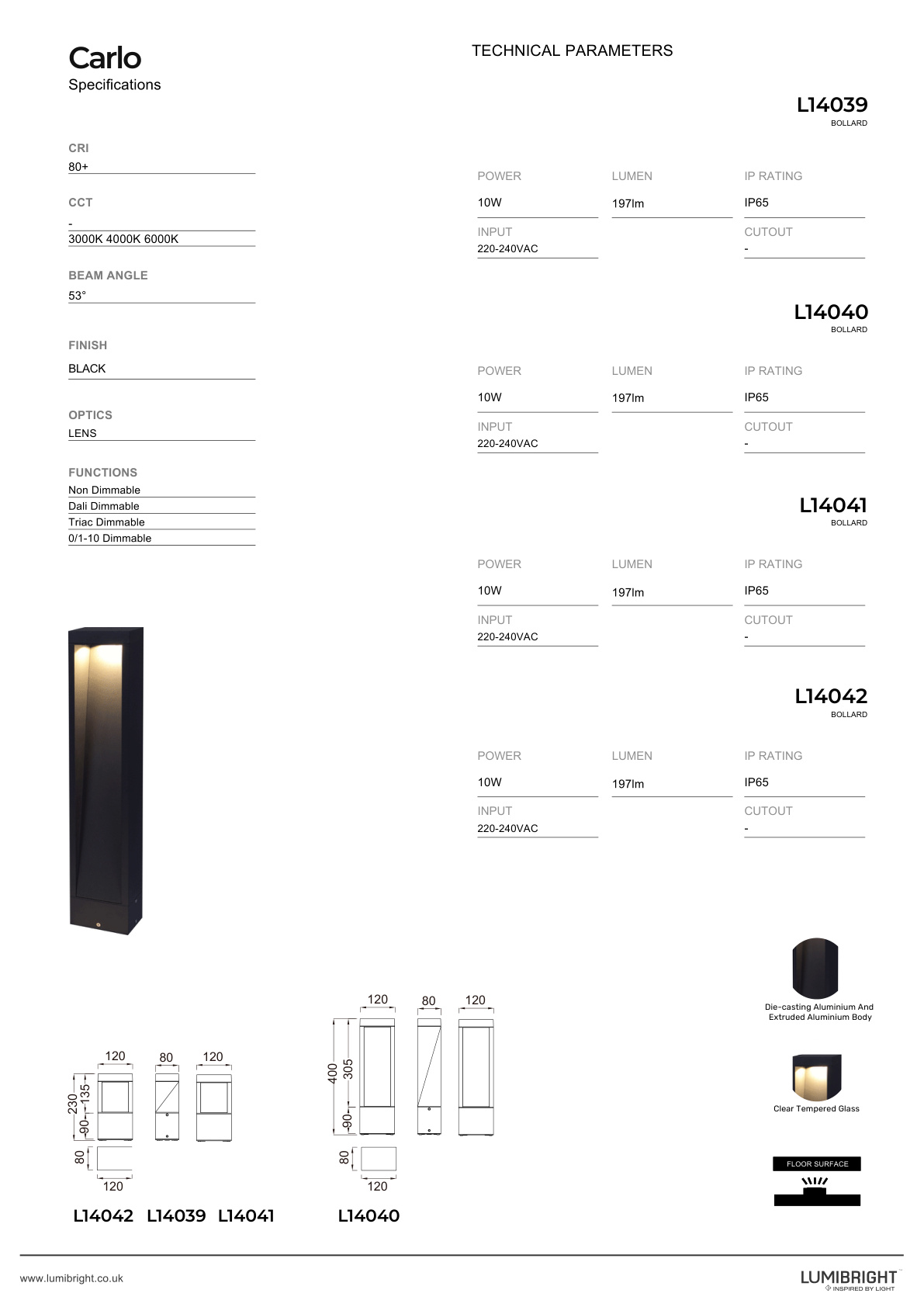

| L14039 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsW80xL120xH230mm | Cut-outNot published |
| L14040 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsW80xL120xH400mm | Cut-outNot published |
| L14041 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsW80xL120xH230mm | Cut-outNot published |
| L14042 | Wattage10W | CCT3000K/4000K/6000K | IPIP65 | DimensionsW80xL120xH230mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø248x210mm · Ø208x185mm · Ø182x169mm · Ø160x159mm +3 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 6W · 10W · 12W · 15W +6 more |
| Lumen output | Not published — technical review required |
| Efficacy | 60-70lm/W |
| Optics / beam angle | 5° · 8° · 10° · 12° +12 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 80 · No CRI |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 24VDC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium DIE-CAST |
| Finish | Stainless Steel · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
53 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L09024. This family has 53 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L09024
Ø135x144mm
Specifications
At a Glance
6–54W
Power Range
4 options
Beam: 5°, 15°, 25°, 53°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
RGB+WARM WHITE
Colour Options
CRI 80
Colour Rendering
IP65 / IP67
Protection Rating
2 finishes
Body Finish Options
7 sizes
W80xL120xH230mm, W80xL120xH400mm, Ø135x144mm, Ø160x159mm, Ø182x169mm, Ø208x185mm, Ø248x210mm
Configure your product
L09024
Order code
Listed configurationL09024.827.03.5
60 listed configurations · availability requires confirmation
