Lumi Outdoor

RYAN

Application inspiration · not a project reference

RYAN is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Street Light

2 product lines·8 total variants·luminaire·pole mounted

RYAN is a street light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 2 article codes under this family, including LB9425, LB9426. For LB9425, published values include power: 60W; colour temperature: 3000K, 4000K, 6000K; IP rating: IP65; dimensions: W560x890x135mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the RYAN articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LB9425	Wattage60W	CCT3000K, 4000K, 6000K	IPIP65	DimensionsW560x890x135mm	Cut-outNot published

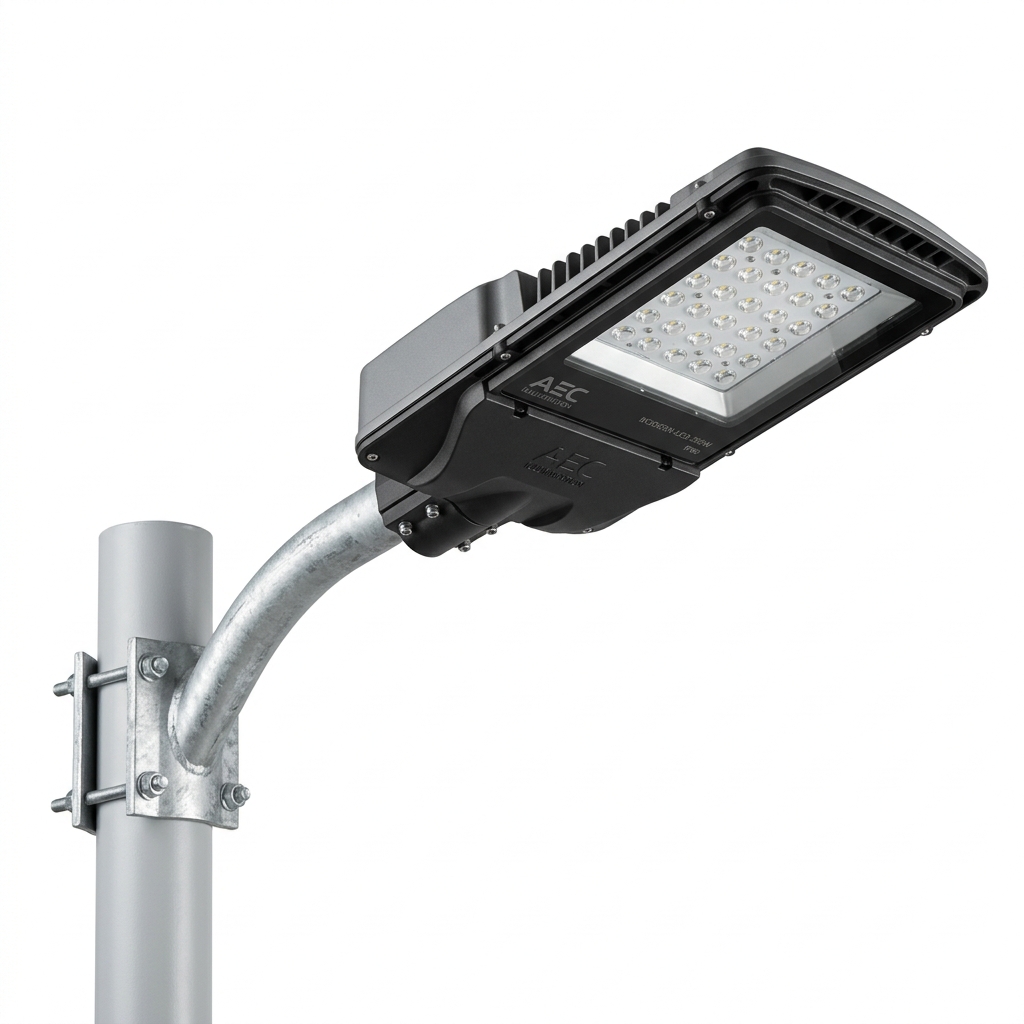

LB9426	Wattage80W	CCT3000K, 4000K, 6000K	IPIP65	DimensionsW560x890x135mm	Cut-outNot published

Technical Data

Full Specification

Dimensions	W560x890x135mm
Cut-out	Not published — technical review required
Power	60W · 80W
Lumen output	5800lm · 7500lm
Efficacy	Not published — technical review required
Optics / beam angle	Not published — technical review required
Colour temperature	3000K · 4000K · 6000K
CRI Ra	80
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP65
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	Not published — technical review required
Light source	Not published — technical review required
Material	Not published — technical review required
Finish	black · grey
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
