Wall Light
SIMOR
SIMOR is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 16 models, including LB4782, LB4783, LB4827, with model-specific specifications and configuration choices. LB4782 specifications include power: 20W; colour temperature: 3000K; IP rating: IP65; dimensions: 105x118x175mm. Compare the SIMOR range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

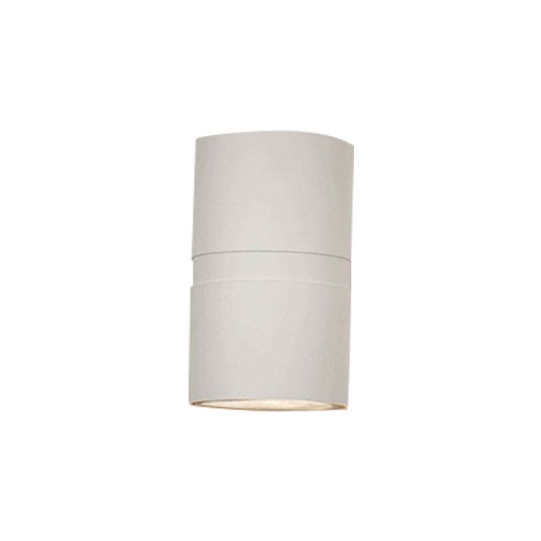

| LB4782 | Wattage20W | CCT3000K | IPIP65 | Dimensions105x118x175mm | Cut-outNot published |

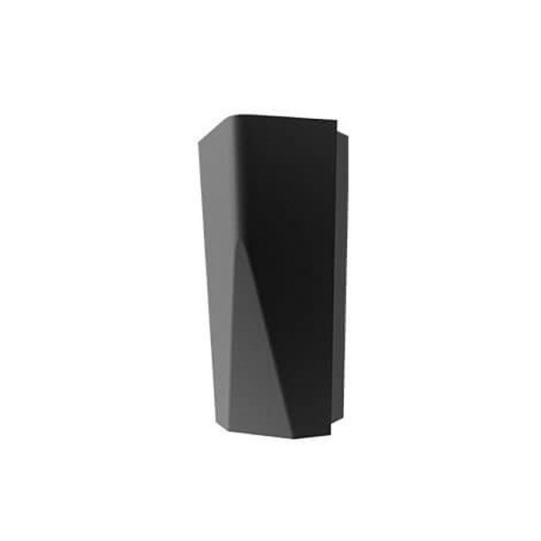

| LB4783 | Wattage11W | CCT3000K | IPIP65 | Dimensions200x106x62mm | Cut-outNot published |

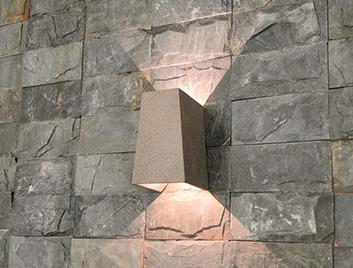

| LB4827 | WattageNot published | CCT6000K | IPIP65 | Dimensions190x130x119.7mm | Cut-outNot published |
| LBE40044 | WattageNot published | CCT3000K | IPIP65 | Dimensions90x200x90mm | Cut-outNot published |

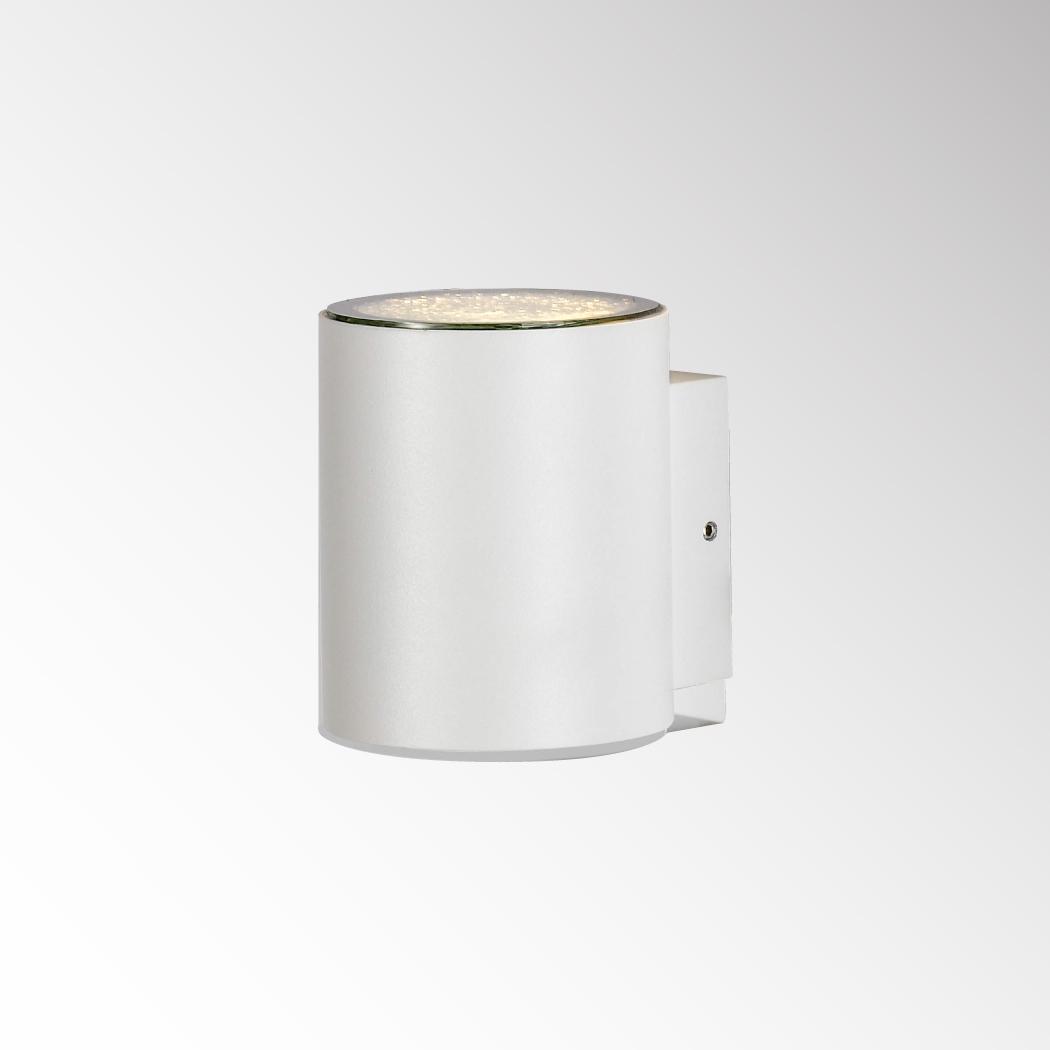

| LBE40208 | Wattage6W | CCT3000K | IPIP54 | DimensionsL80xW68xH80mm | Cut-outNot published |

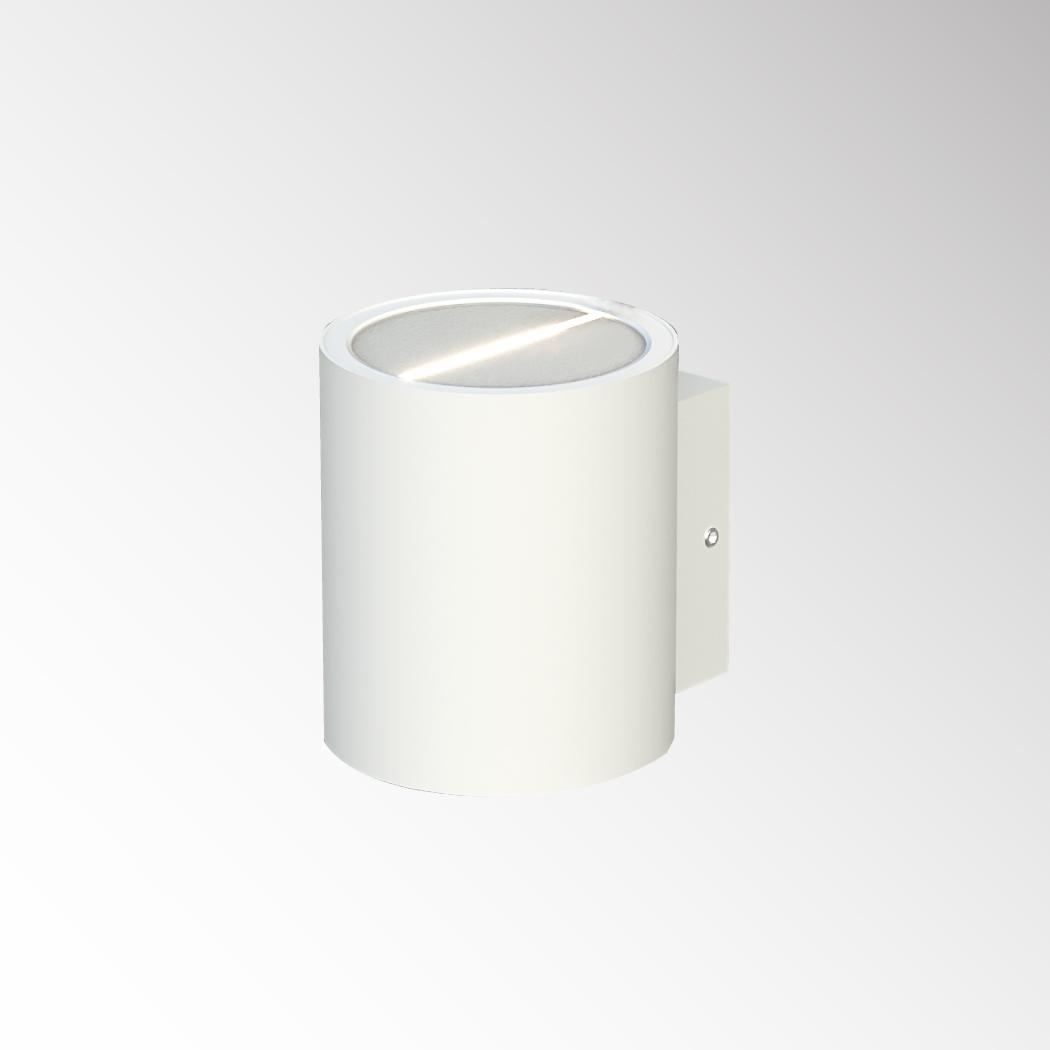

| LBE40209 | Wattage6W | CCT3000K | IPIP54 | DimensionsL80xW68xH80mm | Cut-outNot published |

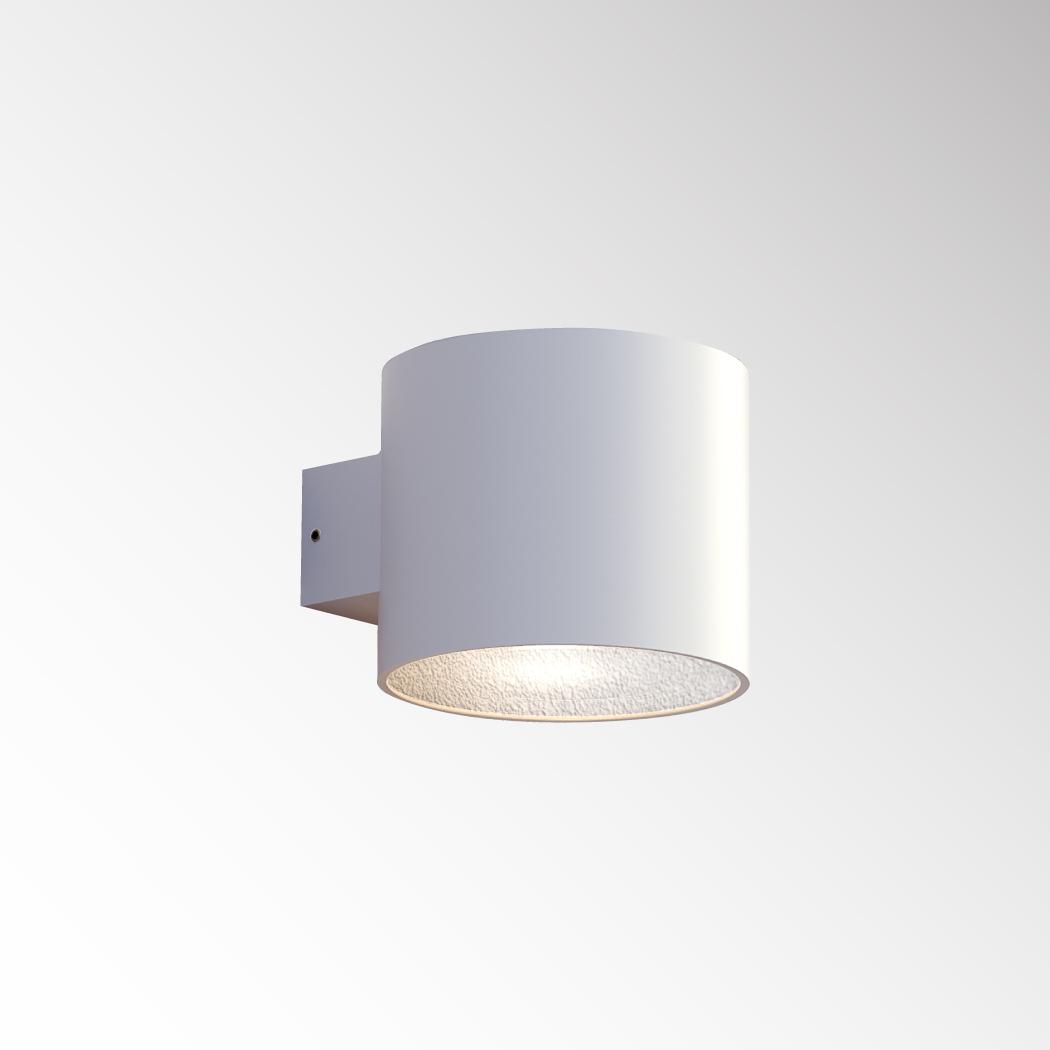

| LBE40210 | Wattage12W | CCT3000K | IPIP54 | DimensionsL118xW105xH90mm | Cut-outNot published |

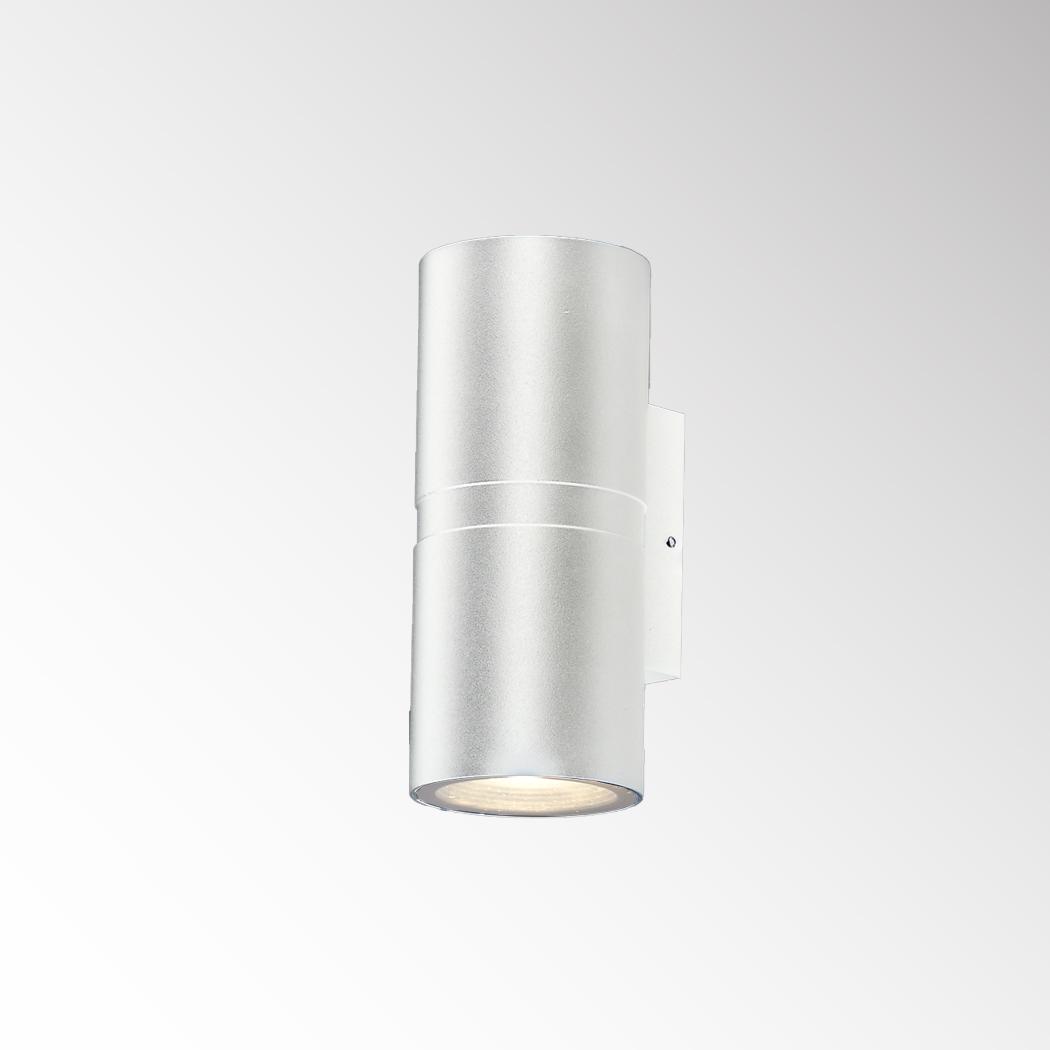

| LBE40211 | Wattage12W | CCT3000K | IPIP54 | DimensionsL80xW68xH160mm | Cut-outNot published |

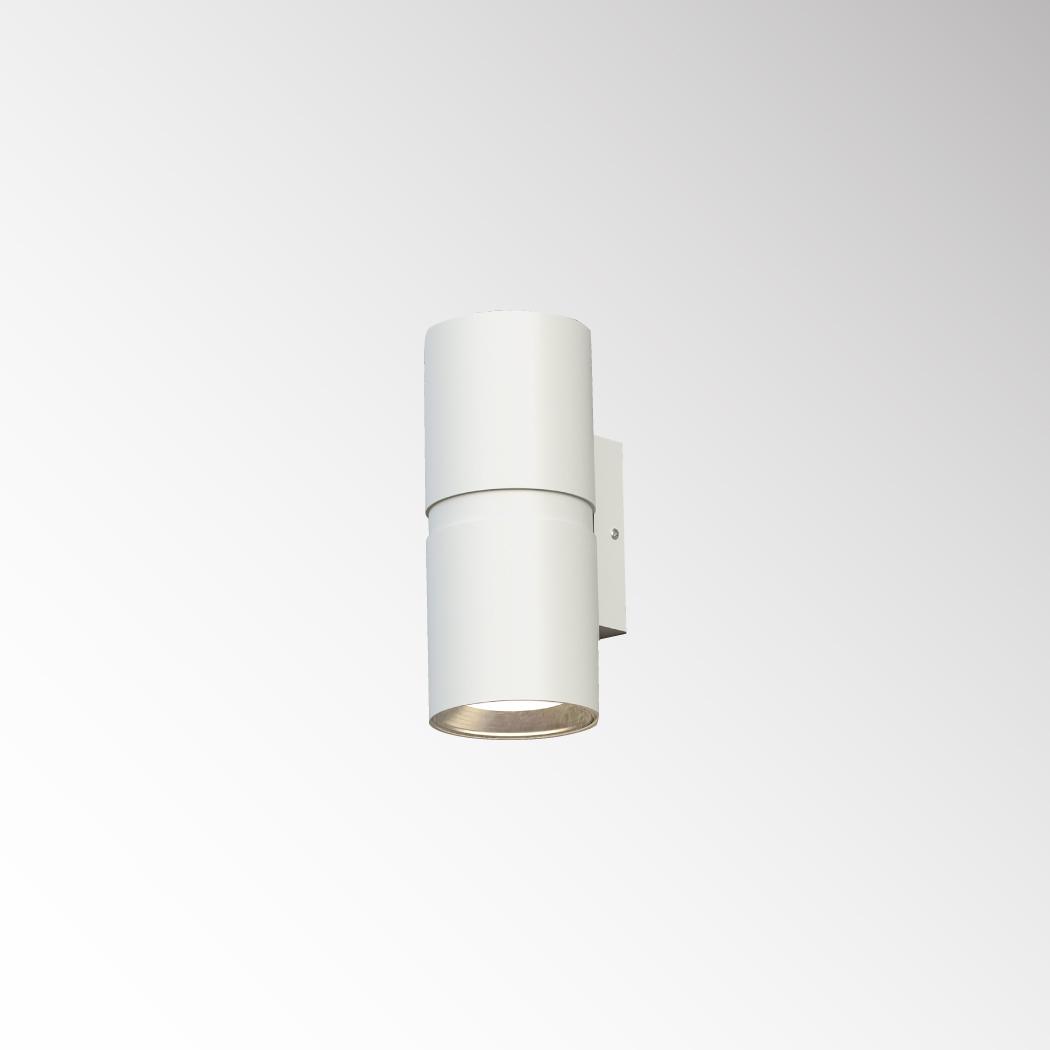

| LBE40212 | Wattage2x6W | CCT3000K | IPIP54 | DimensionsL80xW68xH160mm | Cut-outNot published |

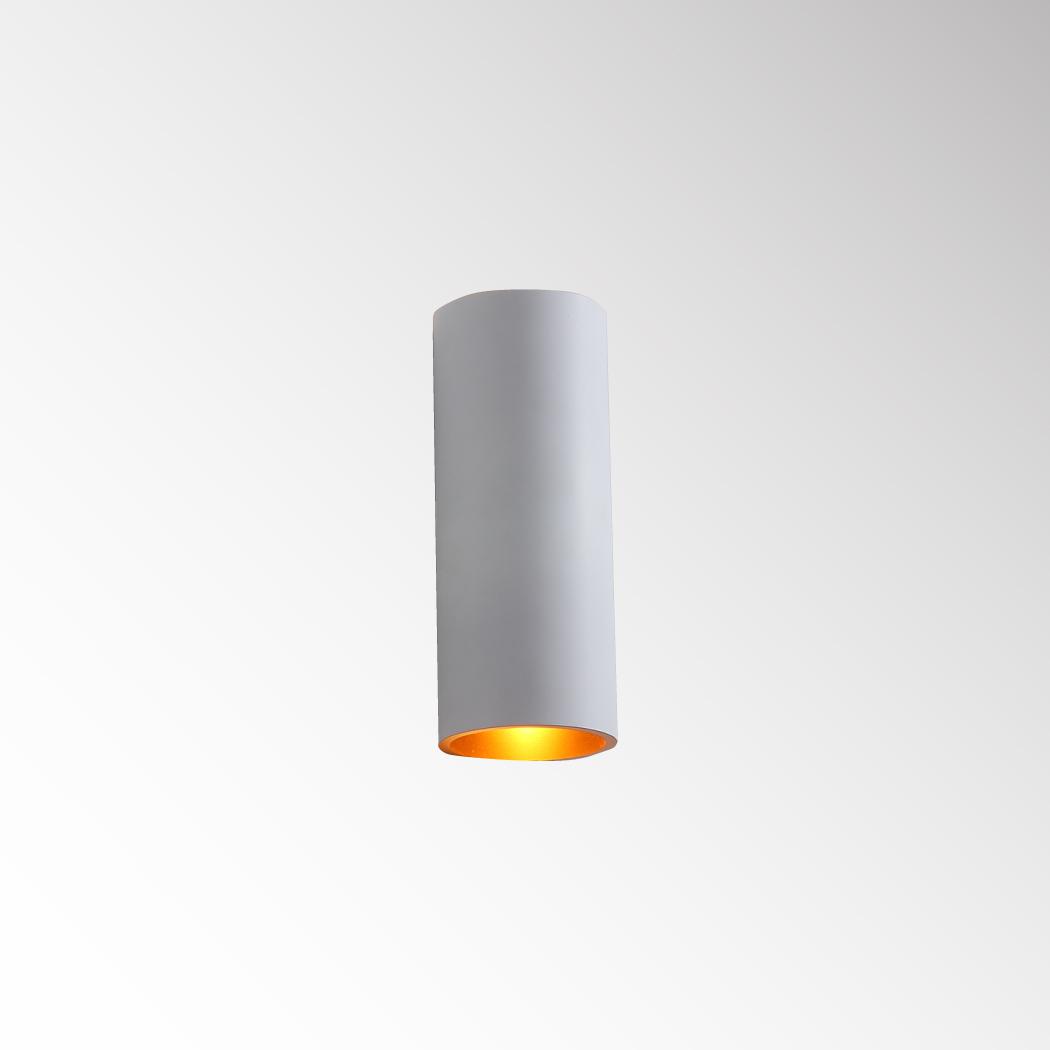

| LBE40214 | Wattage10W | CCT3000K | IPIP65 | DimensionsL67xW72xH160mm | Cut-outNot published |

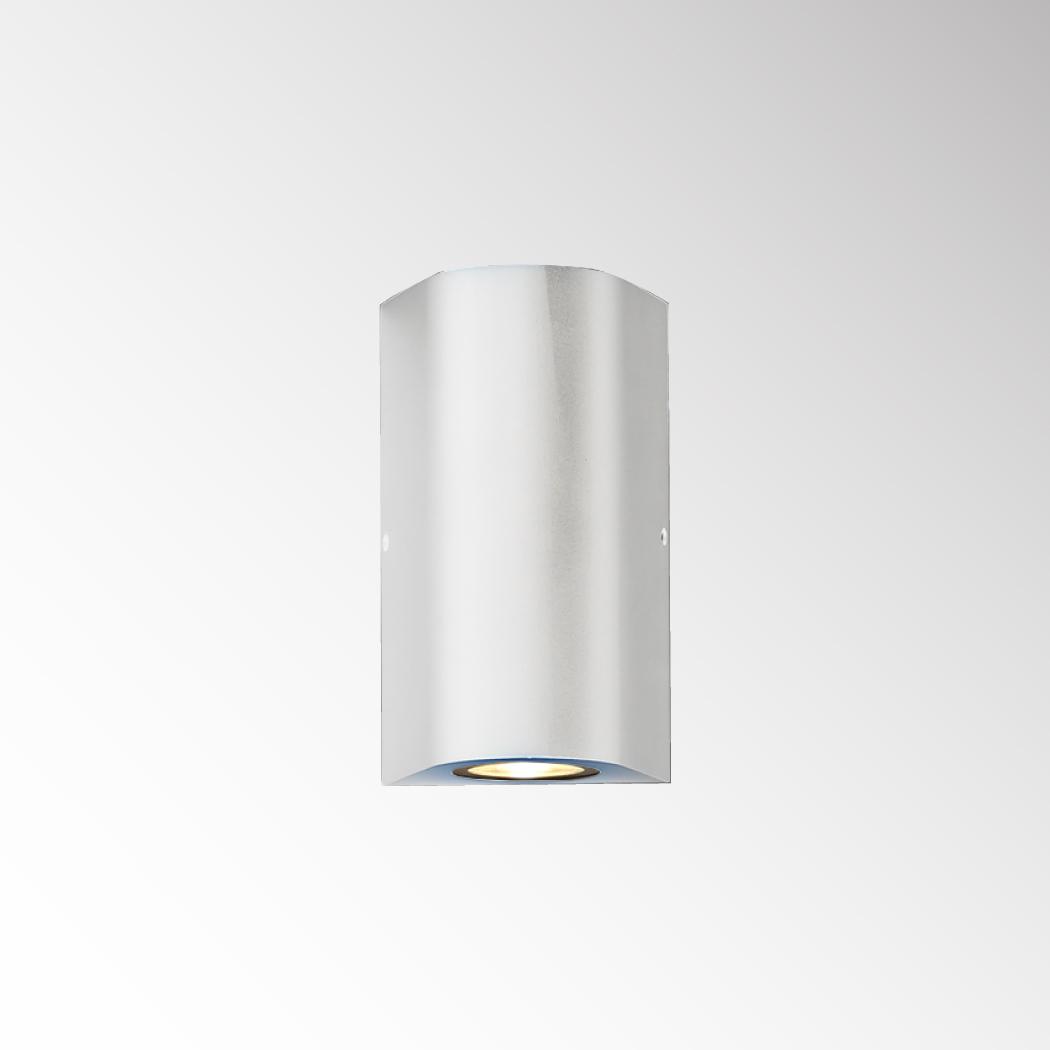

| LBE40215 | Wattage2x7W | CCT3000K | IPIP65 | DimensionsW50x150mm | Cut-outNot published |

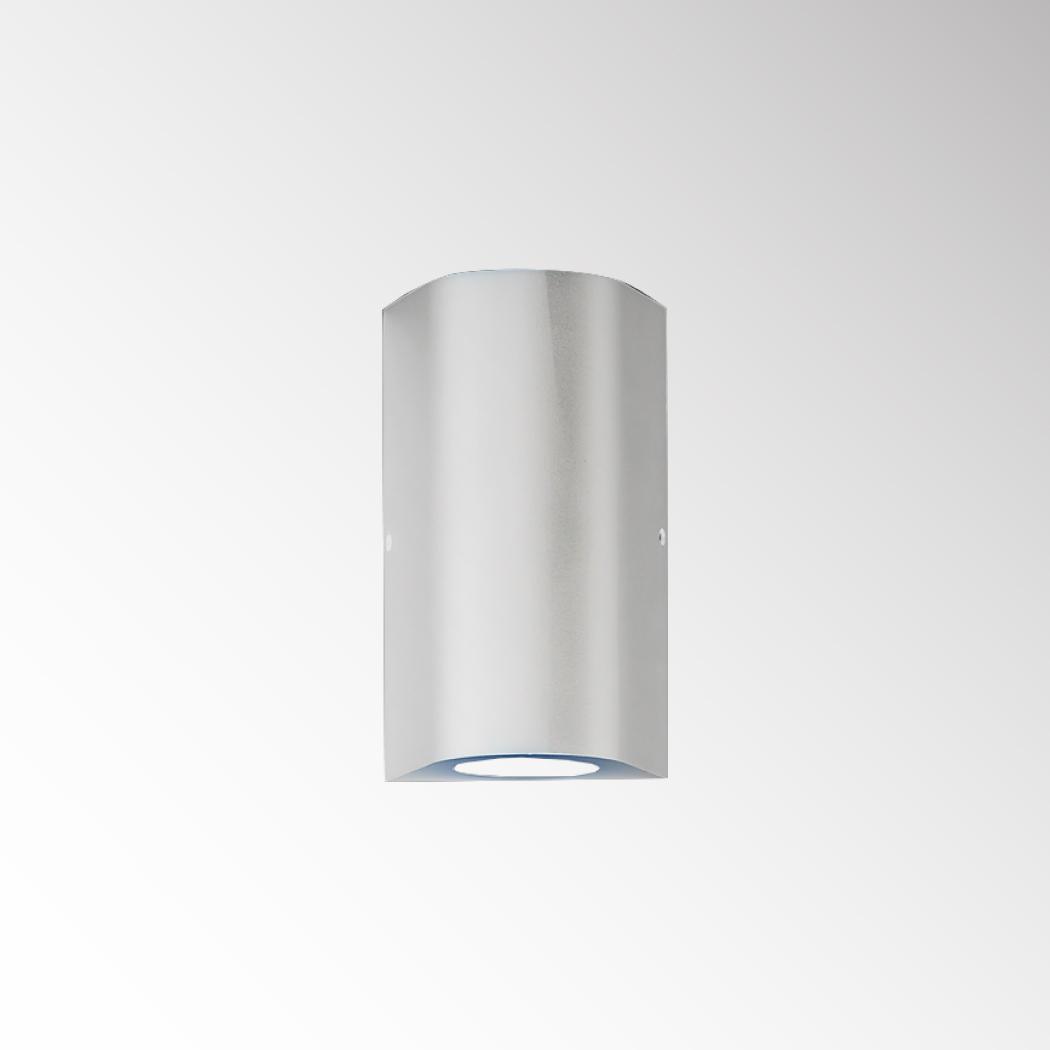

| LBE40216 | Wattage2x7W | CCT3000K | IPIP65 | DimensionsW100x165mm | Cut-outNot published |
| LBE40264 | Wattage6W | CCT3000K | IPIP65 | DimensionsL80xW68xH80mm | Cut-outNot published |

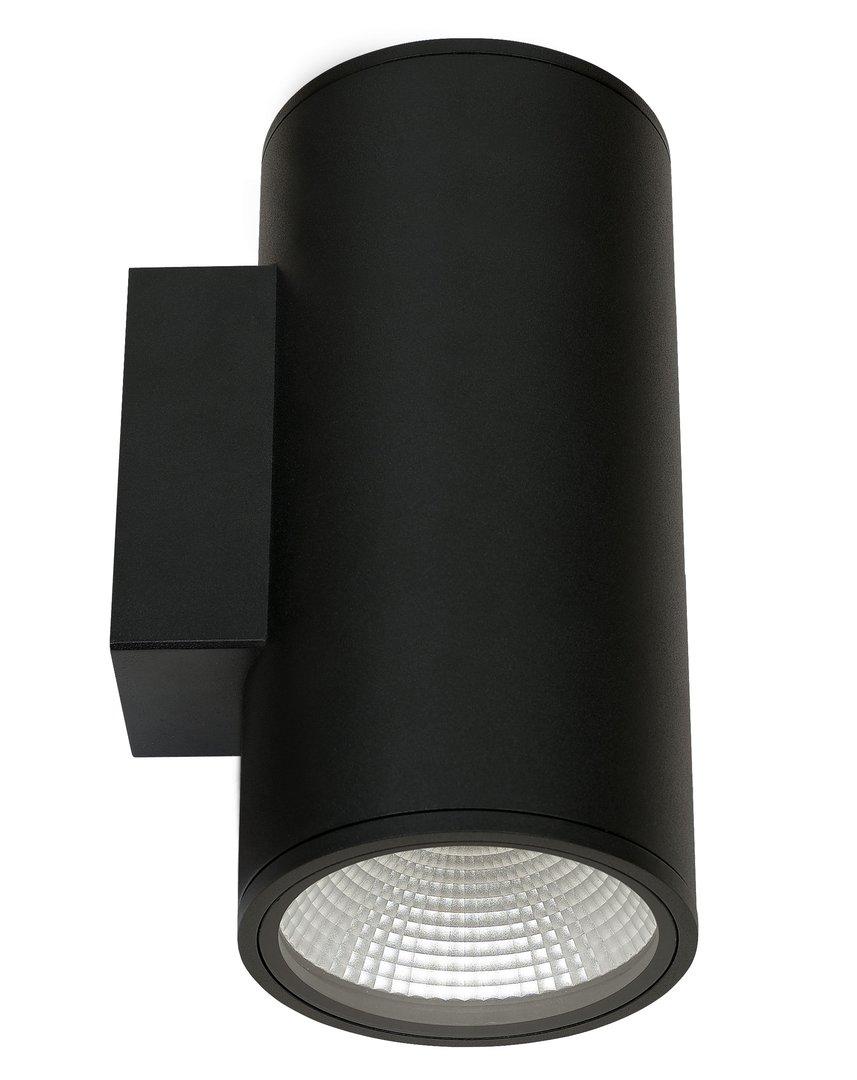

| LBT4782 | Wattage2x10W | CCT4000K | IPIP65 | DimensionsL100xW100xH250 | Cut-outNot published |
| LBT4783 | Wattage2*6W | CCT3000K | IPIP65 | Dimensions163*80*53mm | Cut-outNot published |
| LBT4784 | Wattage1*6W | CCT3000K | IPIP65 | Dimensions163*80*53mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L80xW68xH160mm · 105x118x175mm · 200x106x62mm · 190x130x119.7mm +8 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 6W · 12W · 2x6W · 10W +4 more |
| Lumen output | 487lm · 375lm · 1050lm · 875lm +1 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 30° · 60° · DIFFUSED · 50° +4 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 90-260VAC · 100-240VAC · 220-240VAC · 110-265VAC |
| Light source | Not published — technical review required |
| Material | Die-Casting Aluminium · Pure Aluminium · Aluminium · Die Casting Aluminium |
| Finish | black · white · white+black · Graphite +9 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
16 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE40211. This family has 16 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE40211
L80xW68xH160mm
Specifications
At a Glance
6–20W
Power Range
8 options
Beam: 20°, 24°, 30°, 33°, 38°, 45°, 50°, 60°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP54 / IP65
Protection Rating
10 finishes
Body Finish Options
12 sizes
105x118x175mm, 163*80*53mm, 190x130x119.7mm, 200x106x62mm, 90x200x90mm, L100xW100xH250, L118xW105xH90mm, L67xW72xH160mm, L80xW68xH160mm, L80xW68xH80mm, W100x165mm, W50x150mm
Configure your product
LBE40211
Order code
Listed configurationLBE40211.W.830.WBK.30
15 listed configurations · availability requires confirmation
