SPUN is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
SPUN
SPUN is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 17 models, including LB4030, LB4050, LB4051, with model-specific specifications and configuration choices. LB4030 specifications include power: 7W; colour temperature: 3000K; IP rating: IP65. Compare the SPUN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

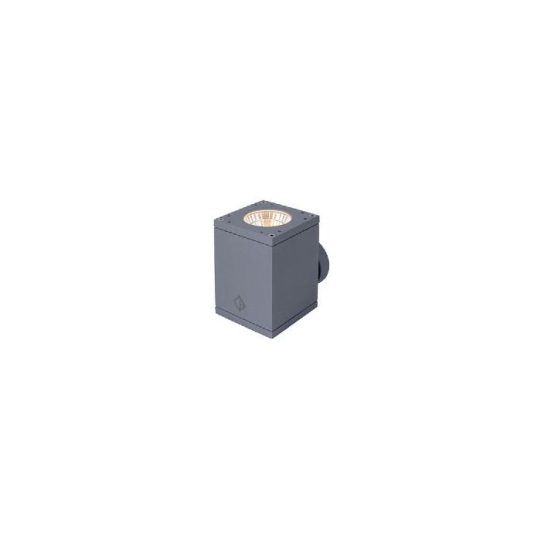

| LB4030 | Wattage7W | CCT3000K | IPIP65 | DimensionsNot published | Cut-outNot published |

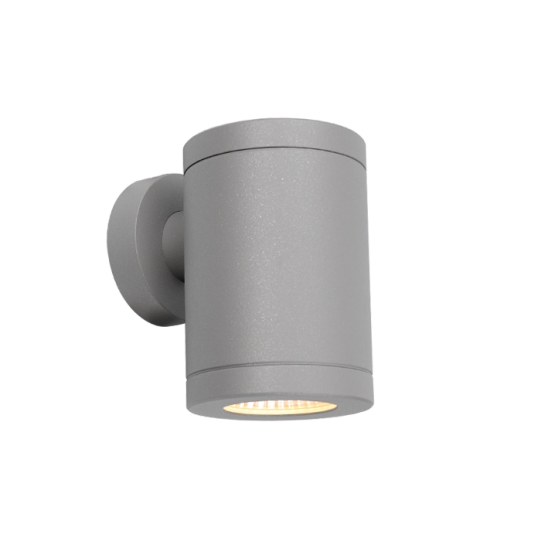

| LB4050 | Wattage7W | CCT3000K | IPIP65 | DimensionsØ70x100mm | Cut-outNot published |

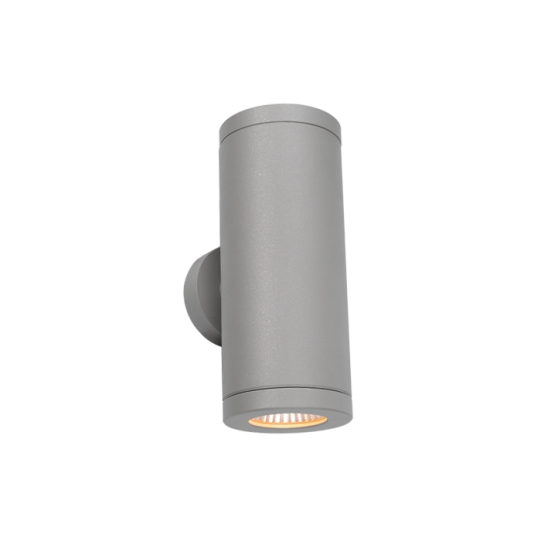

| LB4051 | Wattage2x7W | CCT3000K | IPIP65 | DimensionsØ70x170mm | Cut-outNot published |

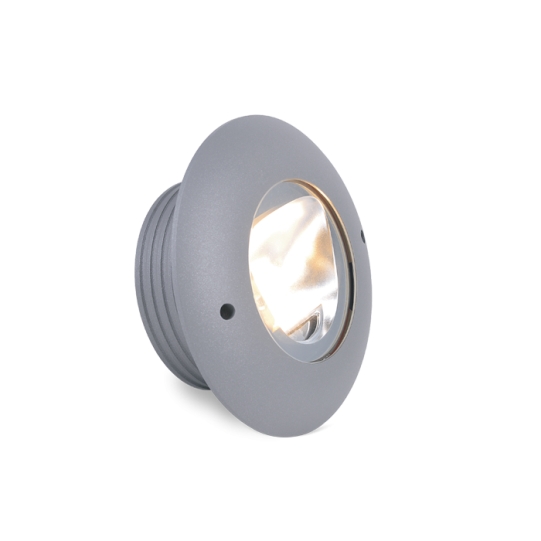

| LB4087 | WattageNot published | CCT2700K | IPIP65 | DimensionsØ170x88mm | Cut-outNot published |

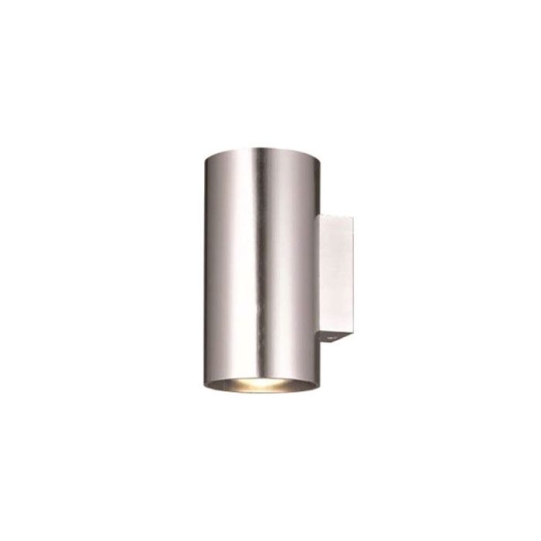

| LB4115 | Wattage2x7W | CCT3000K | IPIP54 | DimensionsØ80x160mm | Cut-outNot published |

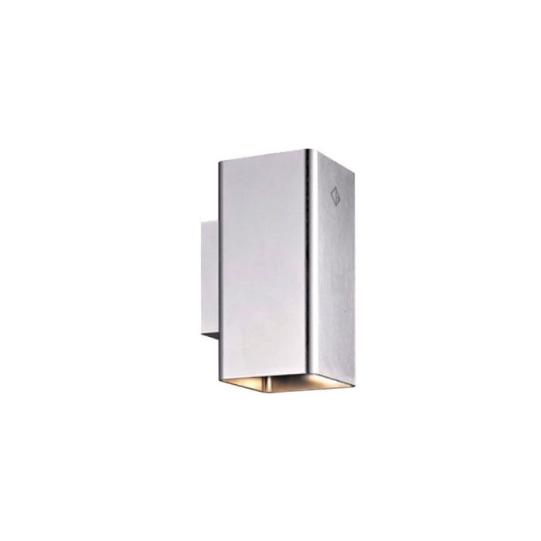

| LB4116 | Wattage2x7W | CCT3000K | IPIP54 | Dimensions75x75x160mm | Cut-outNot published |

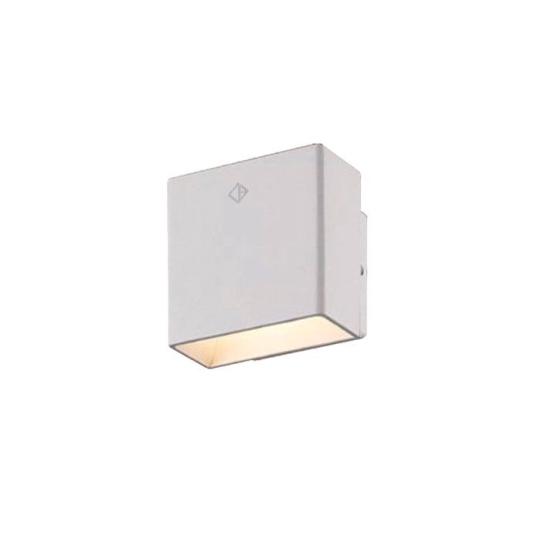

| LB4166 | Wattage5W | CCT6000K | IPIP54 | DimensionsNot published | Cut-outNot published |

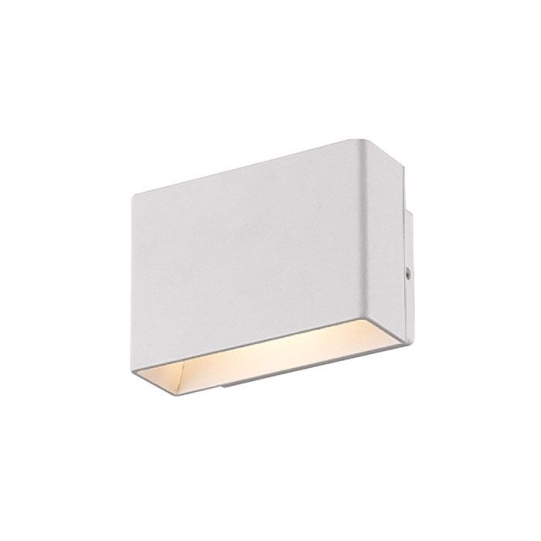

| LB4167 | Wattage1x7W | CCT3000K | IPIP54 | Dimensions122x82x59mm | Cut-outNot published |
| LBE40258 | Wattage2*6.5W | CCT3000K | IPIP65 | DimensionsΦ65*155mm | Cut-outNot published |

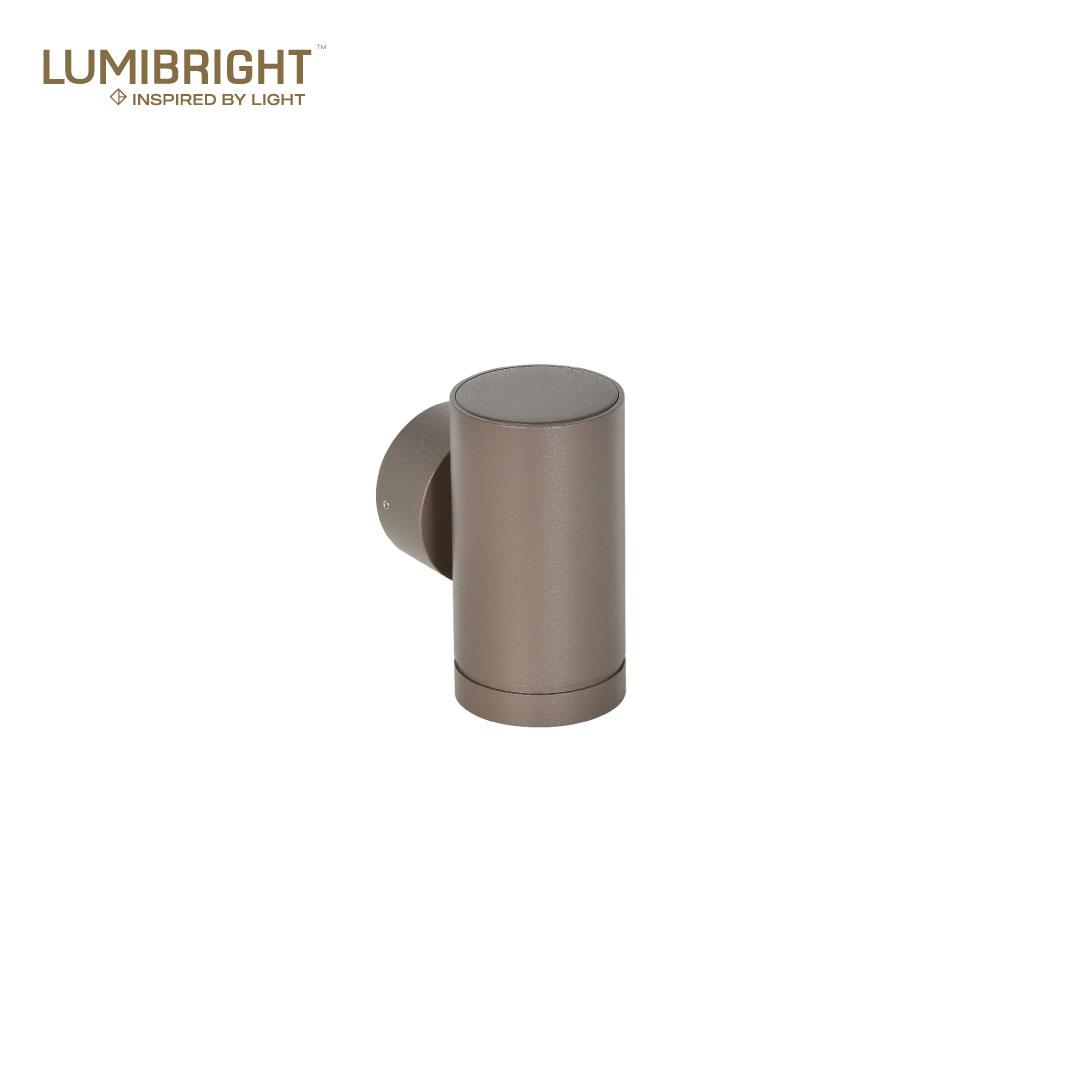

| LBP40125 | Wattage1*7W | CCT3000K/4000K/5000K | IPIP65 | DimensionsØ65x120mm | Cut-outNot published |

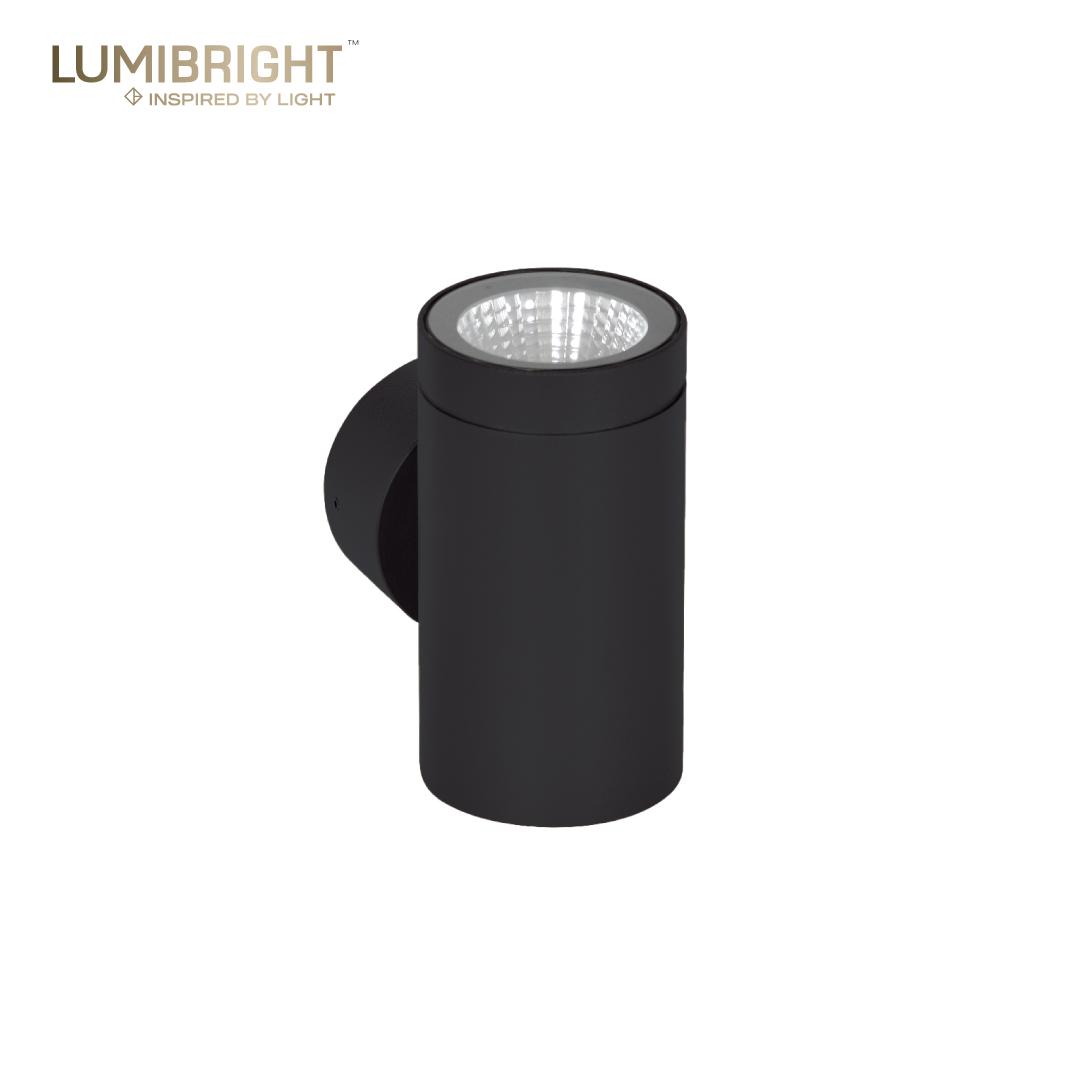

| LBP40126 | Wattage2*6.5W | CCT3000K/4000K/5000K | IPIP65 | DimensionsØ65x155mm | Cut-outNot published |

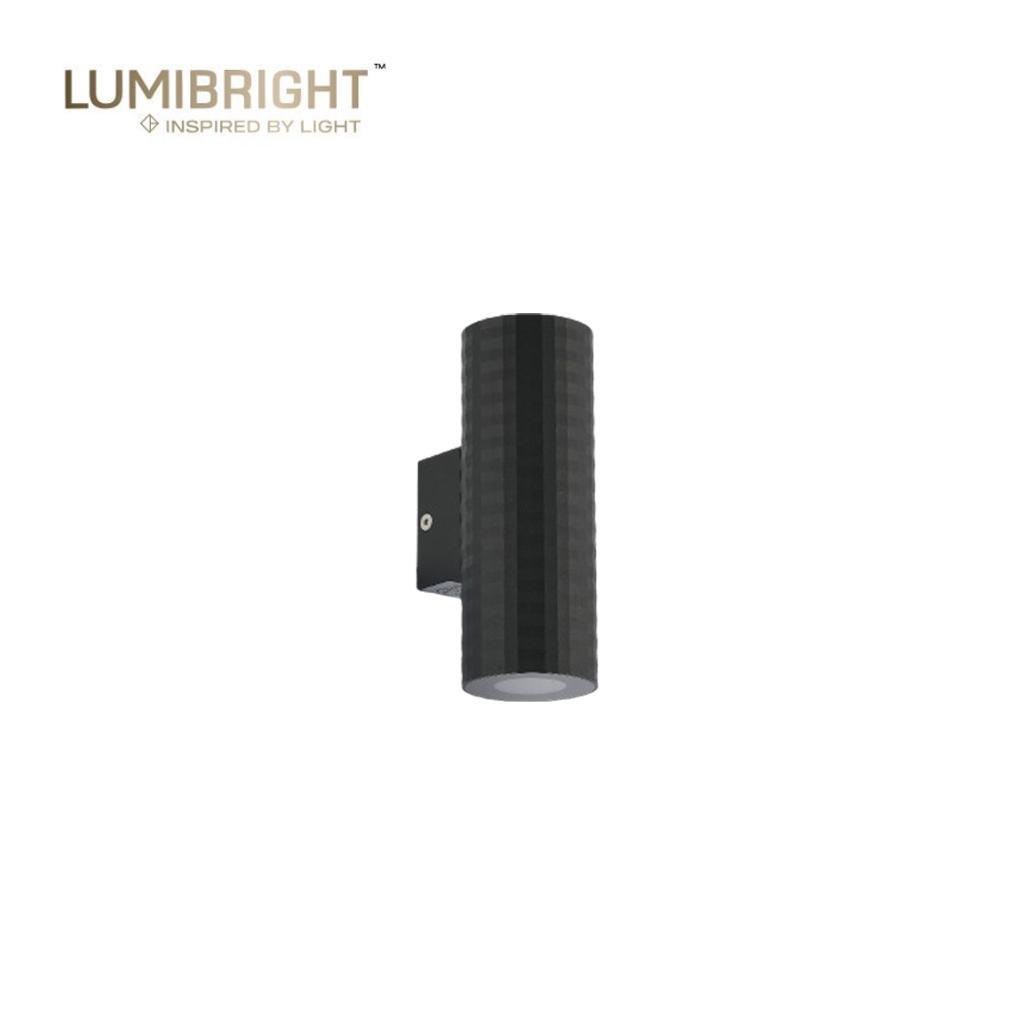

| LBP40127 | Wattage2x5W | CCT3000K | IPIP65 | DimensionsΦ85xH160mm | Cut-outNot published |
| LBP40131 | Wattage2x5W | CCT3000K | IPIP65 | DimensionsD60xH185mm | Cut-outNot published |
| LBP40132 | Wattage5W | CCT3000K | IPIP65 | DimensionsD60x75x105mm | Cut-outNot published |
| LBT4789 | Wattage2x7W | CCT3000K | IPIP65 | DimensionsΦ65*155mm | Cut-outNot published |
| LBT4790 | Wattage7W | CCT3000K | IPIP65 | DimensionsΦ65*120mm | Cut-outNot published |
| LBT4791 | Wattage18W | CCT3000K | IPIP65 | DimensionsΦ100*160mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø70x100mm · Ø70x170mm · Ø170x88mm · Ø80x160mm +10 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 7W · 2*6.5W · 2x5W · 5W +2 more |
| Lumen output | 1170lm · 400lm · 325lm · 1200lm +2 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 22° · 25° · 32° +7 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 80 · ≥80 · 90 · >80 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 100-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | black-sand · grey · grey-sand · Grey With Sand +8 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
17 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4051. This family has 17 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4051
Ø70x170mm
Specifications
At a Glance
5–18W
Power Range
12 options
Beam: 15°, 22°, 24°, 25°, 32°, 37°, 38°, 39°, 40°, 61°, 93°, 118°
6 CCT
2700K, 3000K, 4000K, 5000K, 5600K, 6000K
CRI 80/90
Colour Rendering
IP54 / IP65
Protection Rating
7 finishes
Body Finish Options
14 sizes
122x82x59mm, 75x75x160mm, D60x75x105mm, D60xH185mm, Ø170x88mm, Ø65x120mm, Ø65x155mm, Ø70x100mm, Ø70x170mm, Ø80x160mm, Φ100*160mm, Φ65*120mm, Φ65*155mm, Φ85xH160mm
Configure your product
LBP40126
Order code
Listed configurationLBP40126.W.830.PSV.15
12 listed configurations · availability requires confirmation
