Lumi Outdoor
TONDO
Application inspiration · not a project reference
TONDO is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
TONDO
TONDO is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 12 models, including LB1684, LB1686, LB1761, with model-specific specifications and configuration choices. LB1684 specifications include colour temperature: 6000K; dimensions: Ø120x650mm. Compare the TONDO range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

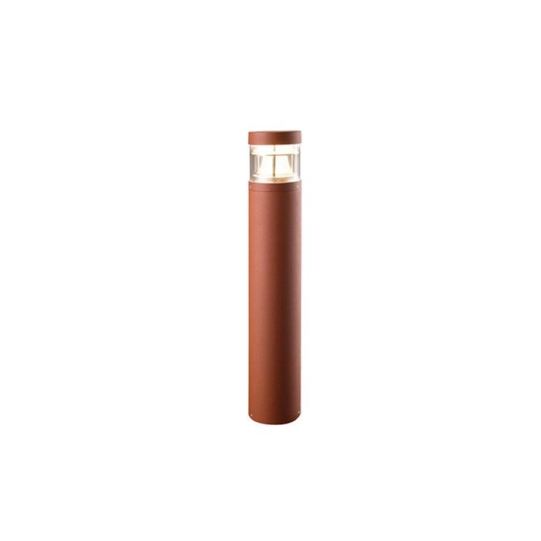

| LB1684 | WattageNot published | CCT6000K | IPNot published | DimensionsØ120x650mm | Cut-outNot published |

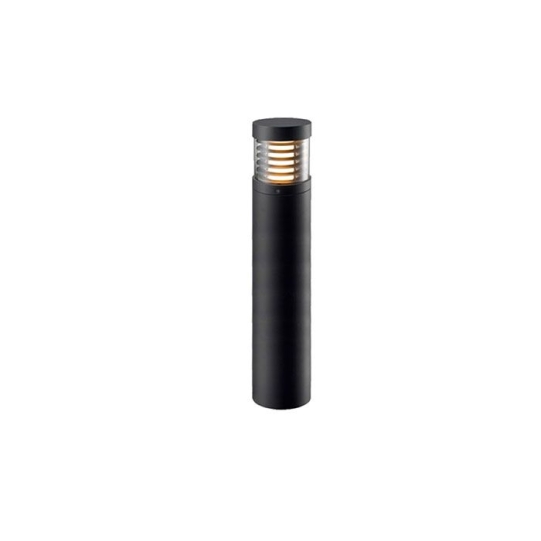

| LB1686 | WattageNot published | CCT6000K | IPNot published | DimensionsØ120x650mm | Cut-outNot published |

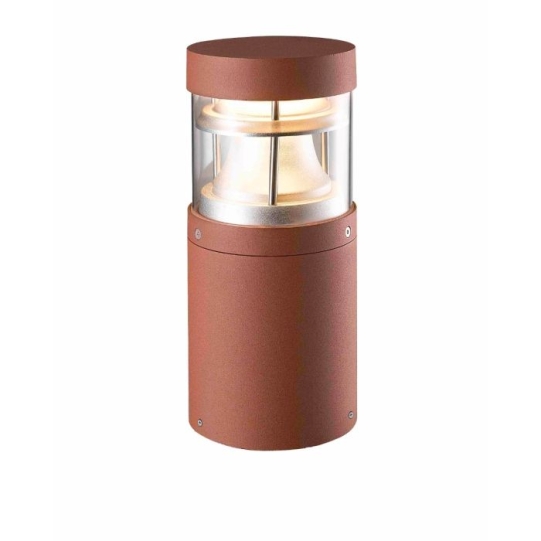

| LB1761 | WattageNot published | CCT3000K | IPIP54 | DimensionsØ120x265mm | Cut-outNot published |

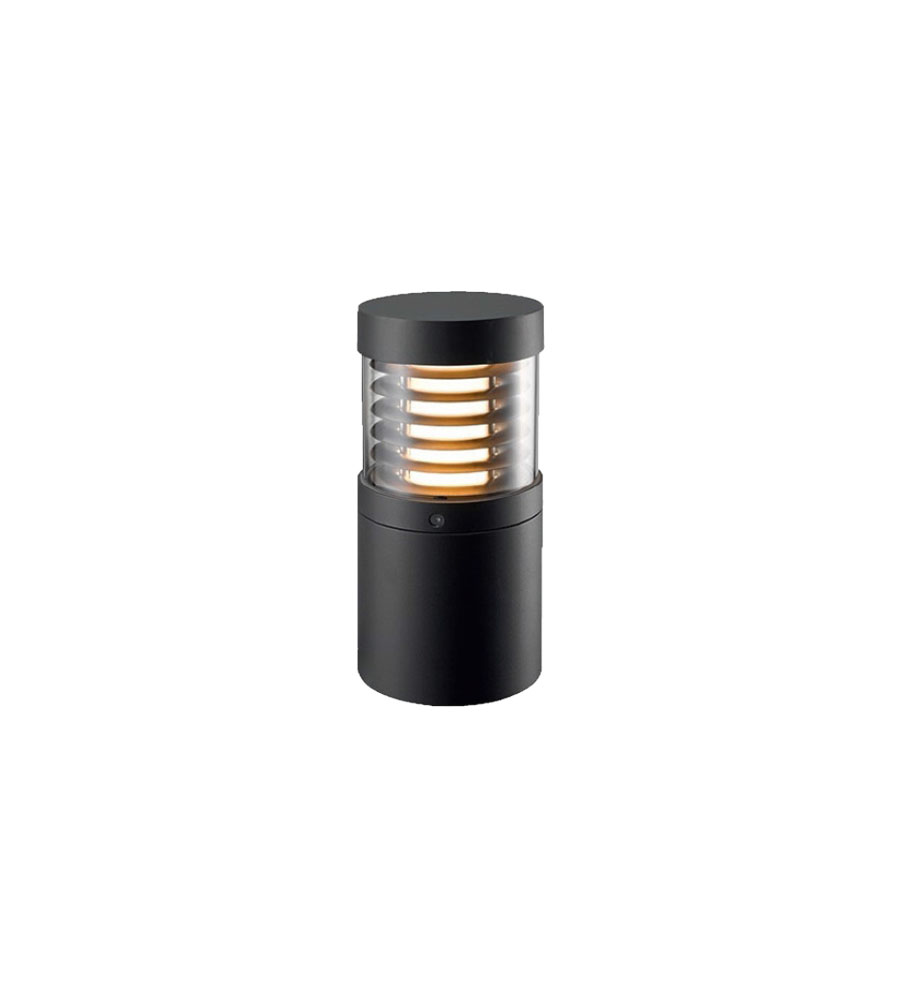

| LB1762 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |

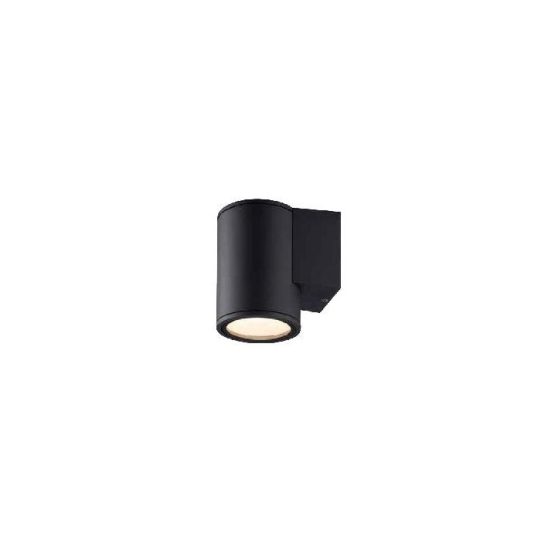

| LB4313 | Wattage12W | CCT4500K | IPIP54 | DimensionsØ90x133x182mm | Cut-outNot published |

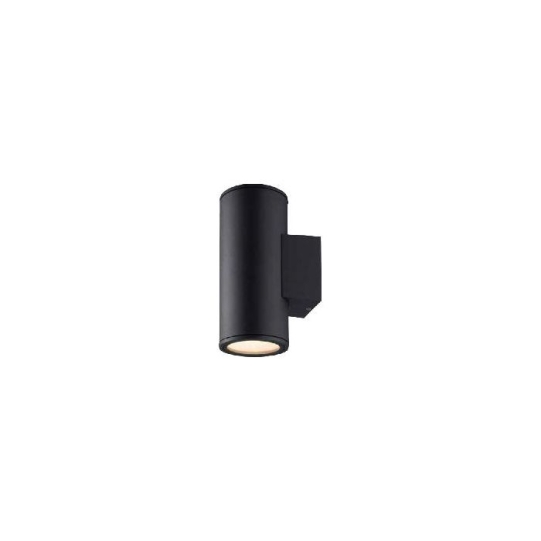

| LB4314 | WattageNot published | CCT2900-3100K | IPIP54 | DimensionsØ90x133xH220mm | Cut-outNot published |

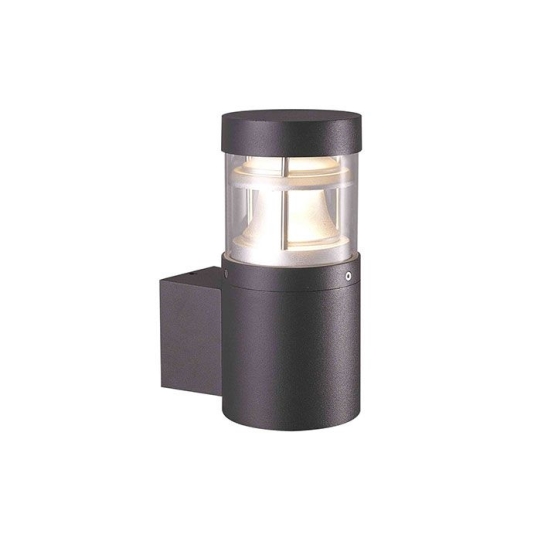

| LB4458 | Wattage15W | CCT3000K | IPIP54 | DimensionsØ120x260mm | Cut-outNot published |

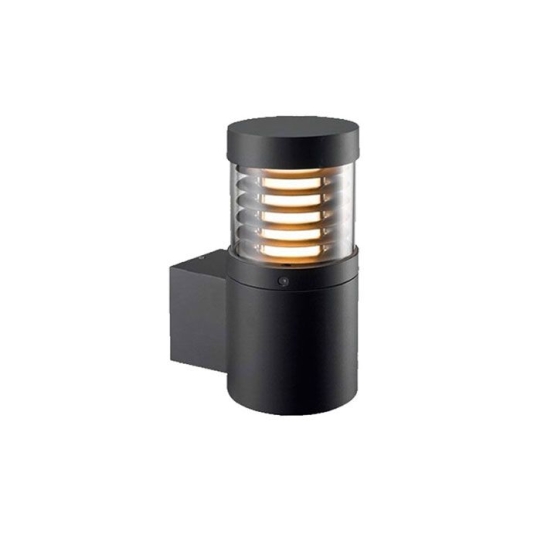

| LB4460 | Wattage15W | CCT3000K | IPIP54 | DimensionsØ120x260mm | Cut-outNot published |

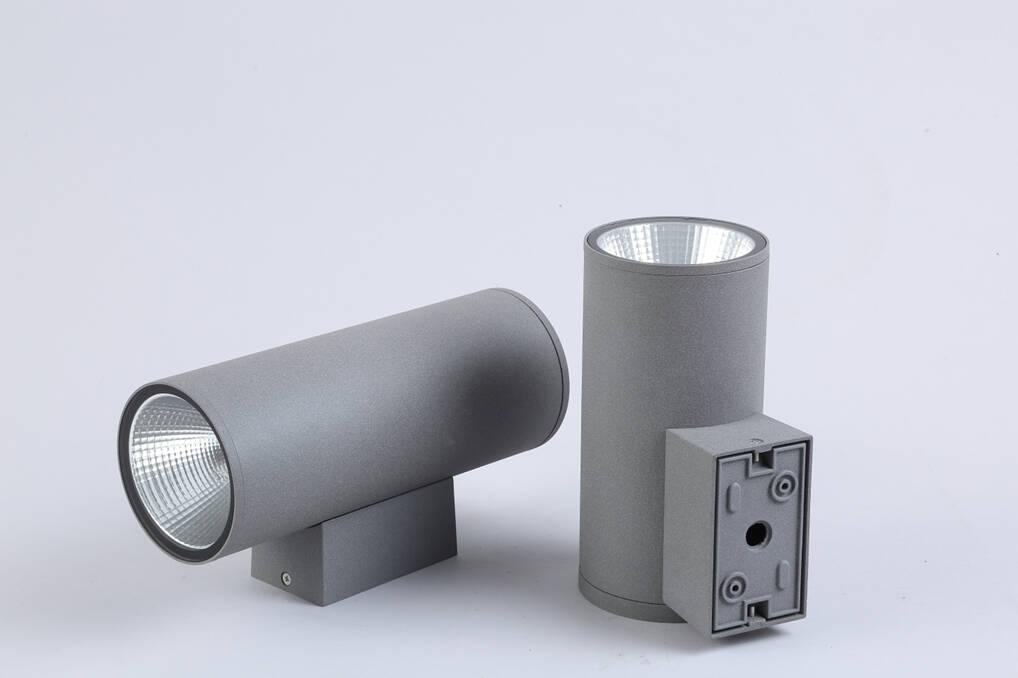

| LBE40245 | Wattage12W | CCT3000K/4000K/6000K | IPIP54 | DimensionsØ100x200mm | Cut-outNot published |
| LBE40246 | Wattage2x12W | CCT3000K/4000K/6000K | IPIP54 | DimensionsØ100x250mm | Cut-outNot published |
| LBS1500 | WattageNot published | CCT3000K | IPIP66 | DimensionsØ168x650mm | Cut-outNot published |
| LBS1501 | WattageNot published | CCT3000K | IPIP65 | DimensionsØ220xH1000mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø120x650mm · Ø120x265mm · Ø90x133x182mm · Ø90x133xH220mm +5 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 12W · 2x12W |
| Lumen output | 846lm · 1577lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 36° · 44° · 48° · 65° +4 more |
| Colour temperature | 3000K · 3100K · 4500K · 6000K +1 more |
| CRI Ra | ≥80 · >80 · 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP66 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC · AC |
| Light source | Not published — technical review required |
| Material | Die Cast Aluminium |
| Finish | Graphite · Black With Sand · black-sand · White +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4313. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4313
Ø90x133x182mm
Specifications
At a Glance
12–30W
Power Range
7 options
Beam: 36°, 44°, 48°, 52°, 65°, 82°, 120°
5 CCT
3000K, 3100K, 4000K, 4500K, 6000K
CRI 80
Colour Rendering
IP54 / IP65 / IP66
Protection Rating
4 finishes
Body Finish Options
9 sizes
Ø100x200mm, Ø100x250mm, Ø120x260mm, Ø120x265mm, Ø120x650mm, Ø168x650mm, Ø220xH1000mm, Ø90x133x182mm, Ø90x133xH220mm
Configure your product
LB1686
Order code
Listed configurationLB1686.W.830.PGP.D
6 listed configurations · availability requires confirmation
