Lumi Outdoor
VICTOR
Application inspiration · not a project reference
VICTOR is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
VICTOR
VICTOR is a wall light family within the LUMIBRIGHT Lumi Outdoor collection. The current catalogue groups 5 article codes under this family, including LB4003, LB4006, LB4325. For LB4003, published values include power: 3W; colour temperature: 6000K; IP rating: IP65; dimensions: 76x200x97mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the VICTOR articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB4003 | Wattage3W | CCT6000K | IPIP65 | Dimensions76x200x97mm | Cut-out70x194mm |

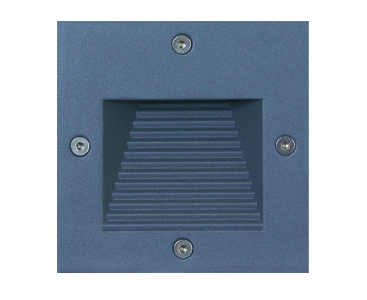

| LB4006 | Wattage1.5W | CCT6000K | IPIP65 | Dimensions120x114x74mm | Cut-out108x114mm |

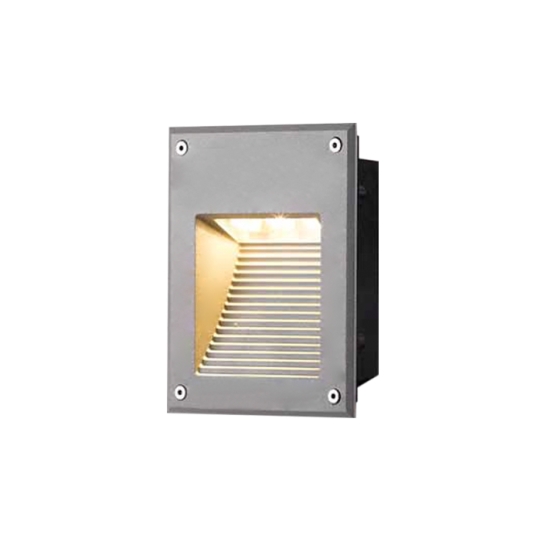

| LB4325 | WattageNot published | CCT4500K | IPIP65 | Dimensions165x195x63mm | Cut-outNot published |

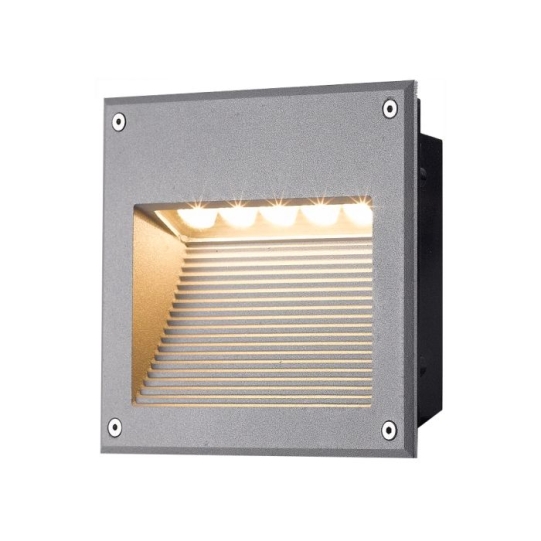

| LB4326 | Wattage5x1W | CCT4000K | IPIP65 | Dimensions225x195x63mm | Cut-out188x218mm |
| LB4854 | Wattage2x3W | CCT3000K | IPIP65 | Dimensions214x85x50mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 76x200x97mm · 120x114x74mm · 165x195x63mm · 225x195x63mm +1 more |
|---|---|
| Cut-out | 70x194mm · 108x114mm · 188x218mm |
| Power | 1.5W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5600K +4 more |
| CRI Ra | Not published — technical review required |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | silver · white-sand · grey-sand · black-sand +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB4006. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB4006
120x114x74mm
Cut-Out
108x114mm
Specifications
At a Glance
1–3W
Power Range
4 options
Beam: 60°, 64°, 76°, 87°
8 CCT
2700K, 3000K, 3100K, 4000K, 4500K, 5600K, 6000K, 6500K
CRI 80
Colour Rendering
IP65
Protection Rating
6 finishes
Body Finish Options
5 sizes
120x114x74mm, 165x195x63mm, 214x85x50mm, 225x195x63mm, 76x200x97mm
3 cut-outs
108x114mm, 188x218mm, 70x194mm
Configure your product
LB4854
Order code
Listed configurationLB4854.W.930.WBK.60
2 listed configurations · availability requires confirmation
