Lumi Outdoor
VONNI
Application inspiration · not a project reference
VONNI is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Inground Light
VONNI
VONNI is a inground light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 12 models, including LB1180, LB1192, LB1193, with model-specific specifications and configuration choices. LB1180 specifications include colour temperature: 6000K; dimensions: 55x55x85mm. Compare the VONNI range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1180 | WattageNot published | CCT6000K | IPNot published | Dimensions55x55x85mm | Cut-outNot published |
| LB1192 | Wattage3W | CCT3000K | IPIP68 | DimensionsØ55x79mm | Cut-outNot published |

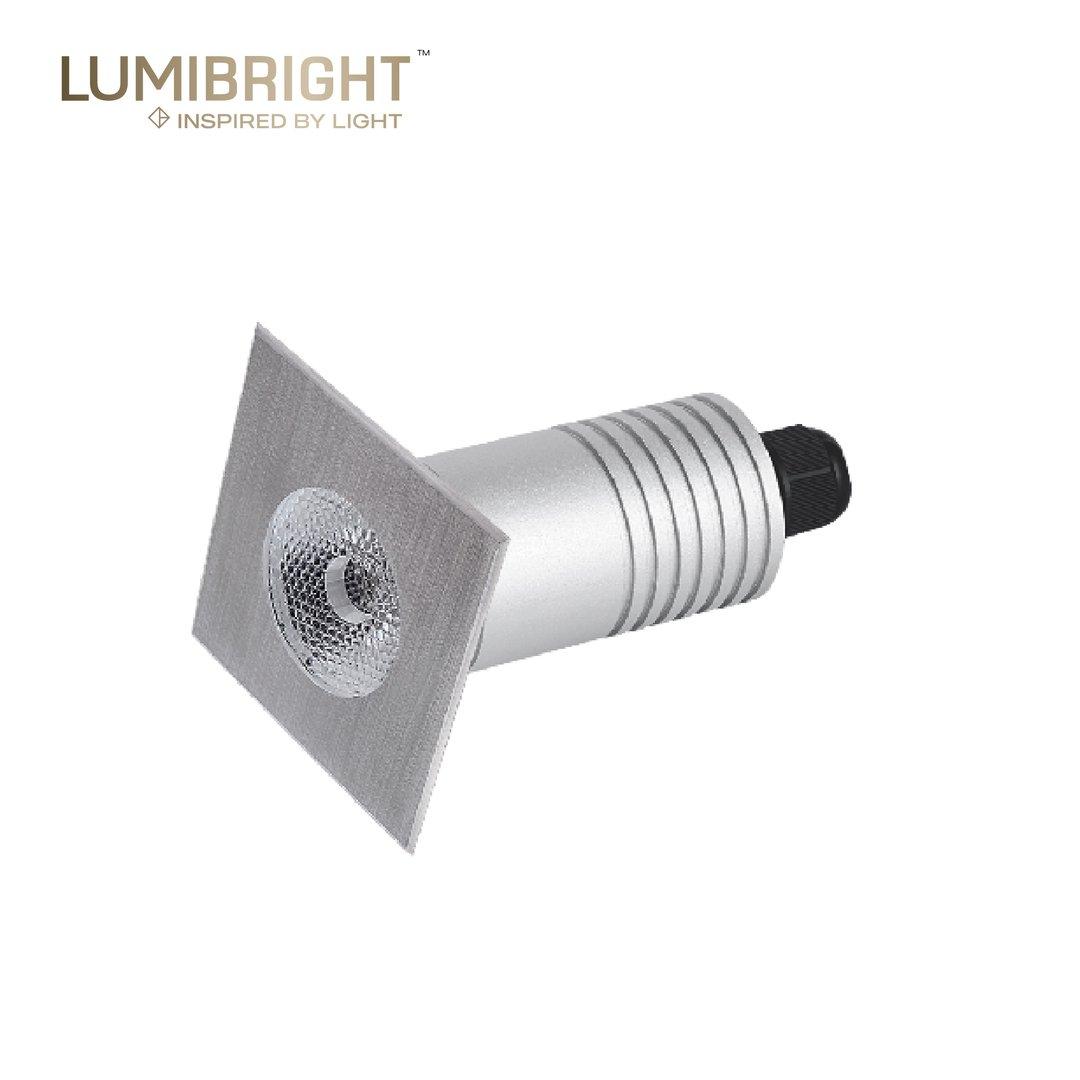

| LB1193 | WattageNot published | CCT6000K | IPNot published | Dimensions55x55x79mm | Cut-outNot published |
| LB1194 | WattageNot published | CCTNot published | IPNot published | Dimensions62x62x89mm | Cut-outNot published |
| LB1353 | Wattage3W | CCT3000K | IPIP68 | DimensionsØ56x80mm | Cut-outØ102mm |
| LBE11017 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ52mm | Cut-outNot published |
| LBP1195 | Wattage3W | CCTNot published | IPIP67 | DimensionsØ50x68mm | Cut-outØ80x86mm |
| LBP1200 | Wattage3W | CCT4000K | IPIP67 | DimensionsØ50x68mm | Cut-outØ47x100 |

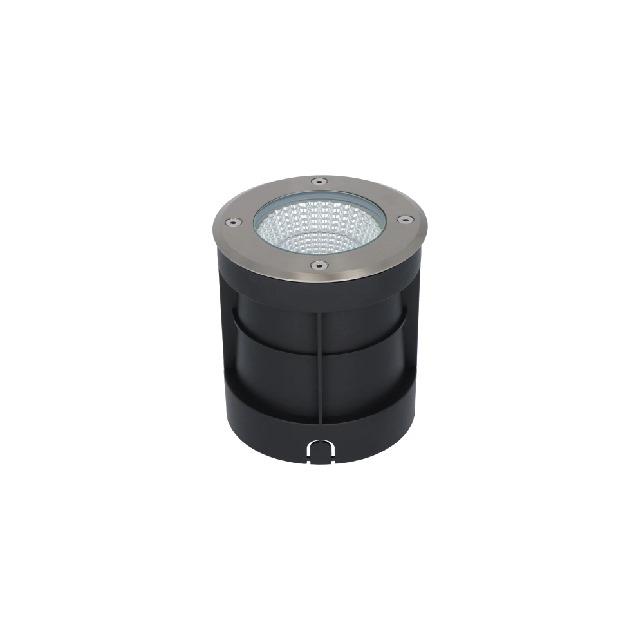

| LBP1202 | Wattage36W | CCT3000K | IPIP67 | DimensionsØ200x175mm | Cut-outNot published |
| LBP1214 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ70x100mm | Cut-outNot published |

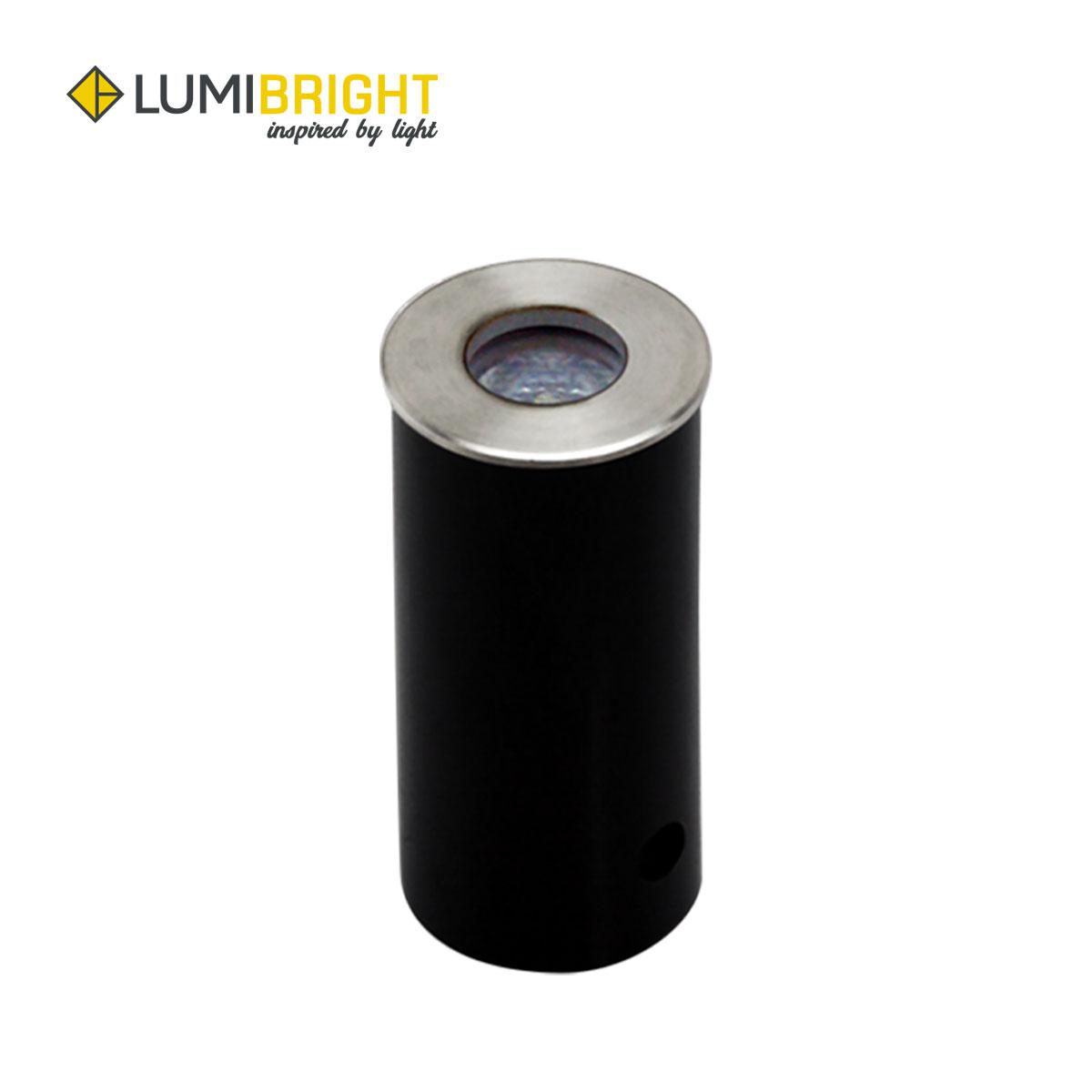

| LBP1216 | WattageNot published | CCT3000K | IPIP67 | DimensionsØ50x68mm | Cut-outNot published |
| LBT1115 | Wattage5W | CCTNot published | IPIP67 | DimensionsØ70x102mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 55x55x85mm · Ø55x79mm · 55x55x79mm · 62x62x89mm +6 more |
|---|---|
| Cut-out | Ø102mm · Ø80x86mm · Ø47x100 · 65mm |
| Power | 3W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 8° · 15° · 25° · 30° +8 more |
| Colour temperature | 3000K · 4000K · 6000K · RED +5 more |
| CRI Ra | 80 · ≥80 · ≥90 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 · IP68 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC · 100-240VAC · 220-240VAC · 12VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | stainless-steel · Anodized In Grey Sand · Stainless Steel · grey-sand +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing

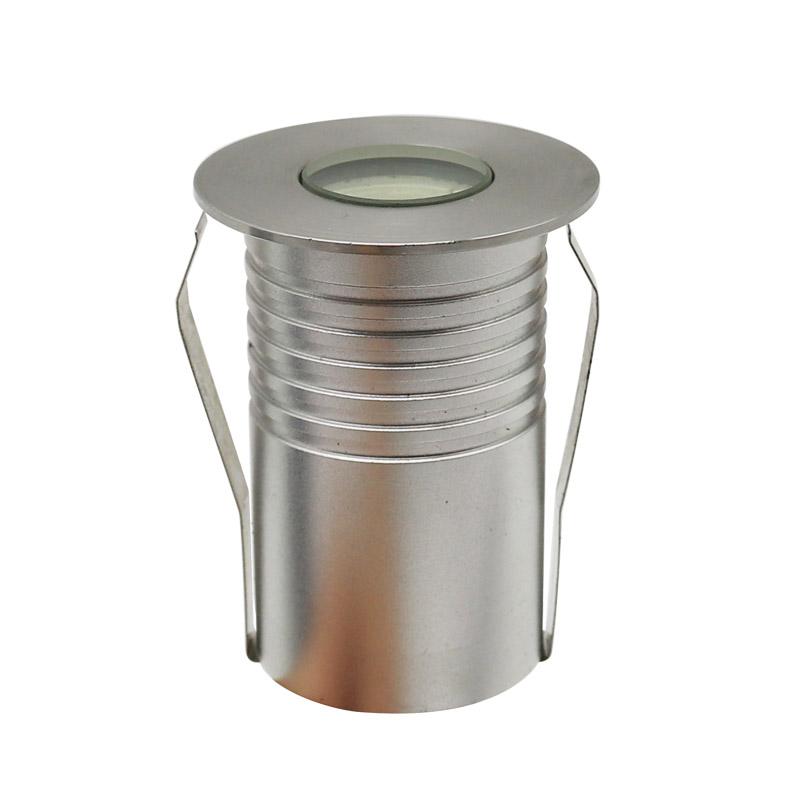

Drawing and sizes shown for model LBP1195. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP1195
Ø50x68mm
Cut-Out
Ø80x86mm
Specifications
At a Glance
1–36W
Power Range
10 options
Beam: 6°, 8°, 10°, 12°, 15°, 25°, 30°, 40°, 45°, 60°
5 CCT
2200K, 2700K, 3000K, 4000K, 6000K
BLUE / GREEN / RED / RGBW(3000K)
Colour Options
CRI 80
Colour Rendering
IP67 / IP68
Protection Rating
4 finishes
Body Finish Options
10 sizes
55x55x79mm, 55x55x85mm, 62x62x89mm, Ø200x175mm, Ø50x68mm, Ø52mm, Ø55x79mm, Ø56x80mm, Ø70x100mm, Ø70x102mm
4 cut-outs
65mm, Ø102mm, Ø47x100, Ø80x86mm
Configure your product
LBP1195
Order code
Listed configurationLBP1195.C.860.SSS.60
18 listed configurations · availability requires confirmation
