INDOOR
INDOOR is a architectural lighting family within the LUMIBRIGHT Lumi Pro collection. The current catalogue groups 2 article codes under this family, including LBP1003, LBP1010. For LBP1003, published values include power: 35W; colour temperature: 3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: D90xH200mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the INDOOR articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBP1003 | Wattage35W | CCT3000K/4000K/5000K/6000K | IPIP20 | DimensionsD90xH200mm | Cut-outNot published |
| LBP1010 | Wattage20W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensionsφ100*70*169mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | D90xH200mm · φ100*70*169mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 35W · 20W |
| Lumen output | 4000lm · 1800lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 36° · 60° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K +1 more |
| CRI Ra | ＞80Ra · 80+/ 90+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 100-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | Not published — technical review required |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions

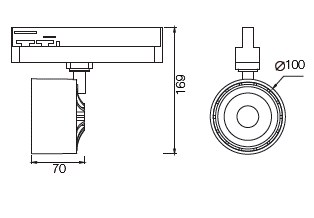

Technical Drawing
Drawing and sizes shown for model LBP1010. This family has 2 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP1010
φ100*70*169mm
Specifications
At a Glance
20–35W
Power Range
2 options
Beam: 15°, 36°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
2 sizes
D90xH200mm, φ100*70*169mm
Configure your product
LBP1003
Colour temperature
3000K · 4000K · 5000K
Beam angle
15° · 24° · 36° · 60°
Dimming
On/Off · DALI · 1-10V · 0-10V · Phase
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
