Lumi Pro
OVEGA PRO
Application inspiration · not a project reference
OVEGA PRO is part of Lumi Pro. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
OVEGA PRO
OVEGA PRO is a architectural lighting family within the LUMIBRIGHT Lumi Pro collection. The current catalogue groups 1 article codes under this family, including LBP1017. For LBP1017, published values include power: 30w; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: Ø80xH162mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the OVEGA PRO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBP1017 | Wattage30w | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ80xH162mm | Cut-outNot published |

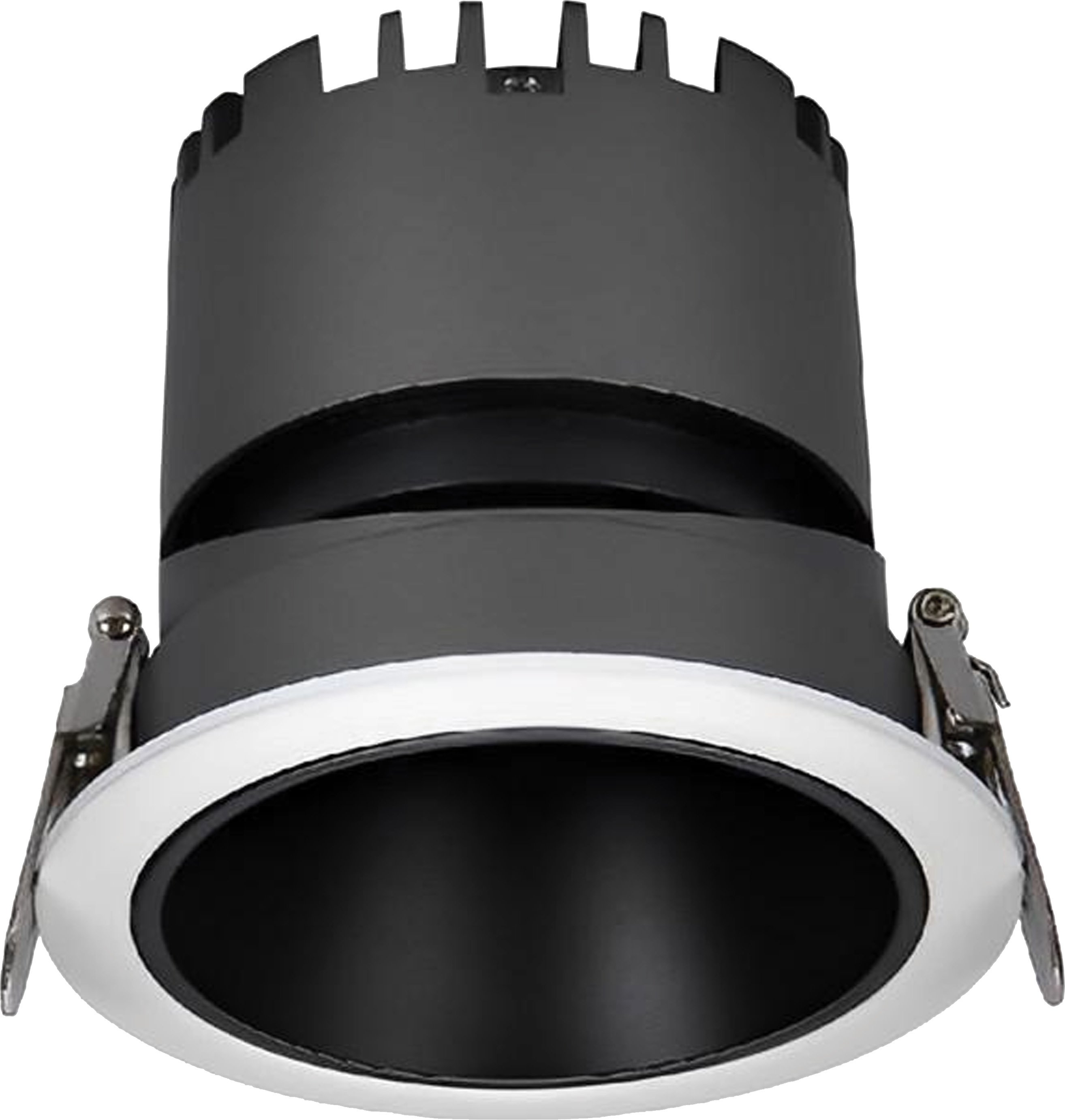

Product View
Selected Variant
LBP1017
OVEGA PRO LBP1017
Configuration
Select Specification
Exact match: LBP1017
All Variants (1)
| Code | Power | CCT | Beam | CRI | Size | |
|---|---|---|---|---|---|---|
| LBP1017 | 30W | 2700K, 3000K, 4000K, 5000K, 6000K | 36° | 80 | Ø80xH162mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP1017.
Size — model LBP1017
Ø80xH162mm
Technical Data
Full Specification
| Dimensions | Ø80xH162mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 30W |
| Lumen output | 75LM/ |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 · > 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | Not published — technical review required |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
30W
Power
36°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
Ø80xH162mm
Dimensions
Configure your product
LBP1017
Colour temperature
3000K · 4000K · 5000K
Beam angle
15° · 24° · 36° · 60° · 75°
Dimming
On/Off · DALI · 1-10V · 0-10V · Phase
Body finish
White · Black
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
