Lumi Sys

ARRAY

Application inspiration · not a project reference

ARRAY is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Magnetic Light

2 product lines·12 total variants·luminaire·magnetic

ARRAY is a magnetic light family within the LUMIBRIGHT Lumi Sys collection. The current catalogue groups 2 article codes under this family, including LBTMG36, LBTMG37. For LBTMG36, published values include colour temperature: 4000K; IP rating: IP20; dimensions: L220xW22xH25mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ARRAY articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LBTMG36	WattageNot published	CCT4000K	IPIP20	DimensionsL220xW22xH25mm	Cut-outNot published
LBTMG37	WattageNot published	CCT4000K	IPIP20	DimensionsØ58x145mm	Cut-outNot published

Technical Data

Full Specification

Dimensions	L220xW22xH25mm · Ø58x145mm
Cut-out	Not published — technical review required
Power	18W
Lumen output	Not published — technical review required
Efficacy	Not published — technical review required
Optics / beam angle	36° · 24°
Colour temperature	3000K · 4000K
CRI Ra	90 · ≥90
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP20
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	48VDC
Light source	Not published — technical review required
Material	Not published — technical review required
Finish	Black · White
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.

How to compare system voltage, profile, mounting, connectors and driver loading →

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

Product Lines

2 Products

6 var.

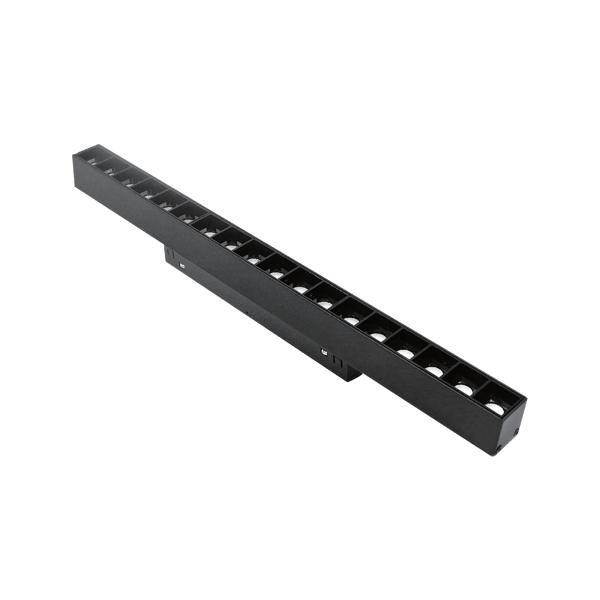

LBTMG36

ARRAY LBTMG36 - MAGNETIC LIGHT

12W24°IP20L220xW22xH25mm

6 variants

6 var.

LBTMG37

ARRAY LBTMG37 - MAGNETIC LIGHT

18W36°IP20Ø58x145mm

6 variants

Dimensions

Technical Drawing

Drawing and sizes shown for model LBTMG37. This family has 2 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.

Size — model LBTMG37

Ø58x145mm
