ARRAY-DIM
Application inspiration · not a project reference
ARRAY-DIM is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Lighting Accessory
ARRAY-DIM
ARRAY-DIM is a lighting accessory family within the LUMIBRIGHT Lumi Sys collection. Explore 6 models, including LBTMG48, LBTMG54, LBTMG55, with model-specific specifications and configuration choices. LBTMG48 specifications include power: 12W; colour temperature: 2700K; IP rating: IP20; dimensions: Ø45x118mm. Compare the ARRAY-DIM range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBTMG48 | Wattage12W | CCT2700K | IPIP20 | DimensionsØ45x118mm | Cut-outNot published |
| LBTMG54 | Wattage18W | CCT3000K | IPIP20 | DimensionsL360xW22xH25mm | Cut-outNot published |
| LBTMG55 | Wattage24W | CCTNot published | IPIP20 | DimensionsL330xW22xH25mm | Cut-outNot published |
| LBTMG56 | Wattage12W | CCT3000K | IPIP20 | DimensionsL300xW22xH25mm | Cut-outNot published |
| LBTMG57 | WattageNot published | CCT3000K | IPIP20 | DimensionsØ58x145mm | Cut-outNot published |
| LBTMG58 | Wattage12W | CCT3000K | IPIP20 | DimensionsL300xW22xH25mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø45x118mm · L360xW22xH25mm · L330xW22xH25mm · L300xW22xH25mm +1 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 36° · 24° · 120° |
| Colour temperature | 2700K · 3000K |
| CRI Ra | ≥90 · 90 · ≥80 · 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black · white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBTMG48. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBTMG48
Ø45x118mm
Specifications
At a Glance
12–24W
Power Range
3 options
Beam: 24°, 36°, 120°
2 CCT
2700K, 3000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
5 sizes
L300xW22xH25mm, L330xW22xH25mm, L360xW22xH25mm, Ø45x118mm, Ø58x145mm
Configure your product
LBTMG48
Order code
Listed configurationLBTMG48.W.927.WWH.36
1 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LBTMGA72
ARRAY-DIM LBTMGA72 - LIGHTING ACCESSORIES
LBTMGA72
LBTMGA72.WBK
LBTMGA72
LUMIBRIGHT ARRAY-DIM SERIES END CAP FOR SURFACE MAGNETIC TRACK
LBTMGA72

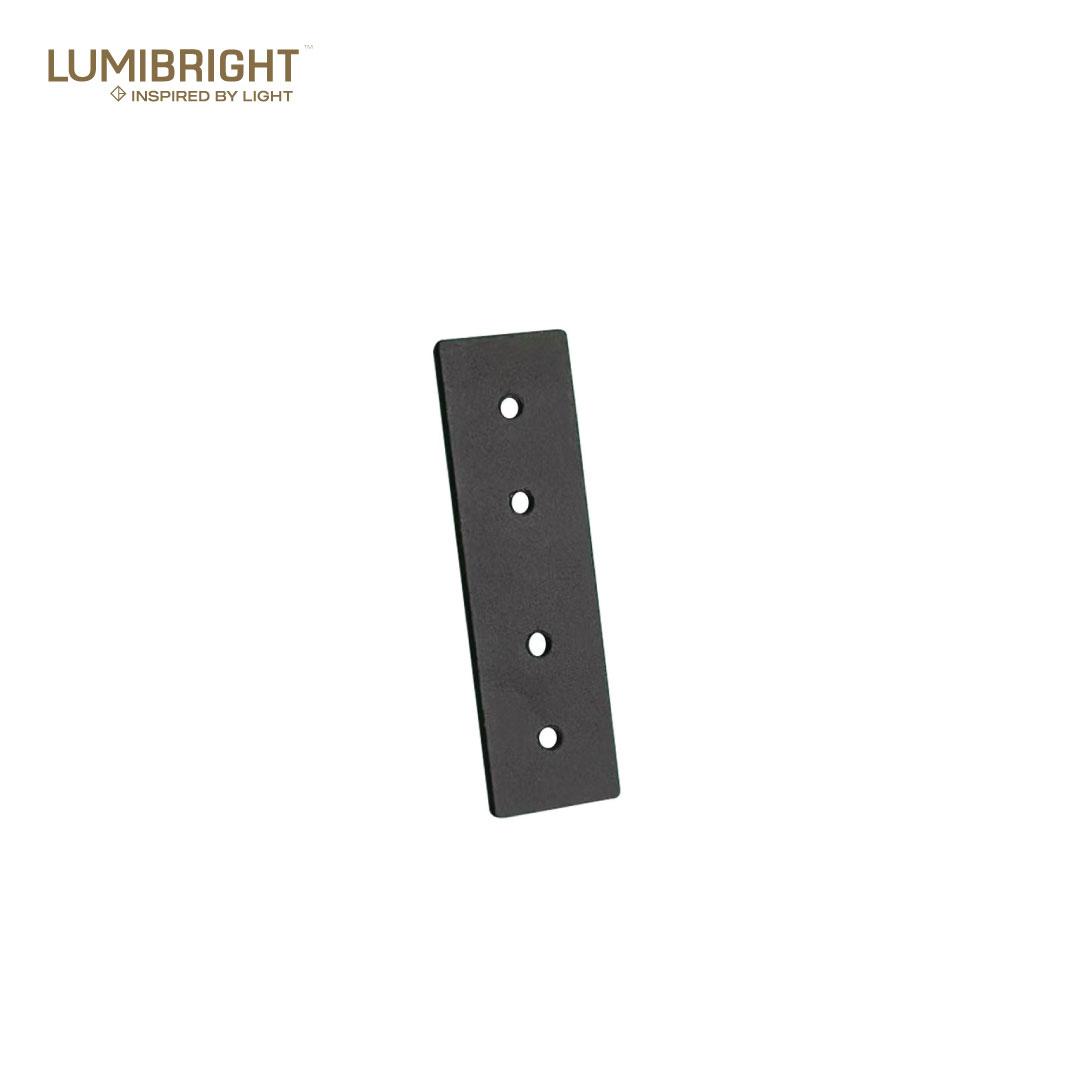

LBTMGA72.WWH
LBTMGA90

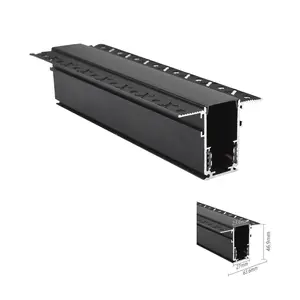

ARRAY-DIM LBTMGA90 - LIGHTING ACCESSORIES
LBTMGA90
LBTMGA90.WBK
LBTMGA90
LUMIBRIGHT ARRAY-DIM SERIES 1M RECESSED MAGNETIC TRACK
LBTMGA68
ARRAY-DIM LBTMGA68 - LIGHTING ACCESSORIES
LBTMGA68
LUMIBRIGHT ARRAY-DIM SERIES 48V SURFACE TRACK RAIL 3M LBTMGA68
LBTMGA68
LBTMGA68.WWH
LBTMGA67
ARRAY-DIM LBTMGA67 - LIGHTING ACCESSORIES
LBTMGA67
LUMIBRIGHT ARRAY-DIM SERIES 200W TRANSFORMER FOR 48VDC MAGNETIC TRACK
LBTMGA67
LBTMGA67.WWH
LBTMGA69
ARRAY-DIM LBTMGA69 - LIGHTING ACCESSORIES
LBTMGA69
LBTMGA69.WWH
LBTMGA69
LUMIBRIGHT ARRAY-DIM SERIES 48V SURFACE TRACK RAIL 1M LBTMGA69
LBTMGA86
ARRAY-DIM LBTMGA86 - LIGHTING ACCESSORIES
LBTMGA86
LBTMGA86.WBK
LBTMGA86
LUMIBRIGHT ARRAY-DIM SERIES 48V STRAIGHT POWER JOINITING CONNECTOR
LBTMGA83
ARRAY-DIM LBTMGA83 - LIGHTING ACCESSORIES
LBTMGA83

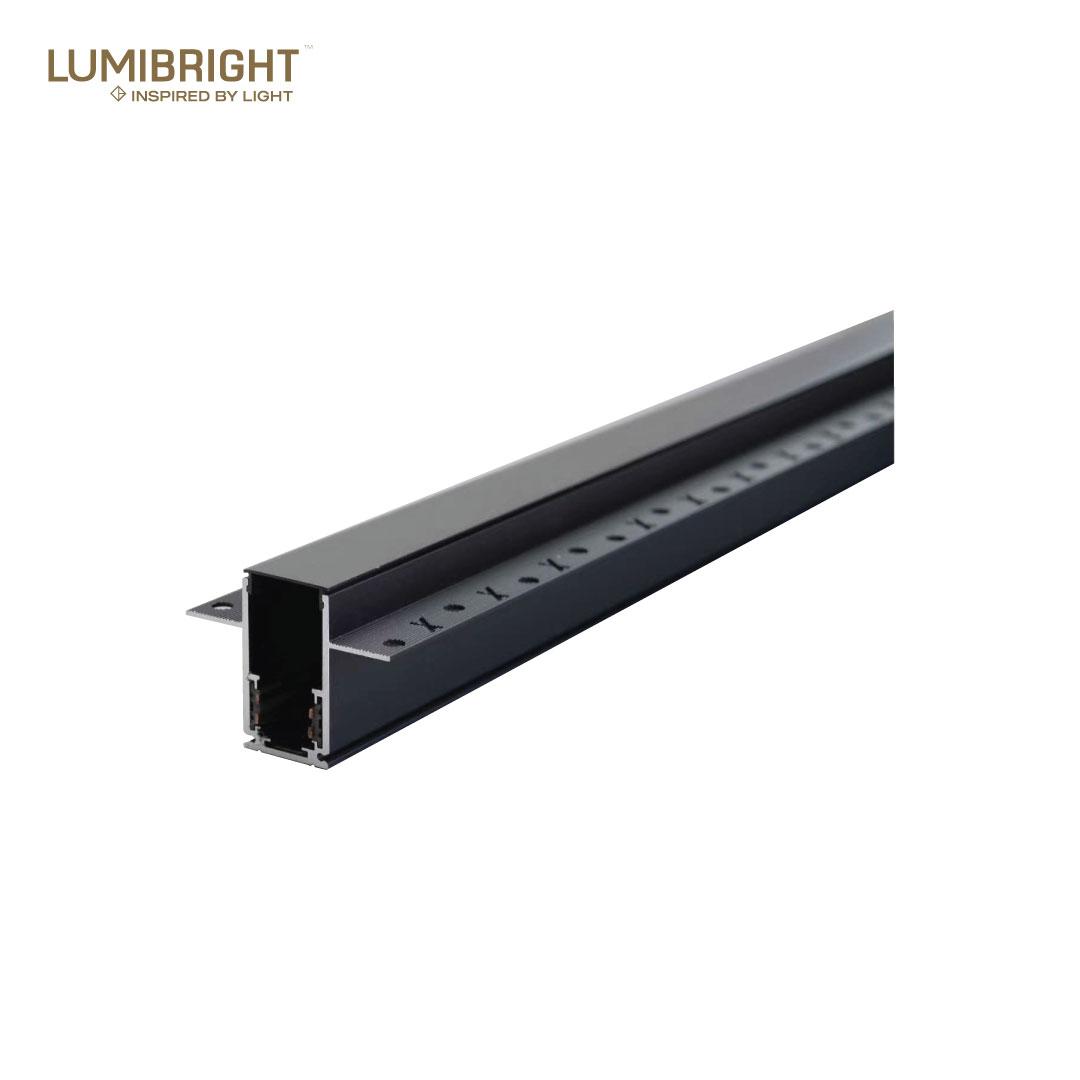

LUMIBRIGHT ARRAY-DIM SERIES 2M RECESSED MAGNETIC TRACK
