BLEED
BLEED is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Lighting Accessory
BLEED
BLEED is a magnetic light family within the LUMIBRIGHT Lumi Sys collection. Explore 9 models, including LBTMG44, LBTMG45, LBTMG46, with model-specific specifications and configuration choices. LBTMG44 specifications include colour temperature: 2700-6500K(Tunable); IP rating: IP20; dimensions: L220xW23xH43mm. Compare the BLEED range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

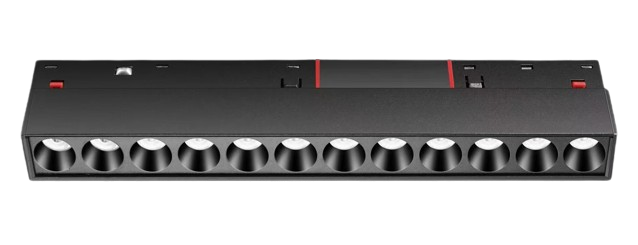

| LBTMG44 | WattageNot published | CCT2700-6500K(Tunable) | IPIP20 | DimensionsL220xW23xH43mm | Cut-outNot published |

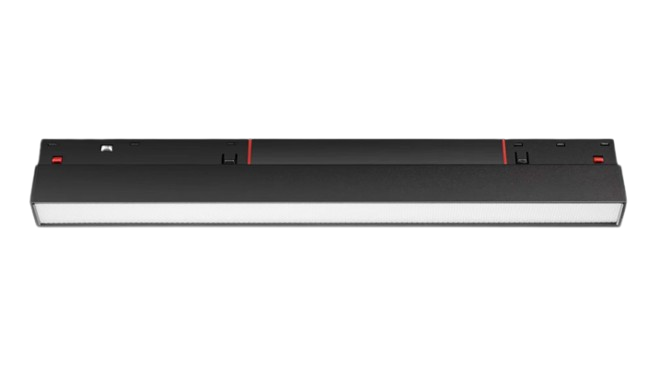

| LBTMG45 | Wattage10W | CCT2700-6500K(Tunable) | IPIP20 | DimensionsL300xW23xH43mm | Cut-outNot published |
| LBTMG46 | Wattage20W | CCT5000K | IPIP20 | DimensionsL600xW23xH43mm | Cut-outNot published |
| LBTMG47 | Wattage7W | CCT6500K | IPIP20 | DimensionsD45xH100mm | Cut-outNot published |
| LBTMG49 | Wattage12W | CCT3000K | IPIP20 | DimensionsL300xW22xH45mm | Cut-outNot published |
| LBTMG50 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ60xH125mm | Cut-outNot published |
| LBTMG51 | WattageNot published | CCT4000K | IPIP20 | DimensionsL900xW23xH43mm | Cut-outNot published |
| LBTMG52 | Wattage24W | CCT4000K | IPIP20 | DimensionsL600xW23xH43mm | Cut-outNot published |
| LBTMG53 | Wattage12W | CCT4000K | IPIP20 | DimensionsØ55mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L220xW23xH43mm · L300xW23xH43mm · L600xW23xH43mm · D45xH100mm +5 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 120° · 100° · 36° +1 more |
| Colour temperature | 2700-6500K(Tunable) · 2700K · 6500K · 5000K +2 more |
| CRI Ra | ≥90 · 90 · 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black · BLACK WITH SAND · black-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
9 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBTMG50. This family has 9 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBTMG50
Ø60xH125mm
Specifications
At a Glance
7–30W
Power Range
5 options
Beam: 24°, 36°, 100°, 110°, 120°
5 CCT
2700K, 3000K, 4000K, 5000K, 6500K
CRI 80/90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
8 sizes
D45xH100mm, L220xW23xH43mm, L300xW22xH45mm, L300xW23xH43mm, L600xW23xH43mm, L900xW23xH43mm, Ø55mm, Ø60xH125mm
Configure your product
LBTMG50
Order code
Listed configurationLBTMG50.W.930.WBK.24
1 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LBTMGA98

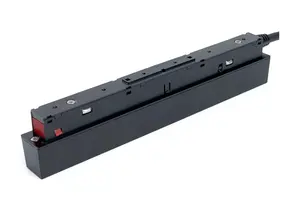

BLEED-TR LBTMGA98 - LIGHTING ACCESSORIES
LBTMGA76
BLEED-TR LBTMGA76 - LIGHTING ACCESSORIES
LBTMGA82
BLEED-TR LBTMGA82 - LIGHTING ACCESSORIES
LBTMGA98
LUMIBRIGHT BLEED-TR SERIES 150W 48VDC IP20 TRIAC DIMMABLE EXTERNAL DRIVER
LBTMGA82

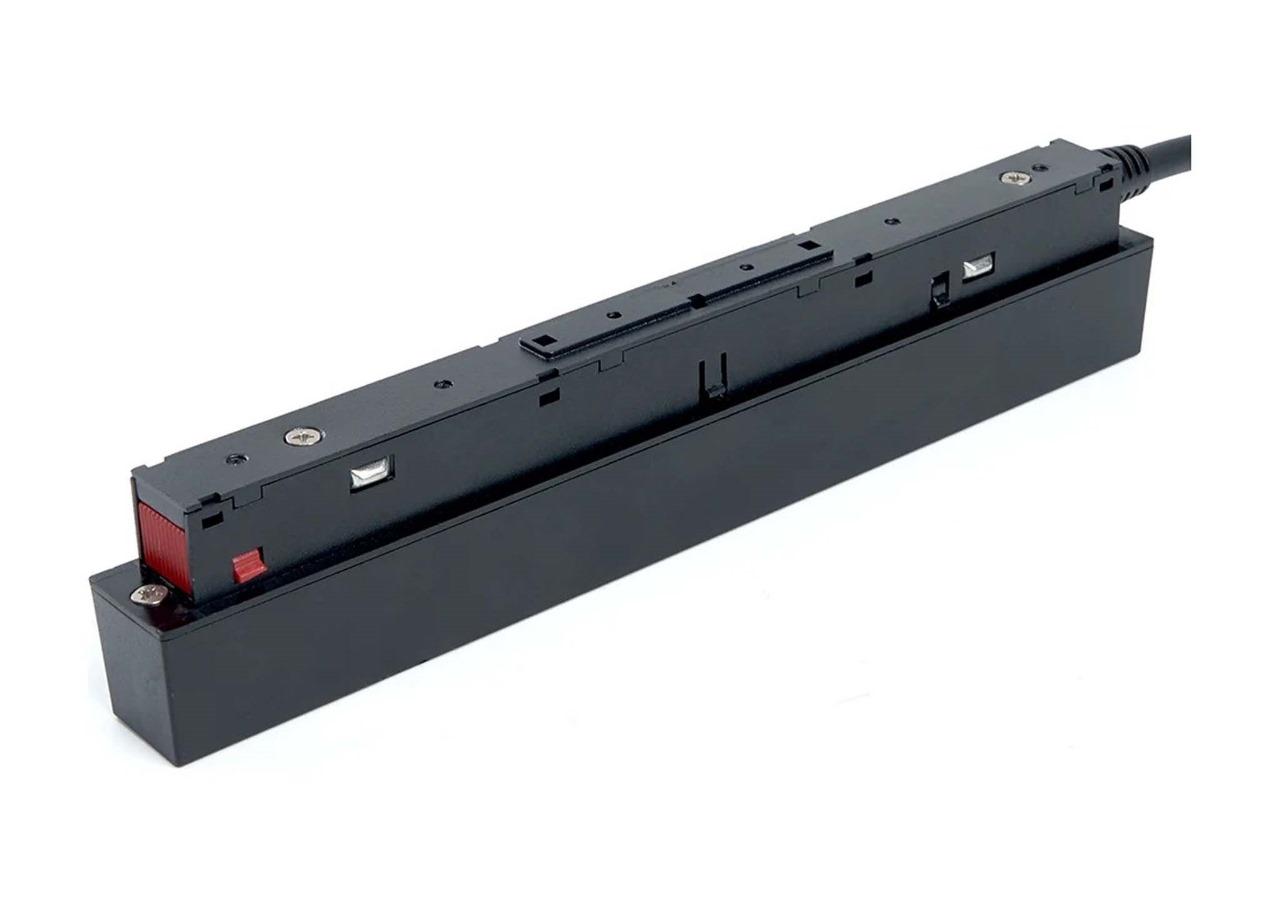

LUMIBRIGHT BLEED-TR SERIES LBTMGA82 200W 48VDC IP20 TRIAC DIMMABLE DRIVER
LBTMGA76
LUMIBRIGHT BLEED-TR SERIES END FEED
LBTMGA76
LBTMGA76.WBK

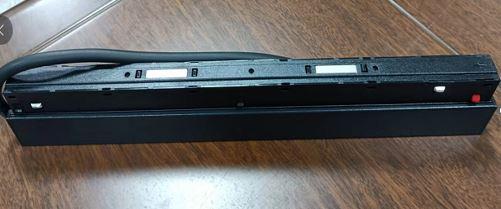

LBTMGA64
BLEED LBTMGA64 - LIGHTING ACCESSORIES
LBTMGA65
BLEED LBTMGA65 - LIGHTING ACCESSORIES
LBTMGA58
BLEED LBTMGA58 - LIGHTING ACCESSORIES
LBTMGA58
LBTMGA58.PAB
LBTMGA58
LUMIBRIGHT BLEED SERIES 1M RAIL-A RECESSED MAGNETIC TRACK LBTMGA58
LBTMGA60
BLEED LBTMGA60 - LIGHTING ACCESSORIES
LBTMGA60
LUMIBRIGHT BLEED SERIES BLACK END CAP+SET LBTMGA60
LBTMGA60
LBTMGA60.WBK
LBTMGA62
BLEED LBTMGA62 - LIGHTING ACCESSORIES
LBTMGA62
LBTMGA62.WBK
LBTMGA62
LUMIBRIGHT BLEED SERIES A-1 RECESSED MOUNTED CONNECTOR LBTMGA62
LBTMGA57
BLEED LBTMGA57 - LIGHTING ACCESSORIES
LBTMGA57
LUMIBRIGHT BLEED SERIES 3M RAIL-A RECESSED MAGNETIC TRACK LBTMGA57
LBTMGA57
LBTMGA57.PAB
LBTMGA59
BLEED LBTMGA59 - LIGHTING ACCESSORIES
LBTMGA59
LUMIBRIGHT BLEED SERIES BLACK FINISH END FEED LBTMGA59
LBTMGA59
LBTMGA59.WBK
LBTMGA61
BLEED LBTMGA61 - LIGHTING ACCESSORIES
LBTMGA61
LBTMGA61.WBK
LBTMGA61
LUMIBRIGHT BLEED SERIES STRAIGHT CONNECTOR LBTMGA61
LBTMGA63

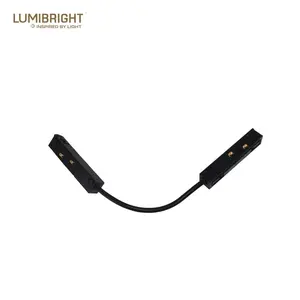

BLEED LBTMGA63 - LIGHTING ACCESSORIES
LBTMGA63

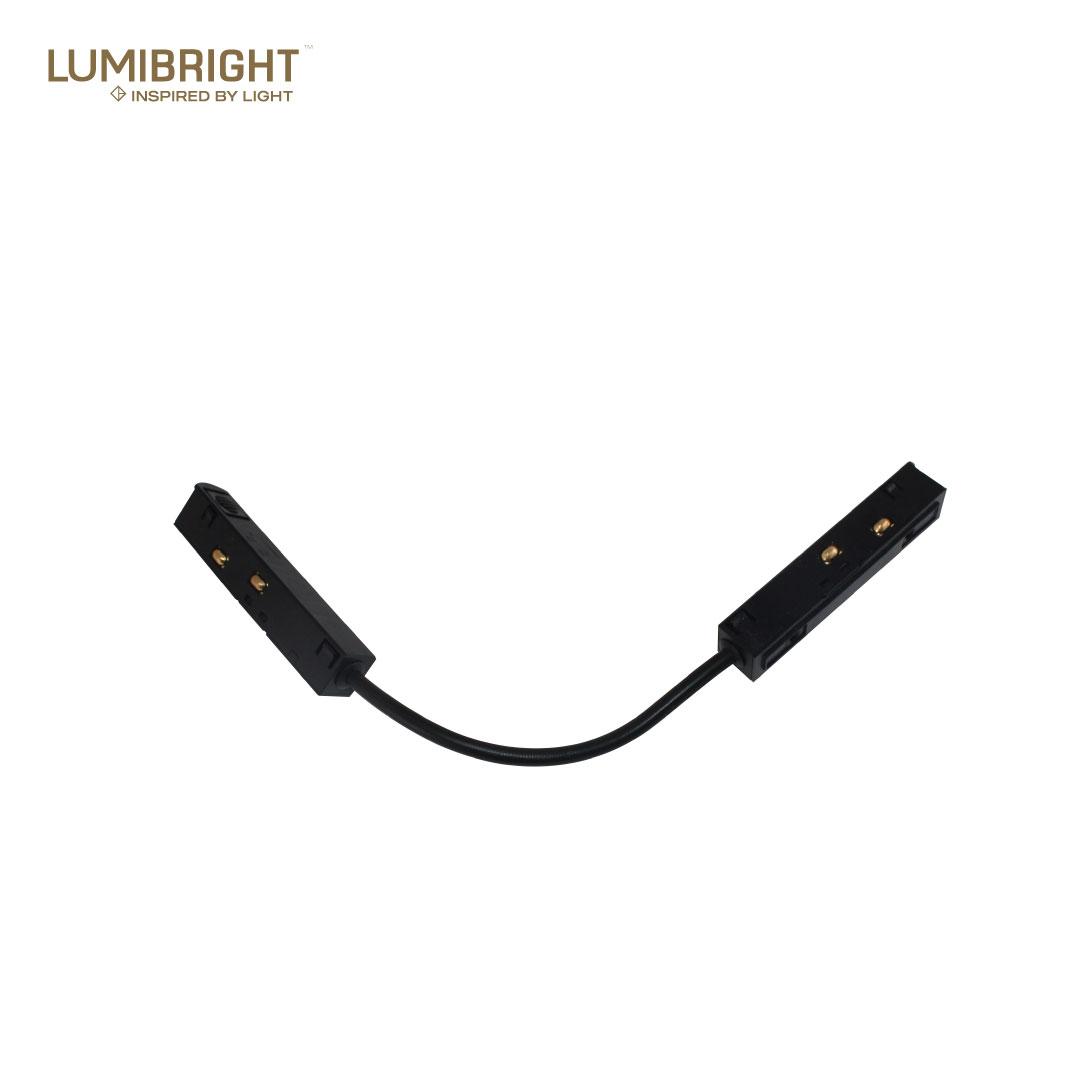

LUMIBRIGHT BLEED SERIES U CONNECTOR LBTMGA63
LBTMGA63
LBTMGA63.WBK
