Lumi Sys

BRAID

BRAID is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Modular System

47 product lines·74 total variants·system·modular system

BRAID is a modular system family within the LUMIBRIGHT Lumi Sys collection. Explore 47 models, including LDMB100, LDMB101, LDMB102, with model-specific specifications and configuration choices. LDMB100 specifications include power: 48VDC 5W; colour temperature: 3000K, 3500K, 4000K; IP rating: Indoor; dimensions: ∅200xH130mm. Compare the BRAID range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LDMB100	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅200xH130mm	Cut-outNot published
LDMB101	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅300xH200mm	Cut-outNot published

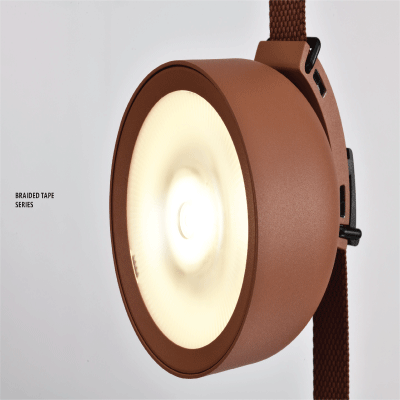

LDMB102	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅100xH100mm	Cut-outNot published

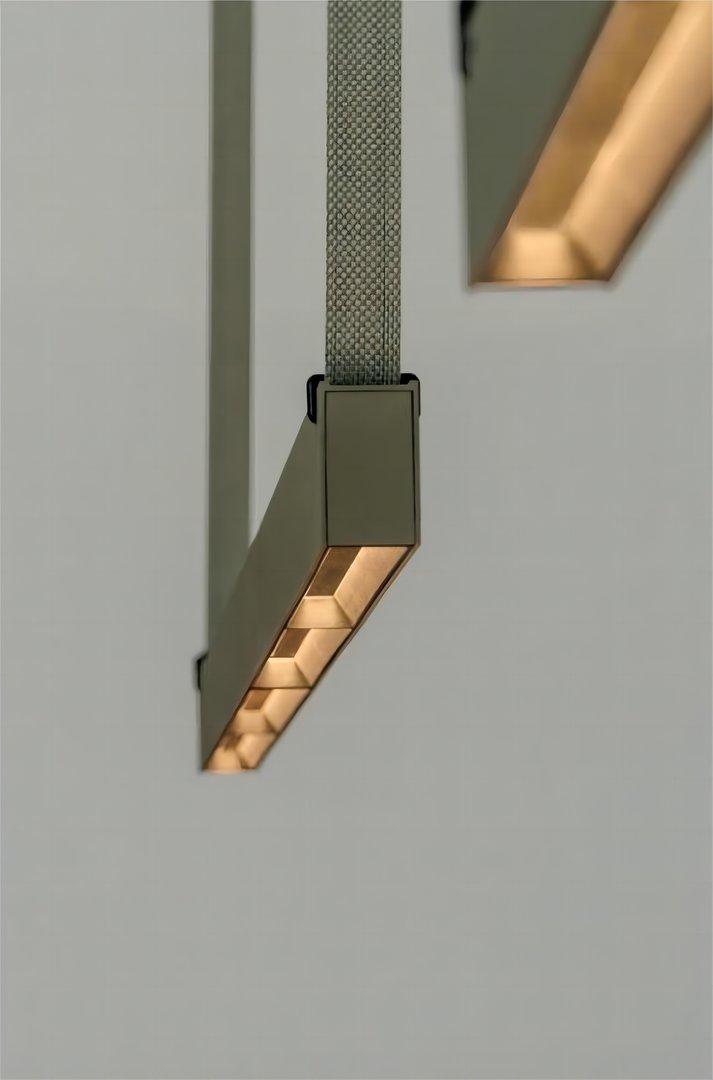

LDMB104	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL280xW34xH65mm	Cut-outNot published

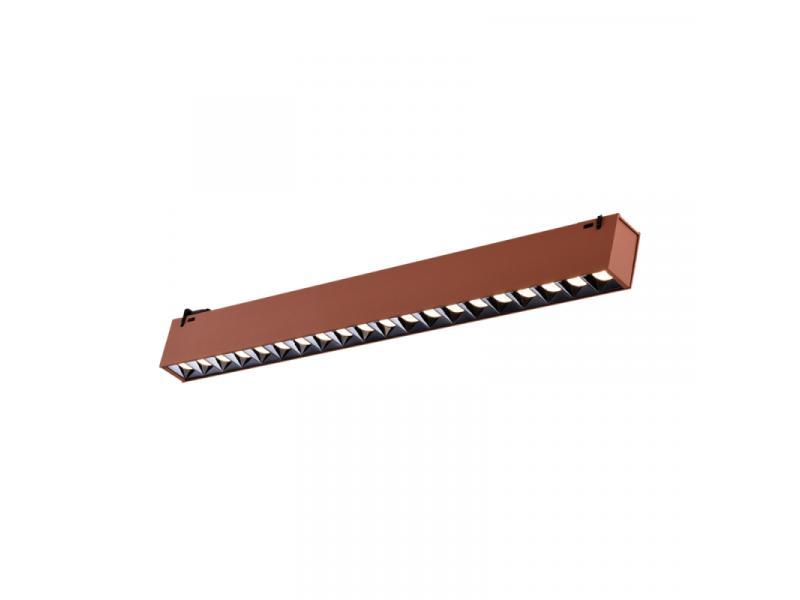

LDMB105	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL545xW34xH65mm	Cut-outNot published

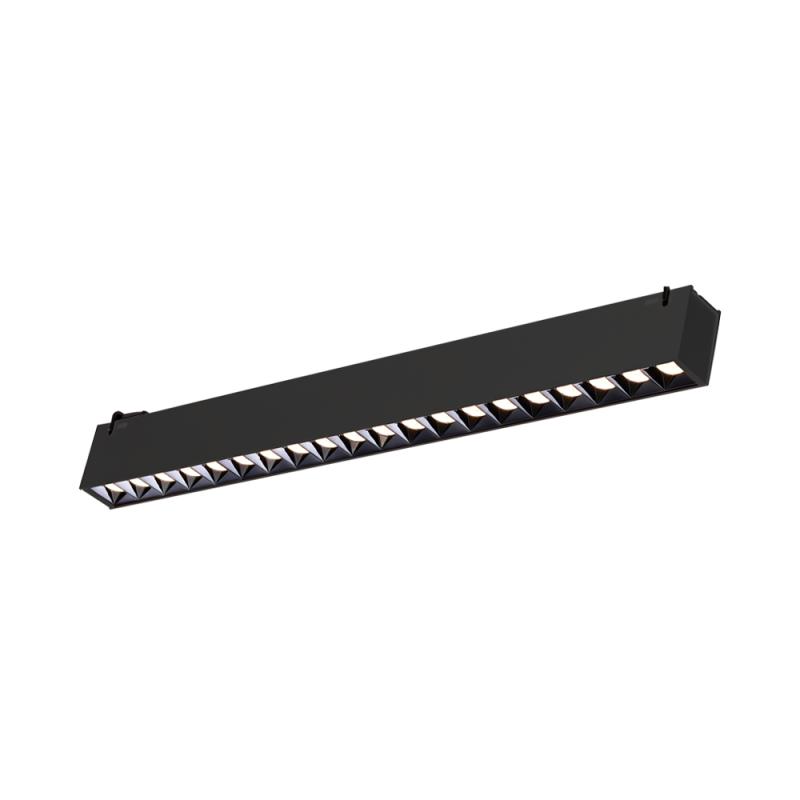

LDMB106	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL1075xW34xH65mm	Cut-outNot published

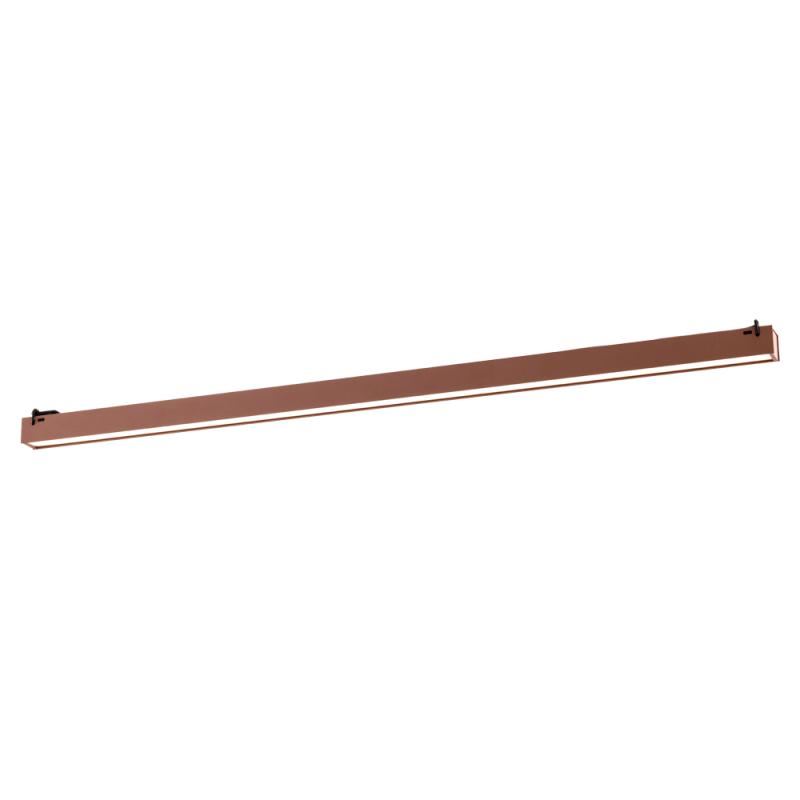

LDMB107	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL1000x34xH44mm	Cut-outNot published
LDMB108	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL2000x34xH44mm, LDMB108.13.002	Cut-outNot published

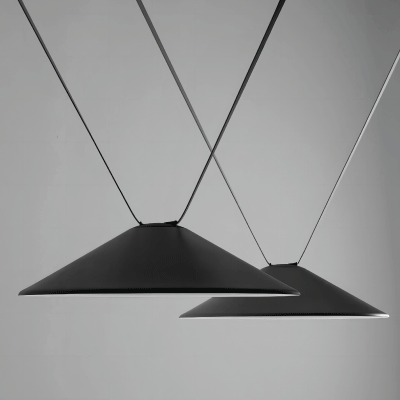

LDMB109	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅800xH230mm	Cut-outNot published
LDMB110	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅600xH160mm	Cut-outNot published

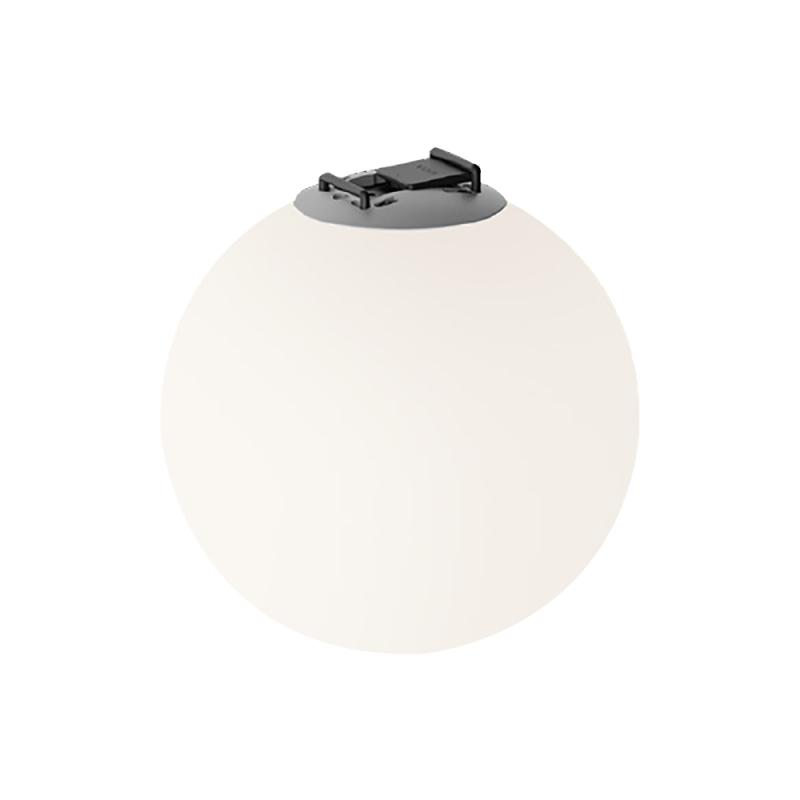

LDMB111	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅200xH200mm	Cut-outNot published
LDMB112	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅300xH310mm	Cut-outNot published
LDMB113	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL34x17xH2000mm	Cut-outNot published
LDMB114	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL34x17xH3000mm	Cut-outNot published

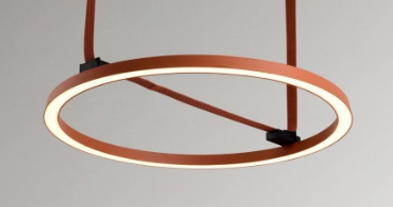

LDMB115	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅400mm	Cut-outNot published
LDMB116	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅600mm	Cut-outNot published
LDMB117	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅800mm	Cut-outNot published
LDMB118	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅1200mm	Cut-outNot published

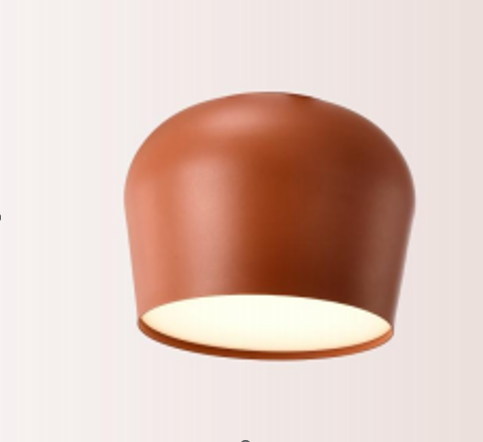

LDMB119	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅230x190H	Cut-outNot published
LDMB120	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅330x270H	Cut-outNot published

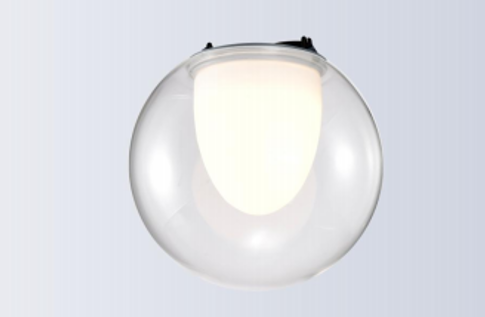

LDMB121	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅200x200H	Cut-outNot published

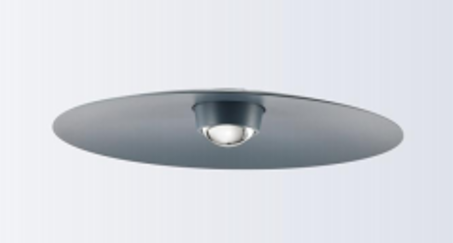

LDMB122	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅450x80H	Cut-outNot published
LDMB123	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅450x88H	Cut-outNot published

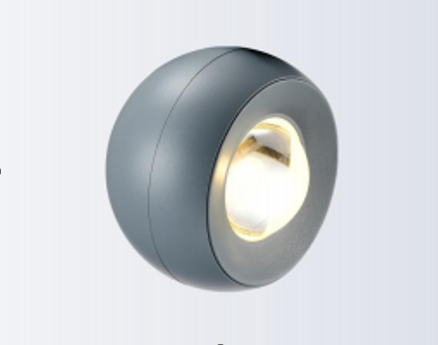

LDMB124	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅100x105H	Cut-outNot published

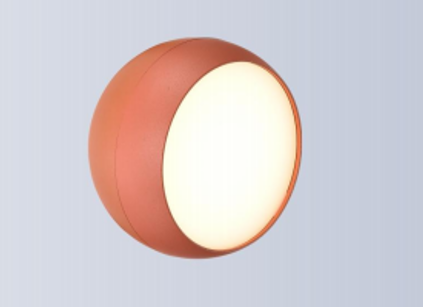

LDMB125	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅100x95H	Cut-outNot published

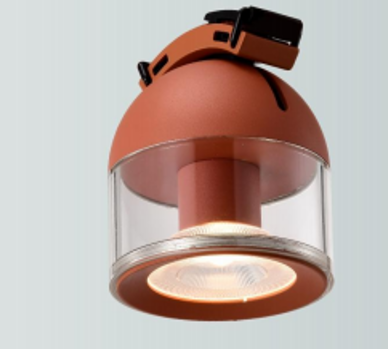

LDMB126	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅100x120H	Cut-outNot published

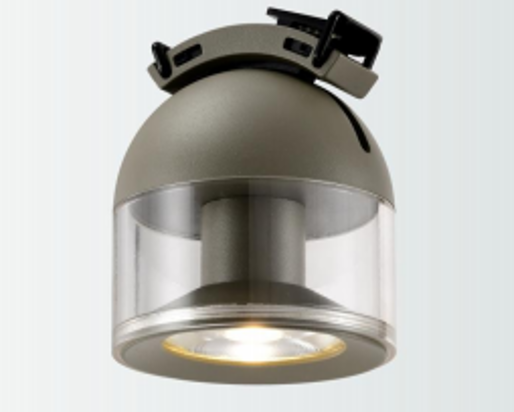

LDMB127	Wattage48VDC 5W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅100x120H	Cut-outNot published

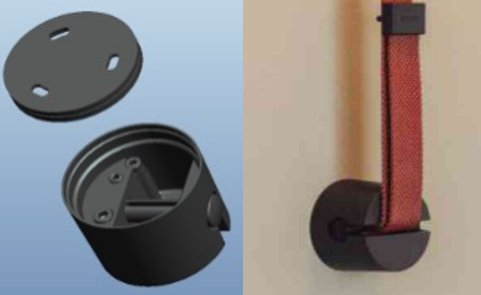

LDMBA100	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅60xH45mm	Cut-outNot published

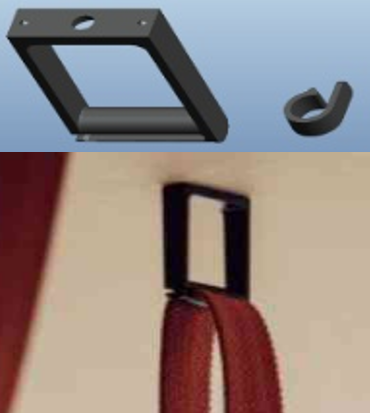

LDMBA101	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions55x33x10mm	Cut-outNot published

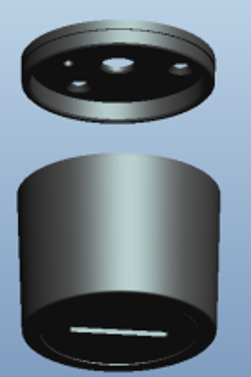

LDMBA102	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅60xH45mm	Cut-outNot published

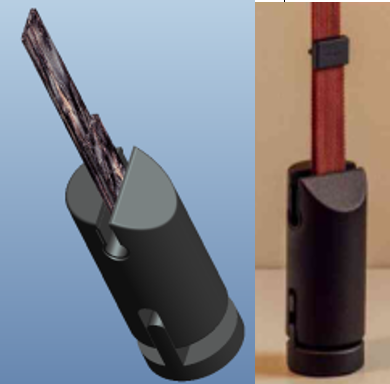

LDMBA103	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅60xH150mm	Cut-outNot published

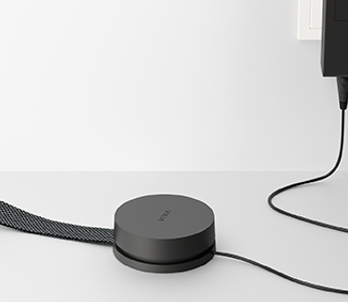

LDMBA104	Wattage100W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions205x56H	Cut-outNot published

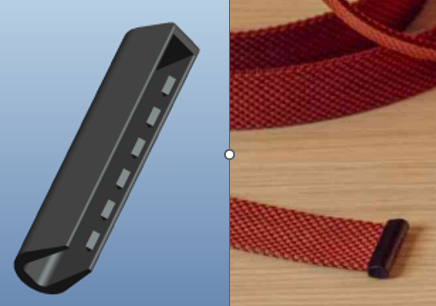

LDMBA105	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published

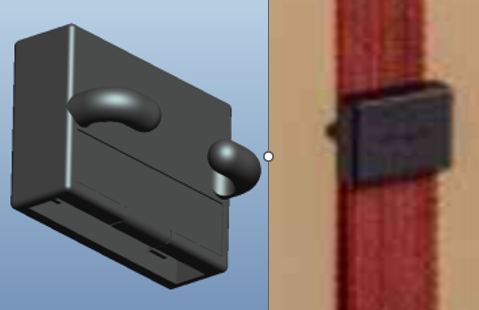

LDMBA106	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published

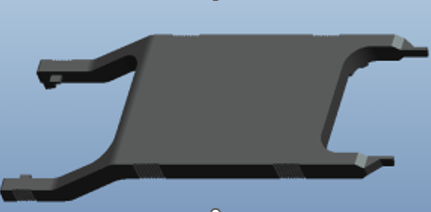

LDMBA107	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published

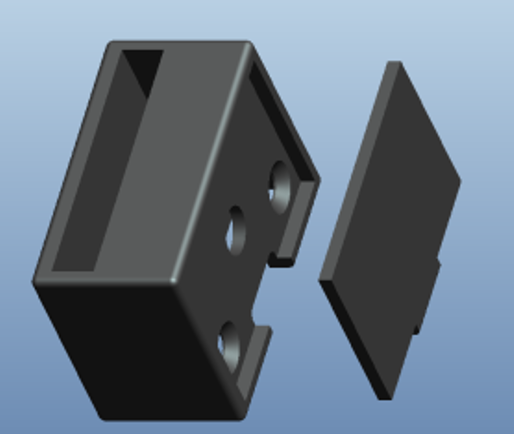

LDMBA108	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published

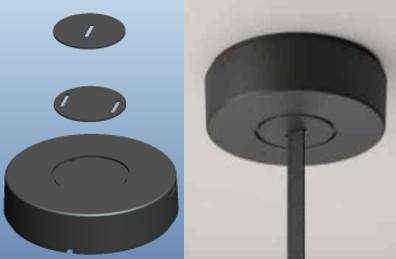

LDMBA109	Wattage100W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published

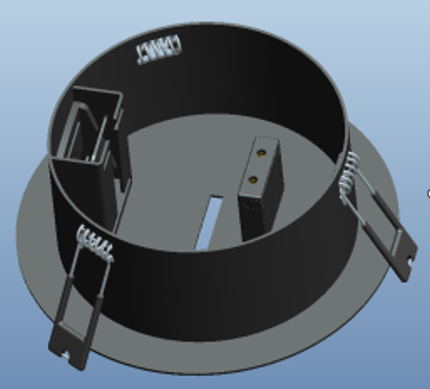

LDMBA110	Wattage100W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅110xH56mm	Cut-outNot published
LDMBA111	Wattage200W	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions∅110xH41mm	Cut-outNot published

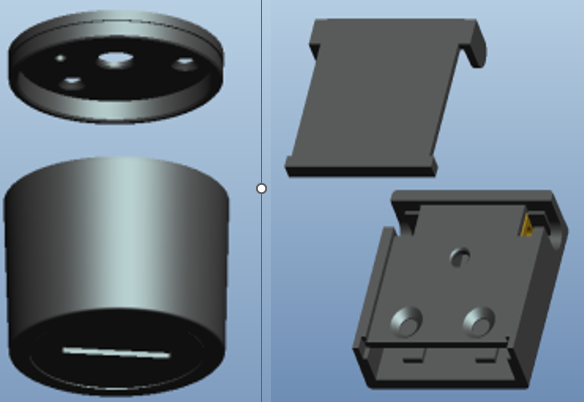

LDMBA112	Wattage100W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published
LDMBA113	Wattage200W	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsNot published	Cut-outNot published

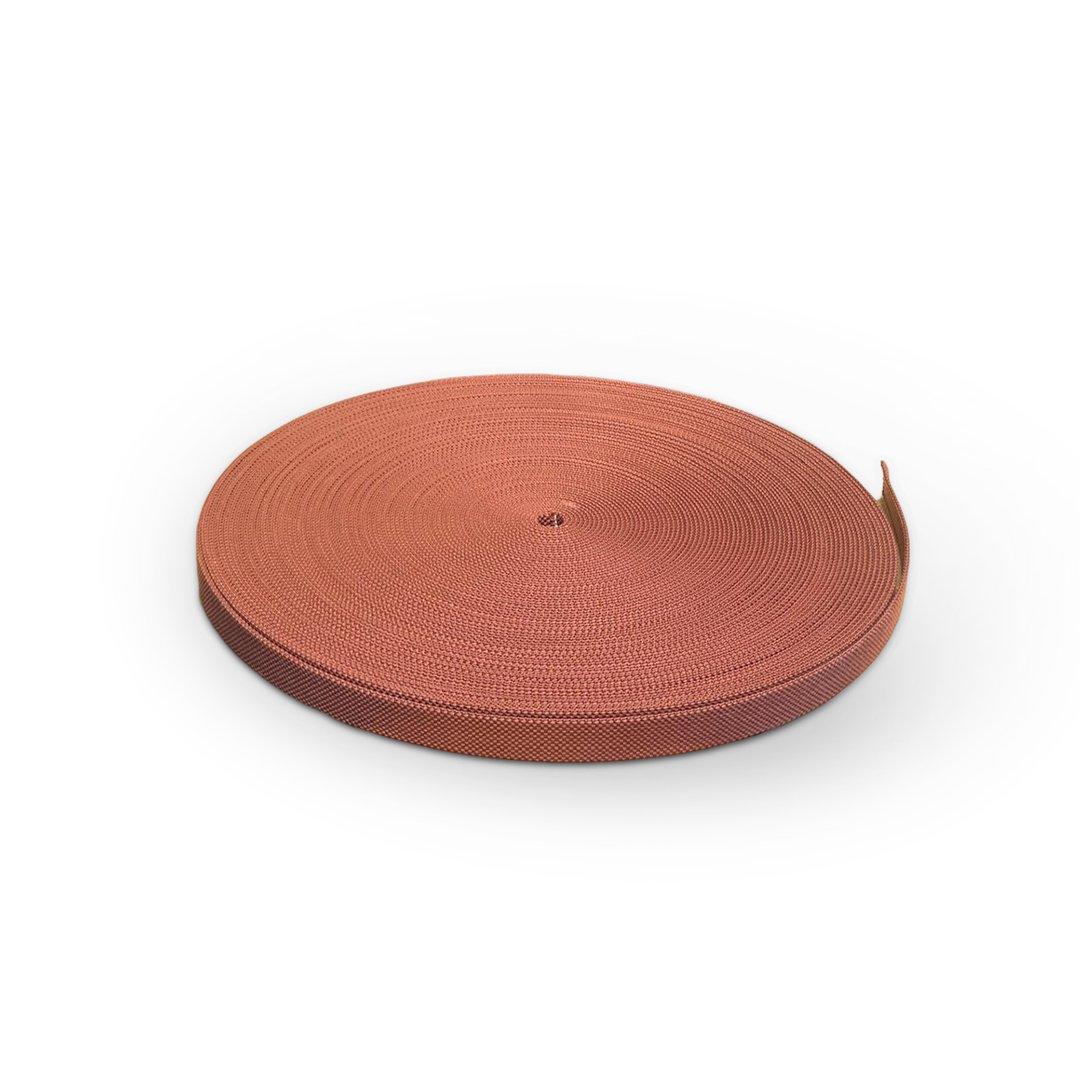

LDMBA114	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions1 Meter	Cut-outNot published

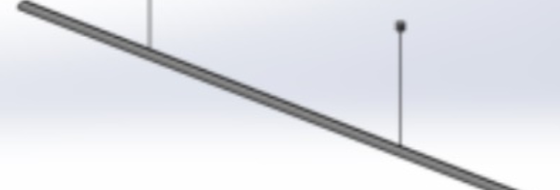

LDMBA115	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensionsφ35x1600mm(Height-1500mm)	Cut-outNot published
LDMBA116	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensionsφ35x2000mm(Height-1500mm)	Cut-outNot published

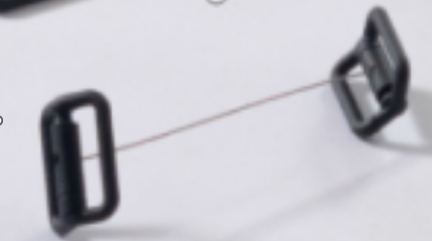

LDMBA117	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	DimensionsL70cm	Cut-outNot published

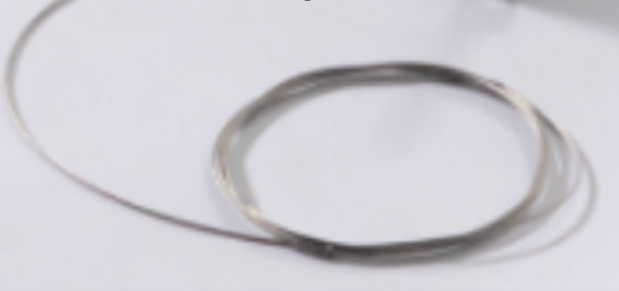

LDMBA118	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions2meters	Cut-outNot published
LDMBA119	WattageNot published	CCT3000K, 3500K, 4000K	IPIndoor	Dimensions2meters	Cut-outNot published

Technical Data

Full Specification

Dimensions	∅200xH130mm · ∅300xH200mm · ∅100xH100mm · L280xW34xH65mm +34 more
Cut-out	Not published — technical review required
Power	5W · 100W · 200W · 12W +13 more
Lumen output	954lm · 1604.4lm · 1183.2lm · 645lm +9 more
Efficacy	Not published — technical review required
Optics / beam angle	360°
Colour temperature	3000K · 3500K · 4000K
CRI Ra	80 · 90
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP20 · Indoor
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	220-240VAC
Light source	Not published — technical review required
Material	Aluminium+Pc · Aluminium · Aluminium+Opal Glass · Plastic +1 more
Finish	black · green · stainless-steel · terracotta-red +2 more
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	3 Years
Lead time	Not published — technical review required

11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.

How to compare module joins, length, output, suspension and electrical continuity →
