CURVED MAGNETO
Application inspiration · not a project reference
CURVED MAGNETO is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Combo Light
CURVED MAGNETO
CURVED MAGNETO is a combo light family within the LUMIBRIGHT Lumi Sys collection. The current catalogue groups 15 article codes under this family, including LB0860, LB0861, LB0862. For LB0860, published values include IP rating: IP20; dimensions: Ø900x39x76mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the CURVED MAGNETO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB0860 | WattageNot published | CCTNot published | IPIP20 | DimensionsØ900x39x76mm | Cut-outNot published |
| LB0861 | WattageNot published | CCTNot published | IPIP20 | DimensionsØ900x39x76mm | Cut-outNot published |
| LB0862 | WattageNot published | CCTNot published | IPIP20 | DimensionsØ900x39x76mm | Cut-outNot published |
| LB0864 | WattageNot published | CCTNot published | IPIP20 | DimensionsØ80mm | Cut-outNot published |

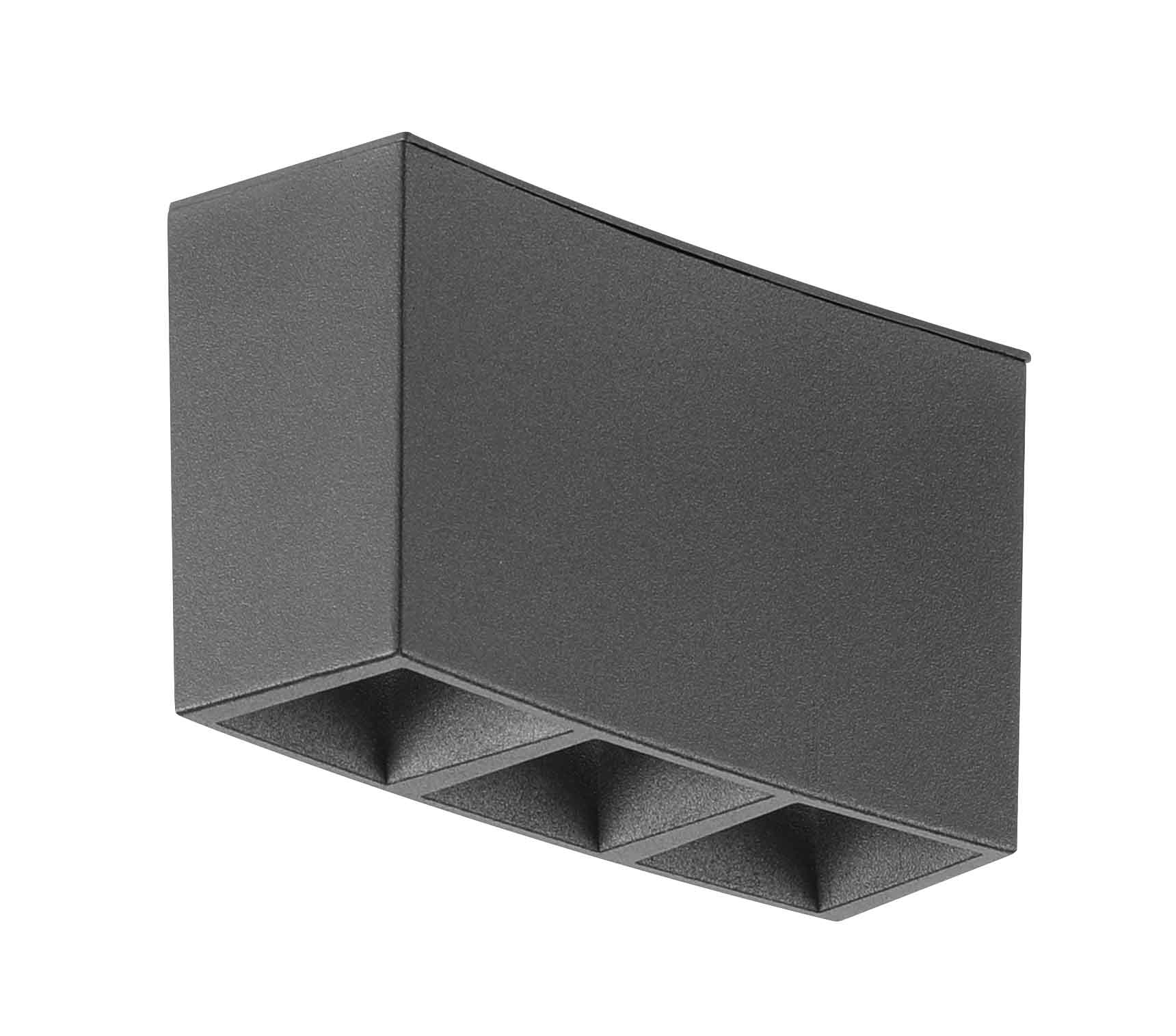

| LB3731 | Wattage4W | CCT4000K | IPIP20 | Dimensions99x39x56mm | Cut-outNot published |

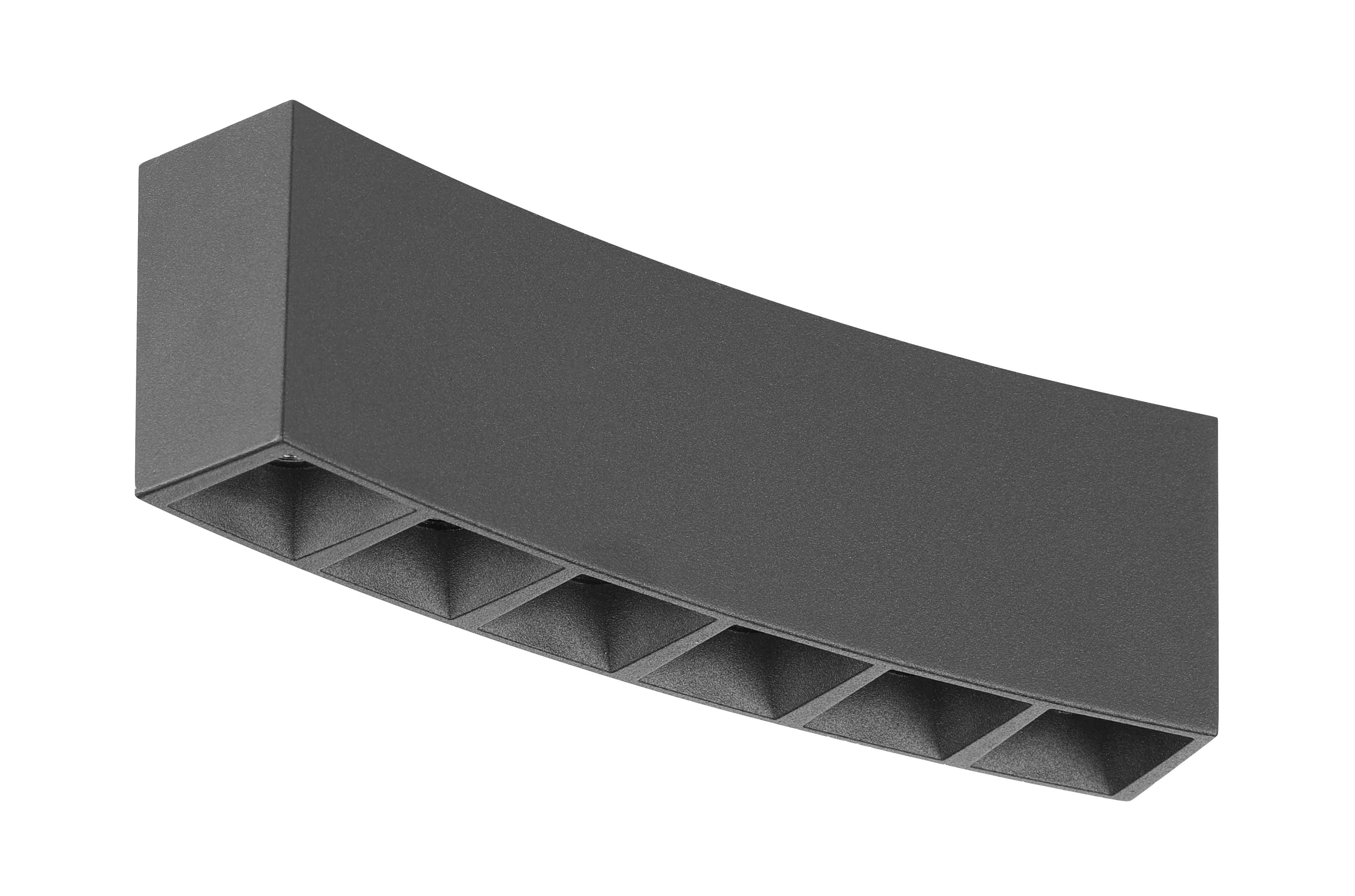

| LB3732 | Wattage8W | CCT3000K | IPIP20 | Dimensions190.6x42x56mm | Cut-outNot published |
| LB3733 | Wattage7W | CCT4000K | IPIP20 | Dimensions190.6x42x56mm | Cut-outNot published |
| LB3734 | Wattage5W | CCT4000K | IPIP20 | DimensionsØ35x80mm | Cut-outNot published |

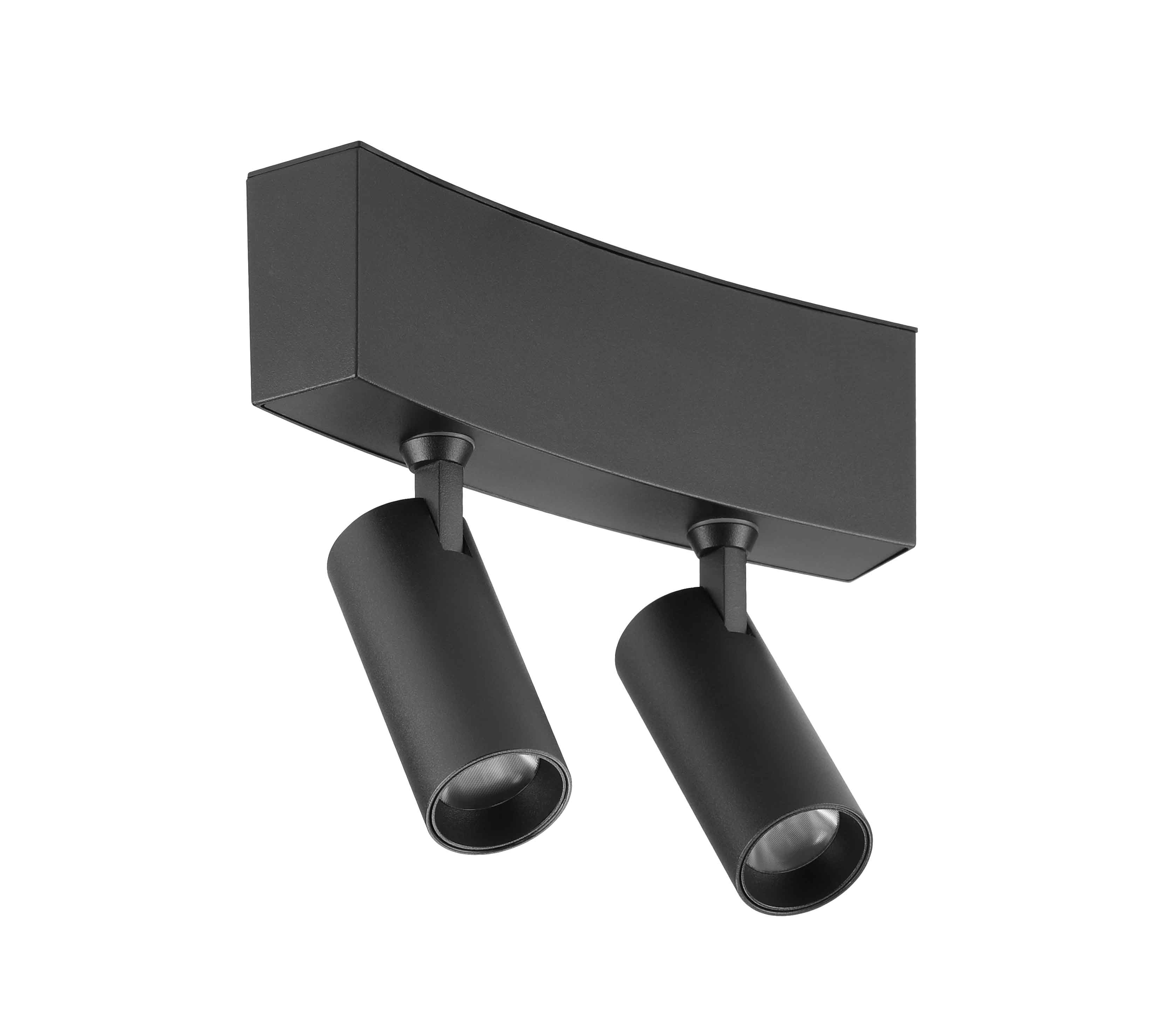

| LB3735 | Wattage15W | CCT3000K | IPIP20 | Dimensions245x111x20mm | Cut-outNot published |

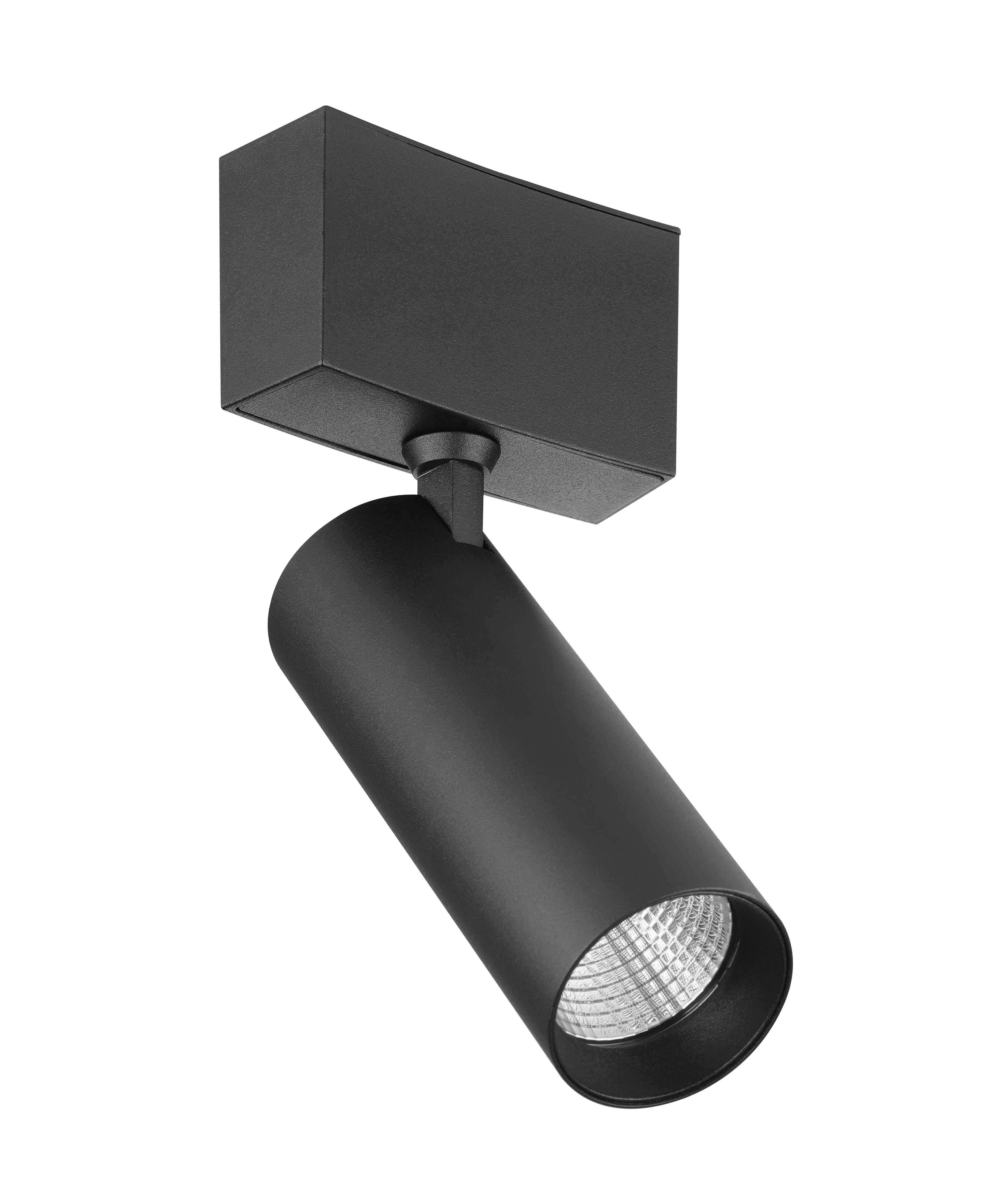

| LB3736 | Wattage10W | CCT2700K | IPIP20 | DimensionsØ50x140mm | Cut-outNot published |

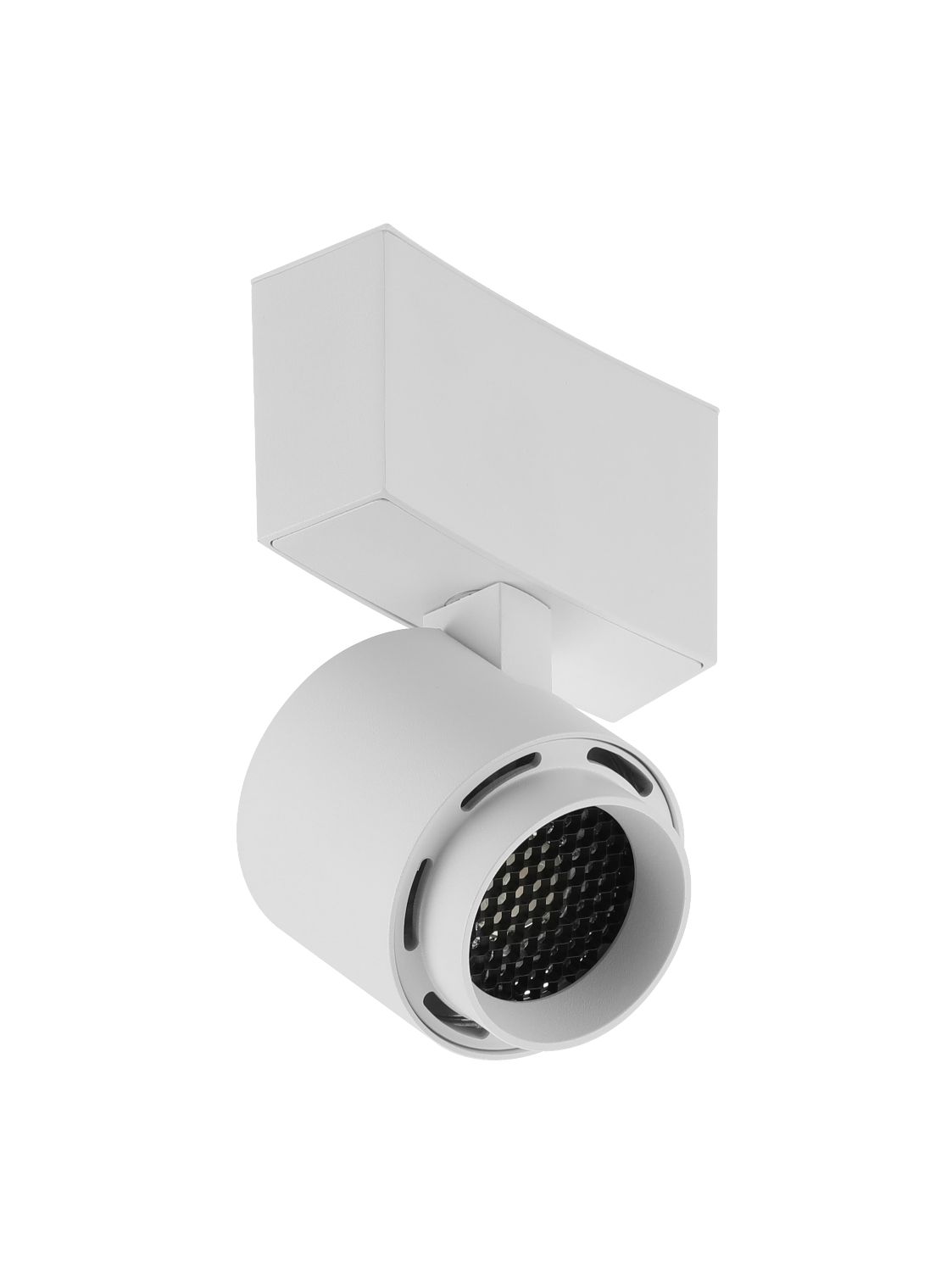

| LB3737 | Wattage8W | CCT4000K | IPIP20 | DimensionsØ65x112mm | Cut-outNot published |

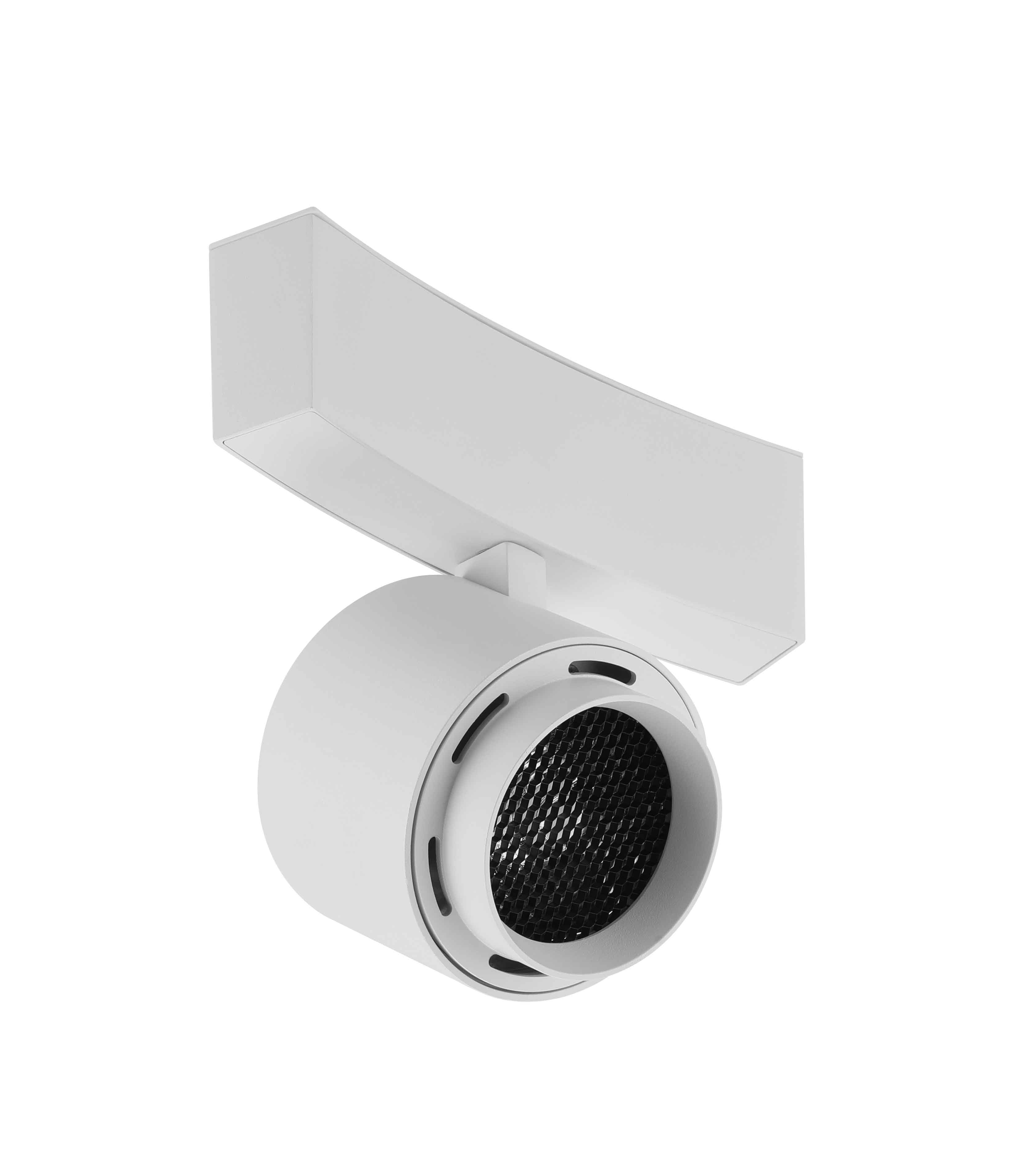

| LB3738 | Wattage15W | CCT2700K | IPIP20 | DimensionsØ70x165mm | Cut-outNot published |

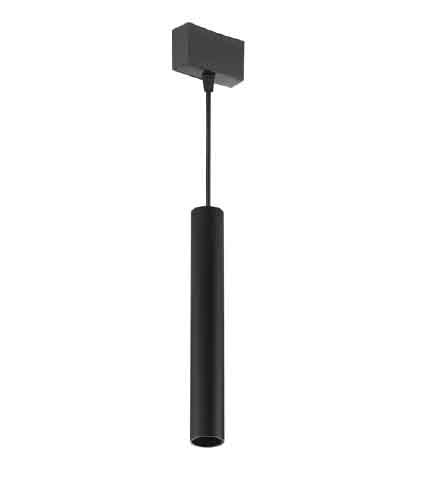

| LB3739 | Wattage10W | CCT3000K | IPIP20 | DimensionsØ50x250mm | Cut-outNot published |

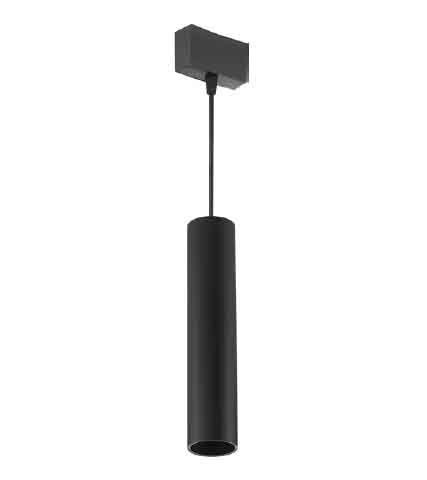

| LB3740 | Wattage5W | CCT2700K | IPIP20 | DimensionsØ35x250mm | Cut-outNot published |

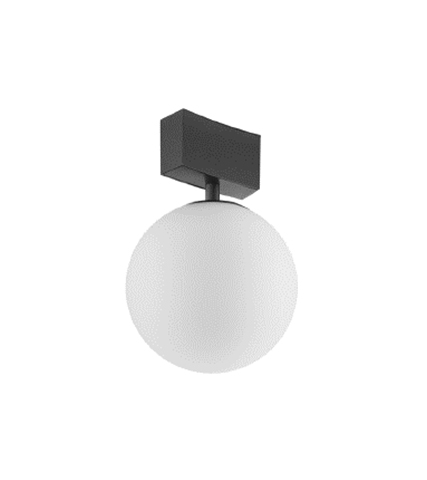

| LB3741 | Wattage5W | CCT2700K | IPIP20 | DimensionsØ150x237mm | Cut-out178x178mm |
Technical Data
Full Specification
| Dimensions | 99x39x56mm · 190.6x42x56mm · Ø35x80mm · 245x111x20mm +8 more |
|---|---|
| Cut-out | 178x178mm |
| Power | 5W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 20° · 30° · 40° · 60° +8 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 80 · 90 · ≥80 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black-sand · white-sand · Black With Sand · White With Sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
15 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3734. This family has 15 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB3734
Ø35x80mm
Specifications
At a Glance
4–15W
Power Range
11 options
Beam: 10°, 12°, 18°, 20°, 24°, 30°, 34°, 36°, 40°, 48°, 60°
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
10 sizes
190.6x42x56mm, 245x111x20mm, 99x39x56mm, Ø150x237mm, Ø35x250mm, Ø35x80mm, Ø50x140mm, Ø50x250mm, Ø65x112mm, Ø70x165mm
178x178mm
Cut-Out
Configure your product
LB3734
Order code
Listed configurationLB3734.C.850.PAB.20
64 listed configurations · availability requires confirmation
