Magnetic Light
IPSWICH
IPSWICH is a lighting accessory family within the LUMIBRIGHT Lumi Sys collection. The current catalogue groups 1 article codes under this family, including LBTMG40. For LBTMG40, published values include power: 12W; IP rating: IP20; dimensions: L235xW22xH44mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the IPSWICH articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBTMG40 | Wattage12W | CCTNot published | IPIP20 | DimensionsL235xW22xH44mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L235xW22xH44mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 12W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 2700-5700K(Tunable) |
| CRI Ra | 90 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black-sand · white-sand · White With Sand · Black With Sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
1 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBTMG40.
Size — model LBTMG40
L235xW22xH44mm
Specifications
At a Glance
12W
Power Range
2 options
Beam: 24°, 38°
1 CCT
2700K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
L235xW22xH44mm
Dimensions
Configure your product
LBTMG40
Order code
Listed configurationLBTMG40.T.9TW2.PAB.38
4 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LBTMGA50
IPSWICH LBTMGA50 - LIGHTING ACCESSORIES
LBTMGA50
LBTMGA50.PAB
LBTMGA50
LBTMGA50.PAW
LBTMGA50
LUMIBRIGHT IPSWICH SERIES 200W 48VDC IP20 MAGNETIC POWER SUPPLY LBTMGA50
LBTMGA52
IPSWICH LBTMGA52 - LIGHTING ACCESSORIES
LBTMGA52

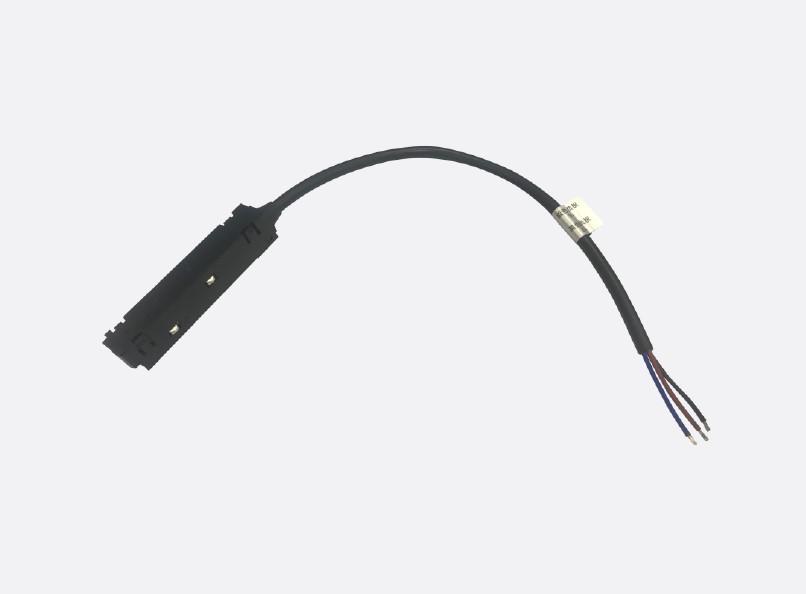

LUMIBRIGHT IPSWICH SERIES 390X18MM MAIN POWER CONNECTOR LBTMGA52
LBTMGA52
LBTMGA52.PAB
LBTMGA52
LBTMGA52.PAW
LBTMGA51
IPSWICH LBTMGA51 - LIGHTING ACCESSORIES
LBTMGA51
LBTMGA51.PAB
LBTMGA51
LBTMGA51.PAW
LBTMGA51

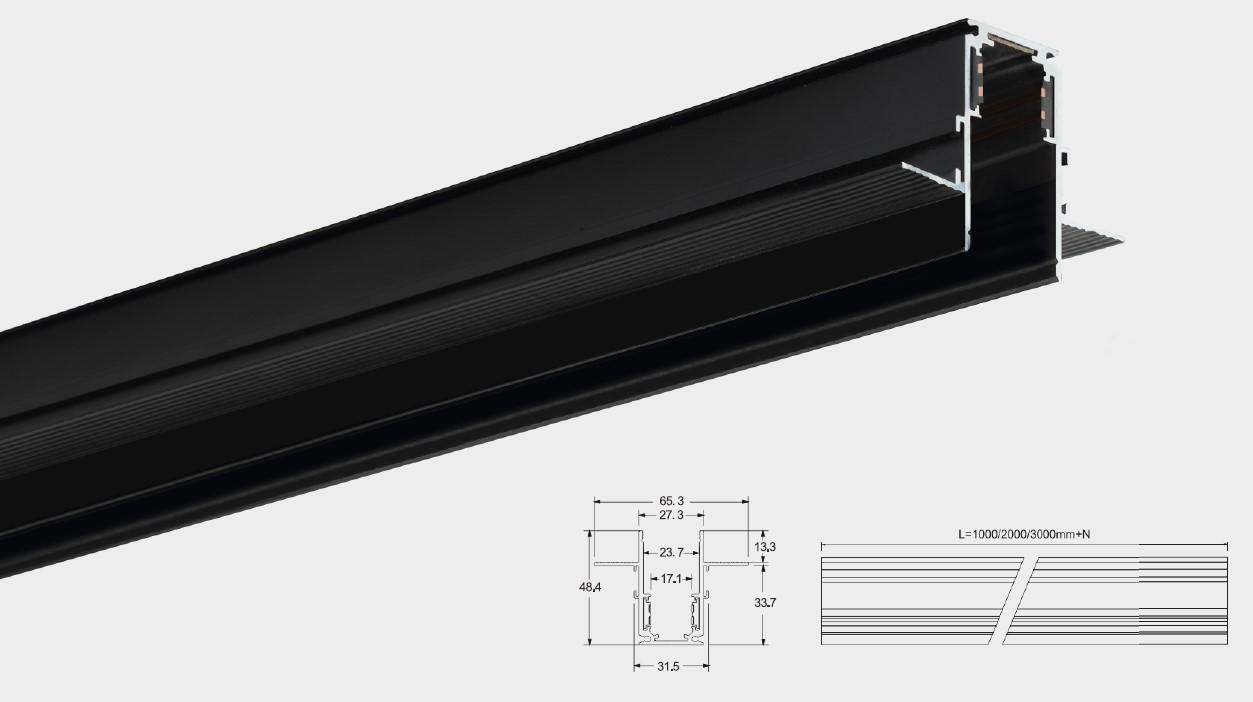

LUMIBRIGHT IPSWICH SERIES 1000X65.3X48.4MM RECESSED MAGNETIC TRACK LBTMGA51
LBTMGA56
IPSWICH LBTMGA56 - LIGHTING ACCESSORIES
LBTMGA56
LBTMGA56.PAB
LBTMGA56

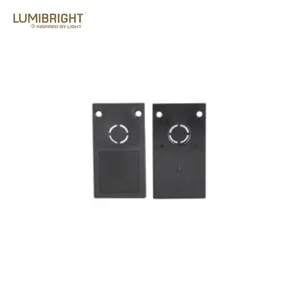

LUMIBRIGHT IPSWICH SERIES END CAP FOR RECESSED MAGNETIC TRACK
LBTMGA54
IPSWICH LBTMGA54 - LIGHTING ACCESSORIES
LBTMGA54
LBTMGA54.PAB
LBTMGA54
LUMIBRIGHT IPSWICH SERIES L3000XW65.3XH48.4MM RECESSED MAGNETIC TRACK LBTMGA54
LBTMGA55
IPSWICH LBTMGA55 - LIGHTING ACCESSORIES
LBTMGA55

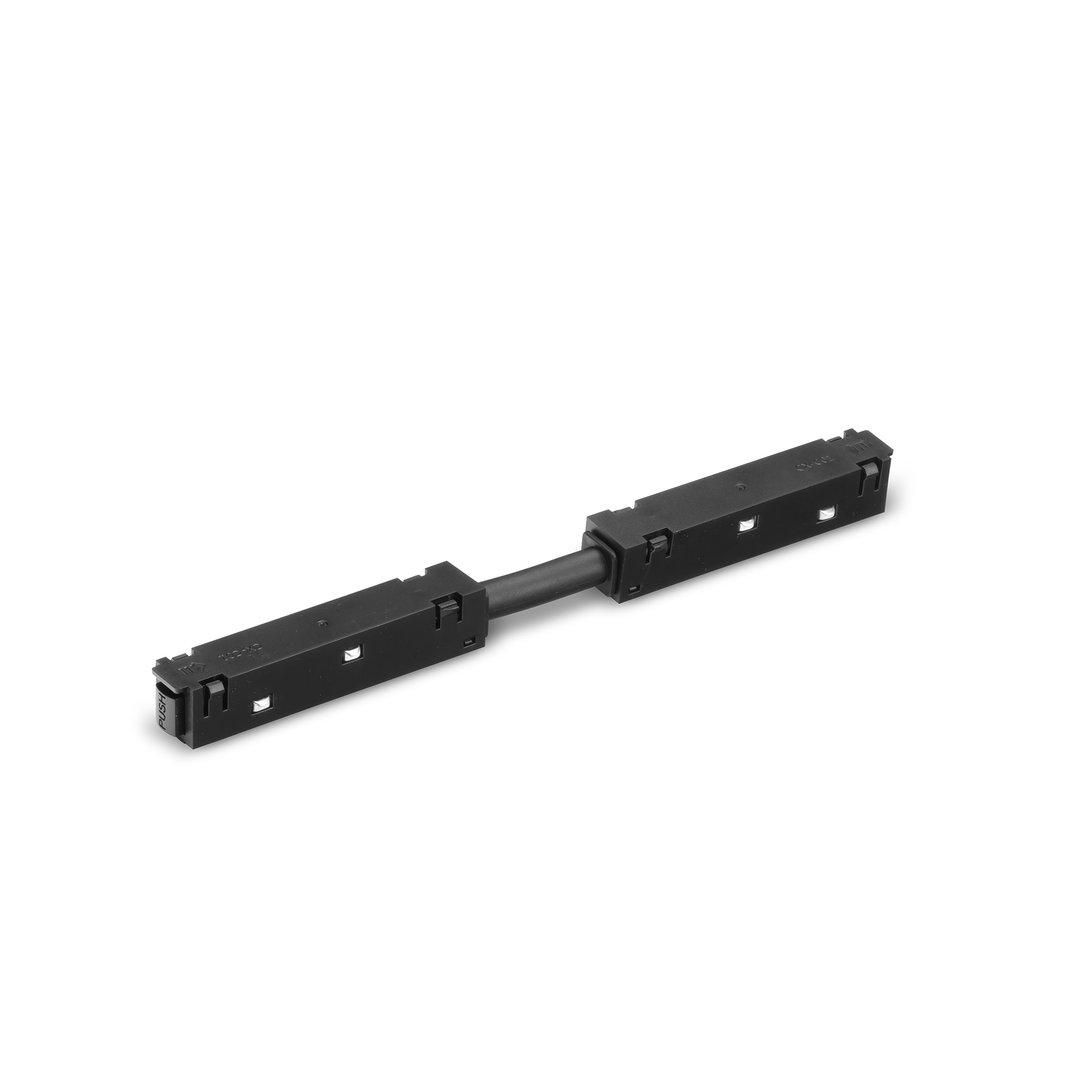

LUMIBRIGHT IPSWICH SERIES L227X18MM STRAIGHT POWER CONNECTOR LBTMGA55
LBTMGA55
LBTMGA55.PAB
LBTMGA53
IPSWICH LBTMGA53 - LIGHTING ACCESSORIES
LBTMGA53
LBTMGA53.PAB
LBTMGA53
LUMIBRIGHT IPSWICH SERIES L2000XW65.3XH48.4MM RECESSED MAGNETIC TRACK LBTMGA53
