Lumi Sys
LARKHALL
Application inspiration · not a project reference
LARKHALL is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Lighting Accessory
LARKHALL

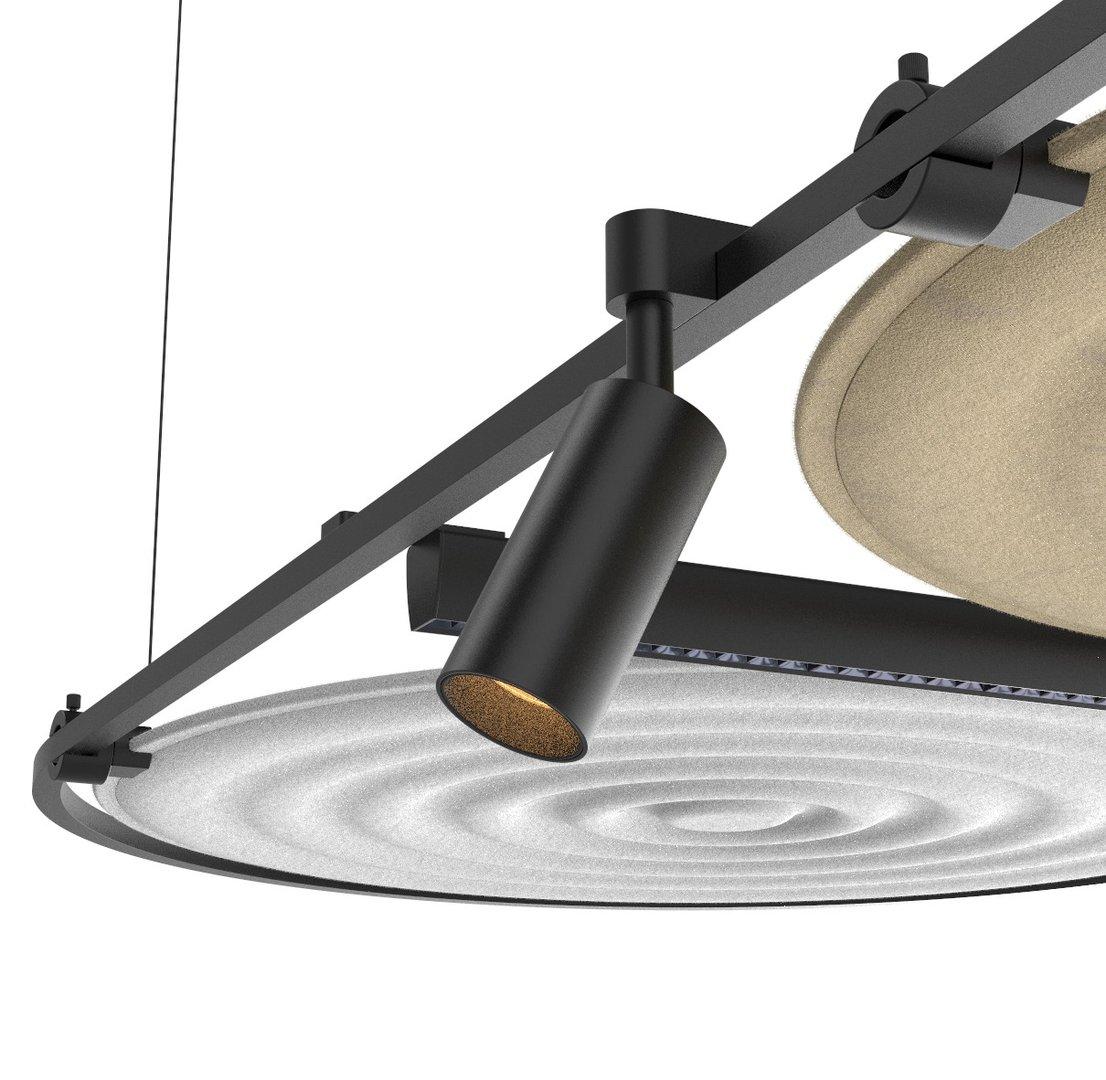

LARKHALL is a lighting accessory family within the LUMIBRIGHT Lumi Sys collection. The current catalogue groups 3 article codes under this family, including LBMG449, LBMG450, LBMG451. For LBMG449, published values include power: 8W; colour temperature: 4000K; IP rating: IP20; dimensions: 46x102x160. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LARKHALL articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.

Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBMG449 | Wattage8W | CCT4000K | IPIP20 | Dimensions46x102x160 | Cut-outNot published |
| LBMG450 | Wattage15W | CCT4000K | IPIP20 | DimensionsL854x30mm | Cut-outNot published |
| LBMG451 | Wattage20W | CCT4000K | IPIP20 | Dimensions854x41mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 46x102x160 · L854x30mm · 854x41mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 8W · 15W · 20W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · DIFFUSED |
| Colour temperature | 4000K |
| CRI Ra | >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | camel · pink · White With Sand · white-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing

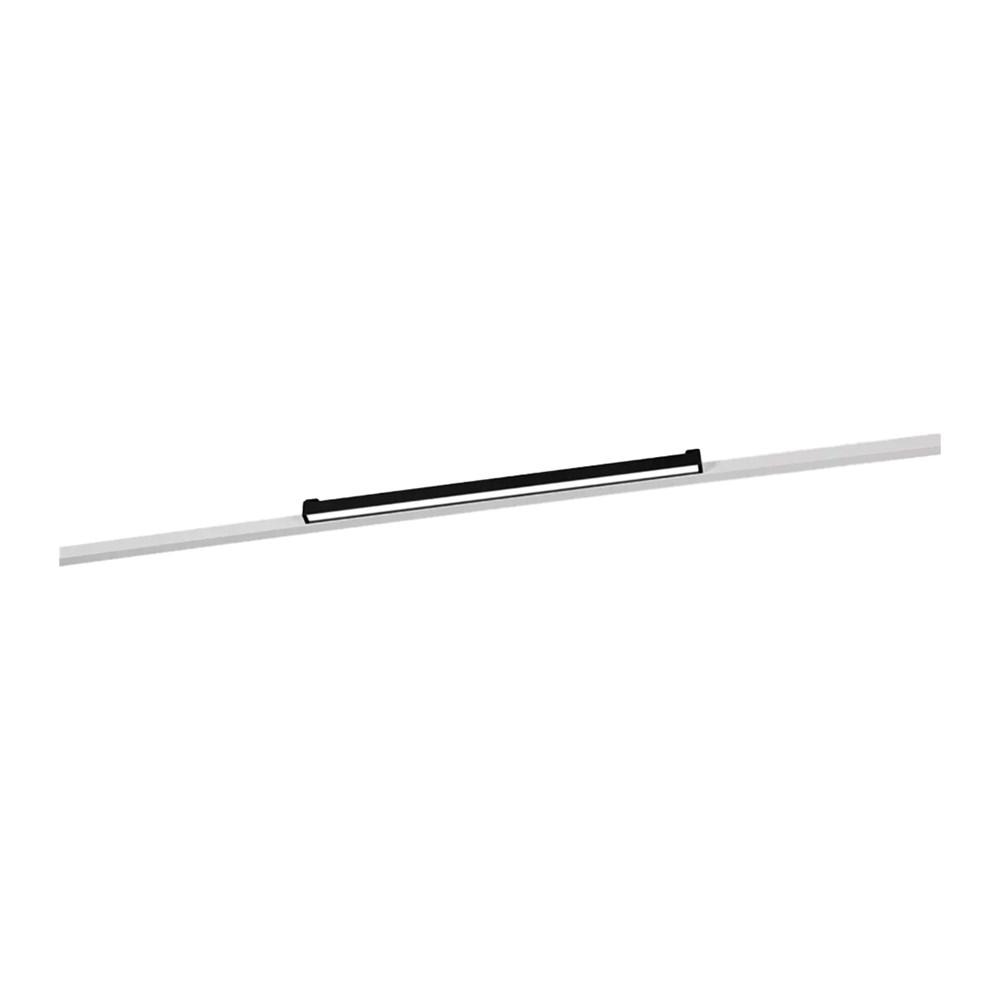

Drawing and sizes shown for model LBMG450. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBMG450
L854x30mm
Specifications
At a Glance
8–20W
Power Range
1 options
Beam: 24°
1 CCT
4000K
CRI 90
Colour Rendering
IP20
Protection Rating
1 finishes
Body Finish Options
3 sizes
46x102x160, 854x41mm, L854x30mm
Configure your product
LBMG450
Order code
Listed configurationLBMG450.N.940.PAW.D
1 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗

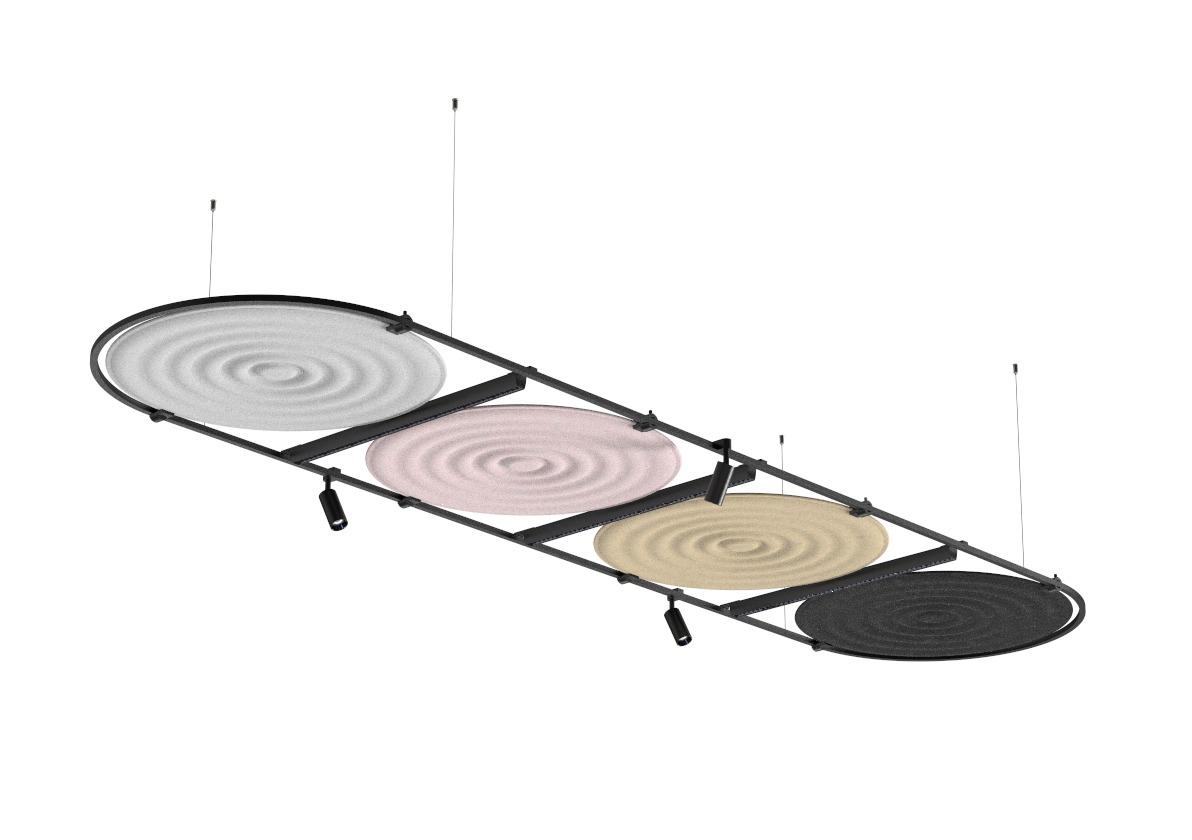

LBMGA216
LARKHALL LBMGA216 - LIGHTING ACCESSORIES

LBMGA216
LBMGA216.AC02

LBMGA216
LBMGA216.AC52

LBMGA216
LUMIBRIGHT LARKHALL SERIES ACOUSTIC PANEL

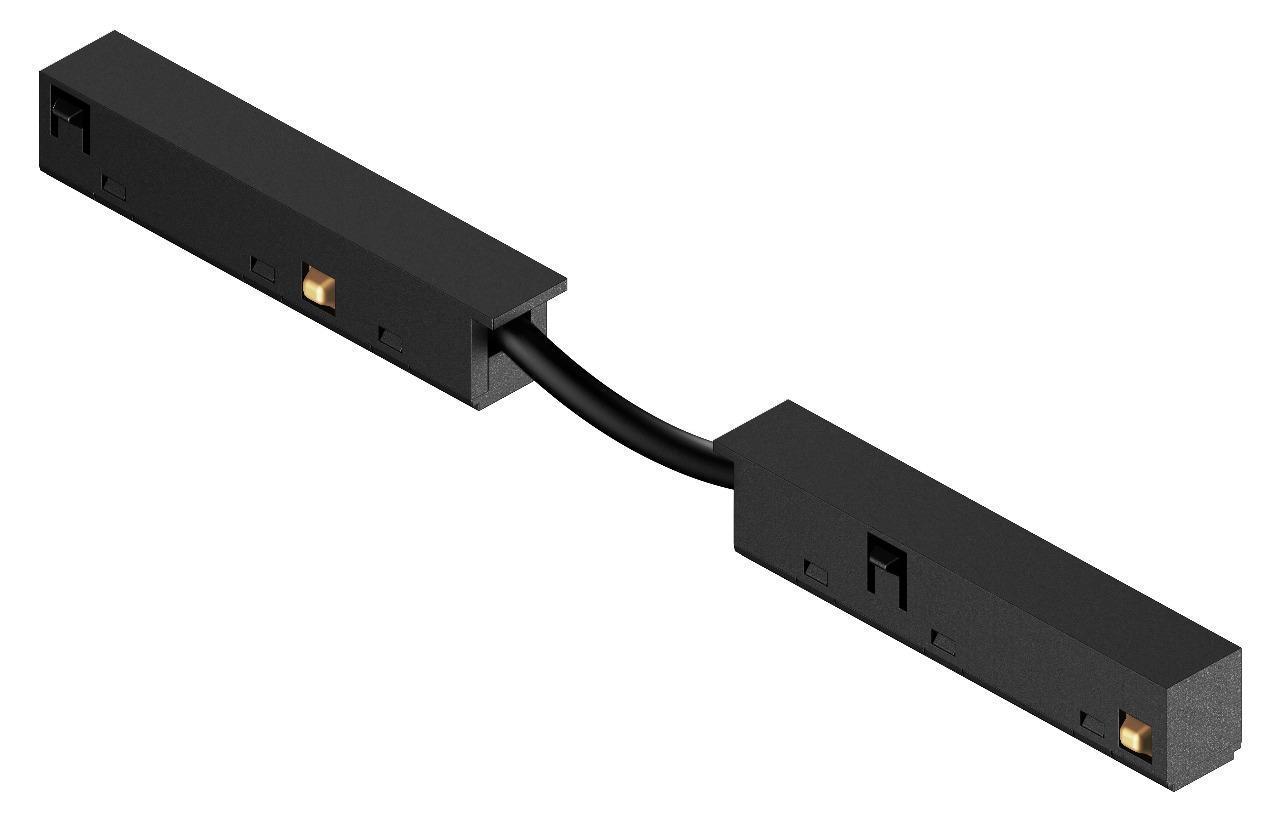

LBMGA221
LARKHALL LBMGA221 - LIGHTING ACCESSORIES

LBMGA221
LBMGA221.WWH

LBMGA221
LUMIBRIGHT LARKHALL SERIES POWER CONNECTOR FOR TRACK

LBMGA219
LARKHALL LBMGA219 - LIGHTING ACCESSORIES

LBMGA219
LBMGA219.PAW

LBMGA219
LUMIBRIGHT LARKHALL SERIES 48VDC CURVED TRACK

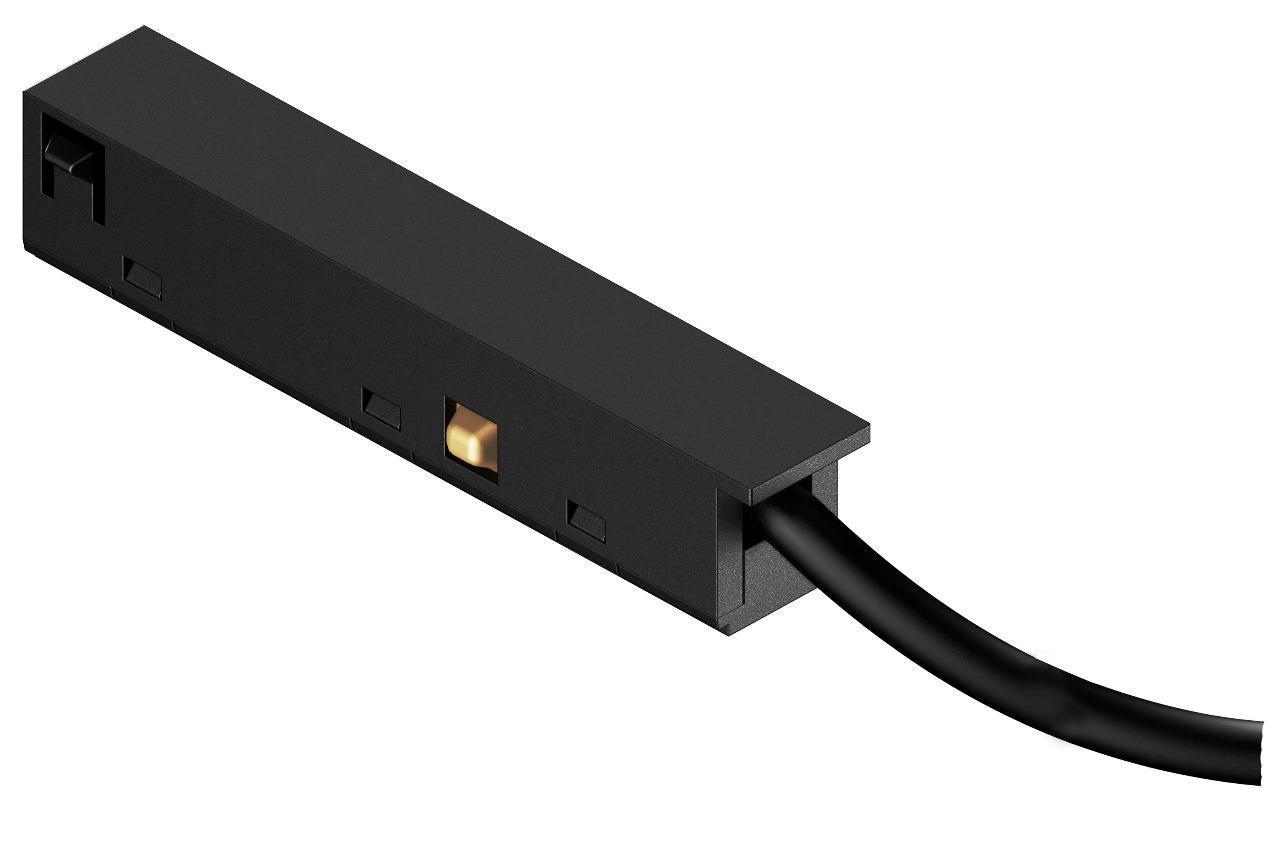

LBMGA220
LARKHALL LBMGA220 - LIGHTING ACCESSORIES

LBMGA220
LBMGA220.WWH

LBMGA220
LUMIBRIGHT LARKHALL SERIES POWER FEED FOR TRACK
LBMGA217
LARKHALL LBMGA217 - LIGHTING ACCESSORIES
LBMGA217
LBMGA217.PAW
LBMGA217
LUMIBRIGHT LARKHALL SERIES 2.25M MAGNETIC STRAIGHT TRACK

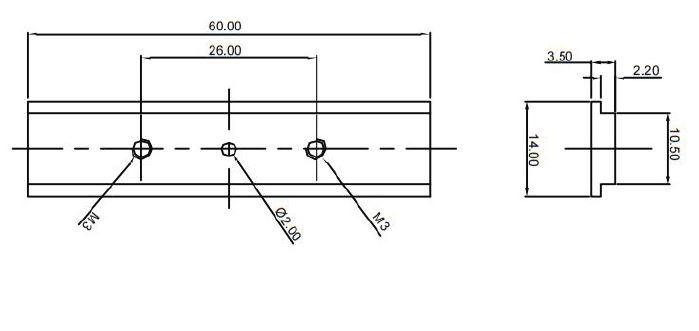

LBMGA218
LARKHALL LBMGA218 - LIGHTING ACCESSORIES
LBMGA218
LBMGA218.PAW
LBMGA218
LUMIBRIGHT LARKHALL SERIES I SHAPE CONNECTOR FOR LBMGA217
