Lumi Sys
LITHGOW
LITHGOW is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Magnetic Light
LITHGOW
LITHGOW is a magnetic light family within the LUMIBRIGHT Lumi Sys collection. Explore 5 models, including LBTMG59, LBTMG60, LBTMG65, with model-specific specifications and configuration choices. LBTMG59 specifications include power: 12W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø45x100mm. Compare the LITHGOW range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBTMG59 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ45x100mm | Cut-outNot published |
| LBTMG60 | Wattage30W | CCT3000K | IPIP20 | DimensionsL543xW22xH45mm | Cut-outNot published |

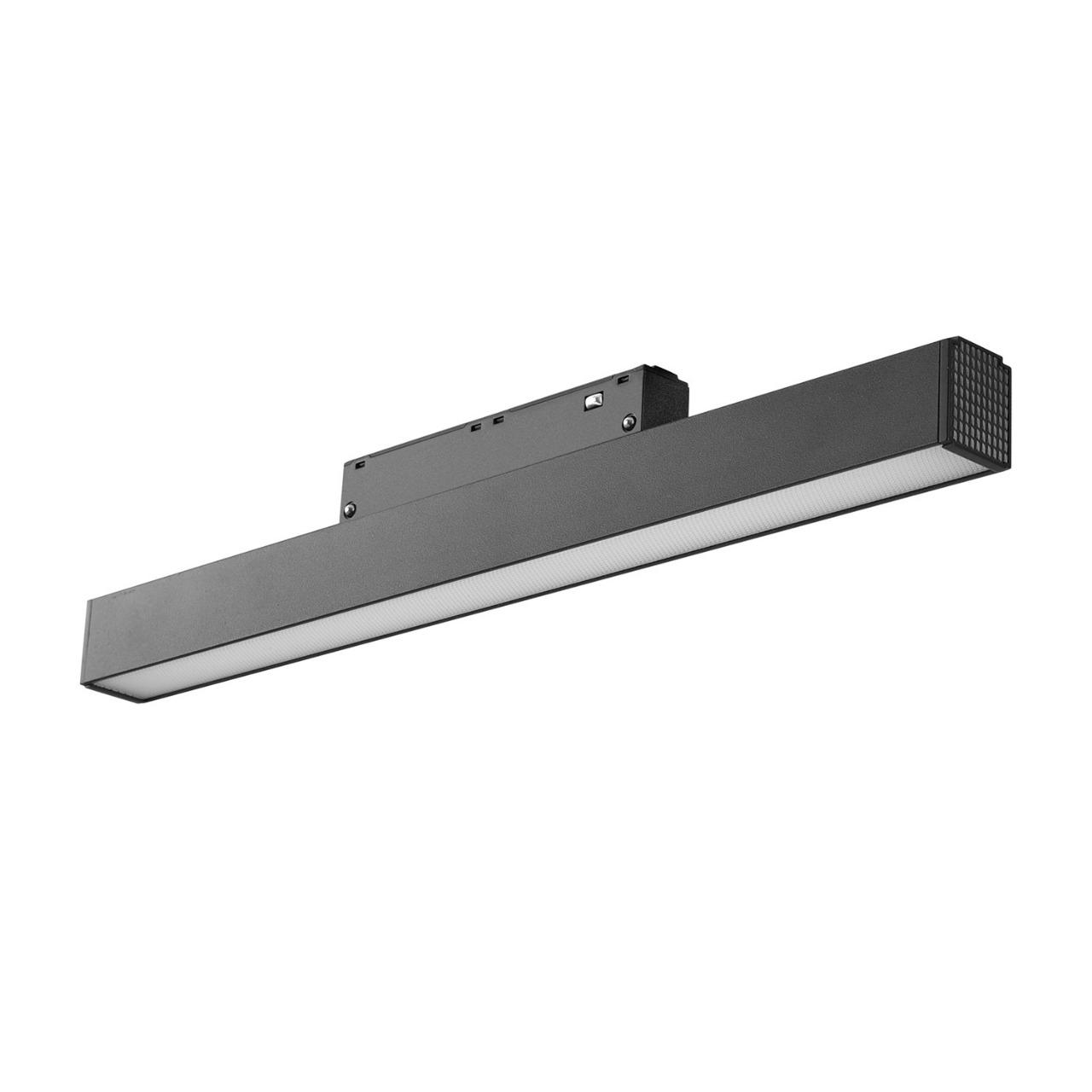

| LBTMG65 | WattageNot published | CCT3000K | IPIP20 | DimensionsL600xW22xH45mm | Cut-outNot published |

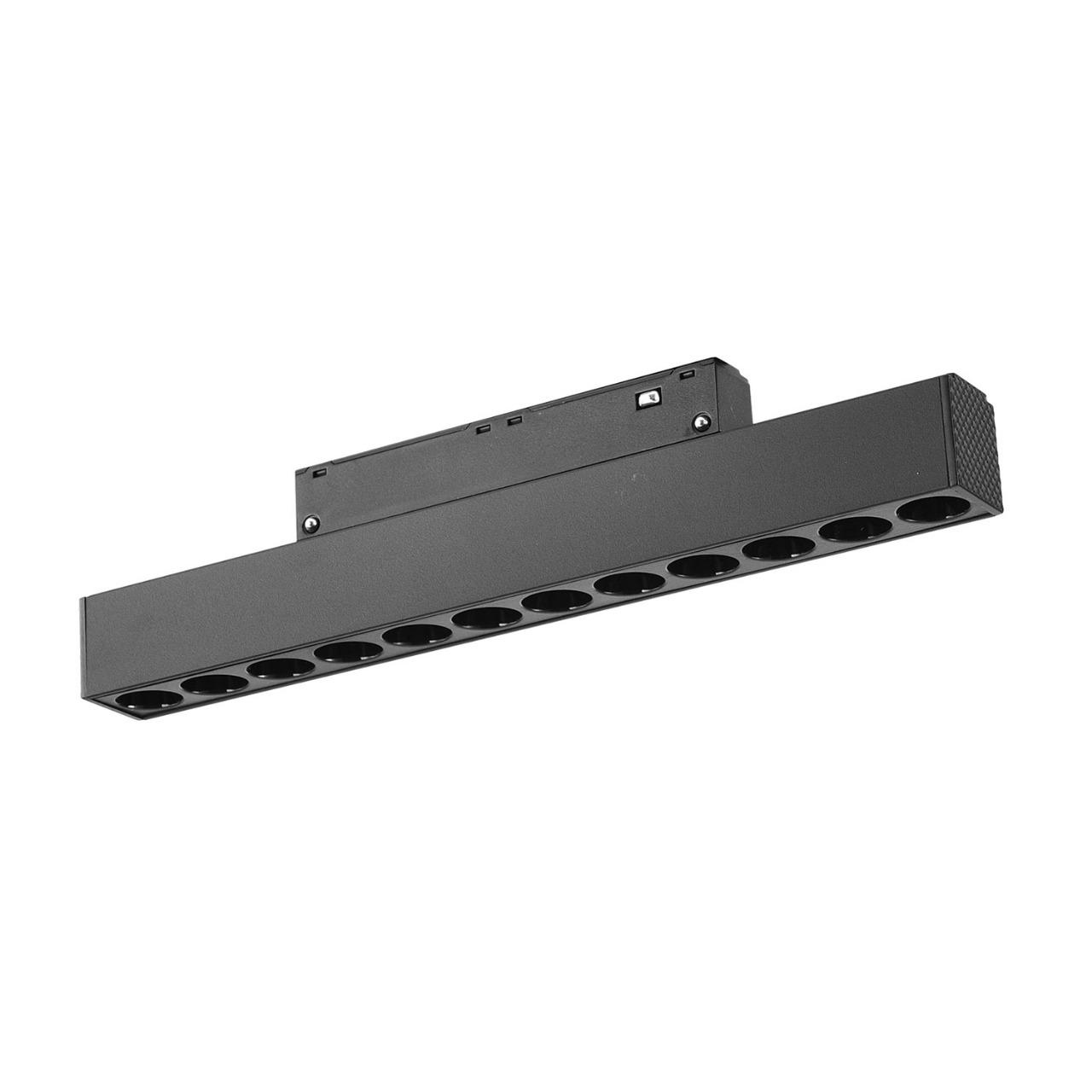

| LBTMG66 | Wattage24W | CCT3000K | IPIP20 | DimensionsL435xW22xH45mm | Cut-outNot published |
| LBTMG67 | Wattage24W | CCTNot published | IPIP20 | DimensionsL270xW35xH150mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø45x100mm · L543xW22xH45mm · L600xW22xH45mm · L435xW22xH45mm +1 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 24W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° · 120° |
| Colour temperature | 3000K |
| CRI Ra | 80 · 90 · ≥80 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing

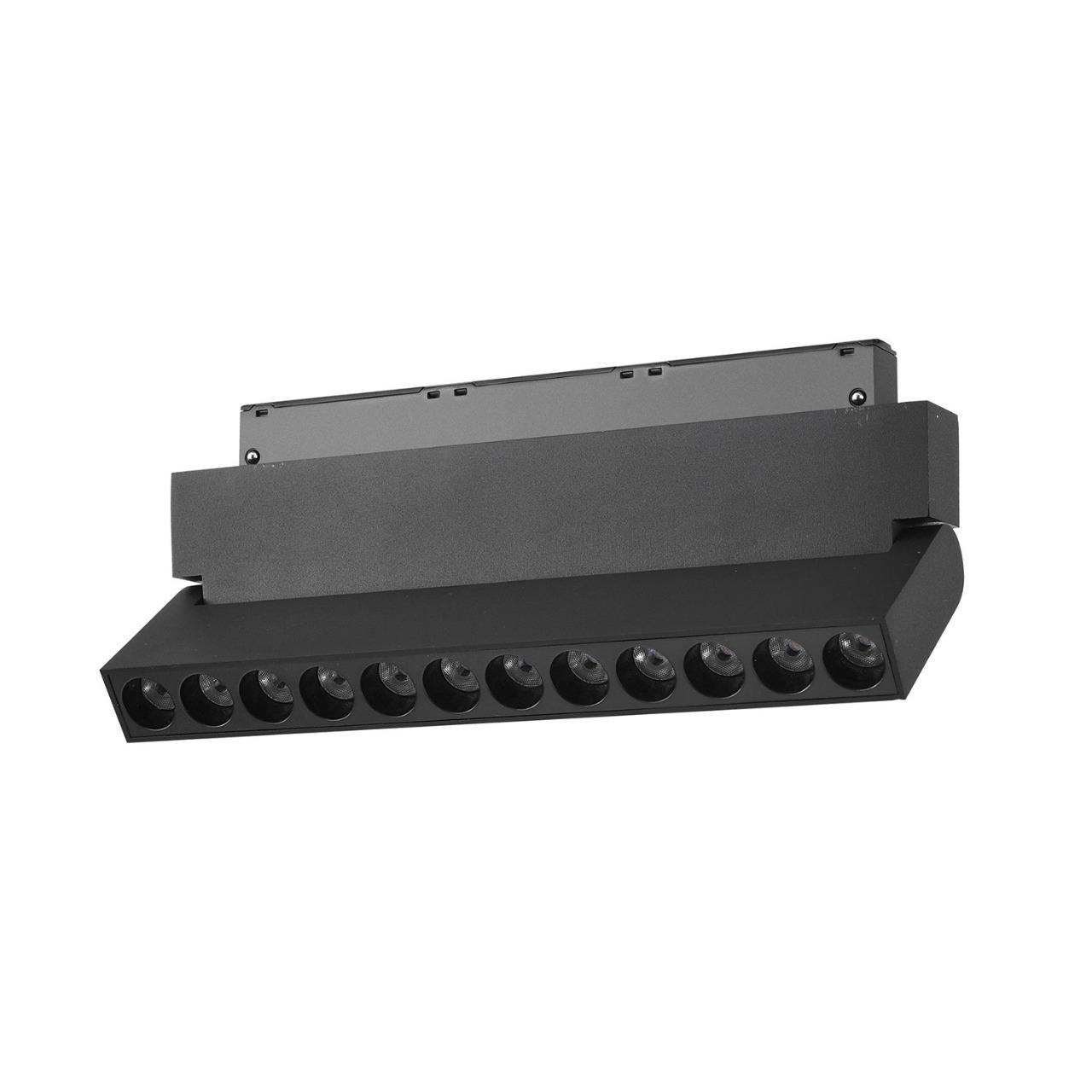

Drawing and sizes shown for model LBTMG67. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBTMG67
L270xW35xH150mm
Specifications
At a Glance
12–30W
Power Range
3 options
Beam: 24°, 36°, 120°
1 CCT
3000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
1 finishes
Body Finish Options
5 sizes
L270xW35xH150mm, L435xW22xH45mm, L543xW22xH45mm, L600xW22xH45mm, Ø45x100mm
Configure your product
LBTMG67
Order code
Listed configurationLBTMG67.W.830.WBK.24
1 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LBTMGA103
LITHGOW-DIM LBTMGA103 - LIGHTING ACCESSORIES
LBTMGA103

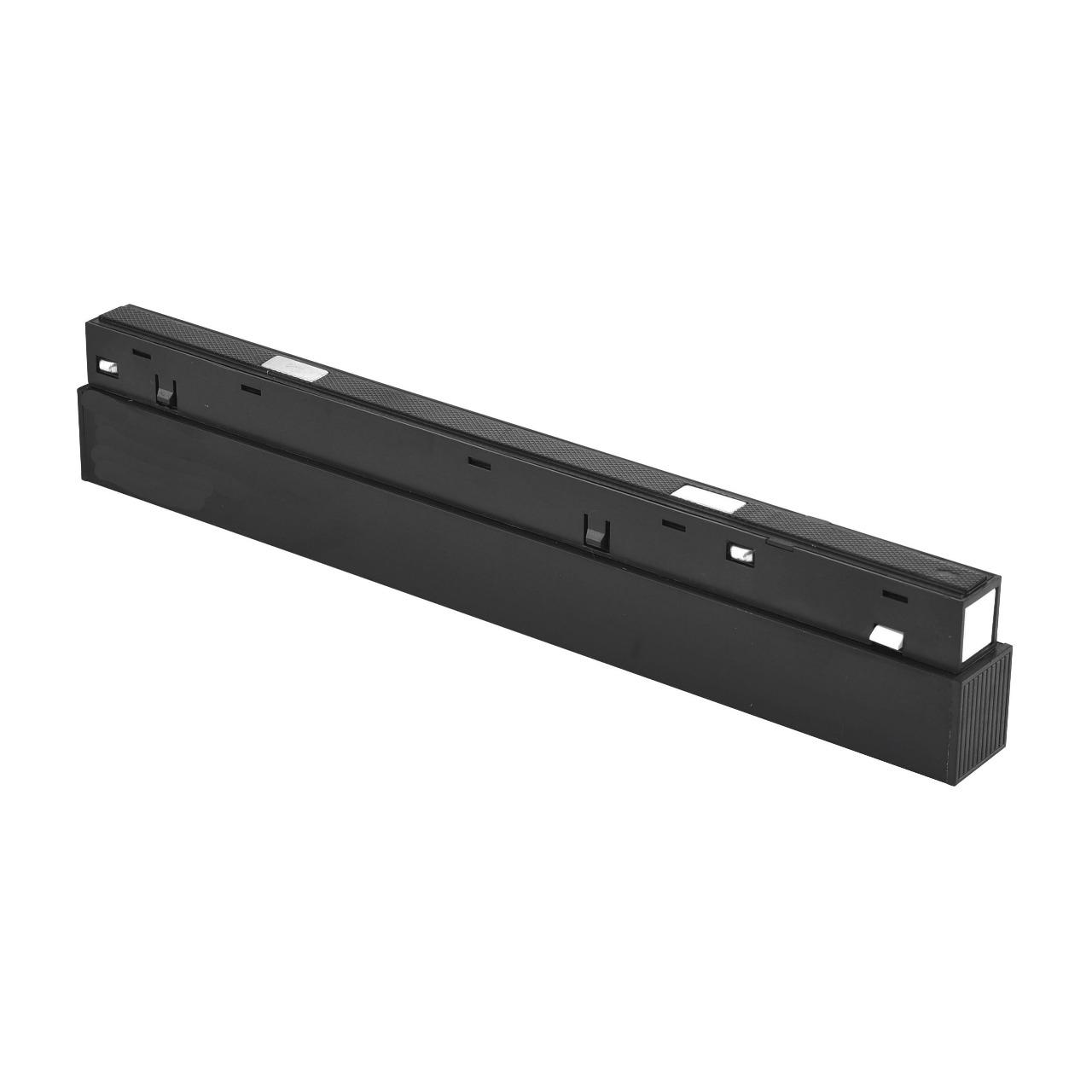

LUMIBRIGHT LITHGOW-DIM SERIES 200W L300XW22XH25 48V 0-10V DIMMING MAGNETIC DRIVER
LBTMGA94
LITHGOW LBTMGA94 - LIGHTING ACCESSORIES
LBTMGA94
LUMIBRIGHT LITHGOW SERIES LBTMGA94 200W 48VDC IP20 MAGNETIC DRIVER
LBTMGA96
LITHGOW LBTMGA96 - LIGHTING ACCESSORIES
LBTMGA96
LBTMGA96.WBK
LBTMGA96
LUMIBRIGHT LITHGOW SERIES FLEXIBLE CONNECTOR LBTMGA96
LBTMGA97
LITHGOW LBTMGA97 - LIGHTING ACCESSORIES
LBTMGA97
LBTMGA97.WBK
LBTMGA97
LUMIBRIGHT LITHGOW SERIES MAGNETIC TRACK CONNECTOR LBTMGA97
LBTMGA95
LITHGOW LBTMGA95 - LIGHTING ACCESSORIES
LBTMGA95
LUMIBRIGHT LITHGOW SERIES STRAIGHT CONNECTOR LBTMGA95
LBTMGA95
LBTMGA95.WBK
LBTMGA93
LITHGOW LBTMGA93 - LIGHTING ACCESSORIES
LBTMGA93
LBTMGA93.WBK
LBTMGA93
LUMIBRIGHT LITHGOW SERIES 2M RECESSED MAGNETIC TRACK WITH END CAP
