Lighting Accessory
MODULAR-EVO
MODULAR-EVO is a accessories and components family within the LUMIBRIGHT Lumi Sys collection. The current catalogue groups 12 article codes under this family, including LBMF158, LBMF159, LBMF160. For LBMF158, published values include dimensions: Ø52x26mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the MODULAR-EVO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBMF158 | WattageNot published | CCTNot published | IPNot published | DimensionsØ52x26mm | Cut-outØ45mm |

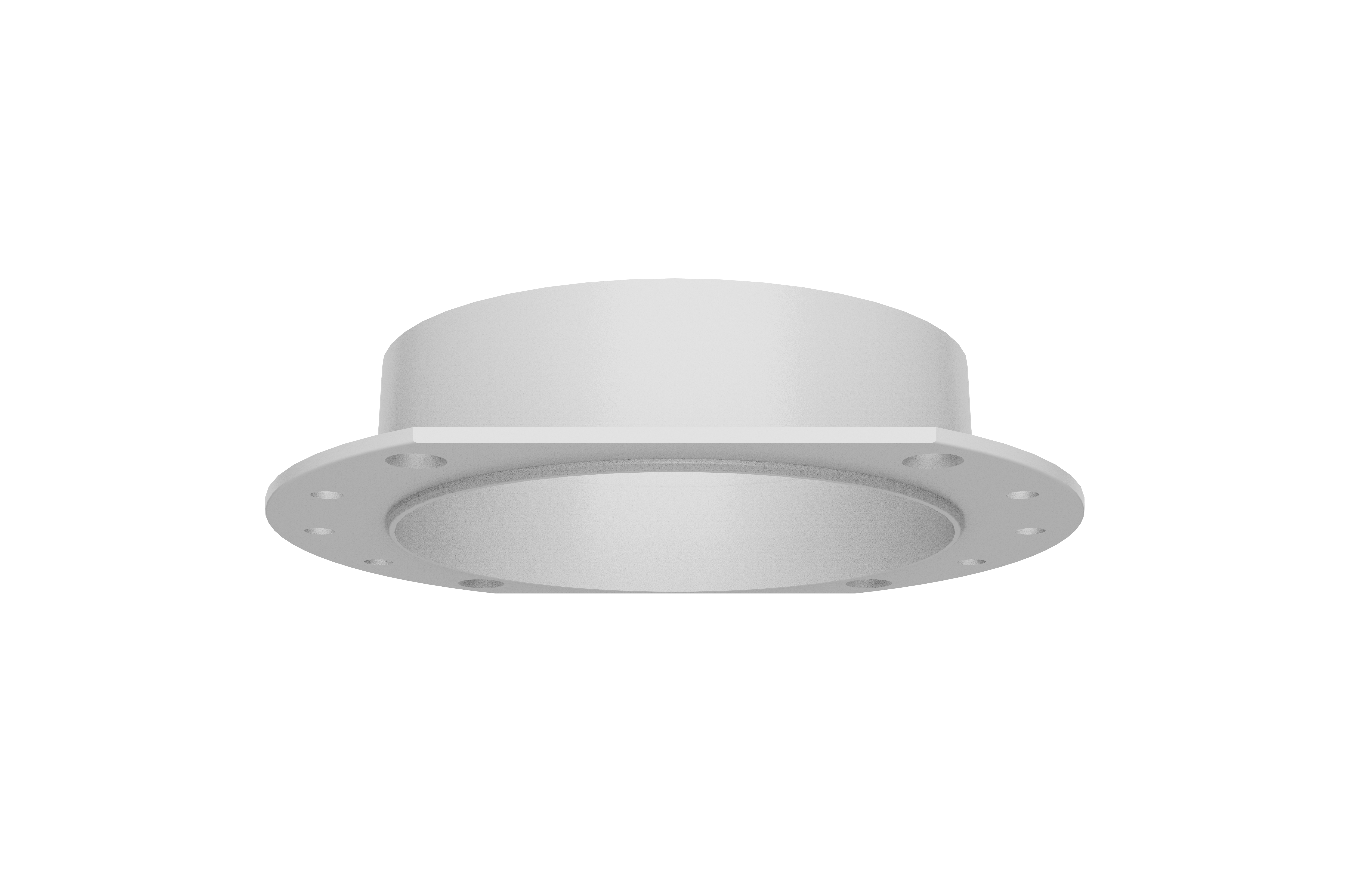

| LBMF159 | WattageNot published | CCTNot published | IPNot published | DimensionsØ65x20mm | Cut-outØ45mm |

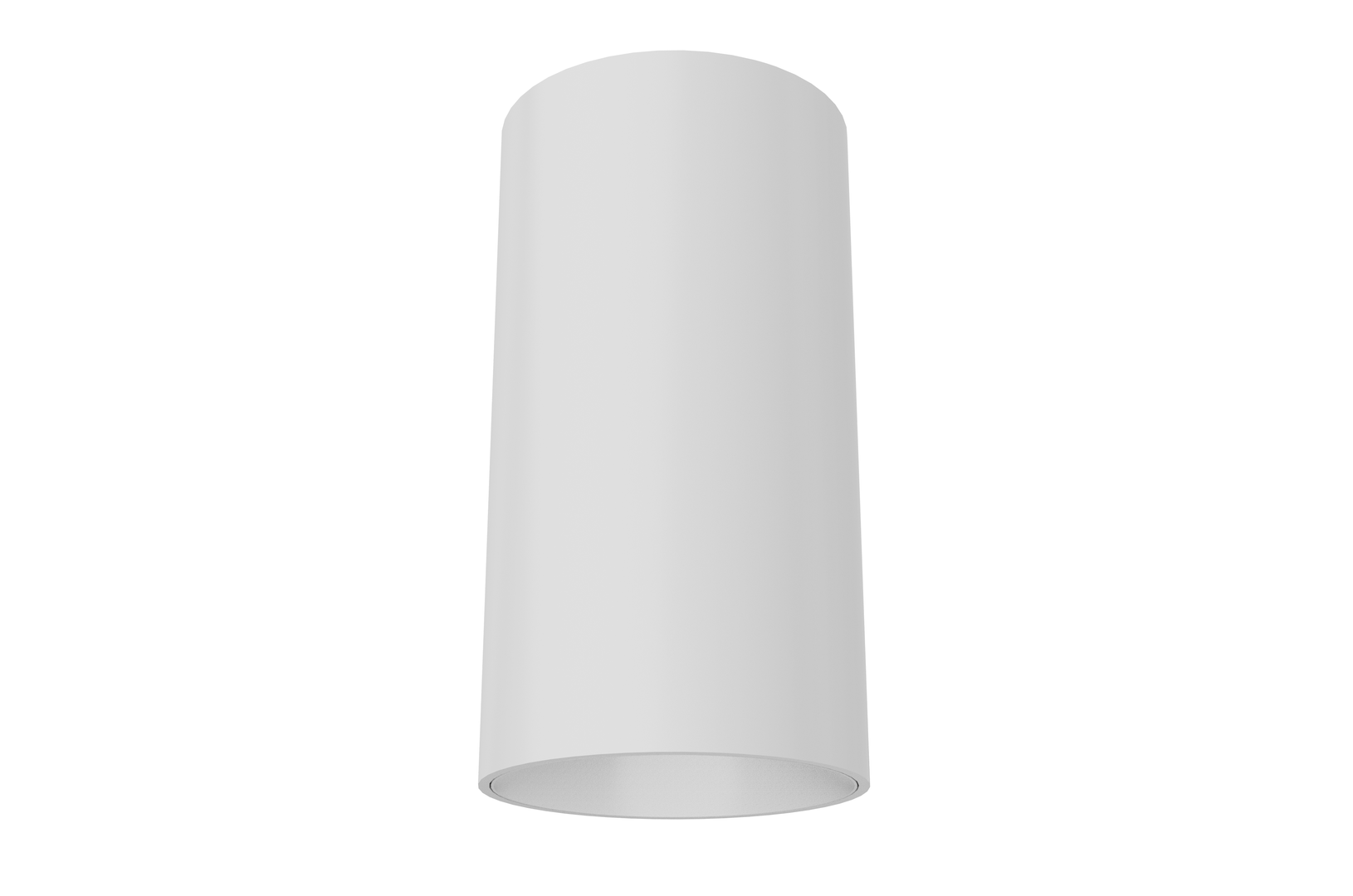

| LBMF160 | Wattage7W | CCTNot published | IPNot published | Dimensions∅41*H110mm | Cut-outNot published |
| LBMF161 | WattageNot published | CCTNot published | IPNot published | Dimensions55xH100 mm | Cut-out45x90mm |
| LBMF162 | Wattage12W | CCTNot published | IPNot published | Dimensions∅62*H23mm | Cut-out55mm |
| LBMF163 | Wattage12W | CCTNot published | IPNot published | Dimensions∅62*H23mm | Cut-out55mm |
| LBMF164 | Wattage12W | CCTNot published | IPNot published | Dimensions∅49*H120mm | Cut-outNot published |
| LBMF165 | Wattage12W | CCTNot published | IPNot published | Dimensions65*H120mm | Cut-out55x110 |
| LBMF166 | Wattage18W | CCTNot published | IPNot published | DimensionsD82*H24 mm | Cut-out75mm |
| LBMF167 | WattageNot published | CCTNot published | IPNot published | DimensionsD95*H20mm | Cut-out75mm |
| LBMF168 | WattageNot published | CCTNot published | IPNot published | DimensionsD69.5*H130 mm | Cut-outNot published |
| LBMF169 | Wattage18W | CCTNot published | IPNot published | Dimensions85*160 MM | Cut-out75*150 mm |
Technical Data
Full Specification
| Dimensions | ∅41*H110mm · Ø52x26mm · Ø65x20mm · 55xH100 mm +7 more |
|---|---|
| Cut-out | Ø45mm · 45x90mm · 55mm · 55x110 +2 more |
| Power | 7W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 36° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | Not published — technical review required |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBMF160. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBMF160
∅41*H110mm
Specifications
At a Glance
7–18W
Power Range
1 finishes
Body Finish Options
11 sizes
55xH100 mm, 65*H120mm, 85*160 MM, D69.5*H130 mm, D82*H24 mm, D95*H20mm, Ø52x26mm, Ø65x20mm, ∅41*H110mm, ∅49*H120mm, ∅62*H23mm
6 cut-outs
45x90mm, 55mm, 55x110, 75*150 mm, 75mm, Ø45mm
