NARROW
Application inspiration · not a project reference
NARROW is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Magnetic Light
NARROW
NARROW is a magnetic light family within the LUMIBRIGHT Lumi Sys collection. Explore 5 models, including LB3742, LB3755, LBTMG05, with model-specific specifications and configuration choices. LB3742 specifications include colour temperature: 3000K. Compare the NARROW range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3742 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |
| LB3755 | Wattage10W | CCT3000 | IPIP20 | Dimensions600x23x48mm | Cut-outNot published |

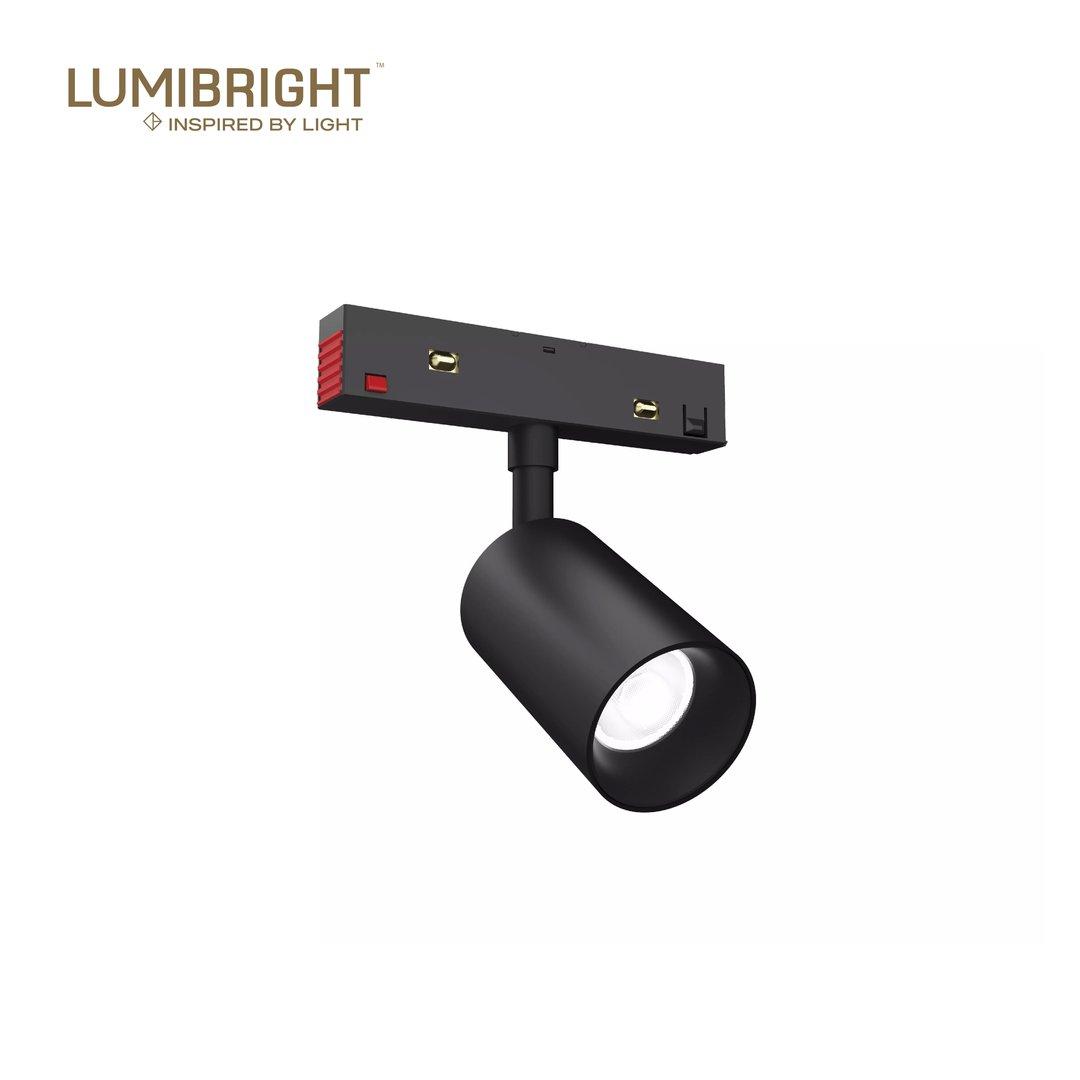

| LBTMG05 | WattageNot published | CCT2700K | IPIP20 | Dimensions115x42x137mm | Cut-outNot published |
| LBTMG06 | Wattage6W | CCT2700K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LBTMG24 | Wattage15W | CCT5000K | IPIP20 | DimensionsL900xW23xH48mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 115x52x177mm · 600x23x48mm · 115x42x137mm · L900xW23xH48mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 12W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° · 110° |
| Colour temperature | 2700K · 3000K · 5000K |
| CRI Ra | 90 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC · 48VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white · black · black-sand · Black With Sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing

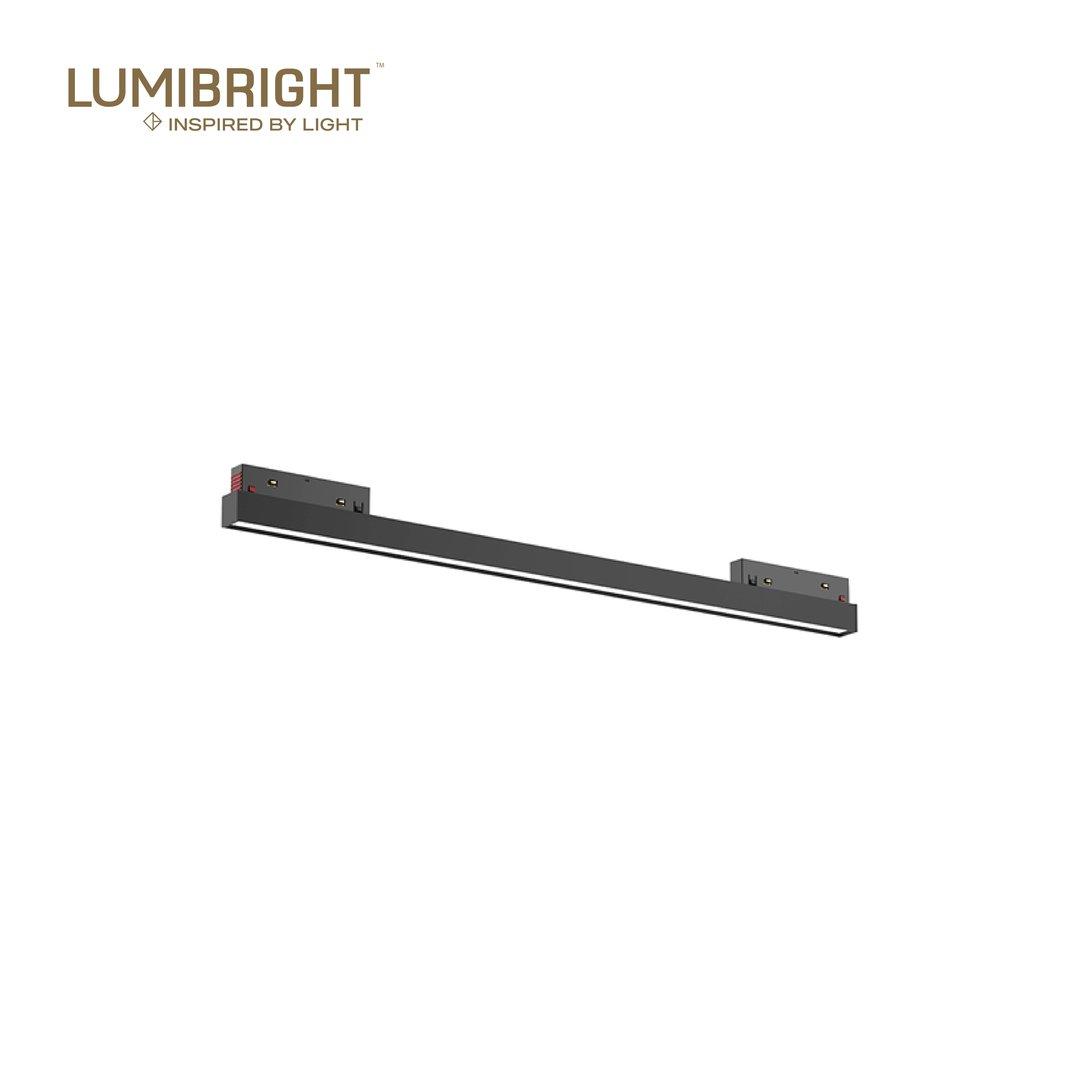

Drawing and sizes shown for model LB3755. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB3755
600x23x48mm
Specifications
At a Glance
6–15W
Power Range
3 options
Beam: 24°, 36°, 110°
3 CCT
2700K, 3000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
3 sizes
115x42x137mm, 600x23x48mm, L900xW23xH48mm
Configure your product
LB3742
Order code
Listed configurationLB3742.W.930.WWH.36
12 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LBTMGA15

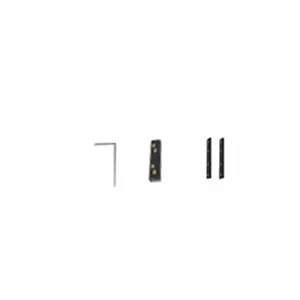

NARROW LBTMGA15 - TRACK ACCESSORIES
LBTMGA15
LBTMGA15.WWH
LBTMGA15
LUMIBRIGHT NARROW TRACK POWER CONNECTOR
LB0885
NARROW LB0885 - LIGHTING ACCESSORIES
LB0885

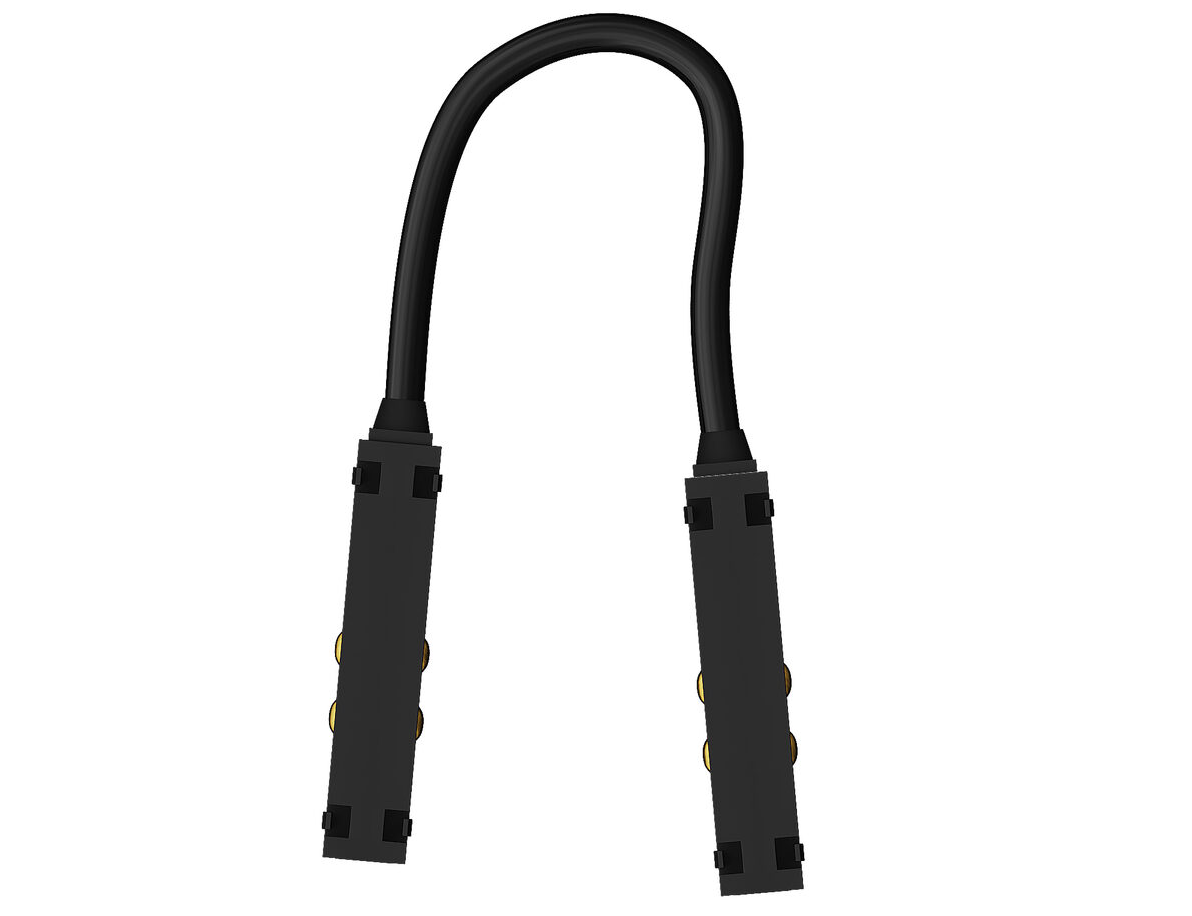

LUMIBRIGHT NARROW SERIES MAGNETIC CORNER POWER CONNECTOR
LB0885
LB0885.WWH
LBTMGA12
NARROW LBTMGA12 - TRACK ACCESSORIES
LBTMGA12
LBTMGA12.WWH
LBTMGA12

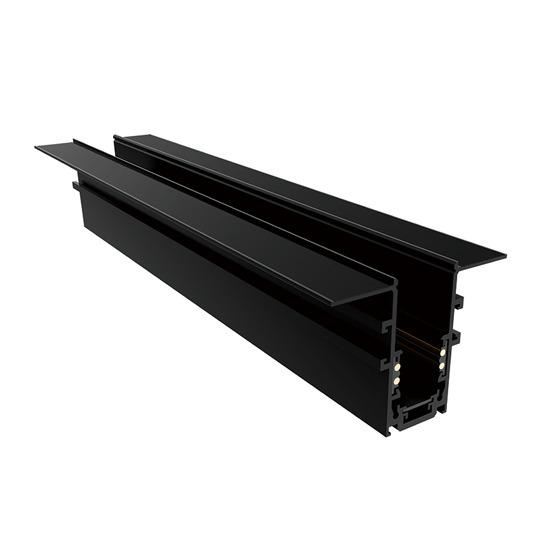

LUMIBRIGHT NARROW Ø2000x72.3x46.9MM MAGNETIC RECESSED TRACK
LBTMGA16
NARROW LBTMGA16 - TRACK ACCESSORIES
LBTMGA16
LBTMGA16.WWH
LBTMGA16
LUMIBRIGHT NARROW CORNER POWER CONNECTOR
LBTMGA13
NARROW LBTMGA13 - TRACK ACCESSORIES
LBTMGA13
LBTMGA13.WWH
LBTMGA13

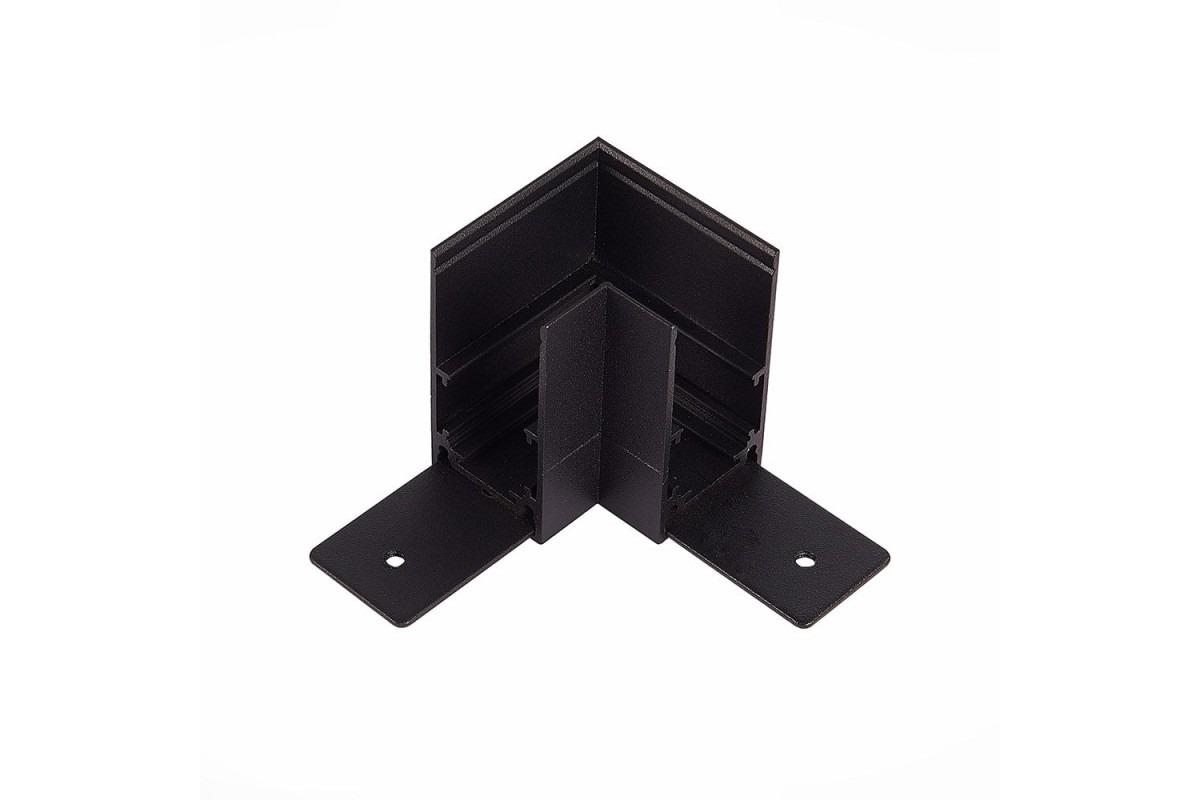

LUMIBRIGHT NARROW RIGHT ANGLE CORNER CONNECTOR
