OMNIA
OMNIA is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Magnetic Light
OMNIA
OMNIA is a magnetic light family within the LUMIBRIGHT Lumi Sys collection. Explore 33 models, including LBMG321, LBMG322, LBMG323, with model-specific specifications and configuration choices. LBMG321 specifications include power: 10W; colour temperature: 2700K/3000K/4000K/6000K; IP rating: IP20; dimensions: L300xW22x25mm. Compare the OMNIA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBMG321 | Wattage10W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL300xW22x25mm | Cut-outNot published |
| LBMG322 | Wattage15W | CCT2700K/3000K/4000K/6000K | IPNot published | DimensionsL450xW22x25mm | Cut-outNot published |
| LBMG323 | Wattage20W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL600xW22x25mm | Cut-outNot published |
| LBMG324 | Wattage30W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL900xW22x25mm | Cut-outNot published |
| LBMG325 | Wattage6W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL112xW22xH25mm | Cut-outNot published |
| LBMG326 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPNot published | DimensionsL220xW22xH25mm | Cut-outNot published |
| LBMG327 | Wattage18W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL330xW22xH25mm | Cut-outNot published |
| LBMG328 | Wattage24W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL440xW22xH25mm | Cut-outNot published |
| LBMG329 | Wattage6W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL112xW22xH110mm | Cut-outNot published |
| LBMG330 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL220xW22xH110mm | Cut-outNot published |
| LBMG331 | Wattage6W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL120xW22xH60mm | Cut-outNot published |
| LBMG332 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL220xW22xH60mm | Cut-outNot published |
| LBMG333 | Wattage18W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL320xW22xH60mm | Cut-outNot published |
| LBMG334 | Wattage7W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ35mm | Cut-outNot published |
| LBMG335 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ50mm | Cut-outNot published |
| LBMG336 | Wattage18W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ60mm | Cut-outNot published |
| LBMG337 | Wattage24W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ80mm | Cut-outNot published |
| LBMG338 | Wattage6W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ30xL300mm | Cut-outNot published |
| LBMG339 | Wattage10W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ40xL300mm | Cut-outNot published |
| LBMG340 | Wattage7W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ80mm | Cut-outNot published |

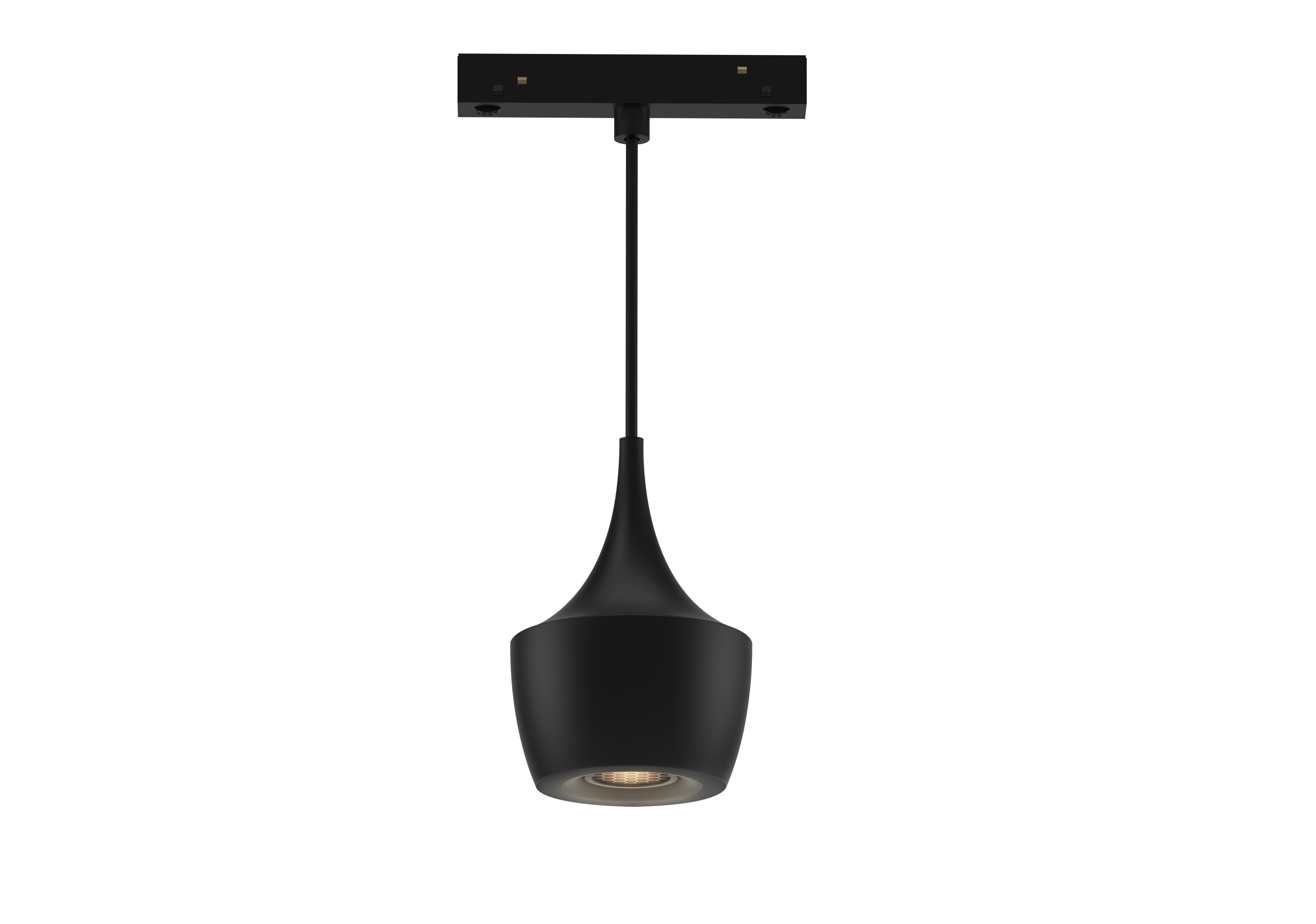

| LBMG346 | Wattage5W | CCT3000K | IPIP20 | DimensionsØ79x120mm | Cut-outNot published |

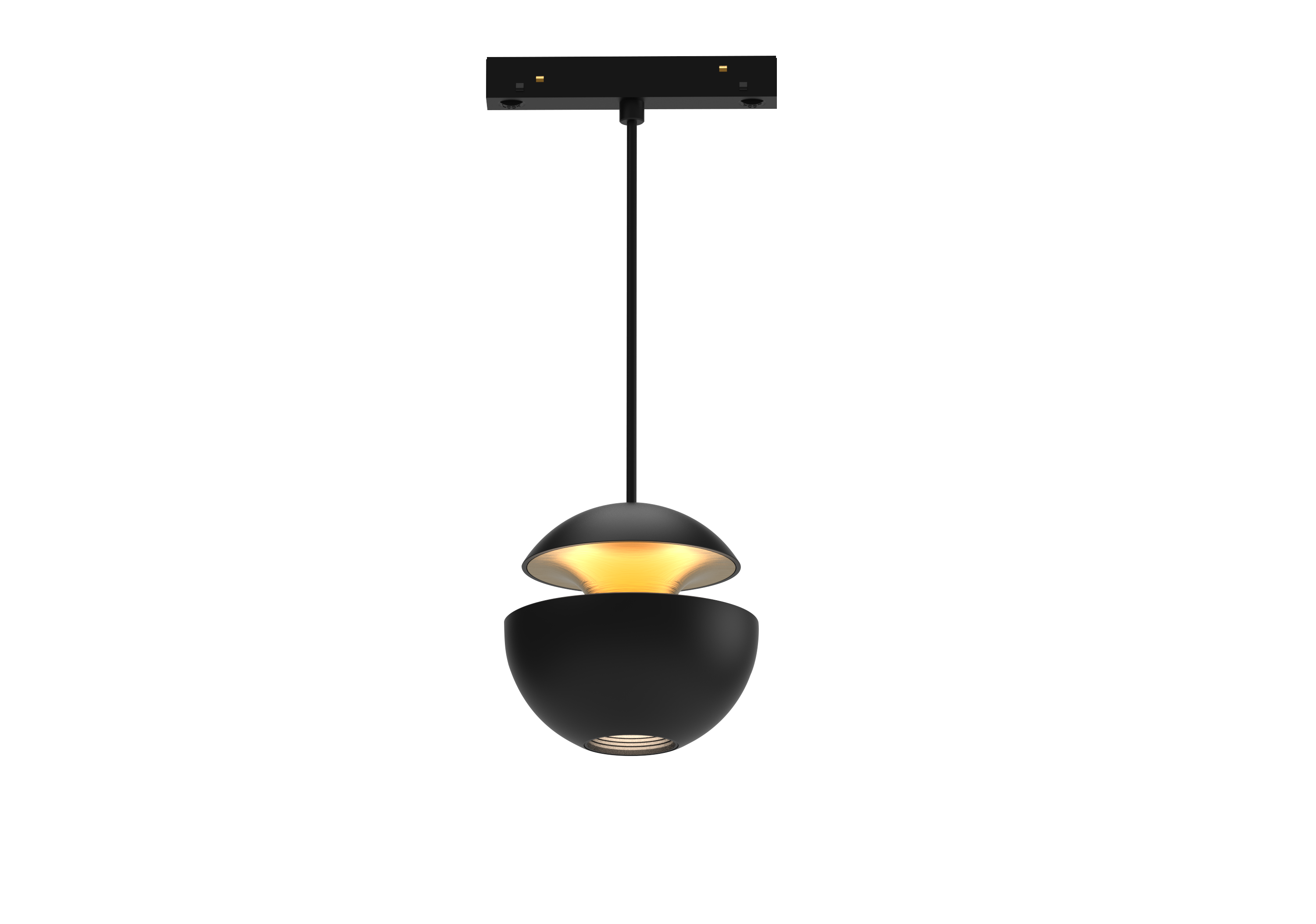

| LBMG349 | Wattage8W | CCT3000K | IPIP20 | DimensionsØ100xH1500mm | Cut-outNot published |
| LBMG350 | Wattage3W | CCT3000K | IPIP20 | DimensionsØ80xH1500mm | Cut-outNot published |
| LBMG351 | Wattage8W | CCT3000K | IPIP20 | DimensionsØ100xH1500mm | Cut-outNot published |

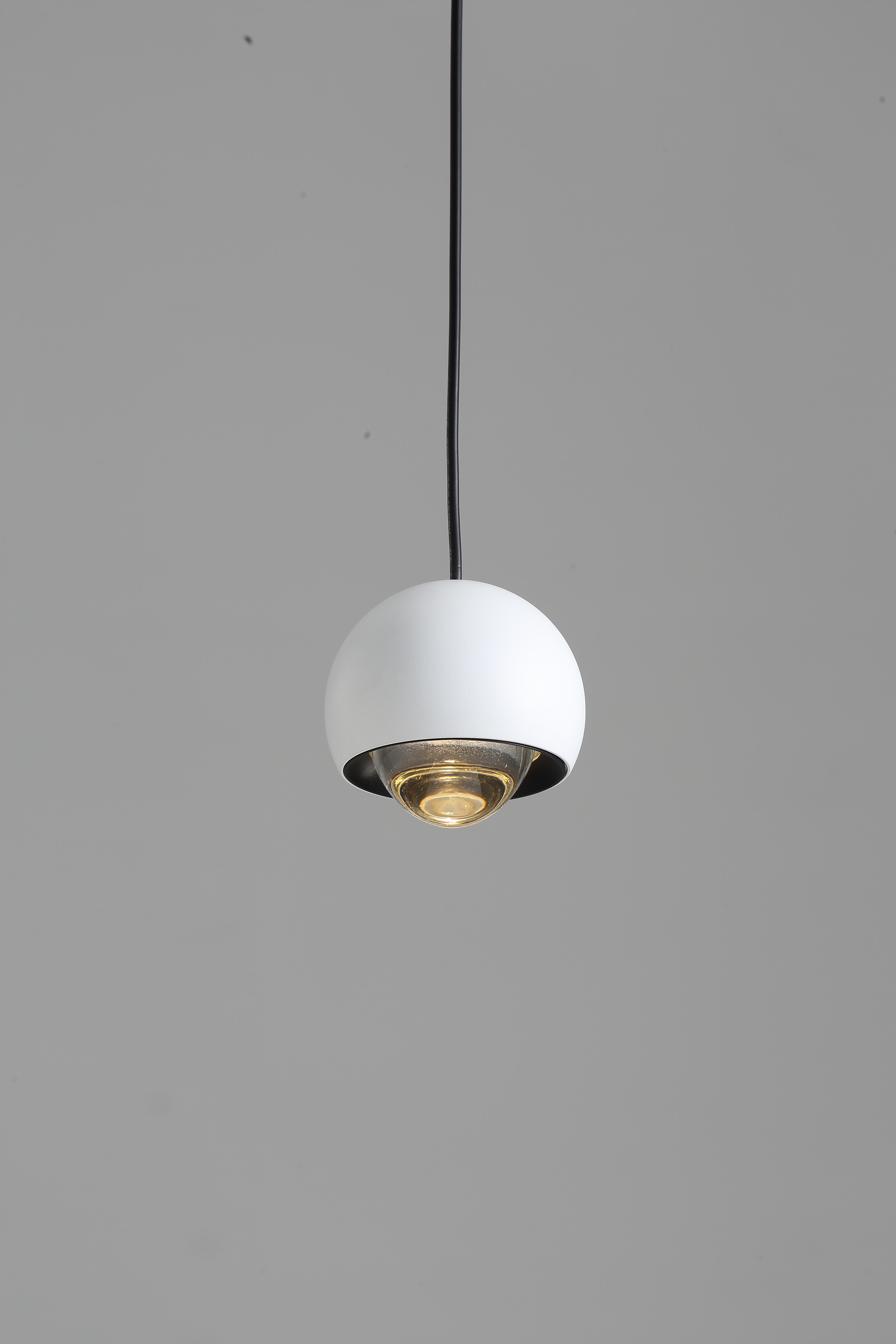

| LBMG352 | Wattage5W | CCT3000K | IPIP20 | DimensionsØ60xH1500mm | Cut-outNot published |

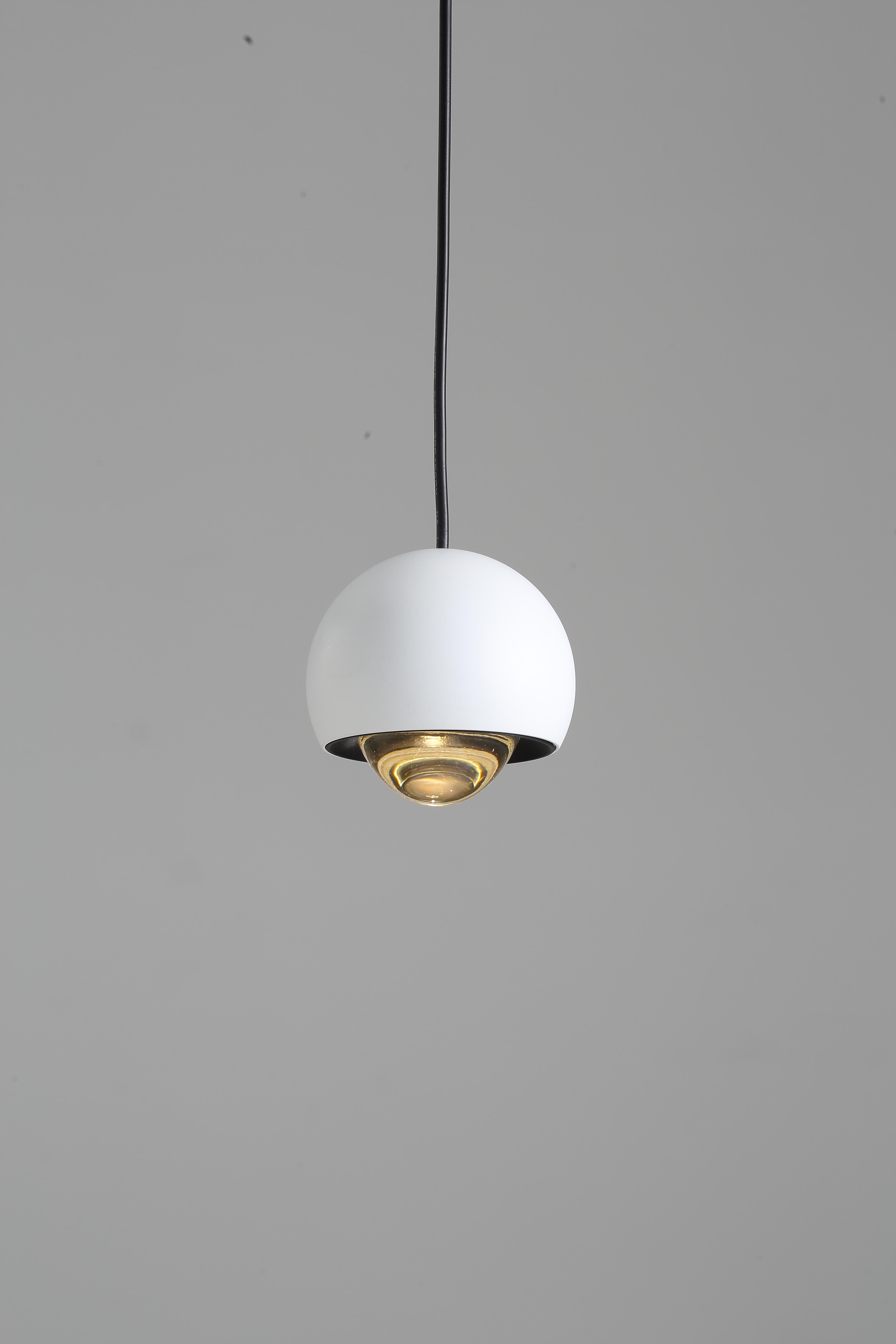

| LBMG353 | Wattage8W | CCT3000K | IPIP20 | DimensionsØ85xH1500mm | Cut-outNot published |
| LBMG354 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ103mm | Cut-outNot published |
| LBMG357 | Wattage2x5W | CCT3000K | IPIP20 | DimensionsØ50mm | Cut-outNot published |
| LBMG358 | Wattage5W | CCT3000K | IPIP20 | DimensionsØ50mm | Cut-outNot published |
| LBMG359 | Wattage5W | CCT3000K | IPIP20 | DimensionsØ50x140mm | Cut-outNot published |
| LBMG360 | Wattage2x5W | CCT3000K | IPIP20 | DimensionsØ50x140mm | Cut-outNot published |
| LBMG369 | Wattage9W | CCT2700K/3000K/4000K/6000K | IPNot published | DimensionsØ130x150mm | Cut-outNot published |
| LBMGA121 | WattageNot published | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø100xH1500mm · L300xW22x25mm · L450xW22x25mm · L600xW22x25mm +23 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 8W · 10W · 15W · 20W +10 more |
| Lumen output | 775lm · 904lm · 1457lm · 431lm +12 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 36° · 100° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 6000K +1 more |
| CRI Ra | 90 · >80 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Die-casting Aluminium |
| Finish | white+golden · black · black+silver · white +6 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
34 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBMG351. This family has 34 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBMG351
Ø100xH1500mm
Specifications
At a Glance
3–30W
Power Range
5 options
Beam: 12°, 15°, 24°, 40°, 100°
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
8 finishes
Body Finish Options
27 sizes
L112xW22xH110mm, L112xW22xH25mm, L120xW22xH60mm, L220xW22xH110mm, L220xW22xH25mm, L220xW22xH60mm, L300xW22x25mm, L320xW22xH60mm, L330xW22xH25mm, L440xW22xH25mm, L450xW22x25mm, L600xW22x25mm, L900xW22x25mm, Ø100xH1500mm, Ø103mm, Ø130x150mm, Ø30xL300mm, Ø35mm, Ø40xL300mm, Ø50mm, Ø50x140mm, Ø60mm, Ø60xH1500mm, Ø79x120mm, Ø80mm, Ø80xH1500mm, Ø85xH1500mm
Configure your product
LBMG351
Order code
Listed configurationLBMG351.W.930.WWH+WGL.36
24 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LBMGA127

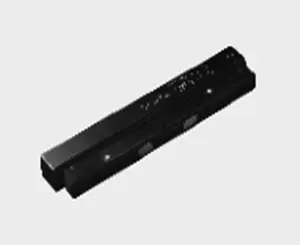

LUMIBRIGHT OMNIA 200W 48VDC MAGNETIC DRIVER

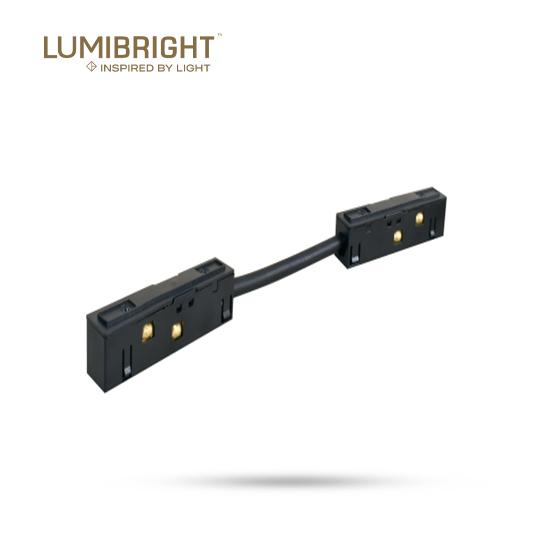

LBMGA124
LUMIBRIGHT OMNIA MAGNETIC CORNER CONNECTOR
LBMGA119

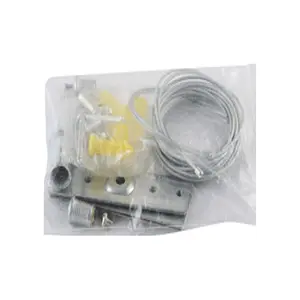

OMNIA LBMGA119 - LIGHTING ACCESSORIES
LBMGA125

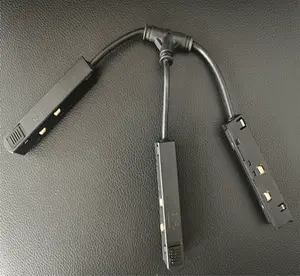

LUMIBRIGHT OMNIA MAGNETIC STRAIGHT CONNECTOR
LBMGA121

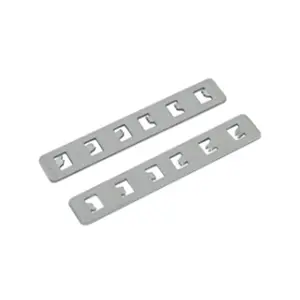

LUMIBRIGHT OMNIA MAGNETIC RECESSED TRACK CONNECTOR
LBMGA120

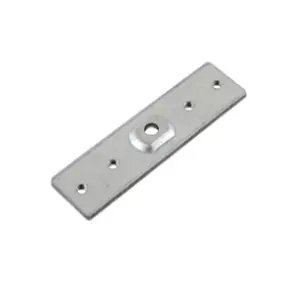

LUMIBRIGHT OMNIA MAGNETIC SURFACE TRACK CONNECTOR
LBMGA119
LUMIBRIGHT OMNIA MAGNETIC SUSPENDED KIT
LBMGA117

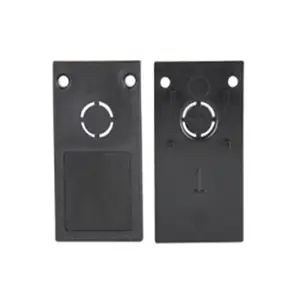

LIGHTING ACCESSORIES LBMGA117 - LIGHTING ACCESSORIES
LBMGA117
LUMIBRIGHT OMNIA RECESSED MAGNETIC END CAP
LBMGA117
LBMGA117.WWH
LBMGA117
LBMGA117.WBK
LBMGA112

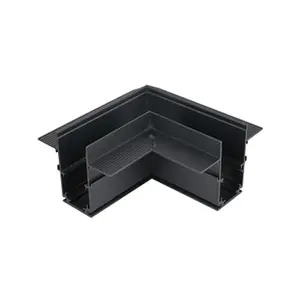

OMNIA LBMGA112 - LIGHTING ACCESSORIES
LBMGA112
LBMGA112.WBK
LBMGA112
LBMGA112.WWH
LBMGA112
LUMIBRIGHT OMNIA HORIZONTAL RECESSED CORNER MAGNETIC CONNECTOR
LBMGA118
OMNIA LBMGA118 - MAGNETIC LIGHT
LBMGA118
LBMGA118.WBK
LBMGA118
LUMIBRIGHT OMNIA SURFACE MAGNETIC END CAP
LBMGA118
LBMGA118.WWH
LBMGA109
LIGHTING ACCESSORIES LBMGA109 - LIGHTING ACCESSORIES
LBMGA109
LBMGA109.WBK
LBMGA109
LUMIBRIGHT OMNIA 3 MTR RECESSED MAGNETIC TRACK
LBMGA109
LUMIBRIGHT OMNIA 3 MTR RECESSED MAGNETIC TRACK
LBMGA108
LIGHTING ACCESSORIES LBMGA108 - LIGHTING ACCESSORIES
LBMGA108

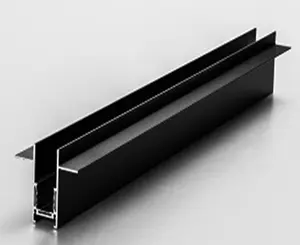

LUMIBRIGHT OMNIA RECESSED MAGNETIC TRACK
LBMGA108
LUMIBRIGHT OMNIA RECESSED MAGNETIC TRACK
LBMGA108
LBMGA108.WBK
LBMGA123

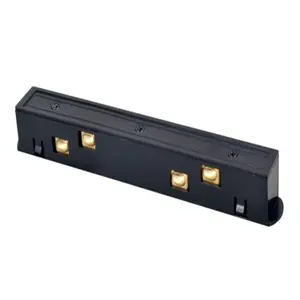

OMNIA LBMGA123 - MAGNETIC LIGHT
LBMGA123
LUMIBRIGHT OMNIA MAGNETIC TRACK POWER JOINING CONNECTOR
LBMGA123
LBMGA123.WBK
LBMGA123
LUMIBRIGHT OMNIA MAGNETIC MIDDLE TRACK CONNECTOR
LBMGA129
OMNIA LBMGA129 - MAGNETIC LIGHT

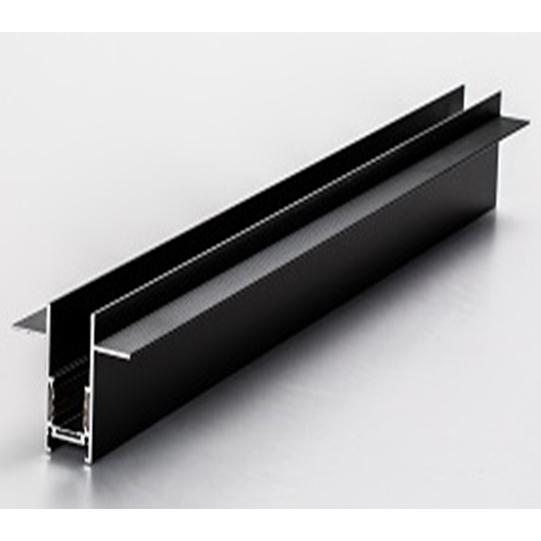

LBMGA129
LUMIBRIGHT OMNIA 1 MTR BLACK RECESSED MAGNETIC TRACK
LBMGA129
LUMIBRIGHT OMNIA 1 MTR RECESSED MAGNETIC TRACK
LBMGA116

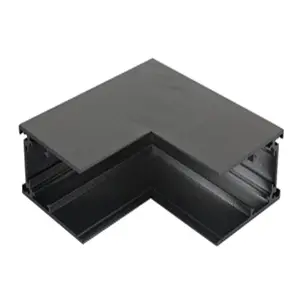

OMNIA LBMGA116 - MAGNETIC LIGHT
LBMGA116
LBMGA116.WBK
LBMGA116
LUMIBRIGHT OMNIA VERTICAL SURFACE CORNER MAGNETIC CONNECTOR
LBMGA115

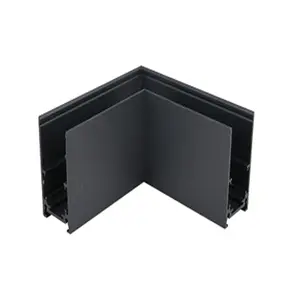

OMNIA LBMGA115 - LIGHTING ACCESSORIES
LBMGA115
LBMGA115.WBK
LBMGA115
LUMIBRIGHT OMNIA HORIZONTAL SURFACE CORNER MAGNETIC CONNECTOR
LBMGA110

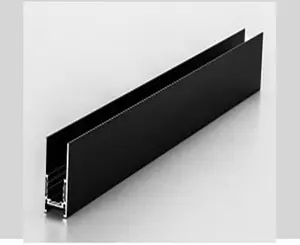

OMNIA LBMGA110 - LIGHTING ACCESSORIES
LBMGA110
LBMGA110.WBK
LBMGA110
LUMIBRIGHT OMNIA 2MTR SURFACE MAGNETIC TRACK

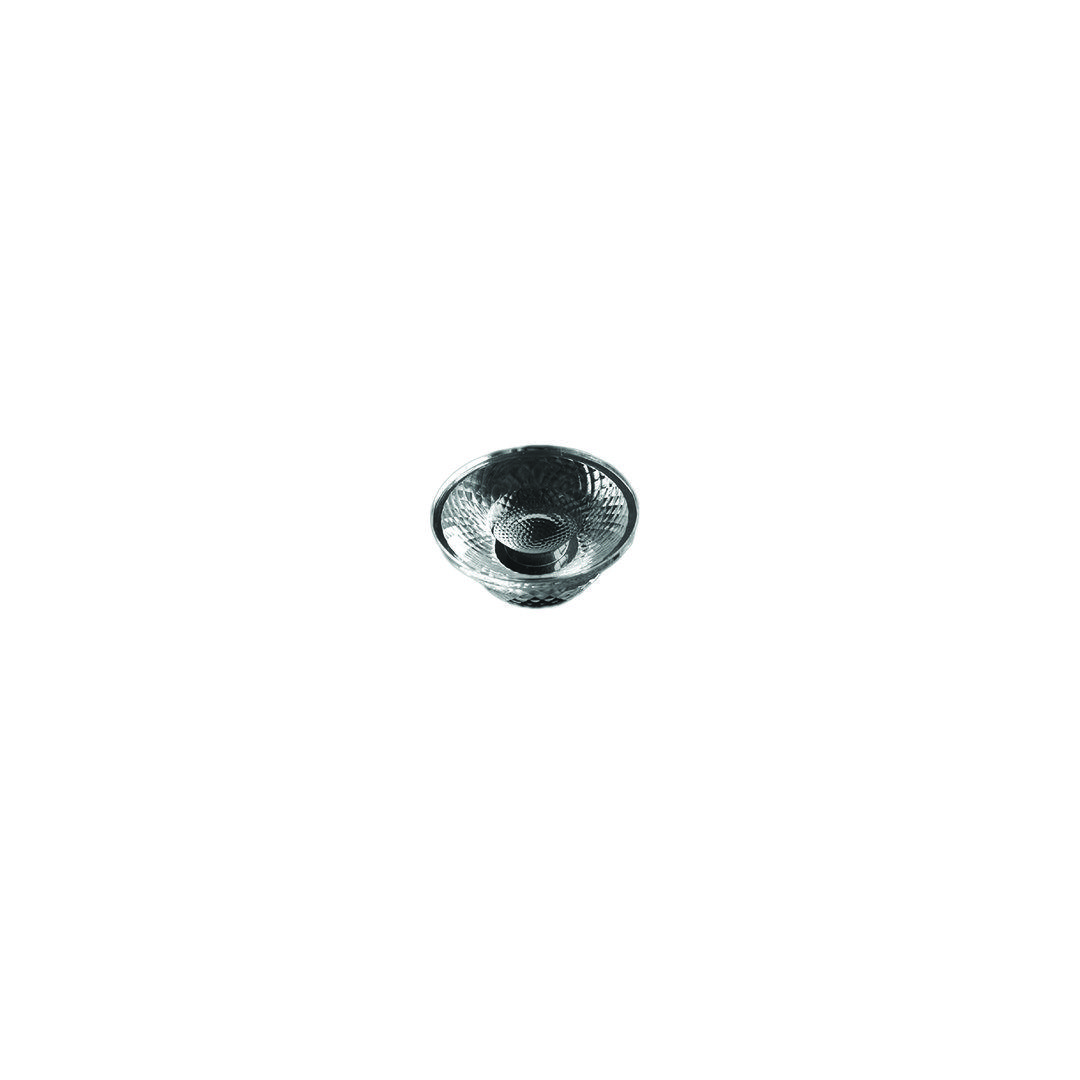

LBC050
OMNIA LBC050 - LIGHTING ACCESSORIES
LBC050
LUMIBRIGHT LENS FOR 12W MAGNETIC SPOTLIGHT LBMG335
LBC050
LBC050.24
LBMGA128
OMNIA LBMGA128 - MAGNETIC LIGHT
LBMGA128
LUMIBRIGHT OMNIA 1MTR BLACK SURFACE MAGNETIC TRACK
LBMGA128
LUMIBRIGHT OMNIA 1MTR SURFACE MAGNETIC TRACK
LBMGA111
OMNIA LBMGA111 - LIGHTING ACCESSORIES
LBMGA126
LUMIBRIGHT OMNIA 100W 48VDC MAGNETIC DRIVER
LBMGA122

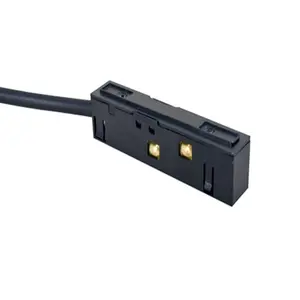

LUMIBRIGHT OMNIA MAGNETIC TRACK POWER CONNECTOR
LBMGA111
LUMIBRIGHT OMNIA 3MTR SURFACE MAGNETIC TRACK
LBMGA111
LBMGA111.WBK
LBMGA114

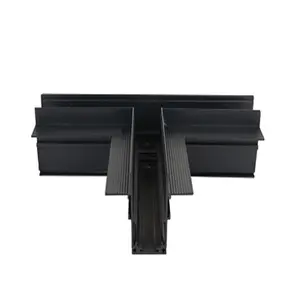

OMNIA LBMGA114 - LIGHTING ACCESSORIES
LBMGA114
LBMGA114.WBK
LBMGA114
LUMIBRIGHT OMNIA RECESSED 48VDC MAGNETIC T-CONNECTOR

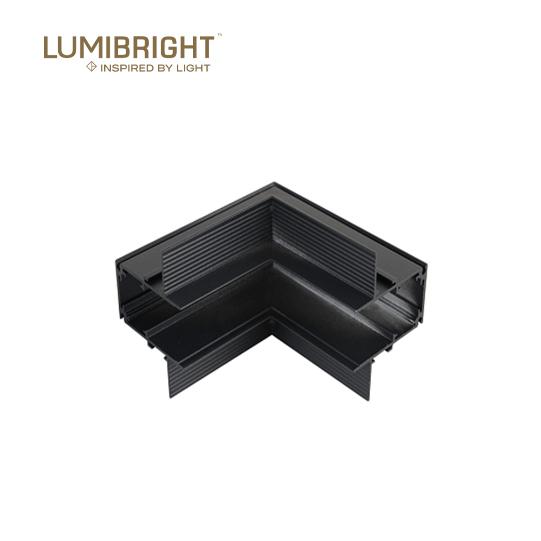

LBMGA113
